WR329P-2xLTE Industrial 4G/ LTE Router

Industrial 8+1G port Cellular PoE Routing Switch,
LTE-E, FDD B1/3/5/7/8/20,
TDD B38/40/41

Model : wr329p 2xlte

Q'ty :

The Innovative and Intelligent LTE routing switch WR329P series is designed to combine functionalities of LTE router and 8-Port power boost PoE+ switch for Smart Bus applications. It can also be used in roadside cabinets or other industrial applications for multi-port Ethernet ports to LTE routing. The flexible modular design allows project customization of enable/disable PoE ports, LTE. Wide Temperature and ruggedized design allow convenient deployment in existing infrastructure under the harsh conditions.

Technology
Standard	3GPP Release 11 Long Term Evolution (LTE), fallback 3GPP Release 7,8,9 for HSPA/UMTS
	IEEE 802.3 10Base-TX Ethernet
	IEEE 802.3u 100Base-TX Fast Ethernet
	IEEE 802.3ab 1000Base-T Gigabit Ethernet copper
	IEEE 802.3af/at Power-over-Ethernet
Interface
Ethernet Port	LAN: 8 x 10/100Base-TX RJ45, Auto Negotiation, IEEE 802.3af/at PoE/PoE+ WAN: 1 x 100/1000Base-T RJ45, Auto Negotiation, Auto MDI/MDI-X
System LED	1 x DO: Red On 1 x Power: Green On 1 x SYS: Ready: Green On, Firmware Updating: Green Blinking 1 x WAN: Link: Green On, Activity: Green Blinking 1 x 1000M:WAM port speed, 1000M: Green On, Not 1000M: Off 3 x Radio (Ra, Rb, Rc): Radio status Ra: SIM1 and 2 detected: Green On, SIM1 or 2 detected: Green Blinking, SIM 1 and 2 not inserted: Off Rb: LTE1: 4G connection: Green On, 2/3G connection: Green blinking, Disconnected :Off Rc: LTE2: 4G connection: Green On, 2/3G connection: Green blinking, Disconnected :Off
Ethernet Port LED	Link: Green On, Activity: Green Blinking, PoE power feeding: Amber on, PoE power not feeding: Off
USB	1 x USB for Configuration/Firmware Update
Reset	System Reset(2~6 Seconds) / Default Settings Reset (over 7 Seconds)
SMA Connector	Up to 5 x RP-SMA Female, 4 for Wi-Fi/LTE, 1 x GPS
Power Input, Digital Output	4-Pin Removable Terminal Block Connector 2 Pin for Power Input 2 Pin for DO (Relay Alarm) DO: Dry Relay Output with 0.5A /24V DC
Optional Expansion Board	RS232/422/485, Digital Input/ Digital Output, MicroSD card for field application, by request
Cellular Properties
Standard	GSM/GPRS/EDGE 3GPP Pelease 6 UMTS/HSPA 3GPP Release 8 LTE 3GPP Release 11
Data Rate	GPRS: DL: max. 85.6 kbps, UL: max.85.6 kbps EDGE: DL: max. 236.8 kbps, UL: max. 236.8 kbps HSPA: DL: max. 42 Mbps, UL: max. 5.76 Mbps LTE-FDD Cat.4: DL: max. 150 Mbps, UL: max. 50 Mbps, 2x2 DL MIMO LTE-TDD Cat.4: DL: max. 130 Mbps, UL: max. 35 Mbps, 2x2 DL MIMO
Band Information: LTE-E	LTE: FDD B1/B3/B5/B7/B8/B20 (2100/1800/850/2600/900/800MHz) LTE: TDD B38/B40/B41 (2600/2300/2500MHz) WCDMA: FDD B1/B5/B8 (2100/850/900MHz) GSM: B3/B8 (1800/900MHz)
Band Information: LTE-U	FDD LTE: B2/B4/B12 (1900/1700/700MHz) WCDMA: B2/B4/B5 (1900/1700/850MHz)
Band Information: LTE-CN	LTE FDD: B1/B3/B5/B8 (2100/1800/850/900MHz) LTE TDD: B38/B39/B40/B41 (2600/1900/2300/2500MHz) TD-SCDMA: B34/B39 (2000/1900MHz) WCDMA: B1/B8 (2100/900MHz) CDMA: BC0 GSM: 900/1800MHz
GPS Properties
GNSS	GPS/GLONASS/BeiDou/Galileo
Performance	Cold start: 18s, Warm start: 2.2s, Hot start: 1.8s
Sensitivity	Cold start: -146dBm, Reacquisition: -157dBm, Tracking: -157dBm
Accuracy	< 1.5M
GNSS Frequency	GPS/Galileo: 1575.42±1.023 MHz GLONASS: 1597.5~1605.8 MHz BeiDou: 1561.098±2.046 MHz
Antenna	Frequency range: 1561~1615MHz Polarization: RHCP or linear VSWR: <2 (Typ.) Passive antenna gain: >0dBi
Software
Management Interface	CGI WebGUI, Command Line Interface (CLI), Telnet, SNMP
Network Time Managemant	SNTP, Cellular Time
Network Management	IPv4/IPv6, DDNS, SNMP v1/v2c/v3/Trap, MIBs, LLDP, DHCP server/client, TFTP, System Log
Traffic Management	NAT Routing, Traffic Control
Security	Firewall, DMZ, Port Forwarding, HTTPs, SSH
Redundancy Protocol	WAN/LTE Redundancy
VPN	IPsec, OpenVPN
Cellular Configuration	Radio on/off, 4G LTE/3G HSPA Configuration, SIM Security, Connection Status, Cellular to Eth-WAN Redundancy, GPS positioning
WLAN Configuration	WLAN Basic Settings: Radio on/off, 2.4G 11n/5G 11ac Band and Frequency selection, SSID/Multi-SSIDconfiguration, SSID broadcast, Cellular to WLAN Auto Offload and advanced WLAN settings, 802.1X
Power Requirement
Input Voltage	12/24VDC(8~32VDC with booster to 54V) min. 8V low-peak auxiliary voltage
Reverse Polarity Protect	Yes
Input Current	5.67A@24VDC, 10.76A@8VDC/60W
Power Consumption	Max 4.8W@24VDC full traffic without PD loading, suggest to reserve 15% tolerance
PoE
Power forwarding mode	Alternative A
PoE Power Budget	System: Max. 120W@70°C/12VDC, Max.60W@70°C/8VDC
PoE Standard	IEEE 802.3af/at
Management	PoE Enable/Disable, System/Port Power Budget Control, PD Alive Check, PoE Scheduling, PoE Status
Mechanical
Installation	Wall mount
Enclosure Material	Steel Metal with Aluminum
Dimension	200(W) x 55(H) x 126(D) mm / without Mounting Clip
Ingress Protection	IP31
Weight	≒1.4KG (TBD)
Environmental
Operating Temperature & Humidity	-40°C~75°C , 5%~95% Non-Condensing
Storage Temperature	-40°C~85°C
MTBF	>200,000 hours
Warranty	5 years
Approval
Safety	EN60950-1 Compliance
EMC	EN61000-6-2/EN61000-6-4
EMI	CISPR 22, FCC part 15B Class A
Radio	RED Compliance Safety: EN 62368-1 EN 50385/EN62311 MPE assessment EN 301 489-1/17/19/52, EN 55032/55024 EN 300 328/EN 301 893 EN 301 908-1 FCC Part 15B
Railway	EN50121-4 Compliance

High Throughput Wireless Performance
• LTE Cat.4, 2x2 MIMO, 150M downlink and 50M uplink
• 4G/3G/2G full cellular network compatibility
     LTE-E:   FDD B1/3/5/7/8/20; TDD B38/40/41
     LTE-AU: FDD B1/B2/B3/B4/B5/B7/B8/B28; TDD B40
    LTE-CN: FDD B1/3/5//8; TDD B38/39/40/41
     LTE-U:   FDD B2/B4/B12
Multiple Ethernet ports
• Supports 8x Fast Ethernet PoE+ ports, provides 100M wire-speed switching
• Supports 1x Gigabit Ethernet WAN port for uplink or NVR
• LAN Switch port to LTE or WAN port routing
• WAN to LTE Redundant
Extreme PoE Capability
• Provides 8-port IEEE 802.3af/at compliance PoE+, up to 30W per port
• 12/24V to 54VDC Booster PoE
• Up to 120W PoE power budget
• Complete PoE management including per-port Power   Budget Control, PoE Scheduling and PoE Status
Enhanced Cyber Security for Critical Application
• Firewall for traffic classification, port forwarding
• Support NAT, DMZ for LAN protection
• Support OpenVPN, IPsec for secure connection
• Support HTTPs/SSH secure login
Management Features
• Various configuration paths, including WebGUI, CLI and SNMP
• Support ViewMaster Utility, Remote configuration software utility and NetMaster NMS System
• Redundancy: Supports WAN to LTE redundancy
• LLDP topology discovery
• Diagnostic tool includes Radio LED, Ping, TFTP, SNMP Trap, E-mail Alert and System Log
• LTE watchdog, auto-reconnect cellular connection
• OPCuA, Cloud monitoring by request
Rugged Design for Bus, Wayside Surveillance, ITS Application
• Railway EMC: EN50121-4 compliance
• IEC61000-6-2/IEC61000-6-4 heavy industrial EMC
• ITS/Traffic Control: NEMA-TS2 compliance
• Vehicle: E-mark compliance
• Radio RED for CE Marking
• Emission: FCC part 15 B Class A
• Effective heat dissipation design for operating in -40~75°C environments

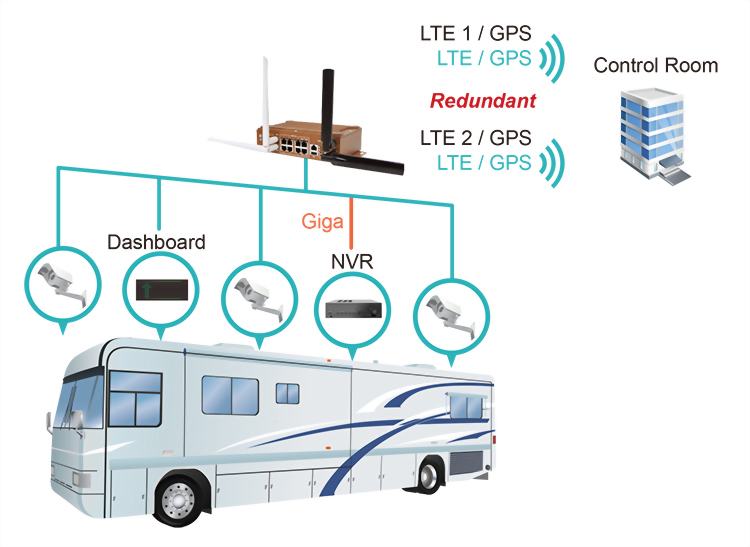

Combine PoE Switch + LTE Gateway (DP210 + WR322G)
8 x 10/100Mbps IEEE 802.3at PoE
1 x Gigabit WAN for NVR / Uplink
Dual Radio, 2 x LTE/GPS
Dual SIM redundant & eSIM supported
8~32V Booster PoE, max. 120W budget

Ordering Information
Model Name
WR309	Industrial 8+1G port Routing Switch
WR309P	Industrial 8+1G port PoE Routing Switch
WA329	Industrial 8+1G port Wireless AP/Client, Dual 802.11ac/n WLAN
WA329P	Industrial 8+1G port PoE Wireless AP/Client, Dual 802.11ac/n WLAN
WR329-WLAN+LTE-E	Industrial 8+1G port Cellular Ethernet Routing Switch, 802.11ac/n WLAN, LTE-E, 2SIM, GPS, FDD B1/3/5/7/8/20, TDD B38/40/41
WR329-WLAN+LTE-CN	Industrial 8+1G port Cellular Ethernet Routing Switch, 802.11ac/n WLAN, LTE-CN, 2SIM, GPS,FDD B1/B3/B5/B8, TDD B38/B39/B40/B41
WR329-WLAN+LTE-U	Industrial 8+1G port Cellular Ethernet Routing Switch, 802.11ac/n WLAN, LTE-U, 2SIM, GPS,FDD B2/4/12, B2/B4/B5@WCDMA
WR329P-WLAN+LTE-E	Industrial 8+1G port Cellular PoE Routing Switch, 802.11ac/n WLAN, LTE-E, 2SIM, GPS, FDD B1/3/5/7/8/20,TDD B38/40/41
WR329P-WLAN+LTE-CN	Industrial 8+1G port Cellular PoE Routing Switch, 802.11ac/n WLAN, LTE-CN, 2SIM, GPS,FDD B1/B3/B5/B8, TDD B38/B39/B40/B41
WR329P-WLAN+LTE-U	Industrial 8+1G port Cellular PoE Routing Switch, 802.11ac/n WLAN, LTE-U, 2SIM, GPS, FDD B2/4/12, B2/B4/B5@WCDMA

	Package List
	1 x Product Unit
	1 x 4-pin Removable Terminal Block Connector
	1 x Quick Installation Guide
