AS -2115HV-TNRT

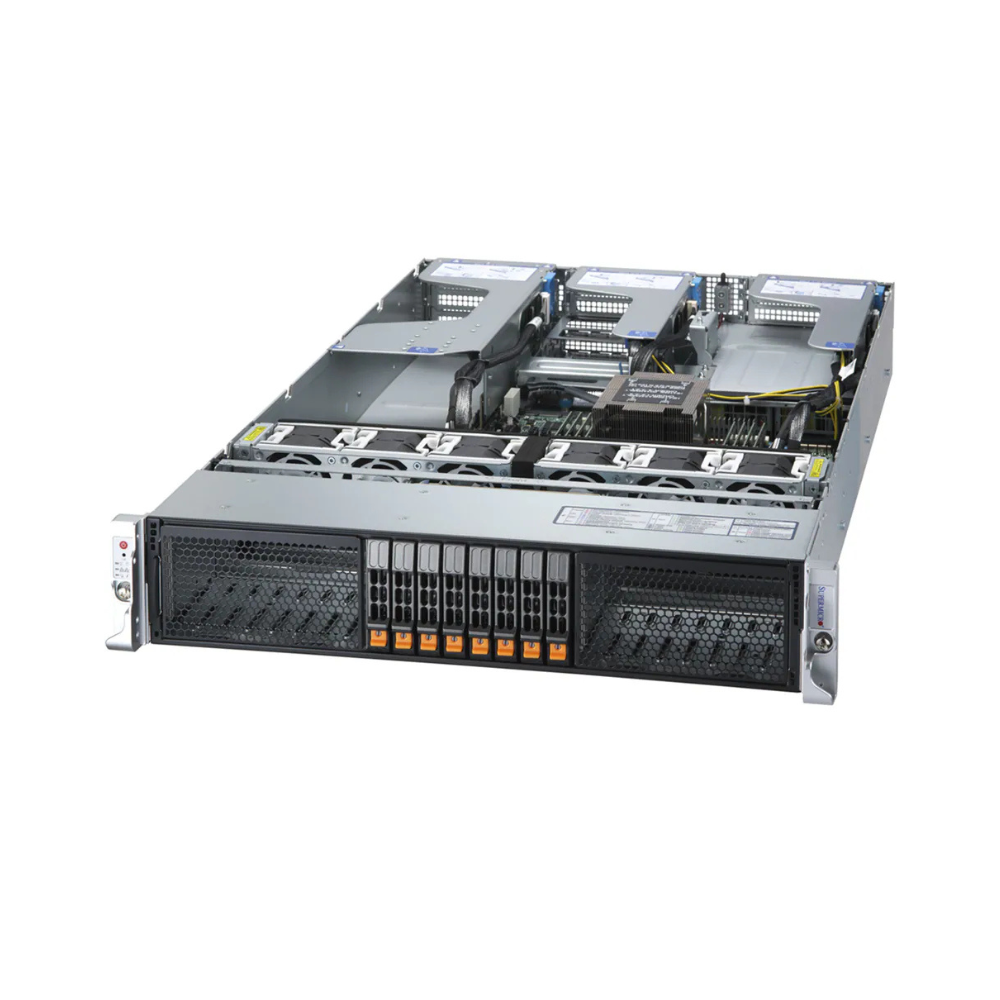

2U UP rackmount workstation with 8 hot-swap NVMe/SAS/SATA drive bays and PCIe 5.0

Model : AS -2115HV-TNRT

Q'ty :

Product SKUs
AS -2115HV-TNRT
Motherboard
Super H13SRH
Processor
CPU	Single Socket sTR5 (LGA-4844) AMD Ryzen(TM) Threadripper PRO 9000WX/7000WX series
Core Count	Up to 96C/192T; Up to 384MB Cache
Note	Supports up to 350W TDP CPUs (Air Cooled)
GPU
Max GPU Count	Up to 4 double-width or 8 single-width GPUs
Supported GPU	NVIDIA PCIe: H200 NVL (141GB), L4, L40S, NVIDIA RTX PRO 4000 Blackwell, NVIDIA RTX PRO 4500 Blackwell, NVIDIA RTX PRO 5000 Blackwell, NVIDIA RTX PRO 6000 Blackwell Max-Q Workstation Edition, RTX 4000 Ada Generation, RTX 4500 Ada, RTX 5000 Ada, RTX 6000 Ada Generation, RTX A6000 AMD PCIe: Instinct MI210, Radeon AI PRO R9700, Radeon AI PRO R9700S View GPU Options
CPU-GPU Interconnect	PCIe 5.0 x16 CPU-to-GPU Interconnect
GPU-GPU Interconnect	PCIe
Certification
System Memory
Memory	Slot Count: 8 DIMM slots Max Memory (1DPC): Up to 2TB 6400MT/s ECC DDR5 RDIMM View Memory Options
Memory Voltage	1.1V
On-Board Devices
Network Connectivity	Via AIOM View AIOM Options View AOC Options
Input / Output
LAN	1 RJ45 1 GbE Dedicated BMC LAN port
USB	2 USB 3.0 ports (rear)
Video	1 VGA port
System BIOS
BIOS Type	AMI 256MB SPI Flash
BIOS Features	UEFI 2.8 SMBIOS 3.5 or later UEFI 2.9 Plug and Play (PnP) USB Keyboard support ACPI 6.5 SMBIOS 3.6 or later
Management
Software	SuperCloud Composer(R) (SCC) Supermicro Server Manager (SSM) Supermicro Update Manager (SUM) Supermicro SuperDoctor(R) 5 (SD5) Super Diagnostics Offline (SDO) Supermicro Thin-Agent Service (TAS) SuperServer Automation Assistant (SAA) New!
Power configurations	ACPI Power Management Power-on mode control for AC power loss recovery Power button override mechanism
Security
Hardware	Trusted Platform Module (TPM) 2.0 Silicon Root of Trust (RoT) - NIST 800-193 Compliant
Features	Cryptographically Signed Firmware Secure Boot Secure Firmware Updates Automatic Firmware Recovery Supply Chain Security: Remote Attestation Runtime BMC Protections System Lockdown
PC Health Monitoring
FAN	Fans with tachometer monitoring Pulse Width Modulated (PWM) fan connectors Status monitor for speed control
Temperature	Monitoring for CPU and chassis environment Thermal Control for fan connectors
Voltage	System temperature, Memory temperature, CPU temperature, 3.3V standby, +5V standby, +5V, +3.3V, +12V, CPU thermal trip support
Certifications
Operating Systems	Ryzen: RHEL 9.3, Windows 11 View all OS Compatibility and Certification Matrix

Chassis
Form Factor	2U Rackmount
Model	CSE-HS201-R0
Dimensions and Weight
Height	3.5" (88.9 mm)
Width	17.2" (437 mm)
Depth	31.74" (806.2 mm)
Package	9.96" (H) x 26.46" (W) x 43.31" (D)
Weight	Gross Weight: 68.5 lbs (31.07 kg) Net Weight: 52.5 lbs (23.81 kg)
Available Color	Silver

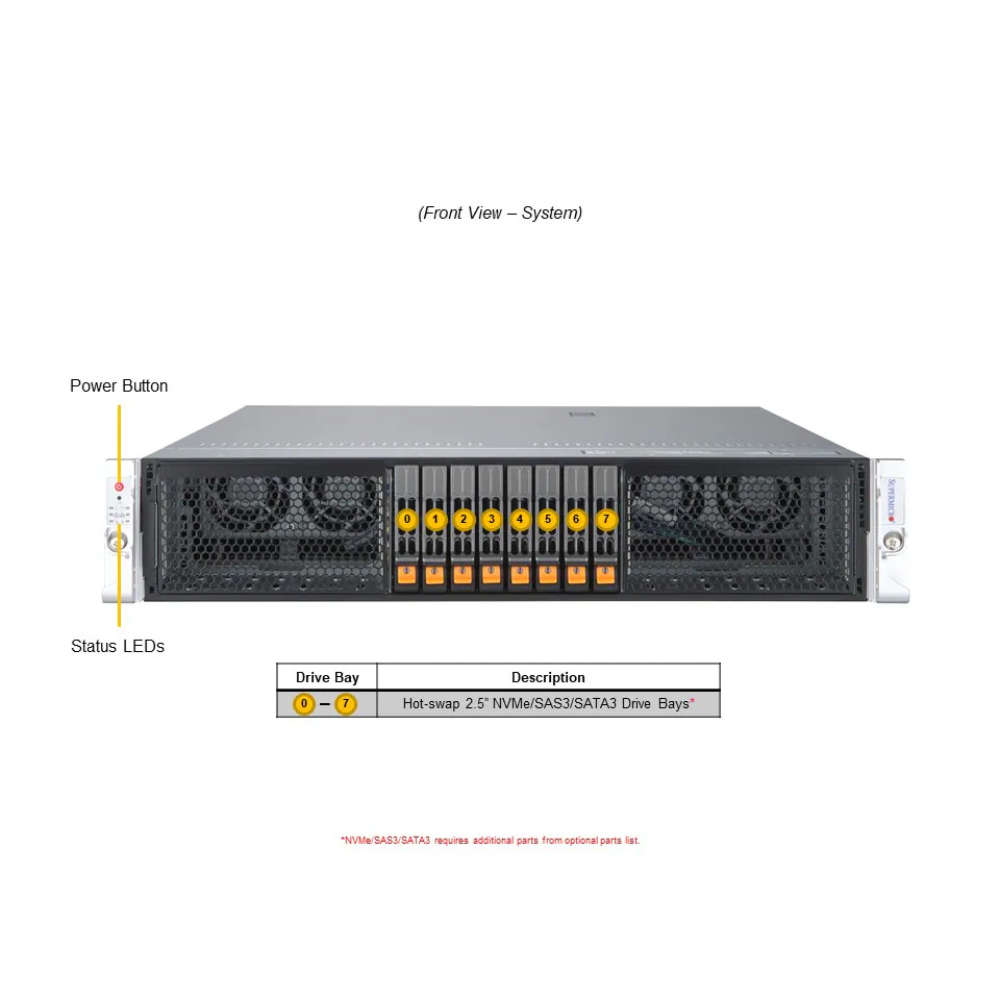

Front Panel
Buttons	Power On/Off UID button
LED	HDD activity LAN1 activity Power status System information
Expansion Slots

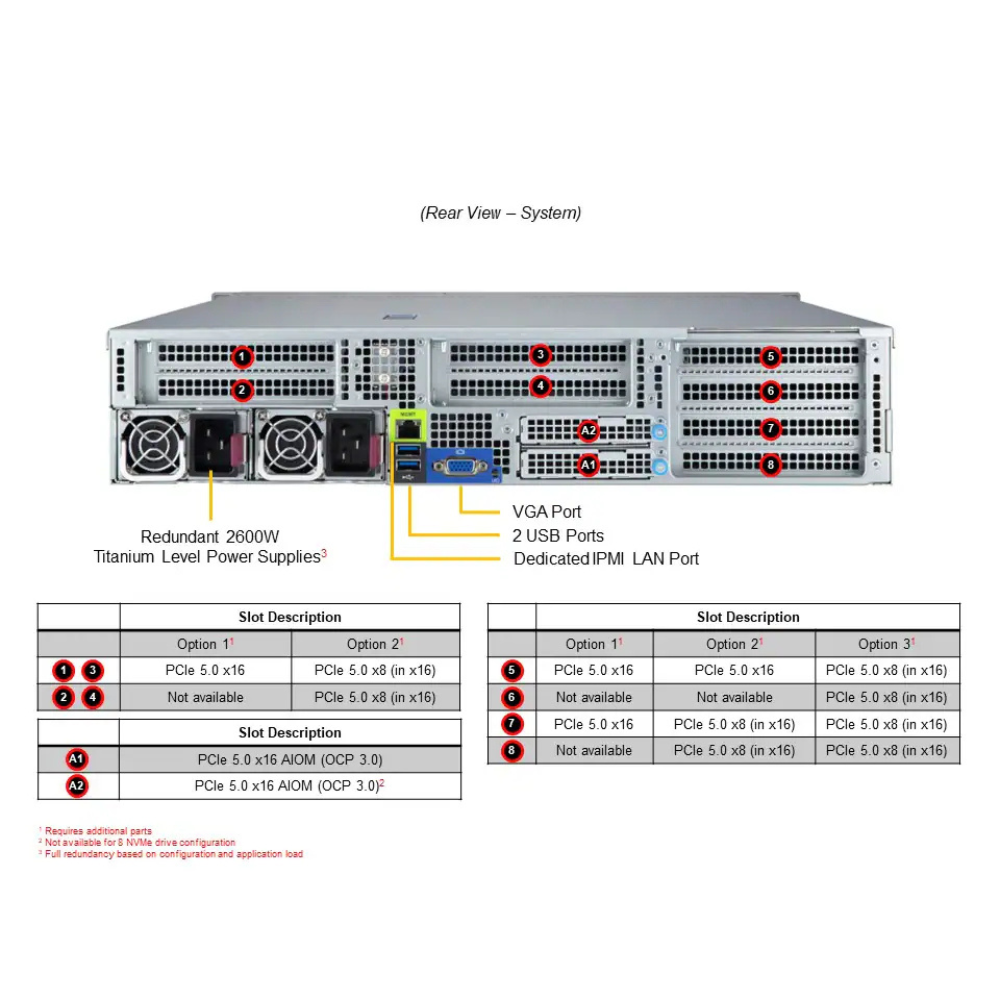

PCI-Express (PCIe) Configuration	Default 4 PCIe 5.0 x16 (in x16) FH/10.5"L double-width slots 1 PCIe 5.0 x16 AIOM slot (OCP 3.0 compatible) Option A 8 PCIe 5.0 x8 (in x16) FHFL slots 1 PCIe 5.0 x16 AIOM slot (OCP 3.0 compatible) View AOC Options
Drive Bays / Storage
Drive Bays Configuration	Default: Total 8 bays 8 front hot-swap 2.5" NVMe/SAS/SATA* drive bays (*NVMe/SAS/SATA support may require additional storage control and/or cables, please see the optional parts list for details) View Drive Options
M.2	2 M.2 PCIe 4.0 x4 NVMe slots (M-key 22110(default)/2280) View M.2 Options
System Cooling
Fans	Up to 6x 6cm heavy duty fans with optimal fan speed control
Air Shroud	1 Air Shroud
Power Supply
Default	2X 2600W 2x 2600W Redundant (1+1) Titanium Level (96%) power supplies
Optional	2X 1600W 2X 2000W
Dimension (WxHxL)	73.5 x 40 x 265 mm
Input	2600W: 200-240Vac (For CQC Only) 2600W: 200-240Vac / 50-60Hz 2600W: 200-240Vdc / 50-60Hz (for CQC only)
+12V	Max: 216A / Min: 0A (11.4Vdc-12.6Vdc) (12V output) Max: 216A / Min: 0A (200Vac-240Vac)
12V SB	Max: 3.5A
Output Type	Backplanes (gold finger)
Operating Environment
ROHS	RoHS Compliant
Environmental Spec.	Operating Temperature: 10C to 35C (50F to 95F) Non-operating Temperature: -40C to 70C (-40F to 158F) Operating Relative Humidity: 8% to 90% (non-condensing) Non-operating Relative Humidity: 5% to 95% (non-condensing)

* For detailed specifications, options, and compatibility, please refer to the latest official Supermicro documentation and the actual quotes/specifications from Autech.

2600W Redundant Power Supplies Titanium Level Certified
Optional Configuration: 1600W and 2000W Redundant Power Supplies (*Full redundancy based on configuration and application load)
AMD Ryzen™ Threadripper™ PRO 9000WX/7000WX series up to 350W TDP Processors, CPU and Memory Overclocking supported

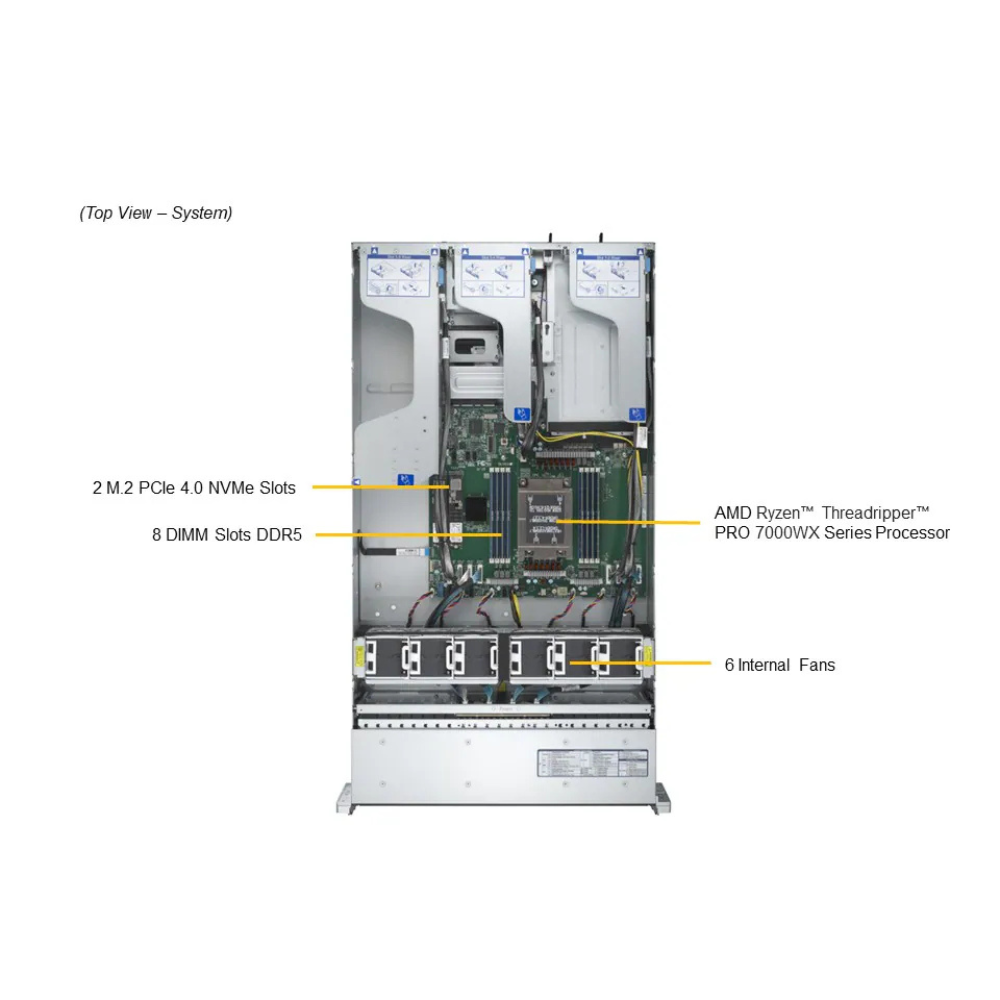

8 DDR5 ECC Registered RDIMM/3DS RDIMM, DDR5-6400MT/s Up to total 2TB
1 AIOM/OCP NIC 3.0 Slot (Optional parts required for 2nd AIOM slot)
Up to 4 PCIe 5.0 x16 FHFL slots or 8 PCIe 5.0 x8 FHFL slots

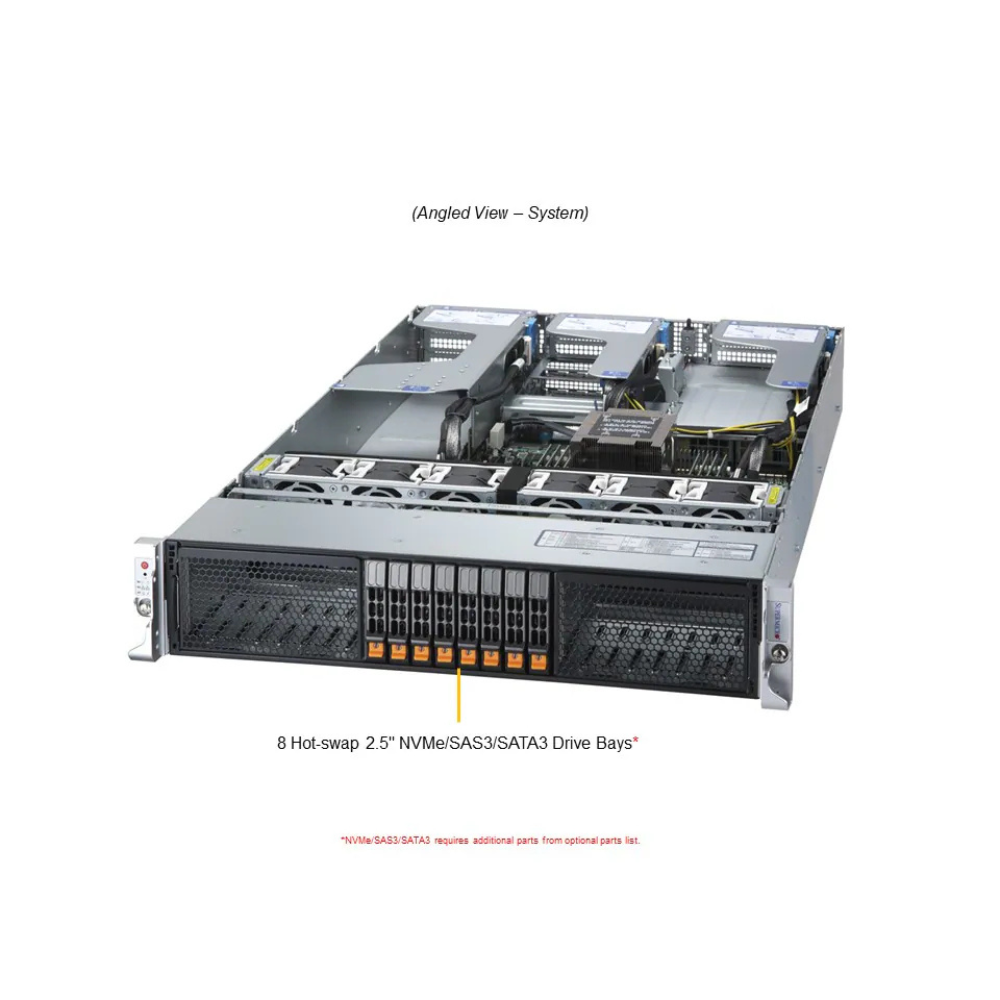

8 Hot-swap 2.5" NVMe/SAS/SATA (Optional parts required for NVMe/SAS/SATA configurations)
M.2 Interface: 2 PCIe 4.0 x4 (RAID 0, 1) M.2 Form Factor: 2280/22110 M.2 Key: M-Socket
