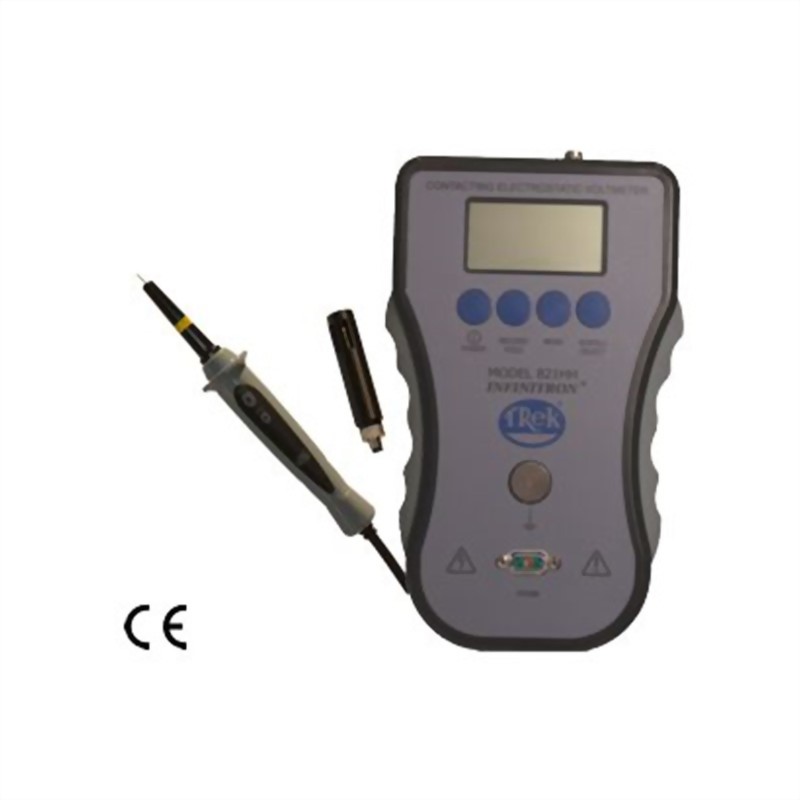

Trek’s 821HH Infinitron® Hand-Held Electrostatic Voltmeter represents the next generation of contacting precision surface voltage measuring instruments, providing input characteristics far beyond the limits of any currently available hand-held voltmeter product.

The 821HH can easily measure the voltage level of both conductive and insulative objects and surfaces with virtually zero charge transfer to the measurement probe. This results in stable high accuracy voltage measurement capability for ESD-sensitive devices.

Dimensions: 240 mm H x 140 mm W 52.5 mm D (9.5” H x 6” W x 2” D)

Weight: 1.13 kg (2.5 lb)

Ground Reference Receptacle: Banana Jack

Voltage Monitor Connector: 2.5 mm plug

Temperature: 15°C to 35°C (59°F to 95°F)

Relative Humidity: 5% to 75%, noncondensing

Altitude: To 2000 meters (6561.68 ft.)

• Semiconductors
• Materials research
• Photovoltaics
• LEDs
• MR head sensors
• Other ESD sensitive devices
