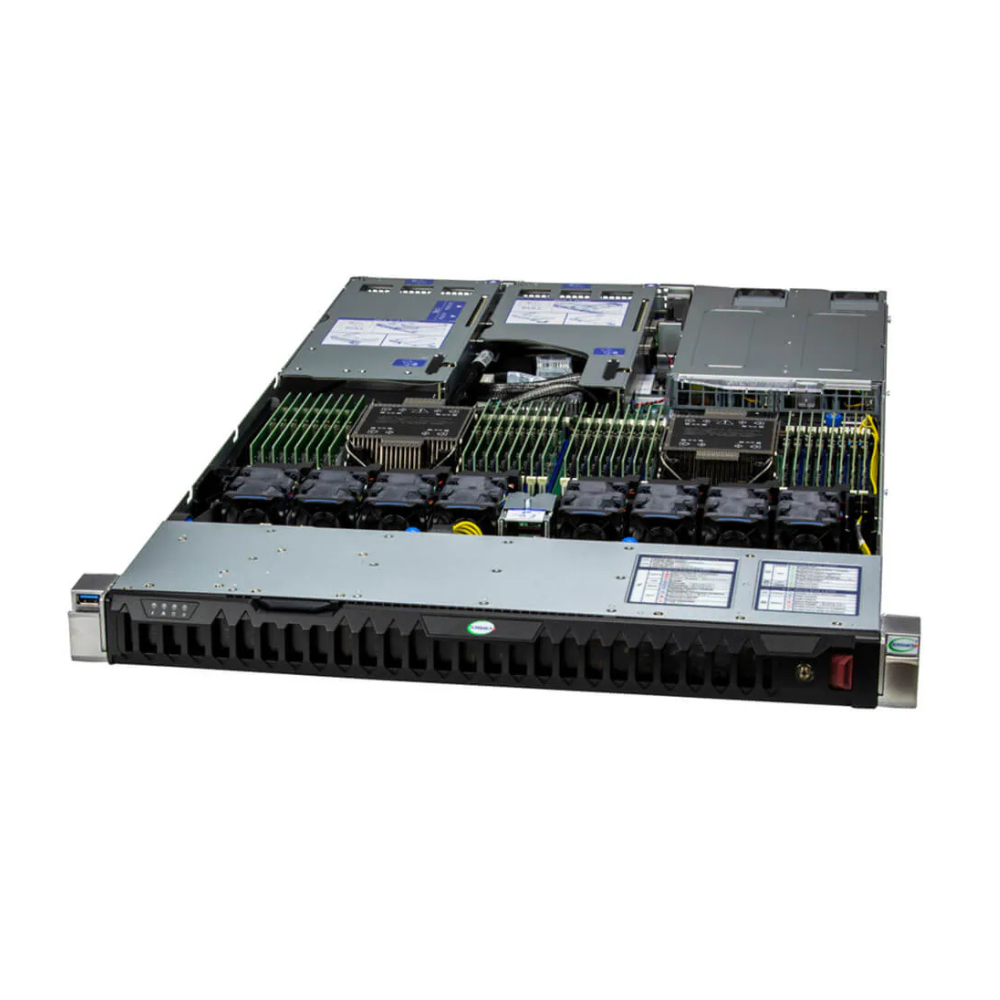

SYS-121H-TNR

1U Hyper with 8 hot-swap 2.5" NVMe/SAS/SATA bays and 3 PCIe 5.0 x16 + 1 PCIe 5.0 x16 AIOM slot

Model : SYS-121H-TNR

Q'ty :

Product SKUs
SuperServer SYS-121H-TNR
SuperServer SYS-121H-TNR-02-G1 Gold Series version with pre-configured components

Motherboard
Super X13DEM

Processor
CPU	Dual Socket E (LGA-4677) 5th Gen Intel® Xeon® / 4th Gen Intel® Xeon® Scalable processors Supports Intel Xeon CPU Max Series with high bandwidth memory (HBM)
Core Count	Up to 64C/128T; Up to 320MB Cache per CPU
Note	Supports up to 350W TDP CPUs (Air Cooled)* Supports up to 350W TDP CPUs (Liquid Cooled) *Air Cooled CPUs with TDP over 250W only supported under specific conditions. Contact a Supermicro representative for details.

GPU
Max GPU Count	Up to 1 double-width or 3 single-width GPUs
Supported GPU	NVIDIA PCIe: H100, RTX A5000, RTX A4000, L40S, L4 View GPU Options
Certification

System Memory
Memory	Slot Count: 32 DIMM slots Max Memory (1DPC): Up to 4TB 5600MT/s ECC DDR5 RDIMM Max Memory (2DPC): Up to 8TB 4400MT/s ECC DDR5 RDIMM View Memory Options
Memory Voltage	1.1V

On-Board Devices
SATA	SATA (6Gbps) ; RAID 0/1/5/10 support
NVMe	NVMe; RAID 0/1/5/10 support(Intel® VROC RAID key required) View NVMe Options
Chipset	Intel® C741
Network Connectivity	Via AIOM View AIOM Options View AOC Options

System BIOS
BIOS Type	AMI 64MB SPI Flash

Management
Software	SuperCloud Composer® Supermicro Server Manager (SSM) Supermicro Update Manager (SUM) Supermicro SuperDoctor® 5 (SD5) Super Diagnostics Offline (SDO) Supermicro Thin-Agent Service (TAS) SuperServer Automation Assistant (SAA) New!
Power configurations	Power-on mode for AC power recovery ACPI Power Management

Security
Hardware	Trusted Platform Module (TPM) 2.0 Silicon Root of Trust (RoT) – NIST 800-193 Compliant
Features	Cryptographically Signed Firmware Secure Boot Secure Firmware Updates Automatic Firmware Recovery Supply Chain Security: Remote Attestation Runtime BMC Protections System Lockdown

PC Health Monitoring
CPU	Monitors for CPU Cores, Chipset Voltages, Memory
FAN	Fans with tachometer monitoring Status monitor for speed control Pulse Width Modulated (PWM) fan connectors
Temperature	Monitoring for CPU and chassis environment Thermal Control for fan connectors

Dimensions and Weight
Height	1.7" (43 mm)
Width	17.2" (437 mm)
Depth	29.4" (747 mm)
Package	8.1" (H) x 23.8" (W) x 40.6" (D)
Weight	Gross Weight: 49 lbs (22.2 kg) Net Weight: 34 lbs (15.4 kg)
Available Color	N/A

Front Panel
LED	HDD activity LAN1 activity Power System information
Buttons	Power On/Off Power On/Off UID button

Expansion Slots
PCI-Express (PCIe) Configuration	Default 1 PCIe 5.0 x16 FHHL slot 2 PCIe 5.0 x16 FH/10.5"L slots 1 PCIe 5.0 x16 AIOM slot (OCP 3.0 compatible) View AOC Options
M.2	2 M.2 NVMe/SATA slots (B+M-key 2280/22110)

Drive Bays / Storage
Drive Bays Configuration	Default: Total 8 bays 8 front hot-swap 2.5" NVMe/SAS/SATA* drive bays Option A: Total 12 bays 12 front hot-swap 2.5" NVMe/SAS/SATA* drive bays (*NVMe/SAS/SATA support may require additional storage controller and/or cables, please see the optional parts list for details) View NVMe Options View Drive Options
M.2	2 M.2 NVMe/SATA slots (M-key 2280/22110) View M.2 Options

System Cooling
Fans	Up to 8 counter-rotating 40x40x56mm Fan(s)
Air Shroud	2 Air Shrouds

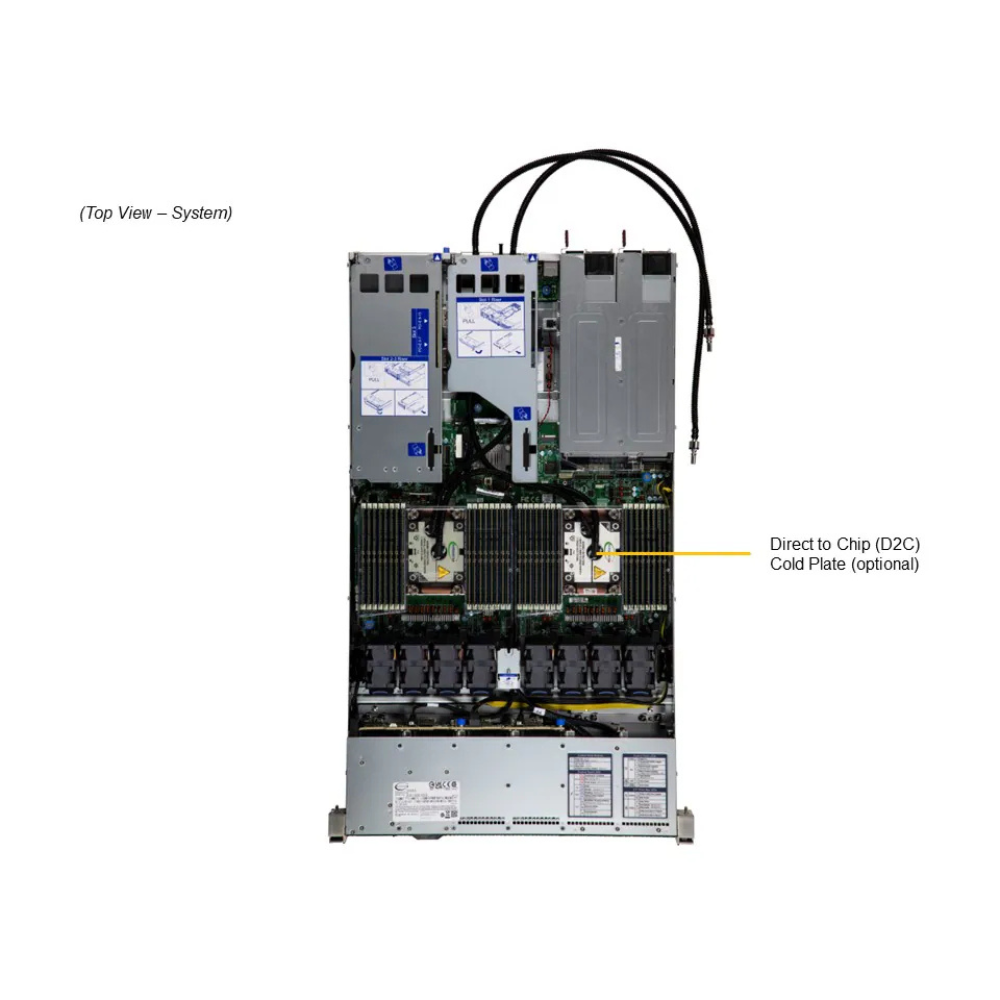

Liquid Cooling	Direct to Chip (D2C) Cold Plate (optional)

Power Supply

2x 1200W Redundant Titanium Level (96%) Hot-plug power supplies

Dimension (WxHxL)	73.5 x 40 x 265 mm
Input	800W: 100-127Vac 800W: 100-127Vac / 50-60Hz 1200W: 200-240Vac 1200W: 200-240Vac / 50-60Hz 1200W: 230-240Vdc / 50-60Hz (for CCC only)
+12V	Max: 66.7A / Min: 0A (100Vac-127Vac) Max: 83A / Min: 0A (100Vac-127Vac) Max: 100A / Min: 0A (200Vac-240Vac) Max: 100A / Min: 0A (230Vdc-240Vdc) (for CCC only)
12V SB	Max: 2.1A / Min: 0A
Output Type	Backplanes (gold finger)

Operating Environment
Environmental Spec.	Name: A2 Operating Temperature: 10°C to 35°C (50°F to 95°F) Non-operating Temperature: -30°C to 60°C (-40°F to 140°F) Operating Relative Humidity: 8% to 80% (max 21° DP; non-condensing) Non-operating Relative Humidity: 8% to 90% (max 38° DP; non-condensing)

Dual Socket E (LGA-4677) 5th/4th Gen Intel® Xeon® Scalable processors
32 DIMM slots supporting up to 8TB of memory; RDIMMs up to DDR5-5600
3 PCIe 5.0 x16 slots with support for GPU/Accelerator cards
Flexible networking options with 1 AIOM networking slot (OCP NIC 3.0 compatible)
8x 2.5" hot-swap NVMe/SATA/SAS drive bays; Optional 4x 2.5" hot-swap NVMe/SAS/SATA drive bays; 2x internal M.2 NVMe/SATA drive slots; Optional RAID support via storage add-on card
8 heavy duty hot-swap fans with optimal fan speed control
