| Product SKUs | | SYS-822GS-NBRT | | Motherboard | | Super X14DBG-LC+ | | Processor | | CPU | - Dual Socket E2 (LGA-4710)
- Intel® Xeon® 6700/6500 series processors with P-cores
| | Core Count | - Up to 86C/172T; Up to 336MB Cache per CPU
| | Note | - Supports up to 350W TDP CPUs (Air Cooled)
| | GPU | | Max GPU Count | | | Supported GPU | - NVIDIA SXM: HGX B200 8-GPU (180GB)
- View GPU Options
| | CPU-GPU Interconnect | - PCIe 5.0 x16 CPU-to-GPU Interconnect
| | GPU-GPU Interconnect | - NVIDIA® NVLink™ with NVSwitch™
| | Certification | | | System Memory | | Memory | - Slot Count: 32 DIMM slots
- Max Memory (1DPC): Up to 4TB 6400MT/s ECC DDR5 RDIMM
- Max Memory (2DPC): Up to 8TB 5200MT/s ECC DDR5 RDIMM
- View Memory Options
| | Memory Voltage | | | On-Board Devices | | Network Connectivity | - 2 RJ45 10GbE with Intel® X710
- View AOC Options
| | Input / Output | | LAN | - 1 RJ45 1 GbE Dedicated BMC LAN port
| | USB | - 1 USB 3.0 Type-A port(Front)
- 1 USB 2.0 Type-A port(Front)
| | Video | | | TPM | | | System BIOS | | BIOS Type | | | Management | | Software | - SuperCloud Composer®
- Supermicro Server Manager (SSM)
- Super Diagnostics Offline (SDO)
- Supermicro Thin-Agent Service (TAS)
- SuperServer Automation Assistant (SAA) New!
| | Power configurations | - Power-on mode for AC power recovery
- ACPI Power Management
| | Security | | Hardware | - Trusted Platform Module (TPM) 2.0
- Silicon Root of Trust (RoT) – NIST 800-193 Compliant
| | Features | - Cryptographically Signed Firmware
- Secure Boot
- Secure Firmware Updates
- Automatic Firmware Recovery
- Supply Chain Security: Remote Attestation
- Runtime BMC Protections
- System Lockdown
| | PC Health Monitoring | | CPU | - 8+4 Phase-switching voltage regulator
- Monitors for CPU Cores, Chipset Voltages, Memory
| | FAN | - Fans with tachometer monitoring
- Pulse Width Modulated (PWM) fan connectors
- Status monitor for speed control
| | Temperature | - Monitoring for CPU and chassis environment
- Thermal Control for fan connectors
|
| | | Chassis | | Form Factor | | | Model | | | Dimensions and Weight | | Height | | | Width | | | Depth | | | Package | - 26.38" (H) x 28.74" (W) x 50.39" (D)
| | Weight | - Gross Weight: 341 lbs (155 kg)
- Net Weight: 293 lbs (133 kg)
| | Available Color | | | Front Panel | | Buttons | | | LED | - HDD activity
- LAN1 activity
- LAN2 activity
- Power Fail
- Power status
- System information (overheat/UID)
| | Expansion Slots | | PCI-Express (PCIe) Configuration | - Default
- 8 PCIe 5.0 x16 LP slots
- 2 PCIe 5.0 x16 FHHL slots
- View AOC Options
| | Drive Bays / Storage | | Drive Bays Configuration | - Default: Total 8 bays
- 8 front hot-swap E1.S NVMe drive bays
- View NVMe Options
| | M.2 | - 2 M.2 PCIe 5.0 x4 NVMe slots (M-key 2280/22110; RAID support via S3808N controller)
- View M.2 Options
| | System Cooling | | Fans | - 12 heavy duty fans with optimal fan speed control
| | Air Shroud | | | Power Supply | | | 6x 6600W Redundant (3 + 3) Titanium Level (96%) power supplies | | Dimension (WxHxL) | 106.5 x 82.1 x 245.3 mm | | Input | 5900W: 200-207.9Vac / 50-60Hz 6000W: 208-219.9Vac / 50-60Hz 6300W: 220-229.9Vac / 50-60Hz 6500W: 230-238.9Vac / 50-60Hz 6600W: 239-240Vac / 50-60Hz | | +12V | Max: 130A / Min: 0A (200Vac-207.9Vac) Max: 130A / Min: 0A (208Vac-219.9Vac) Max: 130A / Min: 0A (220Vac-229.9Vac) Max: 130A / Min: 0A (230Vac-238.9Vac) Max: 130A / Min: 0A (239Vac-240Vac) | | 12V SB | Max: 4A / Min: 0A | | Output Type | Backplanes (gold finger) | | Certification | Titanium Level
[ Test Report ] | | Operating Environment | | Environmental Spec. | - Operating Temperature: 10°C to 35°C (50°F to 95°F)
- Non-operating Temperature: -40°C to 70°C (-40°F to 158°F)
- Operating Relative Humidity: 8% to 90% (non-condensing)
- Non-operating Relative Humidity: 5% to 95% (non-condensing)
|
|
For detailed specifications, options, and compatibility, please refer to the latest official Supermicro documentation and the actual quotes/specifications from Autech.
-

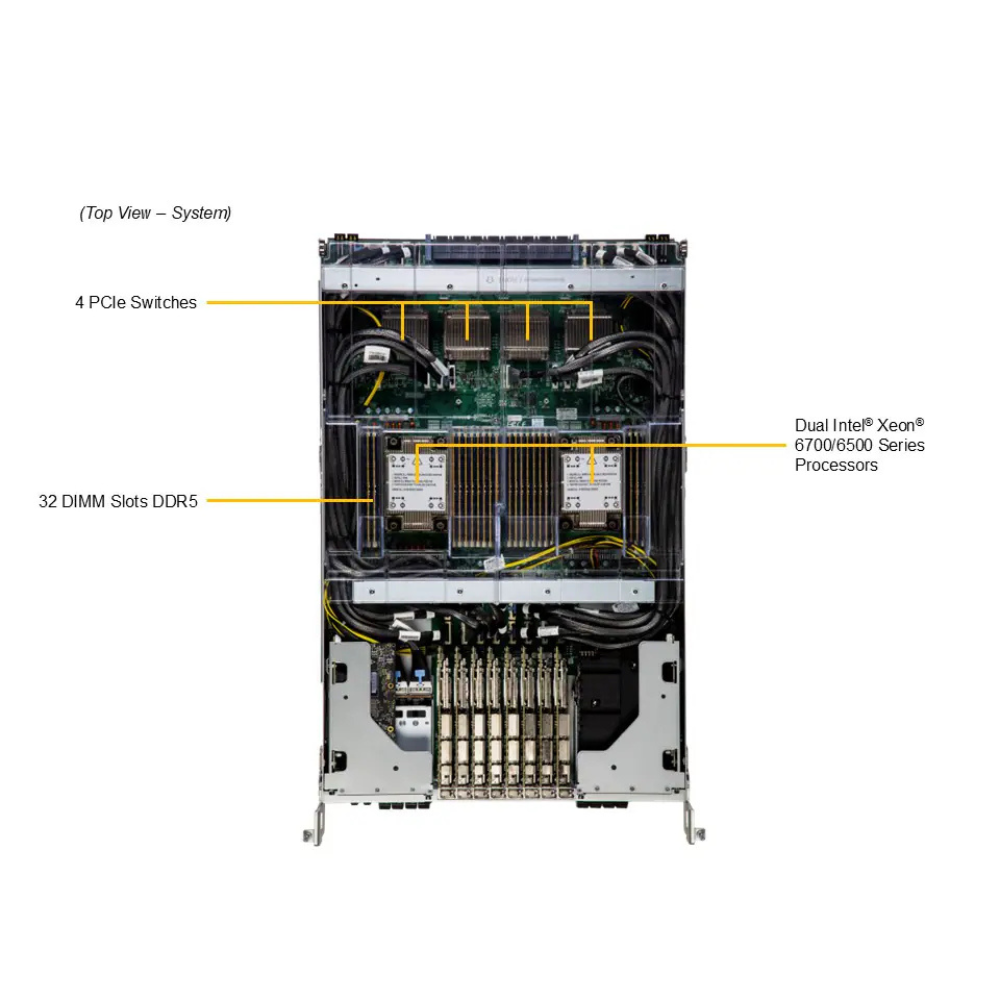

Dual Intel® Xeon® 6700/6500 series processors with P-cores, up to 350W TDP
-

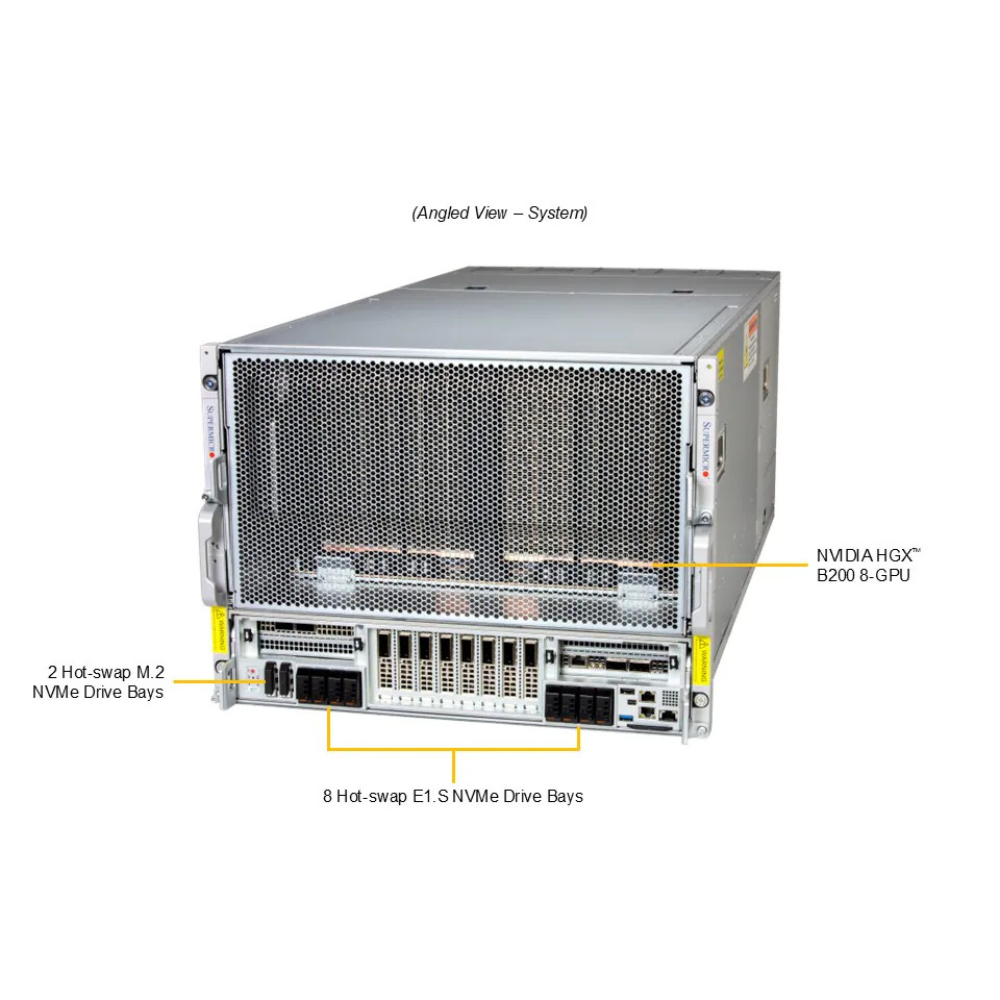

HGX B200 8-GPU SXM6 with NVSwitch, 1000W TDP per GPU, air cooled
-
32 DIMM slots supporting up to 8TB of memory
-
8 Hot-swap E1.S NVMe storage drives , 2 M.2 NVMe
-
Up to 8 PCIe 5.0 x16 LP + 2 PCIe 5.0 x16 FHHL
-

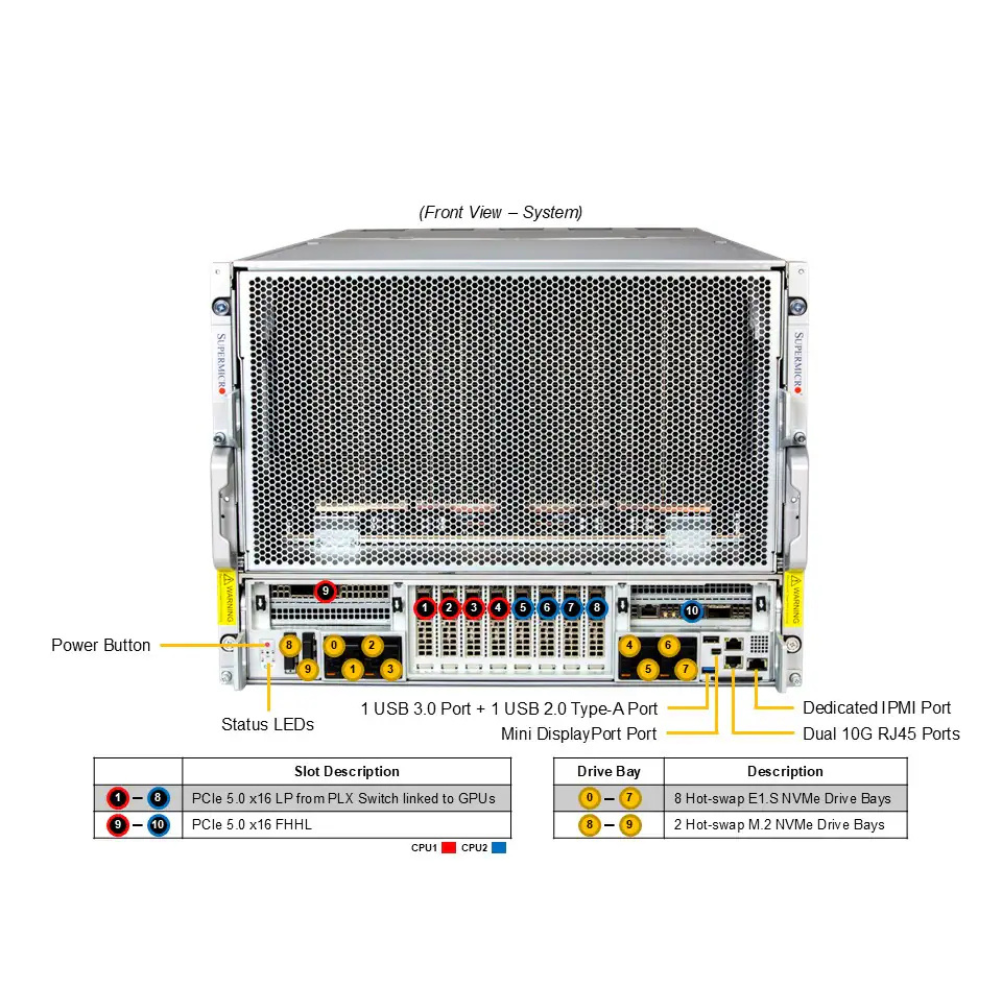

1 USB 3.0 port, 1 USB 2.0 port, 1 Mini-DP port, 1 IPMI GbE LAN port, 2 10G NIC (X710)
-

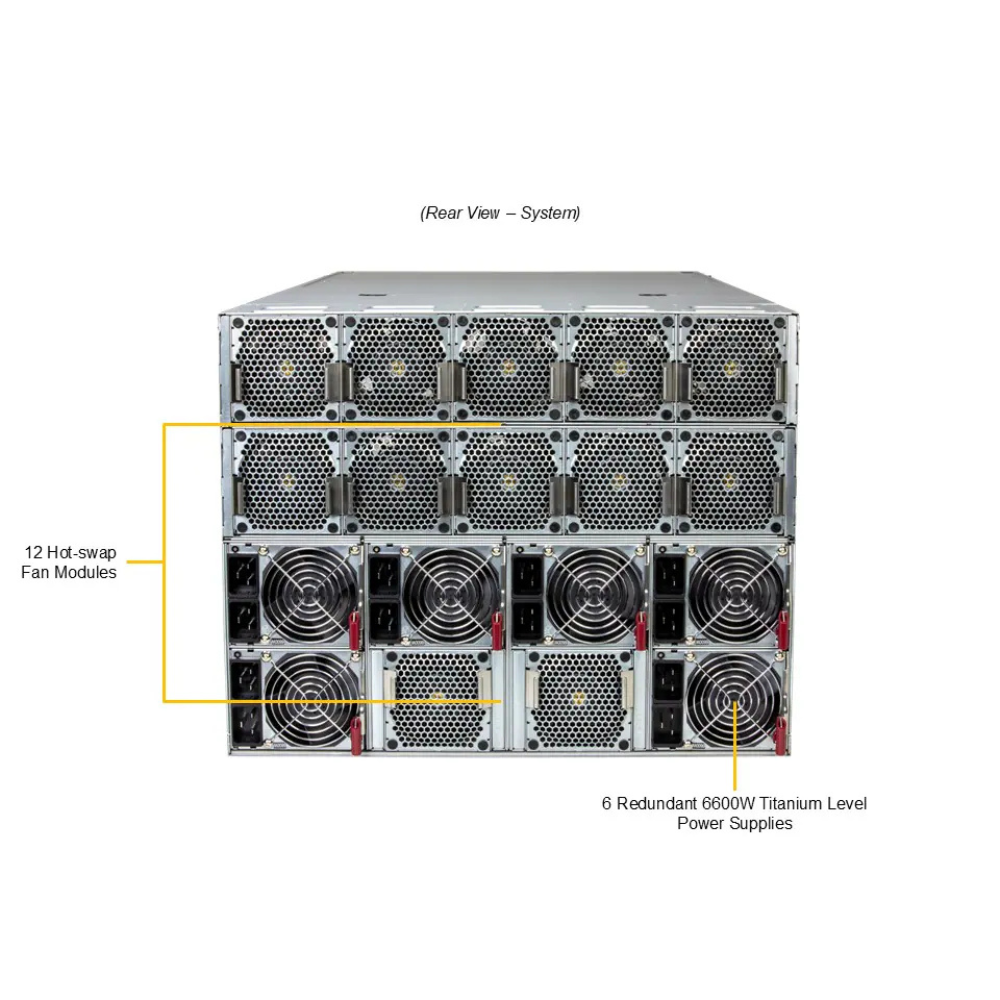

6 redundant (3+3) 6600W Titanium level power supplies
-

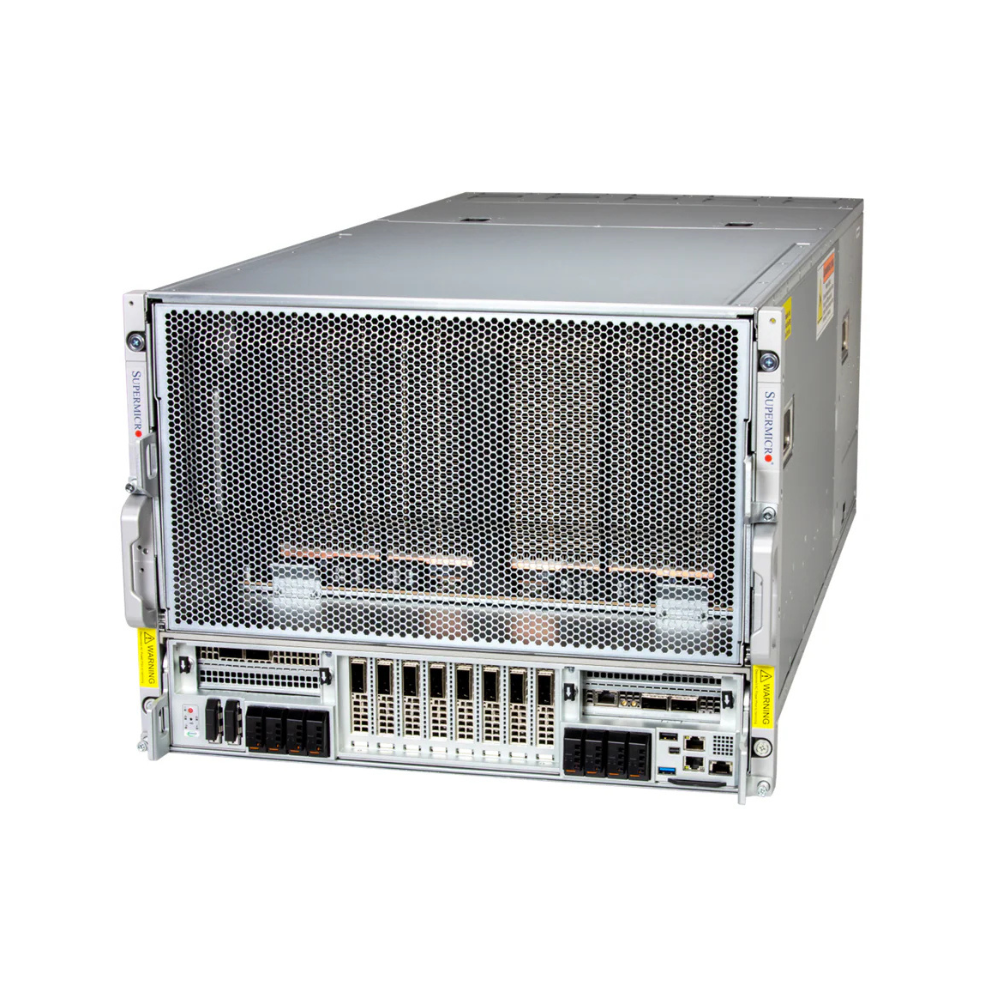

8U air-cooled Front I/O system
-
Scientific Research
-
Business Intelligence & Analytics
-
Finance Services and Fraud Detection
-
Large Language Model (LLM) and Generative AI
-
Conversational AI
-
Drug Discovery
-
AI/Deep Learning Training and Inference
-
High Performance Computing (HPC)
-
Autonomous Vehicle Technologies
