DV-1000

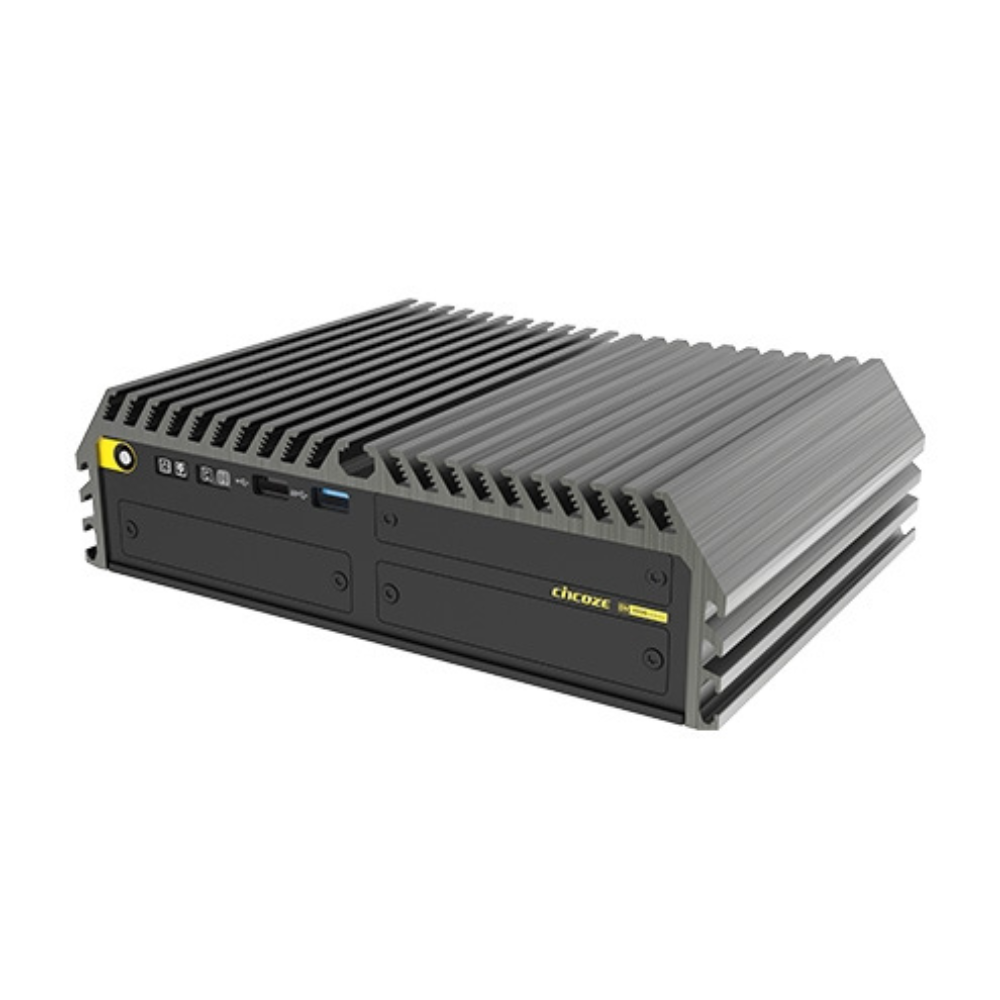

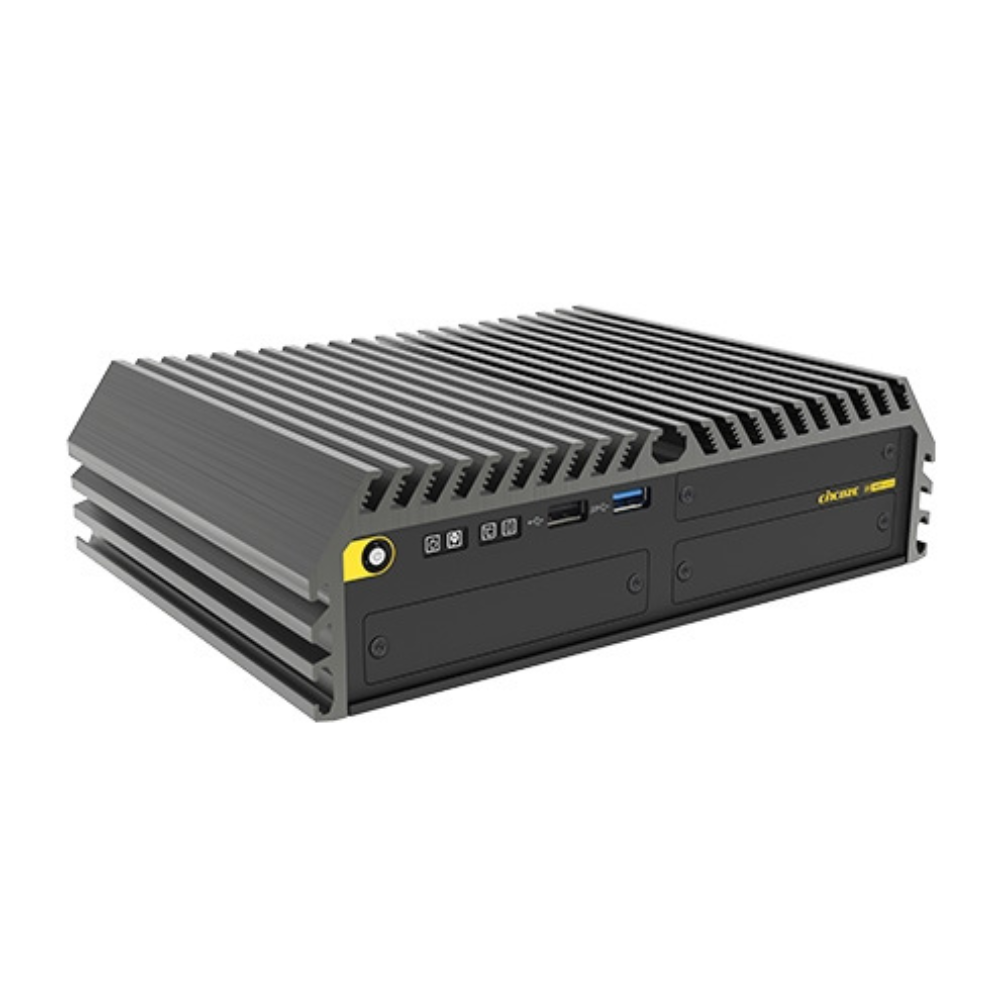

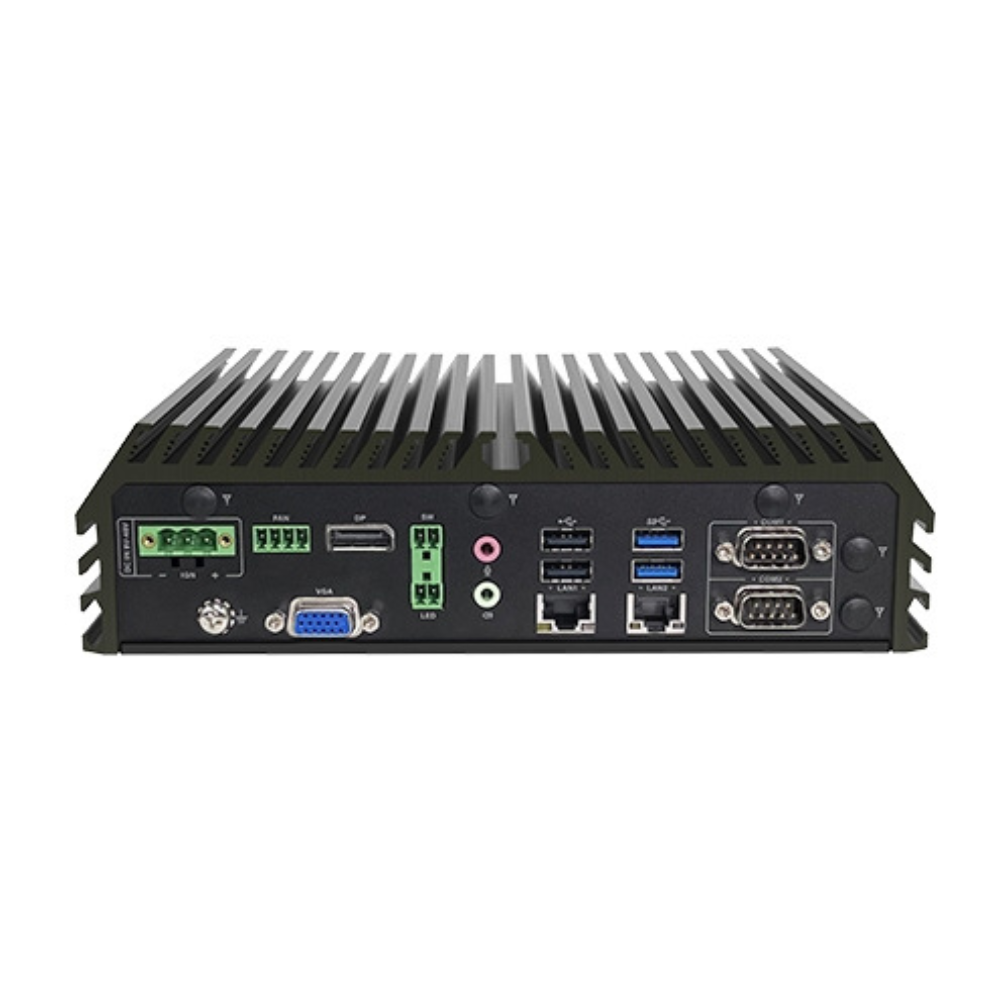

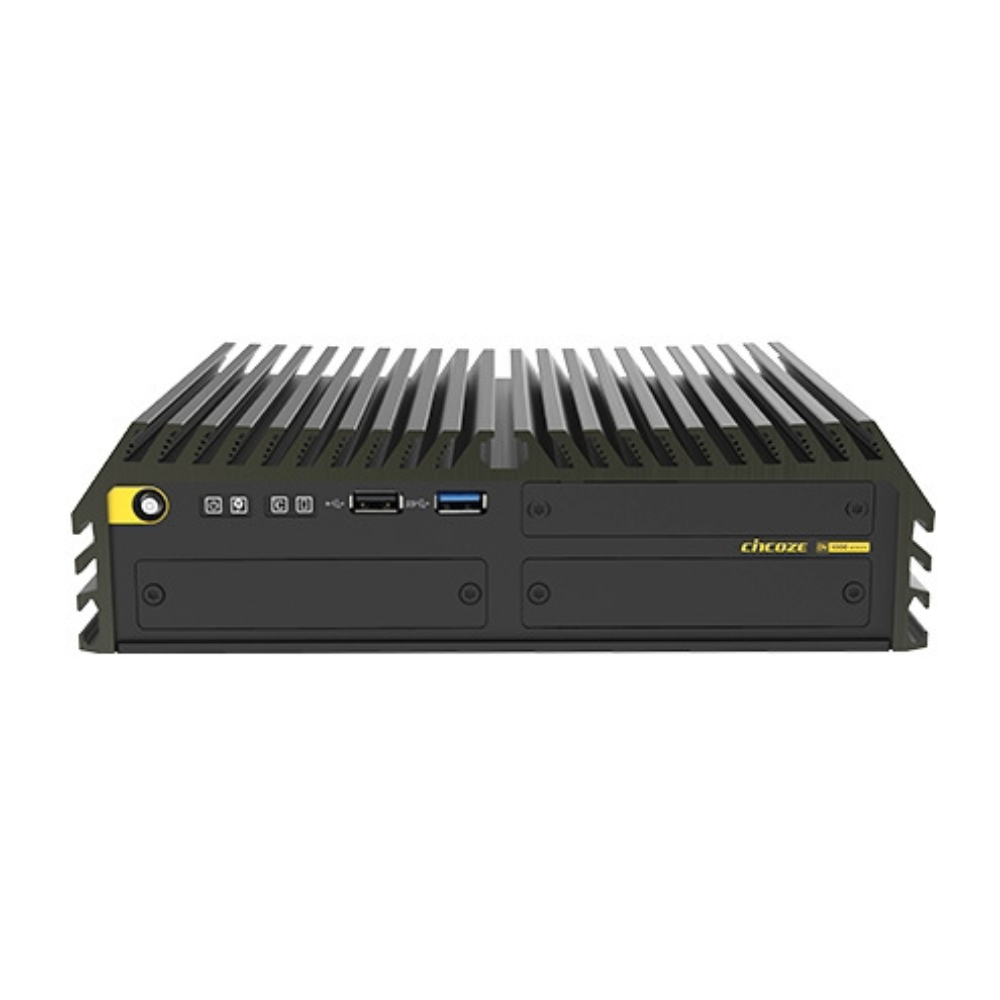

The DV-1000, with 9/8th Gen Intel® Core™ processor, is a fanless and rugged embedded computer optimized for edge computing applications. The high-performance DV-1000 processes data and makes real-time decisions at the edge, enabling enterprises to take immediate action on real-time data. The computer brings high-performance computing and industrial durability together in a compact footprint embedded computer, providing reliable long-time operation for mission-critical and space-limited applications in machine vision, manufacturing, railway infotainment, and smart city applications.
Model : DV-1000

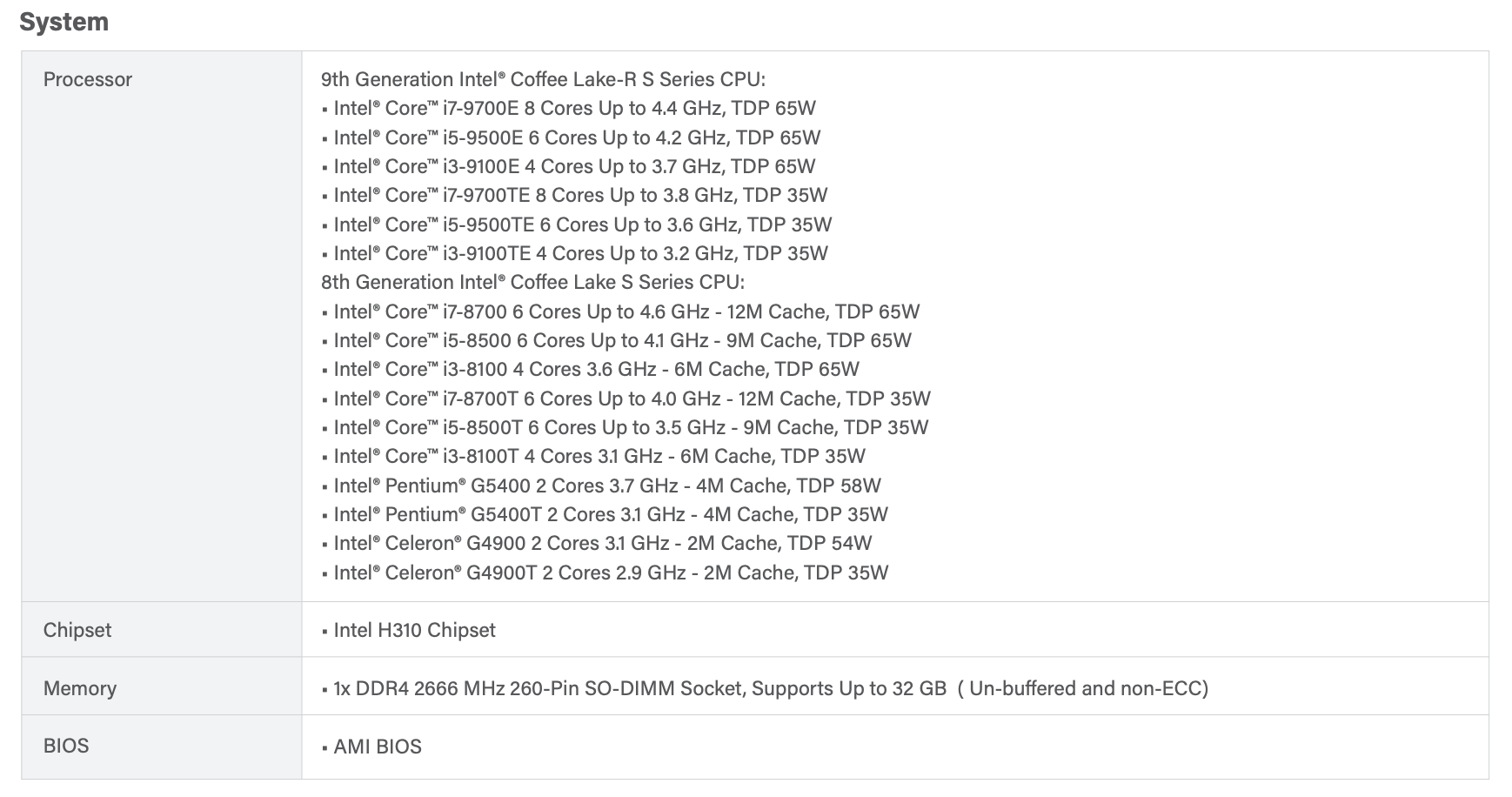

  • Supports 9/8th Gen Intel® Core™ i7/i5/i3 or Pentium®/Celeron® processors (up to 65W)
  • Compact size (224 x 162 x 64 mm)
  • 1 x M.2 2280 key M socket, auto-detection for NVMe/SATA SSD
  • 1 x M.2 2230 key E for Intel® CNVi/wireless module
  • 2 x Full-size Mini PCIe sockets for module expansion
  • Optional CMI/MEC modules for I/O expansion
  • Wide operating temperature: -40°C to 70°C
  • Military standard (MIL-STD-810G) shock & vibration proof
  • Railway EMC standard EN50155 (EN 50121-3-2 only) certified
