iHP High Power System Up to 24000 Watts
■ Multi output precision high power system
■ Standard 19" rack
■ Outputs parallel up to 1600 A
■ Outputs series up to 1000 V
■ 100% digital control
■ Outputs program as voltage or current source

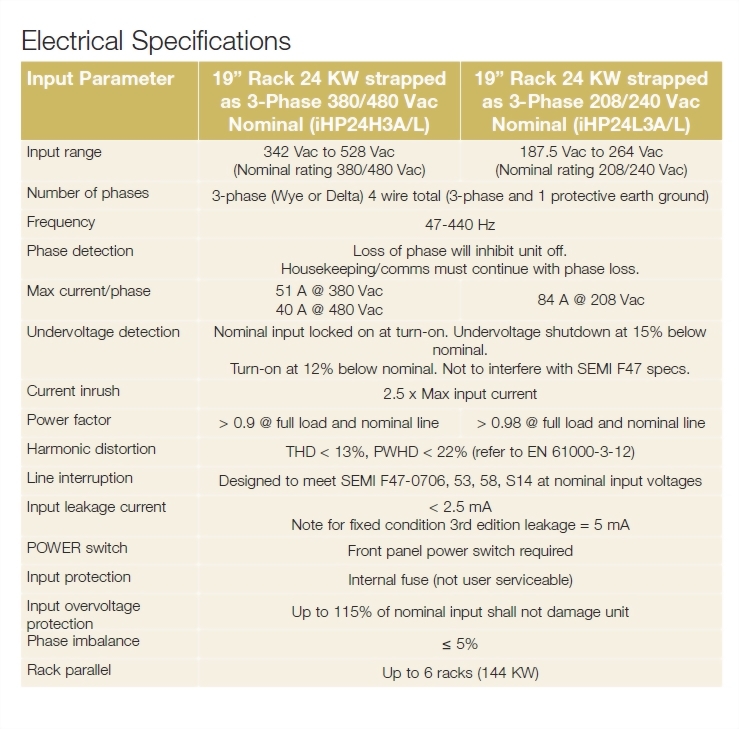

■ Versatile input configurable to Low Line 180 to 264 VAC Single/3-Phase and High Line 342 to 528 VAC 3-Phase
■ Medical safety approved – No ISOLATION XFMR NEEDED
Designed for a wide range of medical and industrial applications, Artesyn’s iHP configurable intelligent power system provides accuracy, resolution and stability as either a programmable voltage or current source. It provides up to 24 kW in 3 kW increments and can be configured for up to 8 outputs using a wide variety of plug-in modules that address a large range of voltages and currents.
Safety approvals secured by Artesyn eliminate the need for an isolation transformer in medical equipment. The iHP power system also has industrial safety approvals, including compliance to the SEMI F47 standard for semiconductor processing equipment.
The iHP power system offers developers either an analog or digital interface to their system supporting standard communications protocols, while a software graphical user interface (GUI) allows for easy configuration.
|
Total Max Power: 24,000 W |
Output Voltage: 0.6 V to 1000 V |
Warranty: 5 years |
|
Total Max Current: 1,600 A |
Outputs: Single |
Operating Temperature: 0°C to +50°C |
|
Input Voltage: 180 V to 528 V |
Size (L x W x H): 27.800" x 17.600" x 5.220" |
|
|
|
