| Product SKUs | | SYS-522GA-NRT | | Motherboard | | Super X14DBG-AP | | Processor | | CPU | - Dual Socket BR (LGA-7529)
- Intel® Xeon® 6900 series processors with P-cores
| | Core Count | - Up to 128C/256T; Up to 504MB Cache per CPU
| | Note | - Supports up to 500W TDP CPUs (Air Cooled)
| | GPU | | Max GPU Count | - Up to 8 double-width or 10 single-width GPUs
| | Supported GPU | - NVIDIA PCIe: NVIDIA RTX PRO™ 4500 Blackwell Server Edition, NVIDIA RTX PRO™ 6000 Blackwell Server Edition
- View GPU Options
| | CPU-GPU Interconnect | - PCIe 5.0 x16 Switch Dual-Root
| | GPU-GPU Interconnect | - NVIDIA® NVLink™ Bridge (optional)
| | Certification | | | System Memory | | Memory | - Slot Count: 24 DIMM slots
- Max Memory (1DPC): Up to 6TB 6400MT/s ECC DDR5 RDIMM
- Max Memory (1DPC): Up to 6TB 8800MT/s ECC DDR5 MRDIMM
- View Memory Options
| | Memory Voltage | | | On-Board Devices | | Network Connectivity | - 2 RJ45 10GbE with Intel® X710-AT2
- View AIOM Options
- View AOC Options
| | Input / Output | | LAN | - 2 RJ45 10 GbE LAN ports (Intel® I350)
| | USB | - 2 USB 3.0 Type-A ports(Rear)
| | Video | | | System BIOS | | BIOS Type | - AMI 32MB SPI Flash EEPROM
| | Management | | Software | - SuperCloud Composer®
- Supermicro Server Manager (SSM)
- Super Diagnostics Offline (SDO)
- Supermicro Thin-Agent Service (TAS)
- SuperServer Automation Assistant (SAA) New!
| | Power configurations | - Power-on mode for AC power recovery
- ACPI Power Management
| | Security | | Hardware | - Trusted Platform Module (TPM) 2.0
- Silicon Root of Trust (RoT) – NIST 800-193 Compliant
| | Features | - Cryptographically Signed Firmware
- Secure Boot
- Secure Firmware Updates
- Automatic Firmware Recovery
- Supply Chain Security: Remote Attestation
- Runtime BMC Protections
- System Lockdown
| | PC Health Monitoring | | CPU | - 8+4 Phase-switching voltage regulator
- Monitors for CPU Cores, Chipset Voltages, Memory
| | FAN | - Fans with tachometer monitoring
- Pulse Width Modulated (PWM) fan connectors
- Status monitor for speed control
| | Temperature | - Monitoring for CPU and chassis environment
- Thermal Control for fan connectors
|
| | | Chassis | | Form Factor | | | Model | | | Dimensions and Weight | | Height | | | Width | | | Depth | | | Package | - 17.32" (H) x 28.34" (W) x 42.51" (D)
| | Weight | - Gross Weight: 100 lbs (45.3 kg)
- Net Weight: 65.5 lbs (29.7 kg)
| | Available Color | - Black Front & Silver Body
| | Front Panel | | Buttons | - Power On/Off button
- System Reset button
| | LED | - Hard drive activity LED
- Network activity LEDs
- Power status LED
- System Overheat & Power Fail LED
| | Expansion Slots | | PCI-Express (PCIe) Configuration | - Default
- 13 PCIe 5.0 x16 FHFL slots
- View AOC Options
| | M.2 | - 2 M.2 PCIe 5.0 x4 NVMe slots (B+M-key)
| | Drive Bays / Storage | | Drive Bays Configuration | - Default: Total 24 bays
- 24 front hot-swap 2.5" PCIe 5.0 NVMe drive bays
- View NVMe Options
| | M.2 | - 2 M.2 NVMe slots (M-key)
- View M.2 Options
| | System Cooling | | Fans | - Up to 10 heavy duty fans with optimal fan speed control
| | Air Shroud | | | Power Supply | | | 6x 2700W Redundant (4 + 2) Titanium Level (96%) power supplies | | Dimension (WxHxL) | 73.5 x 40 x 203 mm | | Input | 2700W: 200-240Vac
2700W: 200-240Vac / 50-60Hz
2700W: 240-240Vdc / 50-60Hz (for CQC only) | | +12V | Max: 225A / Min: 0A (200Vac-240Vac)
Max: 225A / Min: 0A (240Vdc-240Vdc) | | 12V SB | Max: 3.5A / Min: 0A
Max: 4A / Min: 0A | | Output Type | Backplanes (gold finger) | | Operating Environment | | Environmental Spec. | - Operating Temperature: 10°C to 35°C (50°F to 95°F)
- Non-operating Temperature: -40°C to 60°C (-40°F to 140°F)
- Operating Relative Humidity: 8% to 90% (non-condensing)
- Non-operating Relative Humidity: 5% to 95% (non-condensing)
|
|
For detailed specifications, options, and compatibility, please refer to the latest official Supermicro documentation and the actual quotes/specifications from Autech.
-

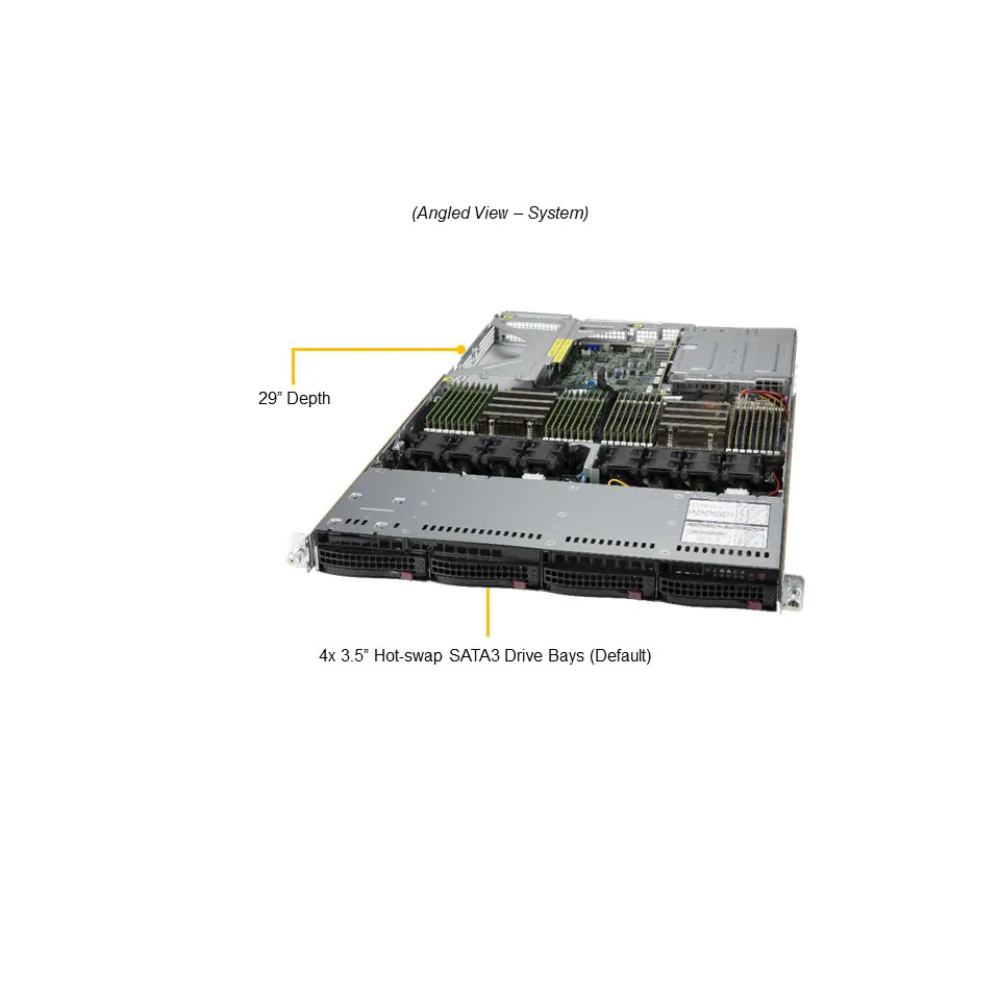

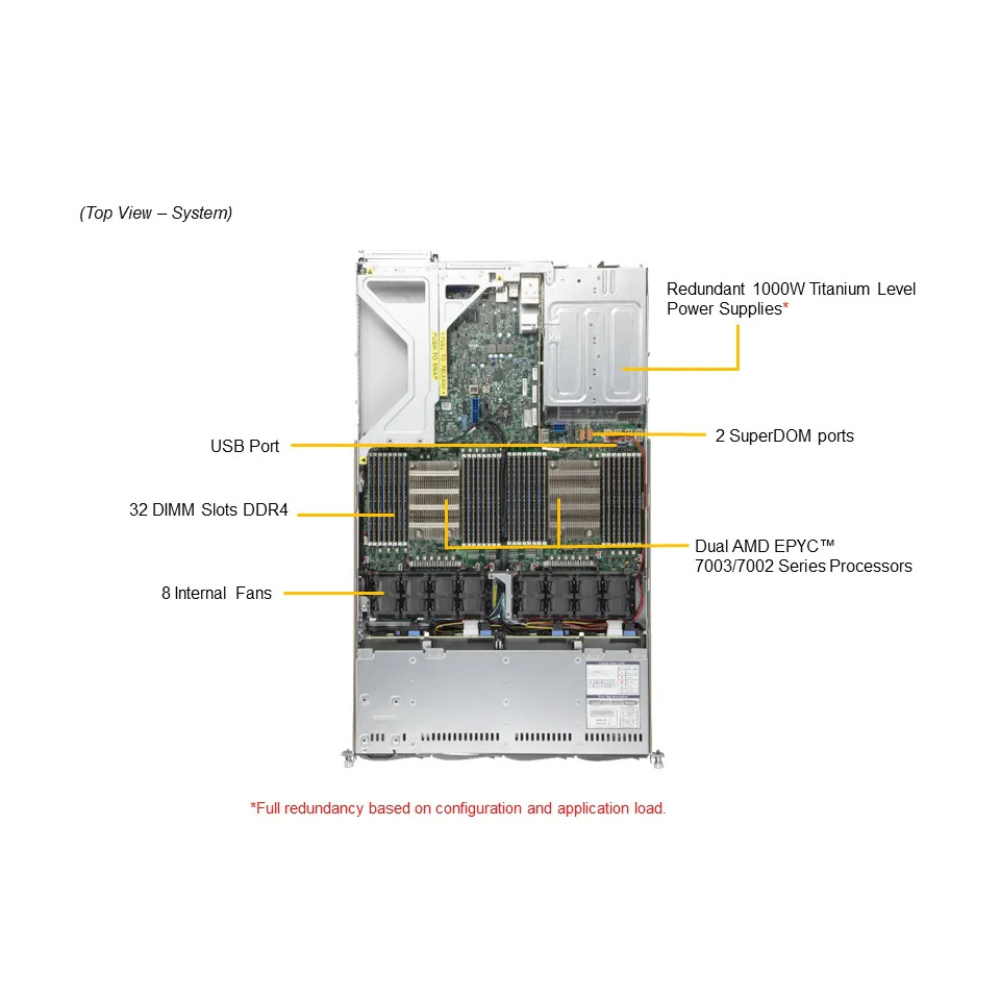

Dual AMD EPYC™ 7003/7002 Series Processors
(The latest AMD EPYC™ 7003 Series Processor with AMD 3D V-Cache™ Technology requires BIOS version 2.3 or newer)
-
8TB Registered ECC DDR4 3200MHz SDRAM in 32 DIMMs
-
Must bundle with optional Ultra Riser Card
2 PCIe 4.0 x16 FH / 9.5"L slots
1 PCIe 4.0 x16 LP slot
1 PCIe 4.0 x16 (internal proprietary LP slot), Ultra Riser Card must be bundled in order to enable this slot
-
4 hot-swap 3.5" SATA3 by default
or 4 NVMe (via optional drive tray)
or 4 SAS3 (via optional SAS kit)
- Virtualization
- High End Enterprise Server
- Cloud Computing
