| Product SKUs | | AS -5126GS-TNRT2 | | Motherboard | | Super H14DSG-O-CPU | | Processor | | CPU | - Dual processor(s)
- AMD EPYC™ 9005/9004 Series Processors
| | Core Count | | | Note | - Supports up to 500W TDP CPUs
| | GPU | | Max GPU Count | - Up to 10 double-width GPUs
| | Supported GPU | - NVIDIA PCIe: H100 NVL, H200 NVL (141GB), L40S, NVIDIA RTX PRO™ 6000 Blackwell Server Edition
- AMD PCIe: AMD Instinct™ MI350P
- View GPU Options
| | CPU-GPU Interconnect | - PCIe 5.0 x16 Switch Dual-Root
| | GPU-GPU Interconnect | - NVIDIA® NVLink™ Bridge (optional)
| | Certification | | | System Memory | | Memory | - Slot Count: 24 DIMM slots
- Max Memory (1DPC): Up to 6TB 6400MT/s ECC DDR5 RDIMM (AMD EPYC™ 9005 Series Processor)
- Max Memory (1DPC): Up to 6TB 4800MT/s ECC DDR5 RDIMM (AMD EPYC™ 9004 Series Processor)
- View Memory Options
| | Memory Voltage | | | On-Board Devices | | SATA | | | Network Connectivity | - 2 RJ45 10GbE
- View AIOM Options
- View AOC Options
| | Input / Output | | LAN | - 1 RJ45 1 GbE Dedicated BMC LAN port
- 2 RJ45 10 GBASE-T LAN ports
| | USB | | | Video | | | System BIOS | | BIOS Type | - AMI 64MB SPI Flash EEPROM
| | Management | | Software | - SuperCloud Composer®
- Supermicro Server Manager (SSM)
- Supermicro Update Manager (SUM)
- Super Diagnostics Offline (SDO)
- Supermicro Thin-Agent Service (TAS)
- SuperServer Automation Assistant (SAA) New!
| | Power configurations | - Power-on mode for AC power recovery
- ACPI Power Management
| | Security | | Hardware | - Trusted Platform Module (TPM) 2.0
- Silicon Root of Trust (RoT) – NIST 800-193 Compliant
| | Features | - Cryptographically Signed Firmware
- Secure Boot
- Secure Firmware Updates
- Automatic Firmware Recovery
- Supply Chain Security: Remote Attestation
- Runtime BMC Protections
- System Lockdown
| | PC Health Monitoring | | CPU | - 7 +1 Phase-switching voltage regulator
- Monitors for CPU Cores, Chipset Voltages, Memory
| | FAN | - Fans with tachometer monitoring
- Pulse Width Modulated (PWM) fan connectors
- Status monitor for speed control
| | Temperature | - Monitoring for CPU and chassis environment
- Thermal Control for fan connectors
|
| | | Chassis | | Form Factor | | | Model | | | Dimensions and Weight | | Height | | | Width | | | Depth | | | Package | - 17.32" (H) x 28.34" (W) x 42.51" (D)
| | Weight | - Gross Weight: 100 lbs (45.3 kg)
- Net Weight: 65.5 lbs (29.7 kg)
| | Available Color | - Black Front & Silver Body

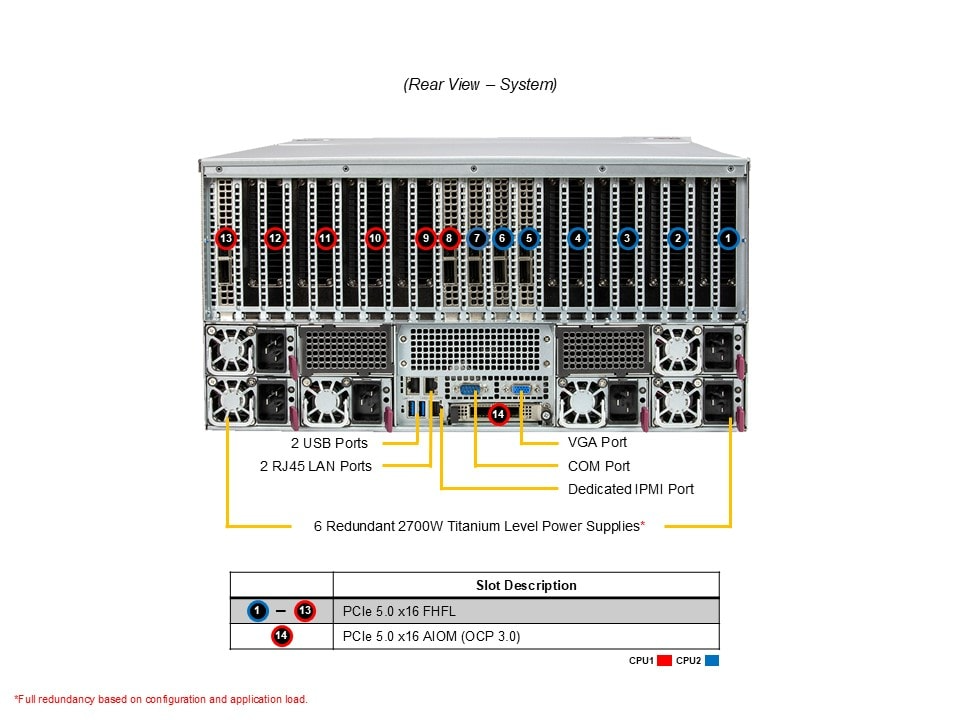

| | Expansion Slots | | PCI-Express (PCIe) Configuration | - Default
- 13 PCIe 5.0 x16 FHFL slots
- Option A
- 11 PCIe 5.0 x16 FHFL slots
- View AOC Options

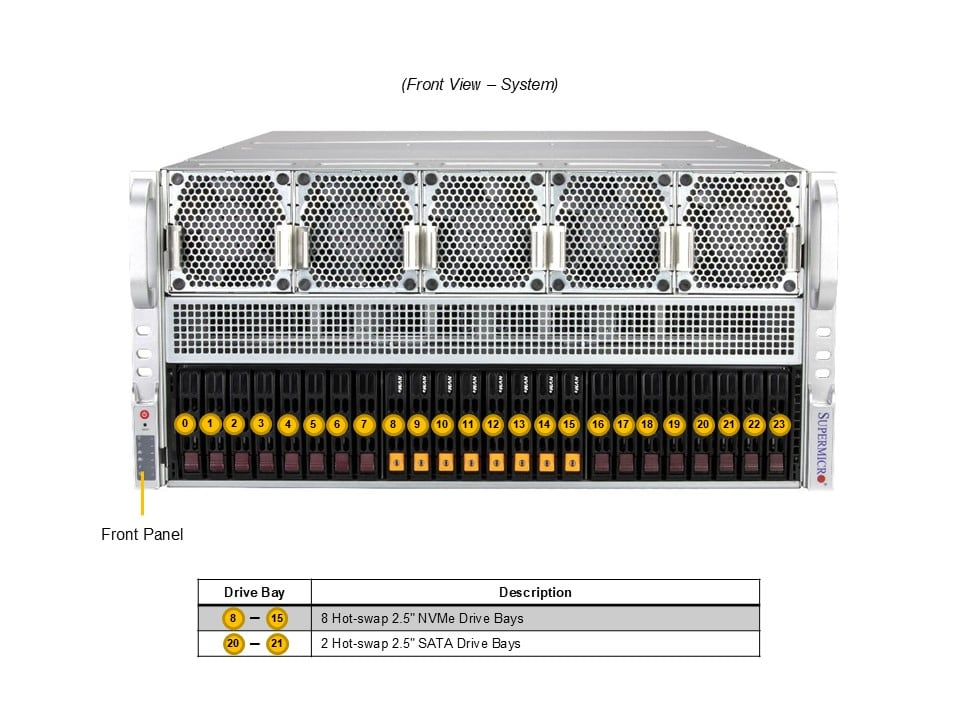

| | Drive Bays / Storage | | Drive Bays Configuration | - Default: Total 10 bays
- 2 front hot-swap 2.5" SATA drive bays
- 8 front hot-swap 2.5" NVMe drive bays
- View NVMe Options
- View Drive Options
| | M.2 | - 1 M.2 PCIe 3.0 x4 NVMe slot (M-key)
- View M.2 Options
| | System Cooling | | Fans | - Up to 10 heavy duty fans with optimal fan speed control
| | Power Supply | | | 6x 2700W Redundant (4 + 2) Titanium Level (96%) power supplies | | Dimension (WxHxL) | 73.5 x 40 x 203 mm | | Input | 2700W: 200-240Vac
2700W: 200-240Vac / 50-60Hz
2700W: 240-240Vdc / 50-60Hz (for CQC only) | | +12V | Max: 225A / Min: 0A (200Vac-240Vac)
Max: 225A / Min: 0A (240Vdc-240Vdc) | | 12V SB | Max: 3.5A / Min: 0A
Max: 4A / Min: 0A | | Output Type | Backplanes (gold finger) | | Operating Environment | | Environmental Spec. | - Operating Temperature: 10°C to 35°C (50°F to 95°F)
- Non-operating Temperature: -40°C to 60°C (-40°F to 140°F)
- Operating Relative Humidity: 8% to 90% (non-condensing)
- Non-operating Relative Humidity: 5% to 95% (non-condensing)
| | Environmental / Recycling | | Recycle | - Return Server-End of Life Product
|
|
For detailed specifications, options, and compatibility, please refer to the latest official Supermicro documentation and the actual quotes/specifications from Autech.
-

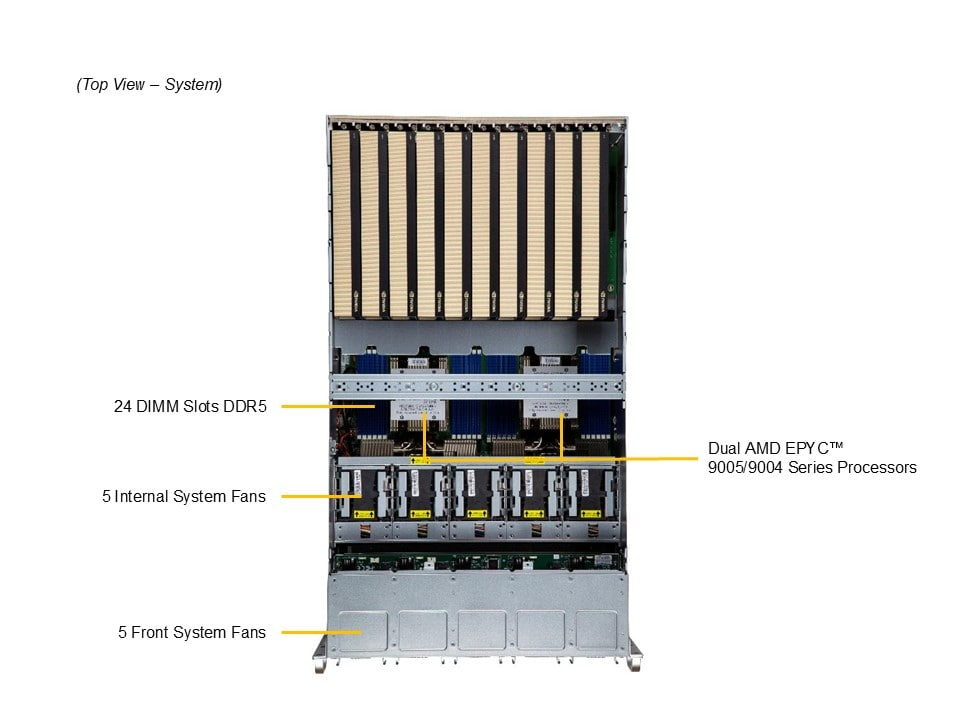

Dual processor(s) AMD EPYC™ 9005/9004 Series Processors up to 500W with air cooling
-
Supports up to 24 DIMM slots, 6400 MT/s 6TB DDR5 in 1DPC
(Please check System Memory Section for detail)
-
Total of 13 PCIe 5.0 x16 FHFL slots
-
Supports up to 10 double-width PCIe GPU accelerator cards
(8 double-width GPU is recommended, other 5 slots reserved for Networking scale out)
-
Flexible networking with AIOM support
-
Dual front hot-swap 2.5" SATA + 8 front hot-swap 2.5" NVMe drive bays
-
Total of 6x 2700W Redundant (3+3 or 4+2) Titanium Level power supplies
3+3 under 8100 Watt, 4+2 under 10,800 Watt
(Power supply redundancy based on configuration and application load)
- AI / Deep Learning
- 3D Rendering Farm
- Visualization / Simulation
- High Performance Computing
- Multimedia/Digital Content creation
