AS -4145GH-TNMR

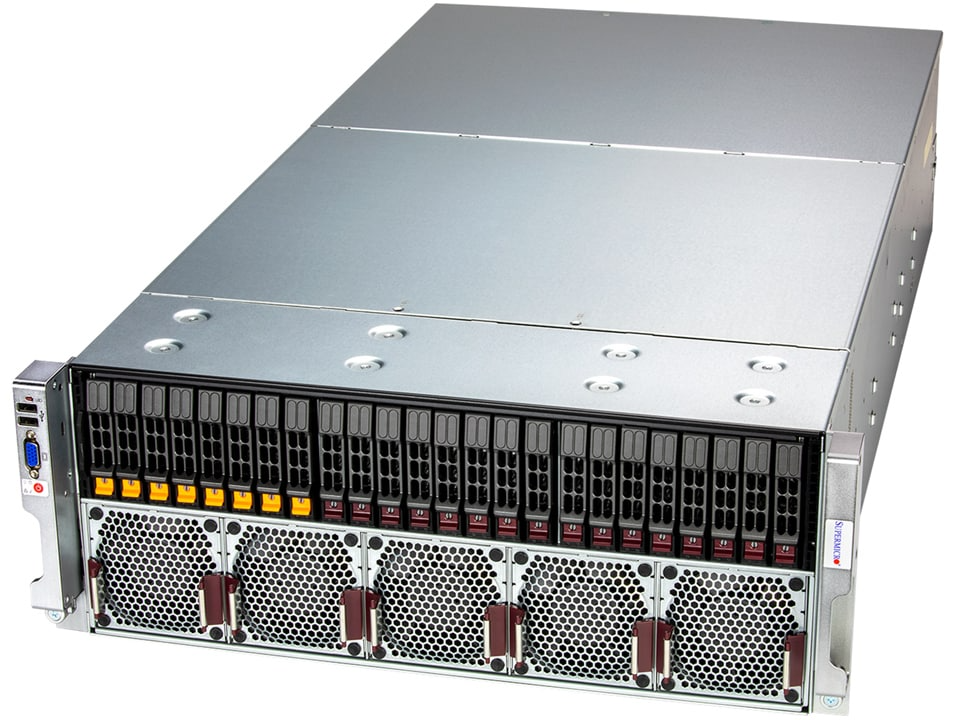

4U System with Quad AMD Instinct™ MI300A Accelerators (onsite service OSNBD is required)
Model : AS -4145GH-TNMR
Product SKUs
A+ Server AS -4145GH-TNMR
Motherboard
Super H13QSH
Processor
CPU
  • Quad Socket SH5
  • AMD Instinct™ MI300A Accelerated Processing Units (APUs)
Note
  • Supports up to 760W TDP CPUs (Air Cooled)
GPU
Max GPU Count
  • 4 onboard GPUs
GPU-GPU Interconnect
  • AMD Infinity Fabric™ Link
System Memory
Memory
  • Slot Count: Onboard Memory
  • Max Memory: Up to 512GB non-ECC HBM3
On-Board Devices
Chipset
  • AMD SH5
Network Connectivity
Input / Output
LAN
  • 1 RJ45 1 GbE Dedicated BMC LAN port
USB
  • 2 USB 3.0 ports(rear)
  • 2 USB 2.0 ports(front)
Video
  • 1 DisplayPort port
Serial
  • 1 COM port(rear)
System BIOS
BIOS Type
  • AMI 32MB SPI Flash
Management
Software
Power configurations
  • Power-on mode for AC power recovery
  • ACPI Power Management
Security
Hardware
  • Trusted Platform Module (TPM) 2.0
  • Silicon Root of Trust (RoT) – NIST 800-193 Compliant
Features
  • Cryptographically Signed Firmware
  • Secure Boot
  • Secure Firmware Updates
  • Automatic Firmware Recovery
  • Supply Chain Security: Remote Attestation
  • Runtime BMC Protections
  • System Lockdown
PC Health Monitoring
CPU
  • 4+1 Phase-switching voltage regulator
  • Monitors for CPU Cores, Chipset Voltages, Memory
FAN
  • Fans with tachometer monitoring
  • Pulse Width Modulated (PWM) fan connectors
  • Status monitor for speed control
Temperature
  • Monitoring for CPU and chassis environment
  • Thermal Control for fan connectors
Chassis
Form Factor
  • 4U Rackmount
Model
  • CSE-418H2TS-R0AWNDP
Dimensions and Weight
Height
  • 7" (177 mm)
Width
  • 17.3" (438.4 mm)
Depth
  • 33.4" (848.7 mm)
Package
  • 15.94" (H) x 27.32" (W) x 49.41" (D)
Weight
  • Gross Weight: 158.07 lbs (71.7 kg)
  • Net Weight: 120.59 lbs (54.7 kg)
Available Color
  • No Paint
Expansion Slots

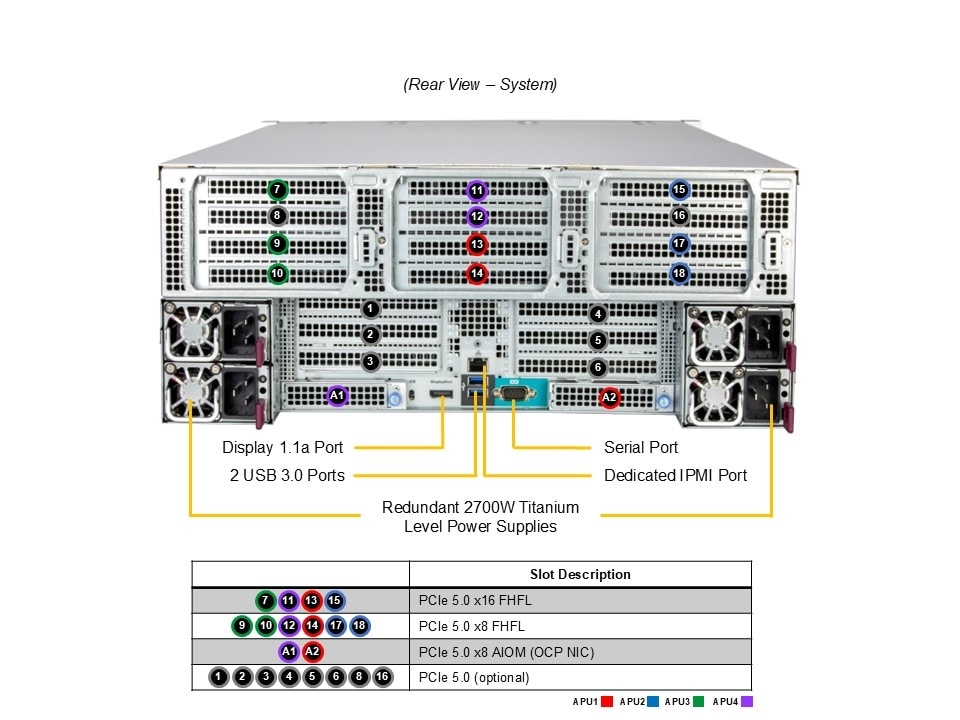

PCI-Express (PCIe) Configuration
  • Default
    • 4 PCIe 5.0 x16 FHHL slots
    • 2 PCIe 5.0 x8 FHHL slots
  • Option A*
    • 4 PCIe 5.0 x16 FHHL slots
    • 6 PCIe 5.0 x8 FHHL slots
    • 2 PCIe 5.0 x8 AIOM slots (OCP 3.0 compatible)
  • Option B*
    • 6 PCIe 5.0 x16 FHHL slots
    • 2 PCIe 5.0 x16 AIOM slots (OCP 3.0 compatible)
    • ...
  • View AOC Options
Drive Bays / Storage
Drive Bays Configuration

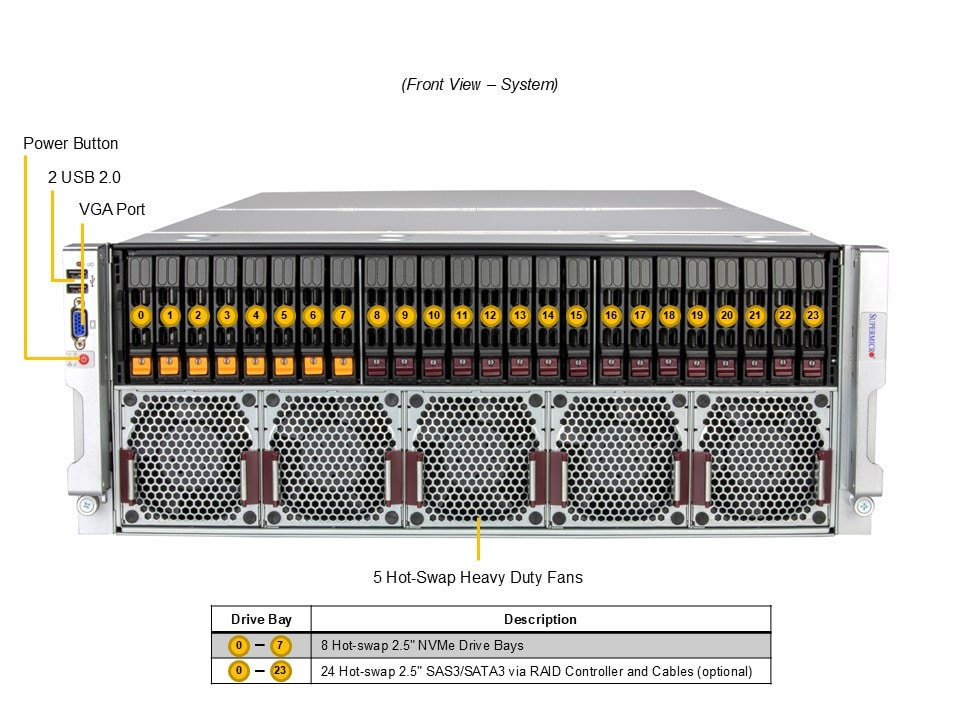

  • Default: Total 8 bays
    • 8 front fixed 2.5" NVMe drive bays
  • Option A: Total 16 bays
    • 16 front fixed 2.5" NVMe drive bays
  • Option B: Total 24 bays
    • 24 front fixed 2.5" SAS*/SATA* drive bays
  • (*SAS/SATA support may require additional storage controller and/or cables, please see the optional parts list for details)
  • View NVMe Options
M.2
System Cooling
Fans
  • Up to 10 Heavy duty counter-rotating 8cm Fan(s)
Air Shroud
  • 1 Air Shroud
Power Supply
4x 2700W Redundant (3 + 1) Titanium Level (96%) power supplies
Dimension (WxHxL) 73.5 x 40 x 203 mm
Input 2700W: 200-240Vac
2700W: 200-240Vac / 50-60Hz
2700W: 240-240Vdc / 50-60Hz (for CQC only)
+12V Max: 225A / Min: 0A (200Vac-240Vac)
Max: 225A / Min: 0A (240Vdc-240Vdc)
12V SB Max: 3.5A / Min: 0A
Max: 4A / Min: 0A
Output Type Backplanes (gold finger)
Operating Environment
ROHS
  • RoHS Compliant
Environmental Spec.
  • Operating Temperature: 10°C to 35°C (50°F to 95°F)
  • Non-operating Temperature: -40°C to 60°C (-40°F to 140°F)
  • Operating Relative Humidity: 8% to 90% (Non-Condensing)
  • Non-operating Relative Humidity: 5% to 95% (Non-Condensing)

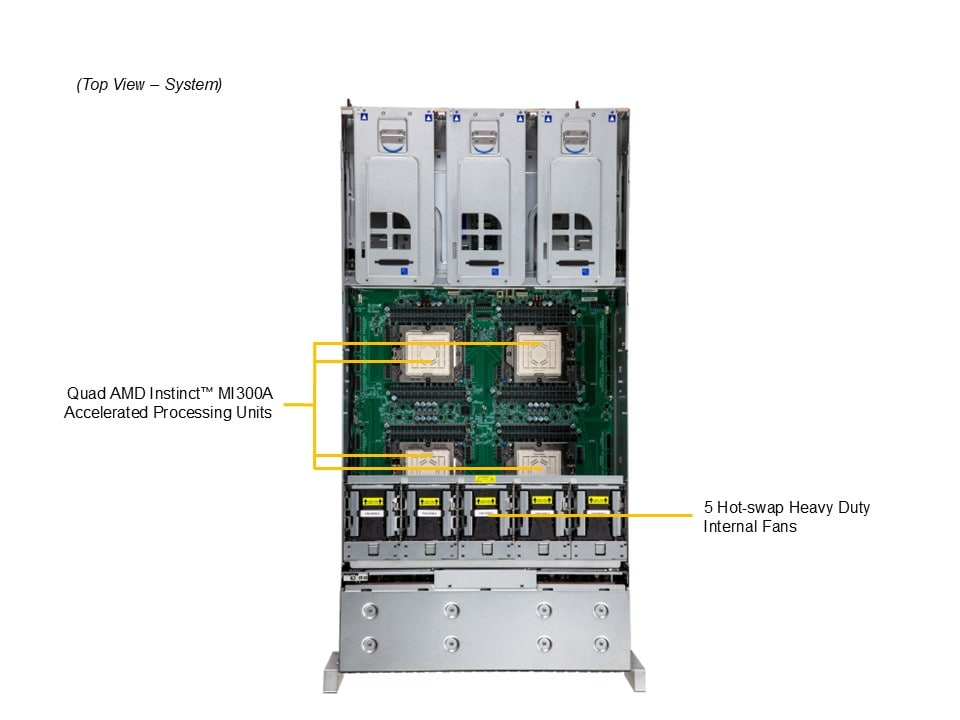

  1. Quad AMD Instinct™ MI300A processors
  2. Onboard 512GB HBM3 unified memory
  3. Optional PCIe configurations up to 8 PCIe x16 slots
  4. Flexible networking options with 2 AIOM networking slot (OCP NIC 3.0 compatible)
    • Default 8 2.5" NVMe drive bays or Optional 24 2.5" SAS3/SATA3 drive bays via storage add-on card
    • 2 Internal NVMe/SATA M.2 slots
  6. 10 heavy duty fans w/ optimal fan speed control
  7. 4x 2700W redundant Titanium level power supplies
