Product SKUs
|
|

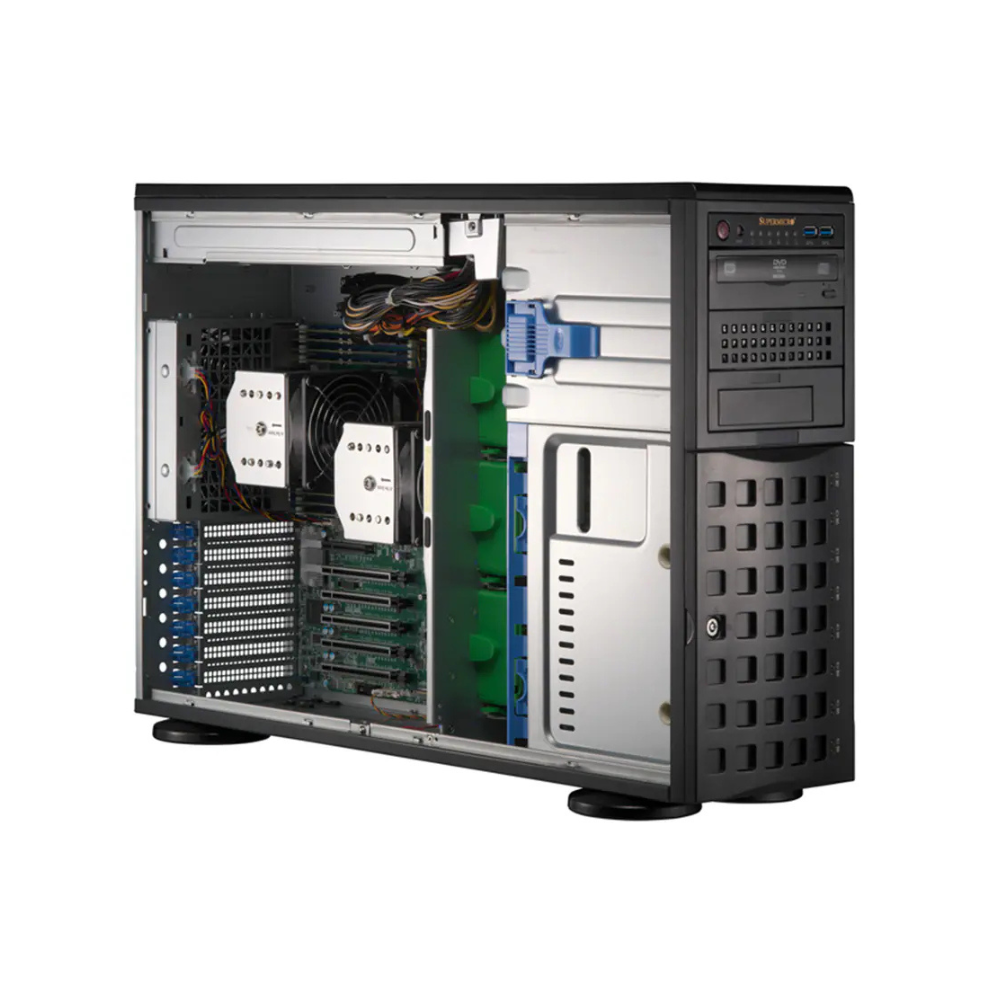

SYS-741A-T
|
|
Motherboard
|
|
Super X13DAI-T
|
|
Processor
|
|
CPU
|
|
|
Core Count
|
-
Up to 64C/128T; Up to 320MB Cache per CPU
|
|
Note
|
-
Supports up to 350W TDP CPUs (Air Cooled)
|
|
GPU
|
|
Max GPU Count
|
-
Up to 2 double-width GPUs
|
|
Supported GPU
|
-
NVIDIA PCIe: NVIDIA RTX PRO™ 6000 Blackwell Max-Q Workstation Edition, NVIDIA RTX PRO™ 6000 Blackwell Workstation Edition, RTX 4000 Ada Generation, RTX 4000 SFF Ada Generation, RTX 5000 Ada, RTX 6000 Ada Generation
-
View GPU Options
|
|
CPU-GPU Interconnect
|
-
PCIe 5.0 x16 CPU-to-GPU Interconnect
|
|
GPU-GPU Interconnect
|
|
|
System Memory
|
|
Memory
|
-
Slot Count: 16 DIMM slots
-
Max Memory (1DPC): Up to 2TB 5600MT/s ECC DDR5 RDIMM
-
View Memory Options
|
|
Memory Voltage
|
|
|
On-Board Devices
|
|
SATA
|
-
SATA (6Gbps) ; RAID 0/1/5/10 support
|
|
NVMe
|
-
NVMe; RAID 0/1/5/10 support(VROC HW key required)
-
View NVMe Options
|
|
Network Connectivity
|
-
2 RJ45 10GbE
-
View AOC Options
|
|
Input / Output
|
|
LAN
|
-
2 RJ45 10 GbE LAN ports (IPMI shared on LAN port 1)
|
|
USB
|
-
2 USB 3.2 Gen1 Type-A ports(front)
-
4 USB 3.0 Type-A ports(Rear)
|
|
Video
|
|
|
DOM
|
-
2 SATA DOM (Disk on Module) ports
|
|
Audio
|
-
7.1 HD Audio
-
Line Out
-
Mic in
|
|
System BIOS
|
|
BIOS Type
|
|
|
Management
|
|
Software
|
|
|
Power configurations
|
-
ACPI/APM Power Management
|
|
Security
|
|
Hardware
|
-
Trusted Platform Module (TPM) 2.0
-
Silicon Root of Trust (RoT) – NIST 800-193 Compliant
|
|
Features
|
-
Cryptographically Signed Firmware
-
Secure Boot
-
Secure Firmware Updates
-
Automatic Firmware Recovery
-
Supply Chain Security: Remote Attestation
-
Runtime BMC Protections
-
System Lockdown
|
|
PC Health Monitoring
|
|
CPU
|
-
Monitors for CPU Cores, Chipset Voltages, Memory.
|
|
FAN
|
-
Pulse Width Modulated (PWM) fan connectors
-
Status monitor for speed control
|
|
Temperature
|
-
Monitoring for CPU and chassis environment
-
Thermal Control for fan connectors
|
|
Certifications
|
|
Operating Systems
|
|
|
|
|
Chassis
|
|
Form Factor
|
|
|
Model
|
|
|

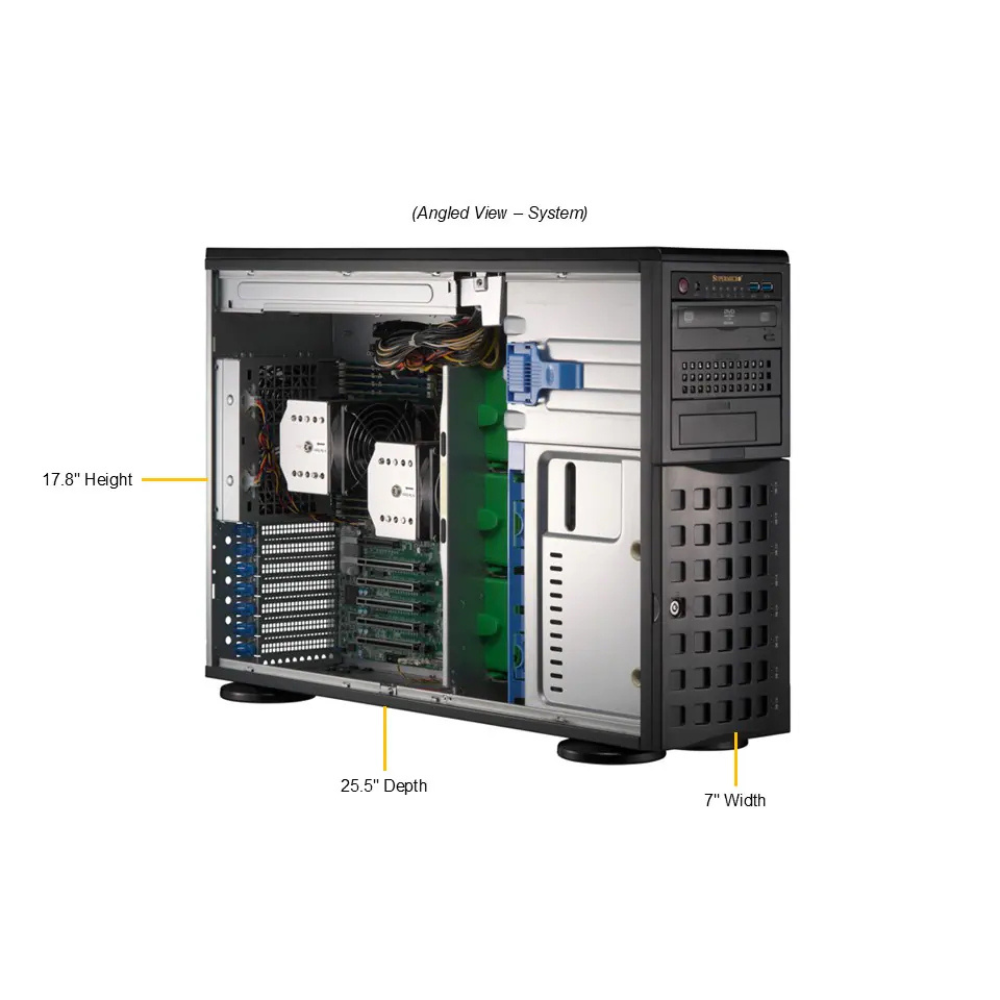

Dimensions and Weight
|
|
Height
|
|
|
Width
|
|
|
Depth
|
|
|
Package
|
-
24.6" (H) x 14" (W) x 31.3" (D)
|
|
Weight
|
-
Gross Weight: 62 lbs (28.12 kg)
-
Net Weight: 59 lbs (26.76 kg)
|
|
Available Color
|
|
|
Front Panel
|
|
Buttons
|
-
Power On/Off button
-
Reset button
|
|
LED
|
-
HDD activity LED
-
Network activity LEDs
-
Power status LED
|
|

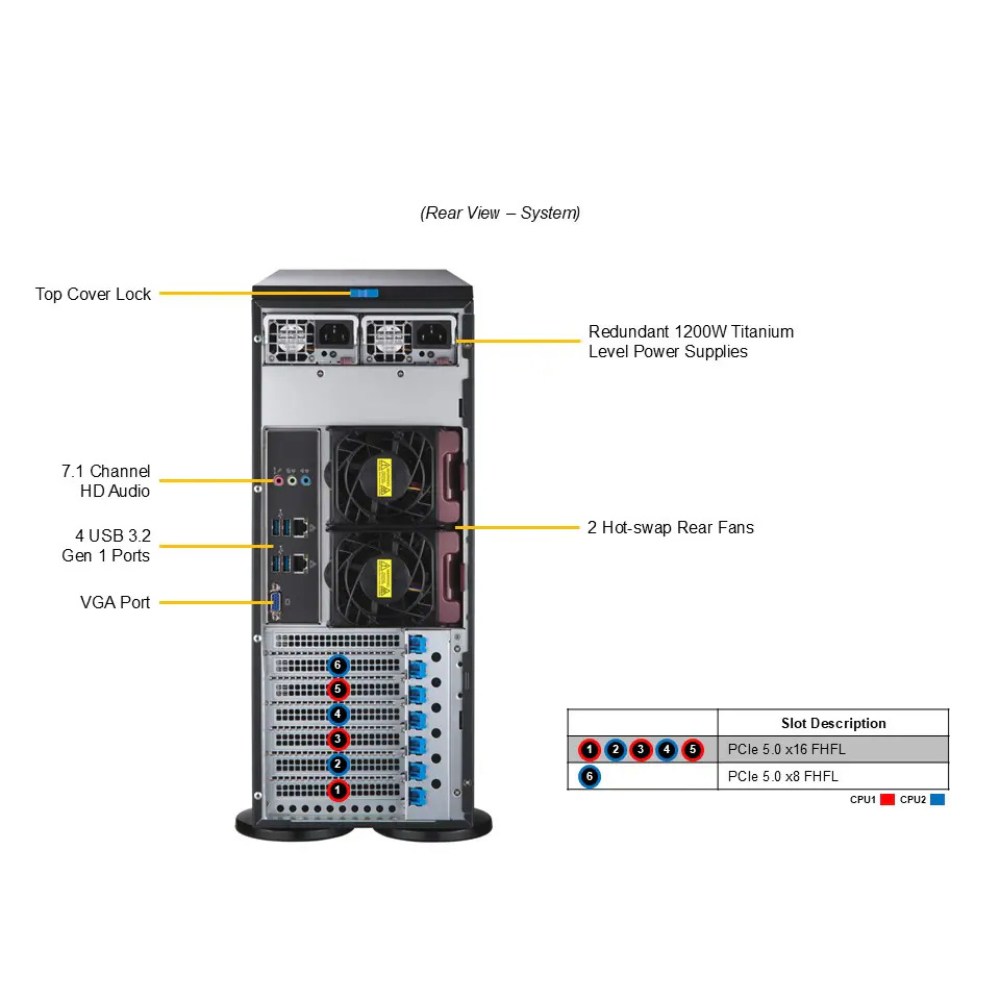

Expansion Slots
|
|
PCI-Express (PCIe) Configuration
|
-
Default
-
5 PCIe 5.0 x16 FHFL slots
-
1 PCIe 5.0 x8 FHHL slot
-
View AOC Options
|
|

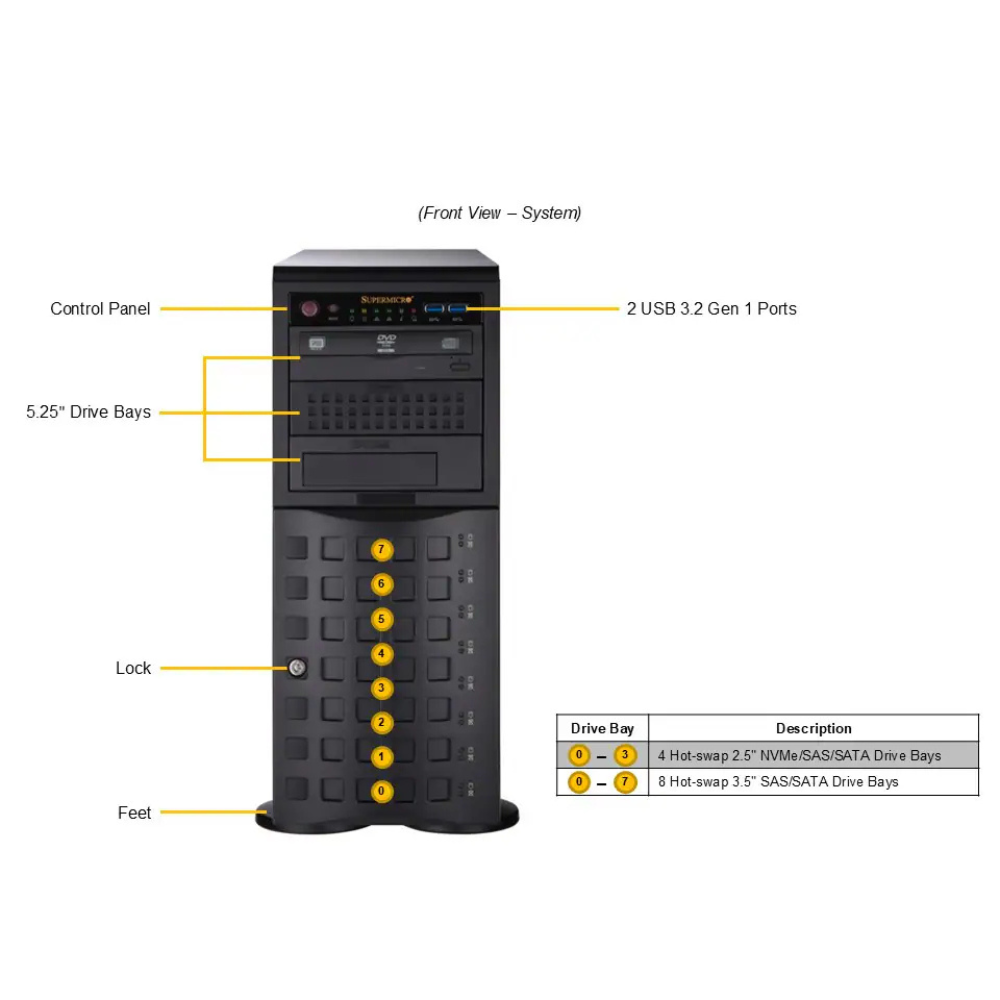

Drive Bays / Storage
|
|
Drive Bays Configuration
|
-
Default: Total 8 bays
-
8 front fixed 3.5"/2.5" NVMe/SAS*/SATA drive bays
-
Option A: Total 16 bays
-
8 front fixed 3.5"/2.5" 24G SAS*/SAS/SATA drive bays
-
8 front fixed 2.5" 24G SAS*/NVMe*/SAS/SATA drive bays
-
(*24G SAS/NVMe/SAS support may require additional storage controller and/or cables, please see the optional parts list for details)
-
View NVMe Options
-
View Drive Options
|
|
M.2
|
-
2 M.2 NVMe/SATA slots (M-key 2280/22110; VROC required for RAID)
-
View M.2 Options
|
|
Peripheral Bays
|
|
|
System Cooling
|
|
Fans
|
-
5 Heavy Duty(Hot Swap) 80mm Fan(s) (optional)
-
5 Acoustic Optimized (Hot Swap) 80mm Fan(s)
-
1 Exterior 80mm Fan(s) (optional)
|
|
Power Supply
|
|
|
2x 1200W Redundant (1 + 1) Titanium Level (96%) Hot-plug power supplies
|
|
Dimension (WxHxL)
|
76 x 40 x 336 mm
|
|
Input
|
1000W: 100-127Vac
1000W: 100-127Vac / 50-60Hz
1200W: 200-240Vac
1200W: 200-240Vac / 50-60Hz
1200W: 200-240Vdc / 50-60Hz (for CCC only)
|
|
+12V
|
Max: 83A / Min: 0A (100Vac-127Vac)
Max: 100A / Min: 0A (200Vac-240Vac)
|
|
5V SB
|
Max: 4A / Min: 0A
|
|
Output Type
|
Backplanes (gold finger)
|
|
|
2x 2200W Redundant (1 + 1) Titanium Level (96%) Hot-plug power supplies
|
|
Dimension (WxHxL)
|
76 x 40 x 336 mm
|
|
Total Output Power
|
(for UL/cUL use only)
(for CCC only)
|
|
Input
|
1200W: 100-127Vac
1200W: 100-127Vac / 50-60Hz
1800W: 200-220Vac / 50-60Hz
1980W: 220-230Vac / 50-60Hz
2090W: 230-240Vac / 50-60Hz
2090W: 230-240Vdc / 50-60Hz (for CCC only)
2090W: 200-220Vac / 50-60Hz (for UL/cUL use only)
2200W: 230-240Vac
2200W: 220-240Vac / 50-60Hz (for UL/cUL use only)
|
|
+12V
|
Max: 100A / Min: 0A (100Vac-127Vac)
Max: 100A / Min: 0A (100Vdc-127Vdc)
Max: 150A / Min: 0A (200Vac-220Vac)
Max: 165A / Min: 0A (220Vac-230Vac)
Max: 174.17A / Min: 0A (230Vac-240Vac)
Max: 174.17A / Min: 0A (230Vdc-240Vdc) (for CCC only)
Max: 174.17A / Min: 0A (230Vac-240Vac) (for UL/cUL only)
Max: 183.3A / Min: 0A (220Vac-240Vac)
Max: 183.33A / Min: 0A (220Vac-240Vac) (for UL/cUL only)
Max: 183.33A / Min: 0A (230Vdc-240Vdc)
|
|
5V SB
|
Max: 1A / Min: 0A
|
|
Output Type
|
Backplanes (gold finger)
|
|
Operating Environment
|
|
Environmental Spec.
|
-
Operating Temperature: 10°C to 35°C (50°F to 95°F)
-
Non-operating Temperature: -40°C to 60°C (-40°F to 140°F)
-
Operating Relative Humidity: 8% to 90% (non-condensing)
-
Non-operating Relative Humidity: 5% to 95% (non-condensing)
|
|
For detailed specifications, options, and compatibility, please refer to the latest official Supermicro documentation and the actual quotes/specifications from Autech.
-

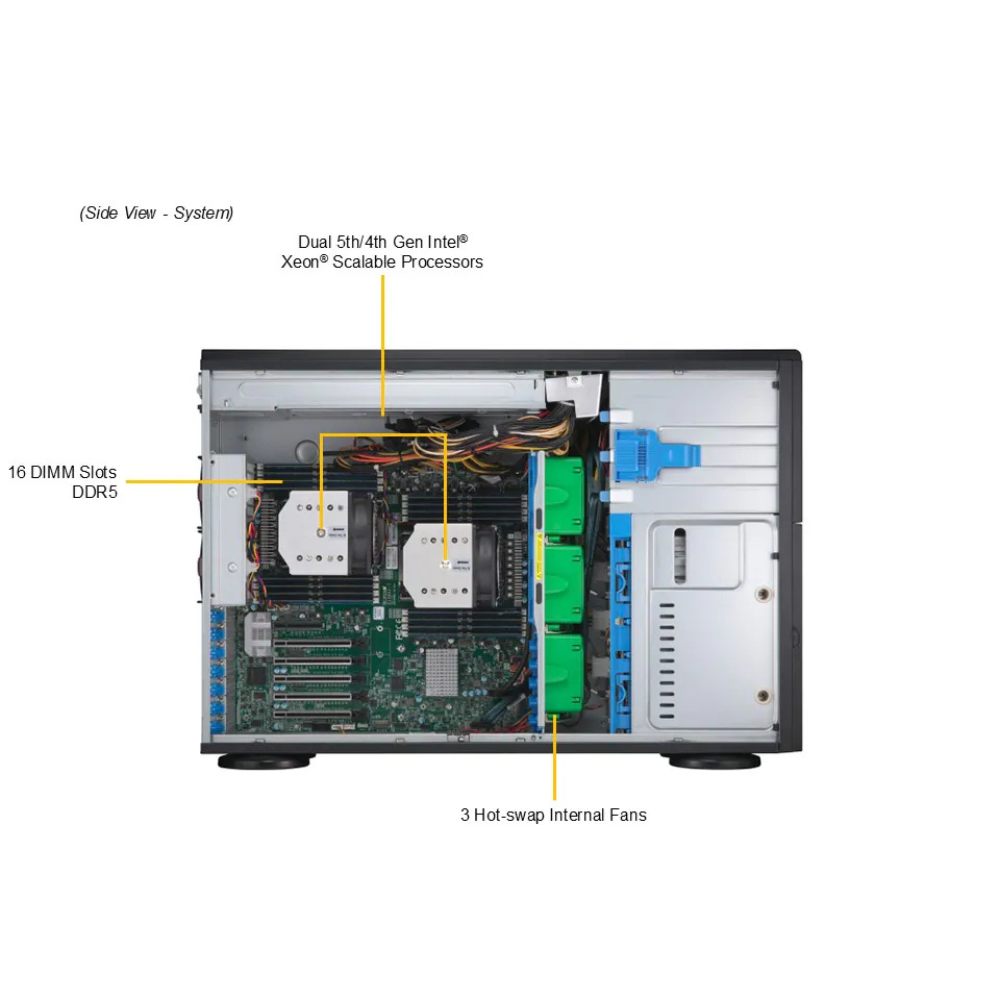

Dual 5th/4th Gen Intel® Xeon® Scalable processors up to 350W with air cooling
Supports CXL
-
16x DIMM Slots: up to 4TB RDIMM DDR5 ECC with 5600MT/s
-
Support for up to 2x double-width PCIe GPU accelerator cards
5 PCIe 5.0 x16 FHFL + 1 PCIe 5.0 x8 FHHL slots
NVIDIA RTX PRO™ 6000 Blackwell Max-Q Workstation Edition supported
-
2x PCIe 5.0 M.2 2280/22110
Default: 8x hot-swap front 3.5/2.5" NVMe/SATA drive bays
Optional: 8x 24G SAS4 HW RAID support with additional add-on card and cables
-
2x 10GbE LAN (BMC shared LAN support with first LAN port)
Onboard Trusted Platform Module (TPM) 2.0
-
2x 1200W Redundant (1 + 1) Titanium Level (96%) power supplies
-
Virtualization
-
VDI
-
CDN Optimized
-
Multimedia/Digital Content creation
-
3D Rendering
-
High Performance Computing
-
AI Inference and Machine Learning
-
CAD
-
Animation and Modeling
