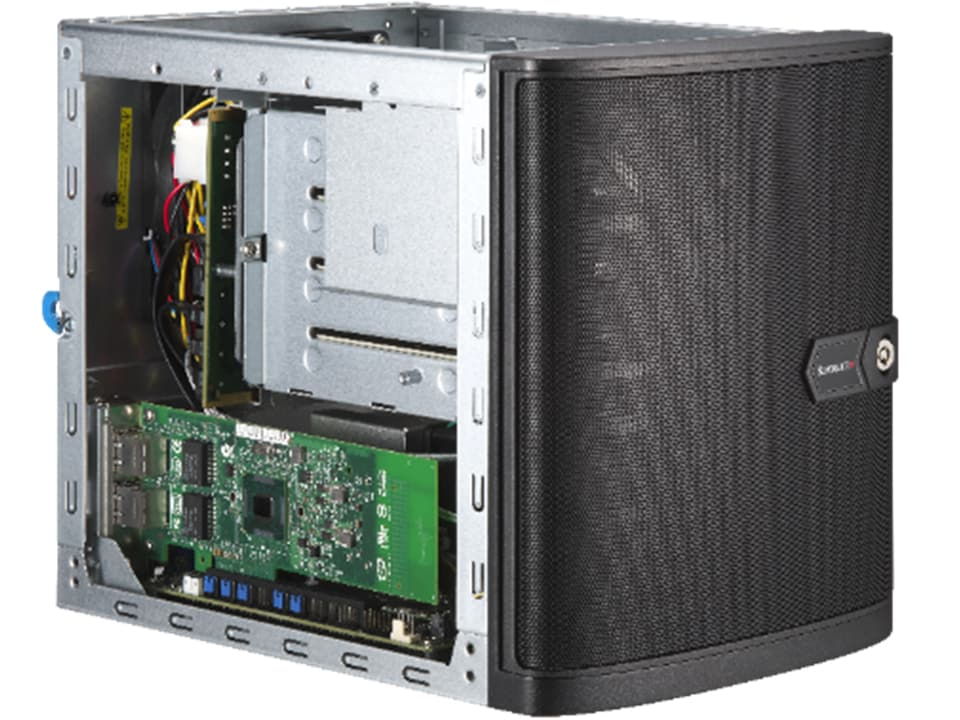

SYS-521R-T is a Supermicro SuperWorkstation single-processor system. UP compact mini tower with 4 hot-swap 3.5" SATA drive bays and PCIe 5.0
It is positioned for professional workstation deployments that require reliable compute, storage, expansion and graphics options in a server-grade platform. Key configuration references include Intel® Xeon® E-2400 series Processors and 12th Gen. Pentium® Processors, Compact Mini-Tower, 4 default and 1x 350W.
Official reference: Supermicro official product page
SYS-521R-T Specifications
|
Product SKUs
|
|
|
SuperWorkstation SYS-521R-T
|
|
Processor
|
|
CPU
|
Single processor(s) Intel® Xeon® E-2400 series Processors and 12th Gen. Pentium® Processors
|
|
Core Count
|
Up to 8C/16T
|
|
System Memory
|
|
Memory
|
Slot Count: 2 DIMM slots Max Memory (1DPC): Up to 64GB 4800MT/s ECC DDR5 UDIMM
|
|
Memory Voltage
|
1.1V
|
|

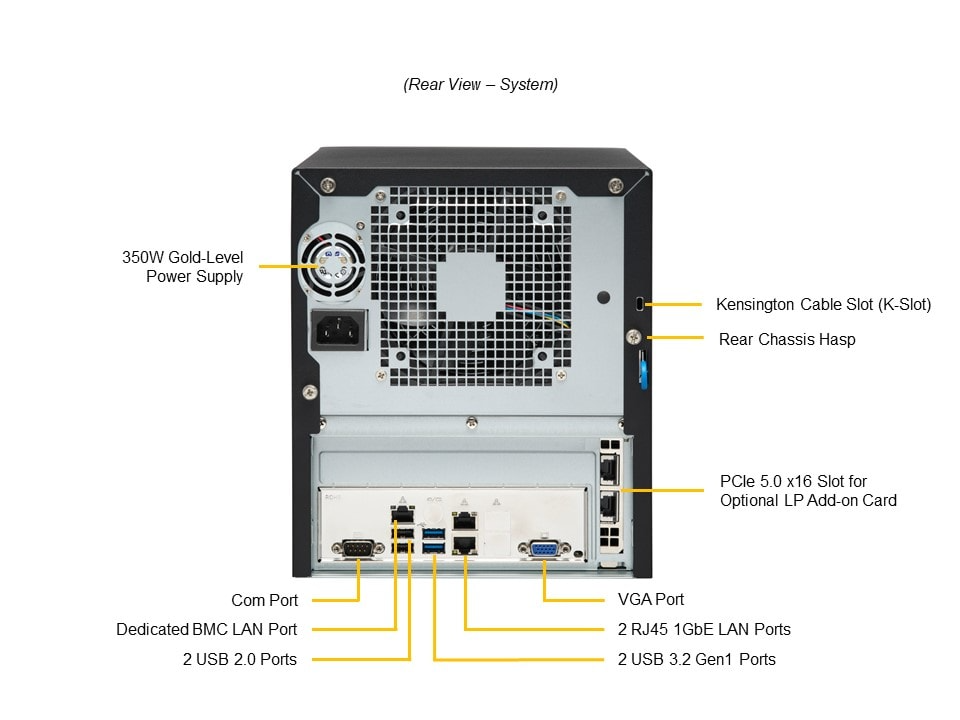

Input / Output
|
|
USB
|
2 USB 3.2 Gen1 Type-A ports(rear) 2 USB 2.0 Type-A ports(rear) 2 USB 3.2 Gen1 Type-A ports(front)
|
|
Video
|
1 VGA port
|
|

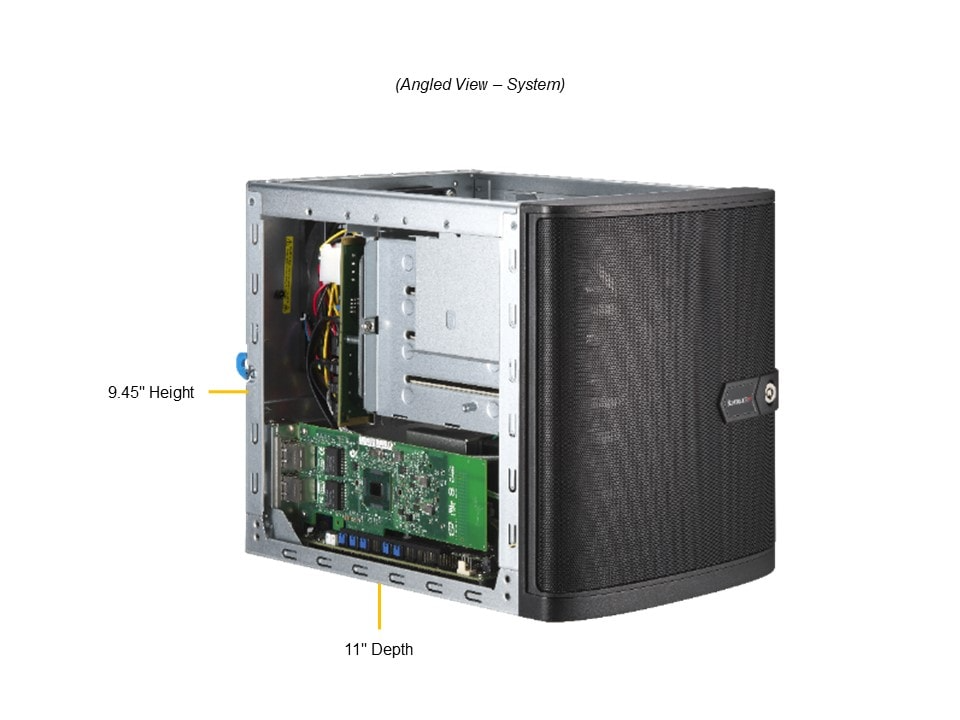

Dimensions and Weight
|
|
Height
|
9.45" (240.03 mm)
|
|
Width
|
8.27" (210.06 mm)
|
|

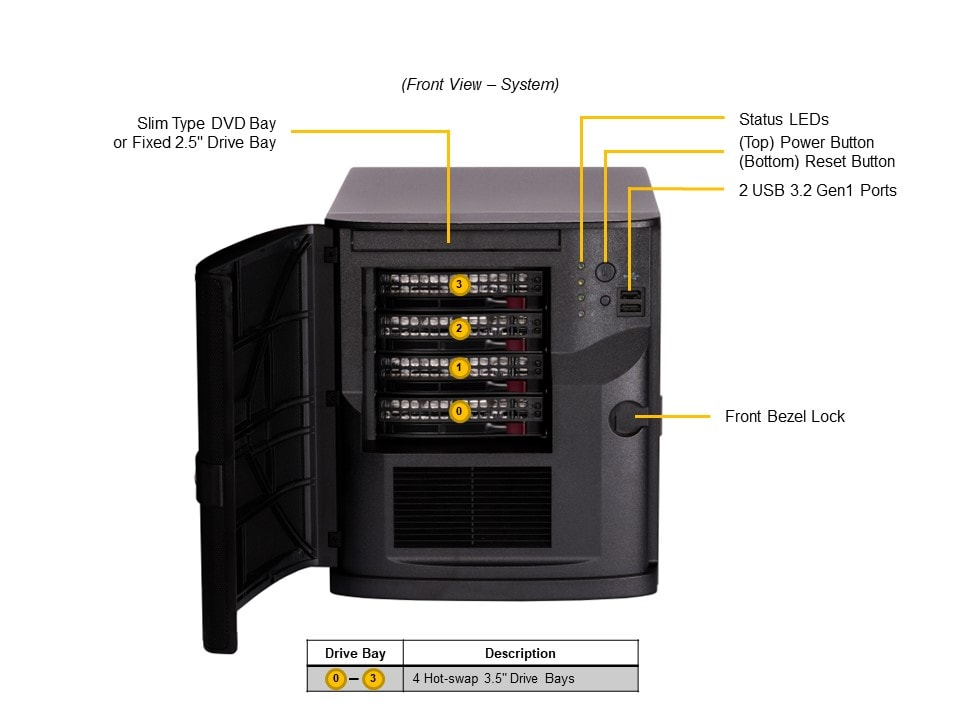

Drive Bays / Storage
|
|
Drive Bays Configuration
|
Default: Total 4 bays4 front hot-swap 3.5" PCIe 4.0 x4 NVMe*/SAS*/SATA drive bays (*NVMe/SAS support may require additional storage controller and/or cables)
|
|
M.2
|
1 M.2 PCIe 4.0 x4 NVMe slot (M-key 2280)
|
|
|
|
Motherboard
|
|
|
Supermicro X13SCL-IF
|
|
GPU
|
|
GPU
|
The official specification page does not list a dedicated GPU support field; actual support should be confirmed with the official Supermicro configuration and AUTECH sales.
|
|
On-Board Devices
|
|
SATA
|
SATA (6Gbps)
|
|
Network Connectivity
|
1 RJ45 1GbE with Realtek RTL8211F PHY (dedicated IPMI) 2 RJ45 1GbE with Intel® I210
|
|
Chassis
|
|
Form Factor
|
Compact Mini-Tower
|
|
Model
|
CSE-721TQ-350B2
|
|

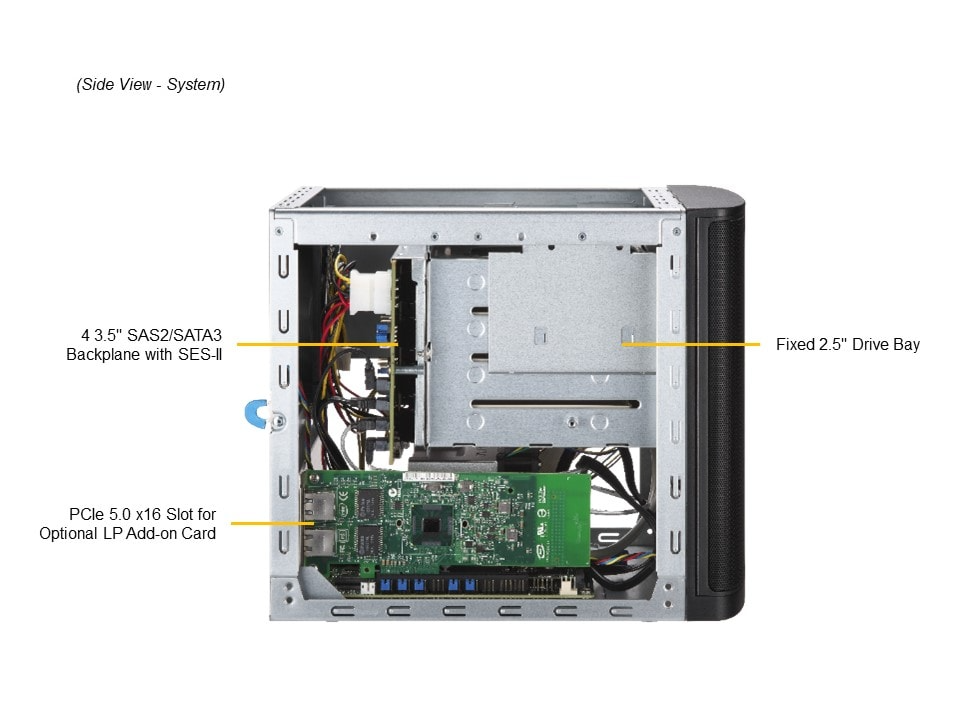

Expansion Slots
|
|
PCI-Express (PCIe) Configuration
|
Default1 PCIe 5.0 x16 HHHL slot
|
|
System Cooling
|
|
Fans
|
Up to 1x 120mm Fan(s)
|
|
For detailed specifications, options, and compatibility, please refer to the latest official Supermicro documentation and the actual quotes/specifications from Autech.
Product Description
SYS-521R-T is a Supermicro SuperWorkstation single-processor system. UP compact mini tower with 4 hot-swap 3.5" SATA drive bays and PCIe 5.0
It is positioned for professional workstation deployments that require reliable compute, storage, expansion and graphics options in a server-grade platform. Key configuration references include Intel® Xeon® E-2400 series Processors and 12th Gen. Pentium® Processors, Compact Mini-Tower, 4 default and 1x 350W.
Official reference: Supermicro official product page
Key Features
-
CPU: 1
-
CPU Type: Intel® Xeon® E-2400 series Processors and 12th Gen. Pentium® Processors
-
Drives: 4 default
-
Form Factor: Compact Mini-Tower
-
Supported GPUs: N/A
-
Total Power: 1x 350W
Applications
-
Professional workstation computing
-
Content creation, engineering or AI workloads according to configuration
-
Enterprise workstation deployment
-
Professional Workstation Computing
-
Content Creation
-
Engineering / Simulation
-
Enterprise Workstation Deployment
