GP-3000
• 2 x DDR4 SO-DIMM Sockets, Supports ECC/non ECC type up to 2666 MHz, 64GB
• 4 x 2.5" Hot Swappable SATA III HDD/SSD Bays (Max Height 15 mm)
• 1 x M.2 M Key Socket (NVMe), 1 x M.2 E Key Socket (CNVi)
• 2 x Front Accessible SIM Card Slots for Signal Redundancy
• CMI Technology for Various I/O Module Expansions
• CFM Technology for Power Ignition Sensing & PoE Function

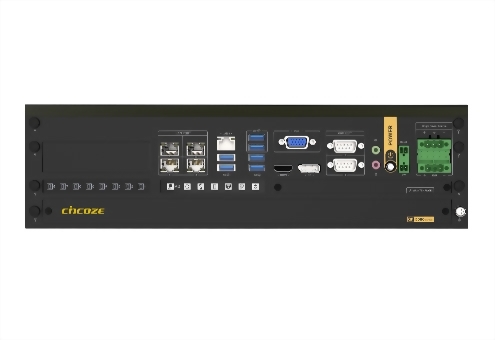

• Versatile Mounting Methods (Wall / Stand / Face-up / 19" Rack Mount)
• Military Standard Shock & Vibration Proof

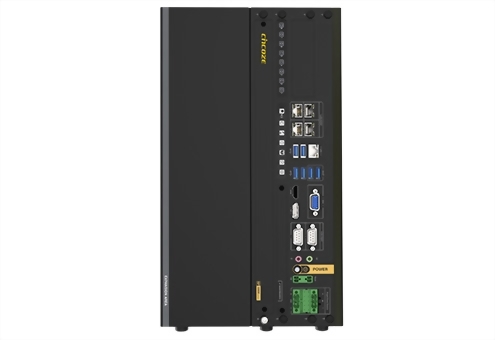

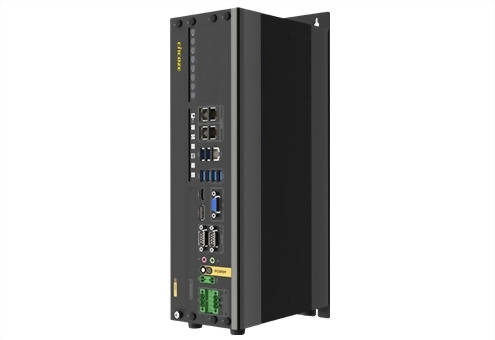

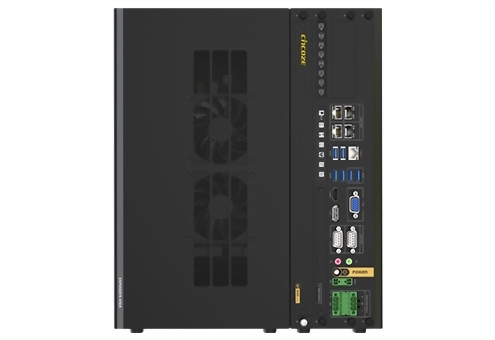

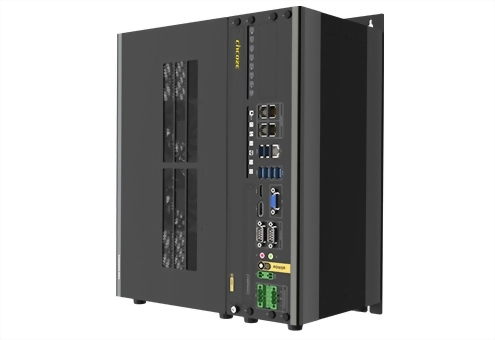

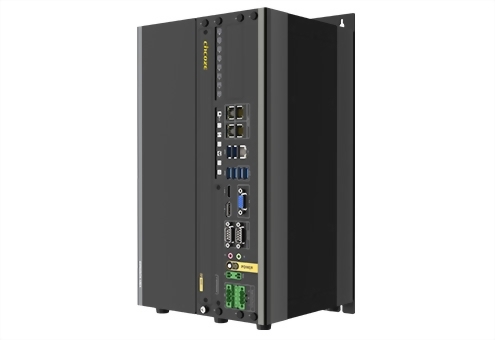

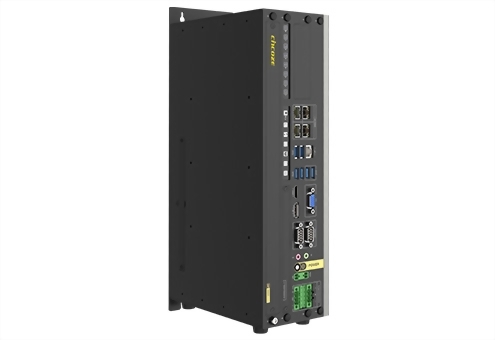

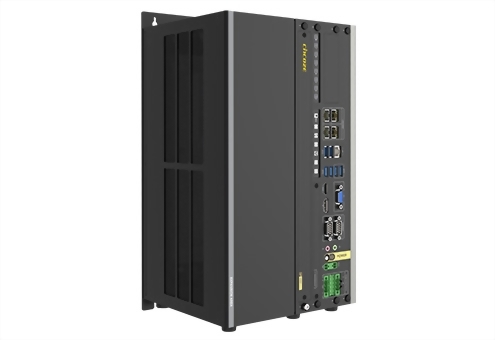

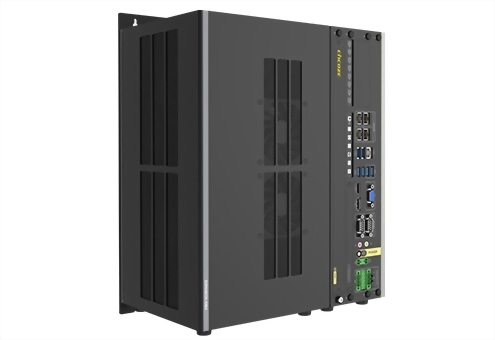

GP-3000. A flagship GPU edge computing computer of Cincoze. Its crowning feature is an exclusive GPU Expansion Box that provides expansion for up to two high-end
GPU cards and creating a high-performance industrial-grade GPU computing computer.
Extreme Computing Performance
The GP-3000’s extreme computing power starts with an 8th or 9th generation Intel® Xeon® or Core™ i3/i5/i7 (Coee Lake and Coee Lake-R) CPU, Intel® C246 chipset, and
supports two sets of DDR4-2666 ECC/non-ECC SO-DIMM up to 64 GB and can support up to two 250 W high-end GPU cards. With a total power consumption of 720W,it’s easy to meet and exceed high-eiciency application requirements. A precision heat dissipation and cooling design quickly wick away heat, keeping the focus squarely on the breathtaking performance of the GP-3000.
Rich Application Functions
The GP-3000 redefines the standard for high-end GPU computers, with high-speed I/O and multiple functions. In addition to the standard five LAN ports and six USB 3.2
ports, the GP-3000 uses Cincoze’s exclusive CMI and CFM modular design, which oers expansion modules with eight Gigabit PoE, two USB 3.2, or dual 10 Gb/s LAN ports.
Storage options include high-speed M.2 NVMe storage slots and four hot-swappable 2.5” HDD/SSD trays accessible through the front maintenance panel. Together, they
meet large-capacity machine vision storage requirements and improve hard disk accessibility for convenient removal and replacement. The IGN module (power ignition sensing) can monitor the on-board battery voltage and set a delayed shutdown time to avoid damage to the system due to unstable current when starting or turning o the engine. This combination of diverse functions provides the flexibility to meet the requirements of dierent market applications.
Strong and Reliable
In the pursuit of ever-higher standards, the GP-3000 has passed the MIL-STD-810G certification designed and promulgated by the US Department of Defense to qualify
military equipment. The GP-3000 features 9~48 VDC power input, is built for -40 to 70°C temperature operation. The GP-3000 has E-mark and EN50155 (EN50121-3-2 only) certifications, so it is capable of withstanding the rigors of rail and vehicle applications as well as other harsh environments.
| Model Name | GP-3000 | |
|---|---|---|
| System | Processor |
• 9th Generation Intel Coffee Lake-R S Series CPU: - Intel® Xeon® E-2278GE 8 Cores Up to 4.7 GHz, TDP 80W - Intel® Xeon® E-2278GEL 8 Cores Up to 3.9 GHz, TDP 35W - Intel® Core™ i7-9700E 8 Cores Up to 4.4 GHz, TDP 65W - Intel® Core™ i5-9500E 6 Cores Up to 4.2 GHz, TDP 65W - Intel® Core™ i3-9100E 4 Cores Up to 3.7 GHz, TDP 65W - Intel® Core™ i7-9700TE 8 Cores Up to 3.8 GHz, TDP 35W - Intel® Core™ i5-9500TE 6 Cores Up to 3.6 GHz, TDP 35W - Intel® Core™ i3-9100TE 4 Cores Up to 3.2 GHz, TDP 35W • 8th Generation Intel Coffee Lake S Series CPU: - Intel® Xeon® E-2176G 6 Cores up to 4.7 GHz, TDP 80W - Intel® Xeon® E-2124G 4 Cores up to 4.5 GHz, TDP 71W - Intel® Core™ i7-8700 6 Cores up to 4.6 GHz, TDP 65W - Intel® Core™ i5-8500 6 Cores, up to 4.1 GHz, TDP 65W - Intel® Core™ i3-8100 4 Cores 3.6 GHz, TDP 65W - Intel® Core™ i7-8700T 6 Cores up to 4.0 GHz, TDP 35W - Intel® Core™ i5-8500T 6 Cores up to 3.5 GHz, TDP 35W - Intel® Core™ i3-8100T 4 Cores 3.1 GHz, TDP 35W - Intel® Pentium® G5400 2 Cores 3.7 GHz, TDP 58W - Intel® Pentium® G5400T 2 Cores 3.1 GHz, TDP 35W - Intel® Celeron® G4900 2 Cores 3.1 GHz, TDP 54W - Intel® Celeron® G4900T 2 Cores 2.9 GHz, TDP 35W |
| Chipset | Intel C246 | |
| Memory |
• 2x DDR4-2666/2400 MHz SO-DIMM Sockets • Supports ECC / non-ECC Type Up to 64 GB * Xeon/i7/i5: Up to DDR4 2666MHz * i3/Pentium/Celeron: Up to DDR4 2400MHz |
|
| Graphics |
• Integrated Intel® UHD Graphics (Xeon/i7/i5/i3: UHD 630; Pentium/Celeron: UHD 610) • Supports Triple Independent Display (VGA/DisplayPort/HDMI) |
|
| Audio | Realtek® ALC888, High Definition Audio | |
| BIOS | AMI BIOS | |
| I/O Interface | HDMI | 1x HDMI Connector (4096 x 2160 @ 30Hz) |
| DP | 1x DisplayPort Connector (4096 x 2304 @ 60Hz) | |
| VGA | 1x VGA Connector (1920 x 1200 @30Hz ) | |
| LAN |
5x GbE LAN, RJ45 - GbE1: Intel® I219-LM - GbE2: Intel® I210 - GbE3: Intel® I210 - GbE4: Intel® I210 - GbE5: Intel® I210 |
|
| Serial Port | 2x RS-232/422/485 with Auto Flow Control (Supports 5V/12V), DB9 | |
| USB |
2x 10Gbps USB 3.2 Gen2, Type A 4x 5Gbps USB 3.2 Gen1, Type A |
|
| Line-Out | 1x Line-Out, Phone Jack 3.5mm | |
| Mic-In | 1x Mic-In, Phone Jack 3.5mm | |
| Power Button | 1x ATX Power On/Off Button | |
| Remote Power On/Off | 1x Remote Power On/Off, 2-pin Terminal Block | |
| Remote Reset | 1x Remote Reset, 2-pin Terminal Block | |
| AT/ATX Switch | 1x AT/ATX Mode Switch | |
| Rest Button | 1x Rest Button | |
| Clear CMOS Switch | 1x Clear CMOS Switch | |
| Storage | SSD/HDD |
4x 2.5" Front Accessible SATA HDD/SSD Bay (SATA 3.0), Supports Up to 15mm in Height |
| M.2 | 1x M.2 Key M 2280 Socket, Supports PCIe x4 NVMe SSD or SATA SSD (Gen3) | |
| RAID | Supports RAID 0 / 1 / 5 / 10 | |
| Expansion | PCIe |
Optional GPU Expansion Box - 1 x PCIe x 4 + 1 x PCIe x 16 - 2 x PCIe x 16 (8 Lanes) + 1 x PCIe x 1 + 1 x PCIe x 4 |
| Mini PCI Express | 2x Full-size Mini-PCIe Socket | |
| M.2 |
1x M.2 Key E 2230 Socket, Supports Intel CNVi Module 1x M.2 Key M 2280 Socket, Support NVMe/SATA SSD |
|
| Universal Bracket | 1x Universal Bracket | |
| SIM Socket | 2x SIM Socket | |
| Antenna Holes | 7x Antenna Holes | |
| Cincoze Modular Technology | CMI Interface |
1x High Speed CMI (Combined Multiple I/O) Interface 1x Low Speed CMI (Combined Multiple I/O) Interface |
| CMI Module |
Optional Modules: - 4x GbE LAN, RJ45 - 4x GbE LAN, M12 A-Coded - 2x 10GbE LAN, RJ45 - 2x RS-232/422/485 with Auto Flow Control (Supports 5V/12V), DB9 - 16x Optical Isolated DIO(8DI, 8DO), 2x 10 Pin Terminal Block |
|
| CFM Interface |
1x CFM(Control Function Module) IGN Interface 1x CFM(Control Function Module) PoE Interface |
|
| CFM Module |
Optional Module • 1x Power Ignition Sensing Module with Delay Time Management and Selectable 12V/24V • 1x PoE Function Module Supports Up to 4x PoE+ with Individual port 25.5W |
|
| MEC Module |
Optional Modules: • 2x 5Gbps USB 3.2 Gen1, Type A • 2x GbE LAN, RJ45 |
|
| Other | Fan | 2x Fan Kits ( Air-flow isolated from the electronics ) |
| Instant Reboot | Support 0.2sec Instant Reboot Technology | |
| Super Cap | SuperCap Integrated for CMOS Battery Maintenance-free Operation | |
| Watchdog Timer | Software Programmable Supports 256 Levels System Reset | |
| Power Requirement | Power Type | AT/ATX |
| Power Input Voltage | 9-48 VDC, Single Power Source | |
| Total Power Budget | 220W | |
| Connector |
2x 3-pin Terminal Block, Each Terminal Block Current Limitation is 15A - Dual power connect must be used at the same time due to 15A current limitation at each power connector. |
|
| Power Supply |
Optional AC/DC or DC/DC 24V 480W Power Supply Optional AC/DC or DC/DC 24V 1000W Power Supply |
|
| Physical | Dimension ( W x D x H ) | 105 x 195 x 370 mm |
| Weight Information | 8kg | |
| Mechanical Construction | Extruded Aluminum with Heavy Duty Metal | |
| Mounting | Wall Mount / Desktop Mount / 19" Rack Mount / Face-up Mount | |
| Unibody Design | Yes | |
| Jumper-less Design | Yes | |
| Protection | Reverse Power Input Protection | Yes |
| Over Voltage Protection |
• Protection Range: 51~58V • Protection Type: shut down operating voltage, re-power on at the preset level to recover |
|
| Over Current Protection | 30A | |
| ESD Protection | +/-8kV(Air), +/-4kV(Contact) | |
| Surge | 3.84 kV (impedance 12 ohm 1.2/50us waveform) | |
| Operating System | Windows | Windows® 10 |
| Linux | Support by project | |
| Environment | Operating Temperature |
35W CPU: -40°C to 70°C 65W CPU: -40°C to 60°C 80W CPU: -40°C to 50°C * With extended temperature peripherals; Ambient with air flow * According to IEC60068-2-1, IEC60068-2-2, IEC60068-2-14 * 100% CPU and without thermal throttling |
| Storage Temperature | -40°C to 85°C | |
| Relative Humidity | 95% RH @ 70°C (Non-condensing) | |
| Shock | MIL-STD-810G | |
| Vibration | MIL-STD-810G | |
| EMC | CE, FCC, ICES-003 Class A, EN50121-3-2 (Railway), E-mark | |
| Safety | LVD (EN62368-1) | |
| MTBF | 441,283 hr | |
