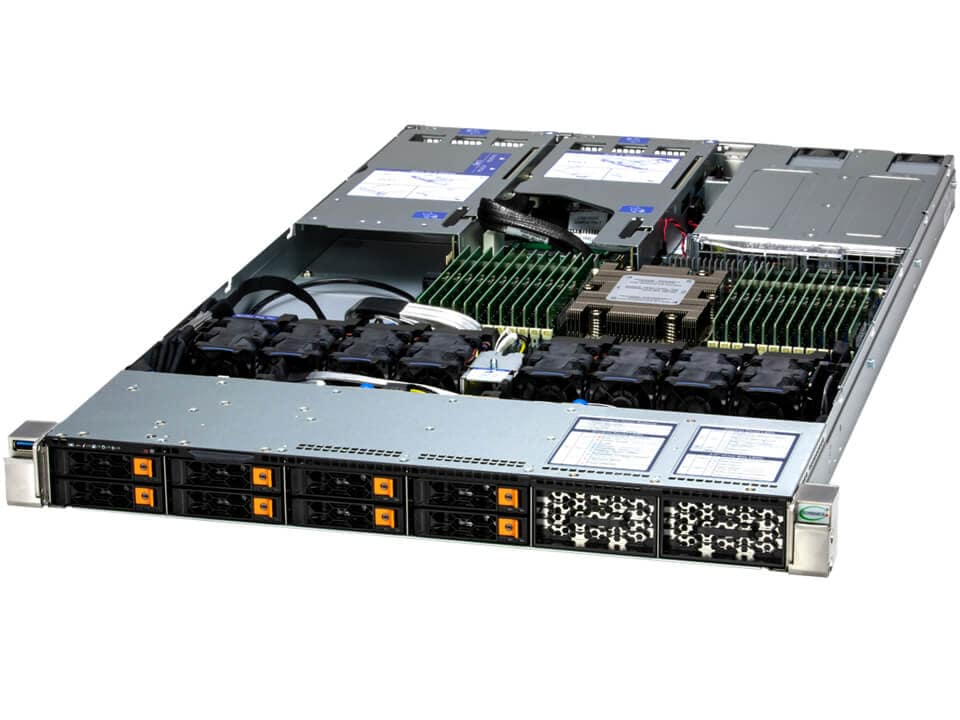

AS -1115HS-TNR
1U UP Hyper with 8 hot-swap 2.5" drive bays and 3 PCIe 5.0 slots
Model :
AS -1115HS-TNR
-

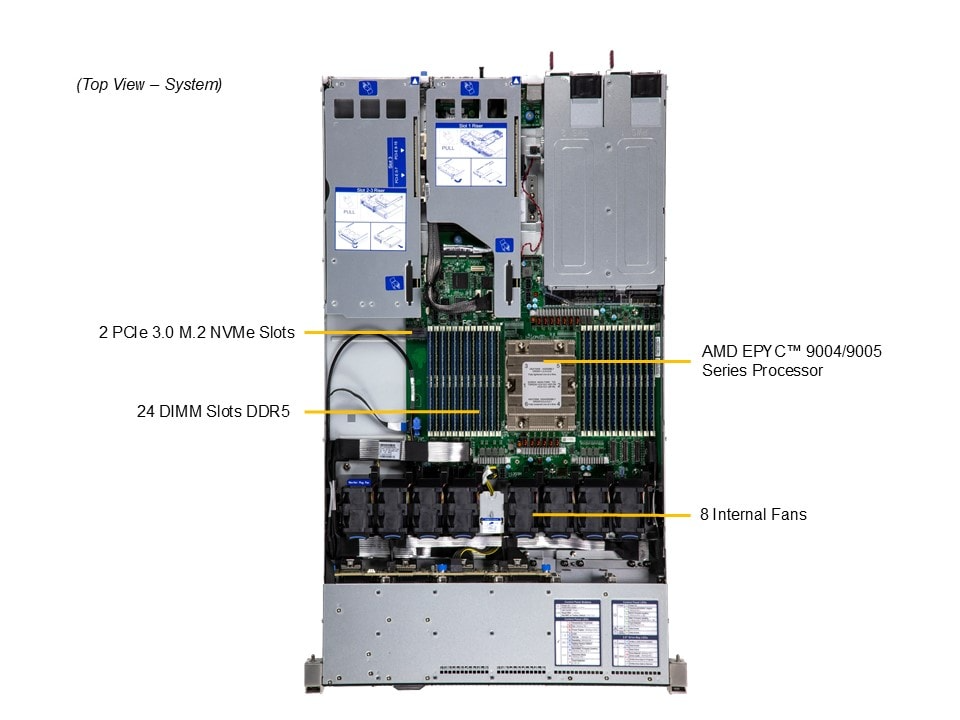

Single AMD EPYC™ 9004/9005* Series Processor
(*AMD EPYC™ 9005 series drop-in support requires board revision 2.x) -
Support up to DDR5 24 DIMM slots (2DPC)
(Please check System Memory Section for detail) -
2 PCIe 5.0 x16 FHFL slots
1 PCIe 5.0 x16 FHHL slot
Flexible networking options with 1 AIOM networking slot (OCP NIC 3.0 compatible) -

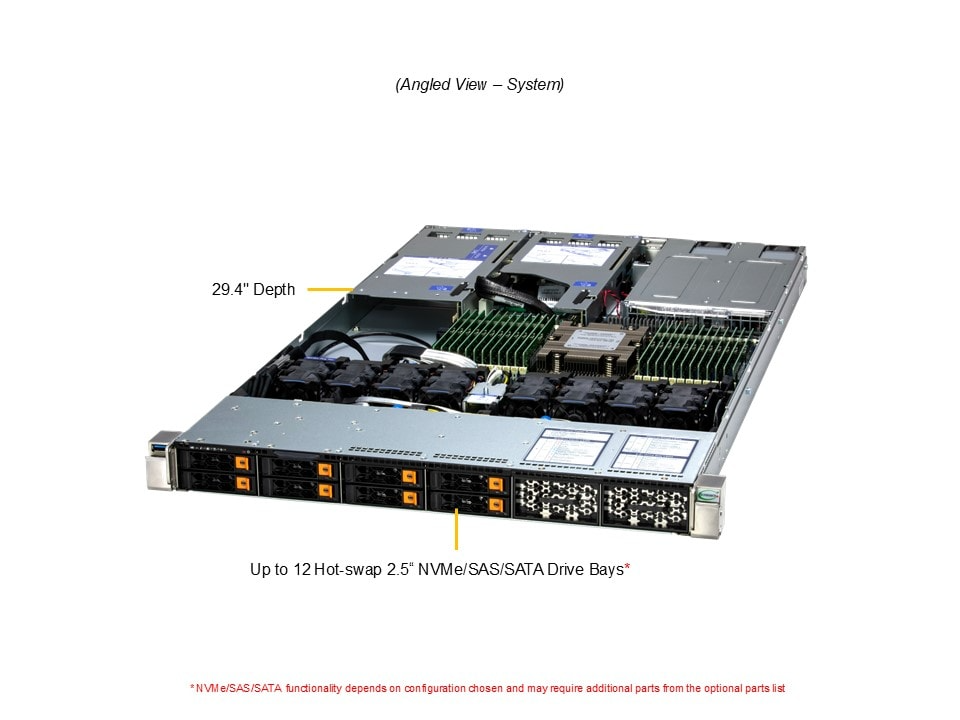

8 Hot-swap 2.5" NVMe/SATA/SAS drive bays
Optional 4 Hot-swap 2.5" NVMe/SAS/SATA drive support via additional parts
2 M.2 PCIe 3.0 NVMe slots -
Dual 1200W Redundant Titanium Level power supplies
(Power supply full redundancy based on configuration and application load)
