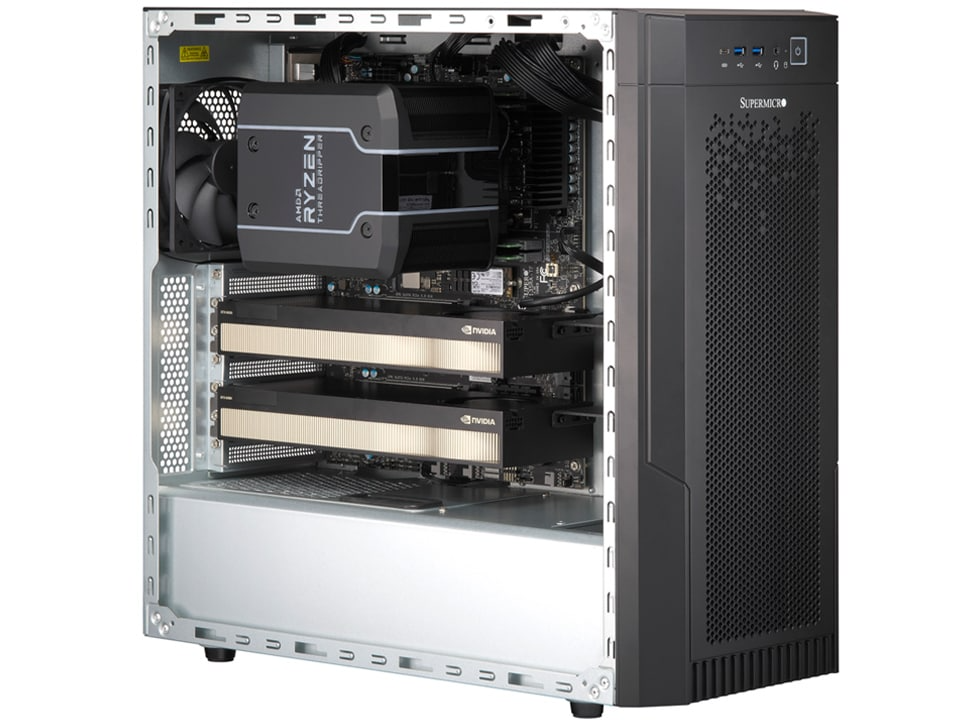

AS -531AW-TC is a Supermicro SuperWorkstation single-processor system. UP workstation for AI, design, simulation and media
It is positioned for professional workstation deployments that require reliable compute, storage, expansion and graphics options in a server-grade platform. Key configuration references include AMD Ryzen™ Threadripper™ PRO 9000/7000 WX-Series and Ryzen™ Threadripper™ 9000/7000 Series Processors, Mid-Tower, 6 default / 8 max and 1x 1000W.
Official reference: Supermicro official product page
AS -531AW-TC Specifications
|
Product SKUs
|
|
|
A+ Workstation AS -531AW-TC
|
|
Processor
|
|
CPU
|

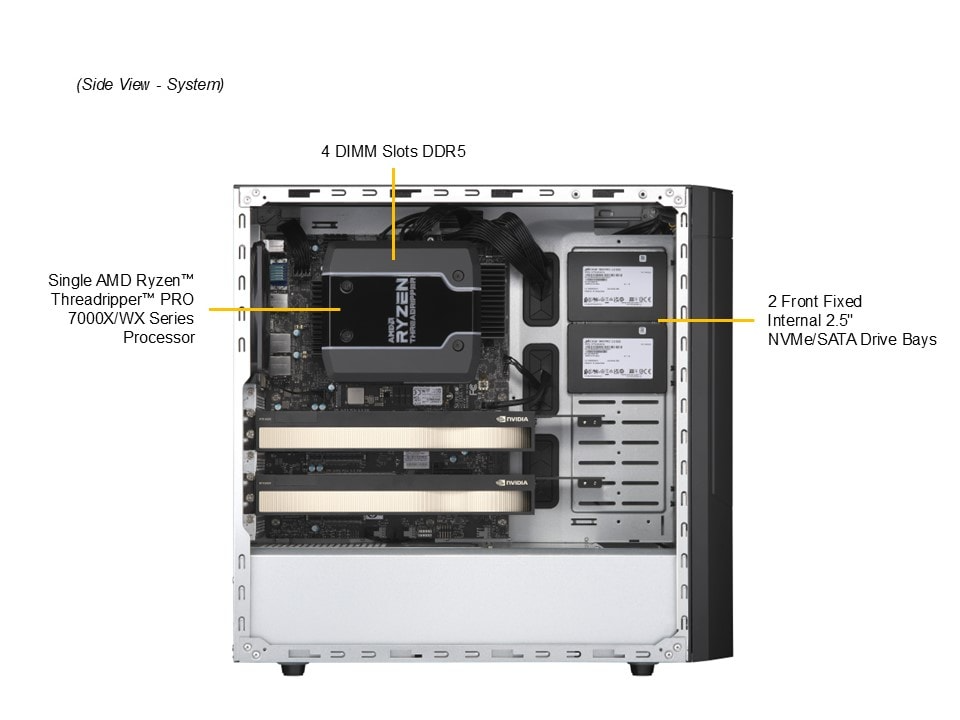

Single Socket sTR5 (LGA-4844) AMD Ryzen™ Threadripper™ PRO 9000/7000 WX-Series and Ryzen™ Threadripper™ 9000/7000 Series Processors
|
|
Core Count
|
Up to 96C/192T; Up to 384MB Cache
|
|
System Memory
|
|
Memory
|
Slot Count: 4 DIMM slots/4 Channels Max Memory (1DPC): Up to 512GB 6400MT/s ECC DDR5 RDIMM
|
|
Memory Voltage
|
1.1V
|
|
Input / Output
|
|
LAN
|

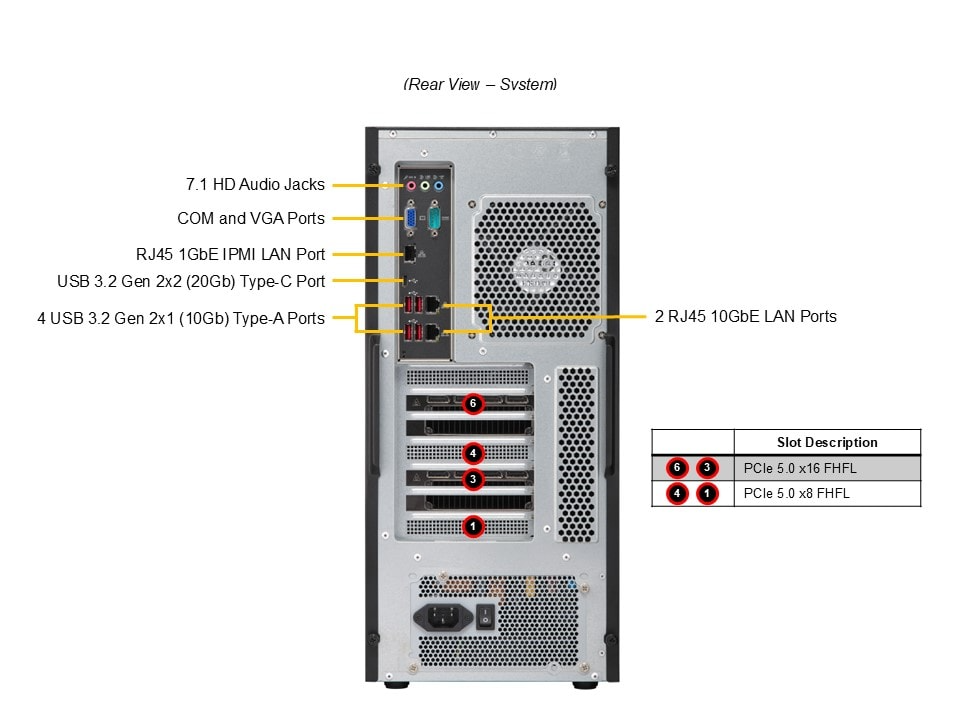

2 RJ45 10 GBASE-T LAN ports (Broadcom® BCM57416) 1 RJ45 1 GbE Dedicated BMC LAN port (ASPEED AST2600)
|
|
USB
|

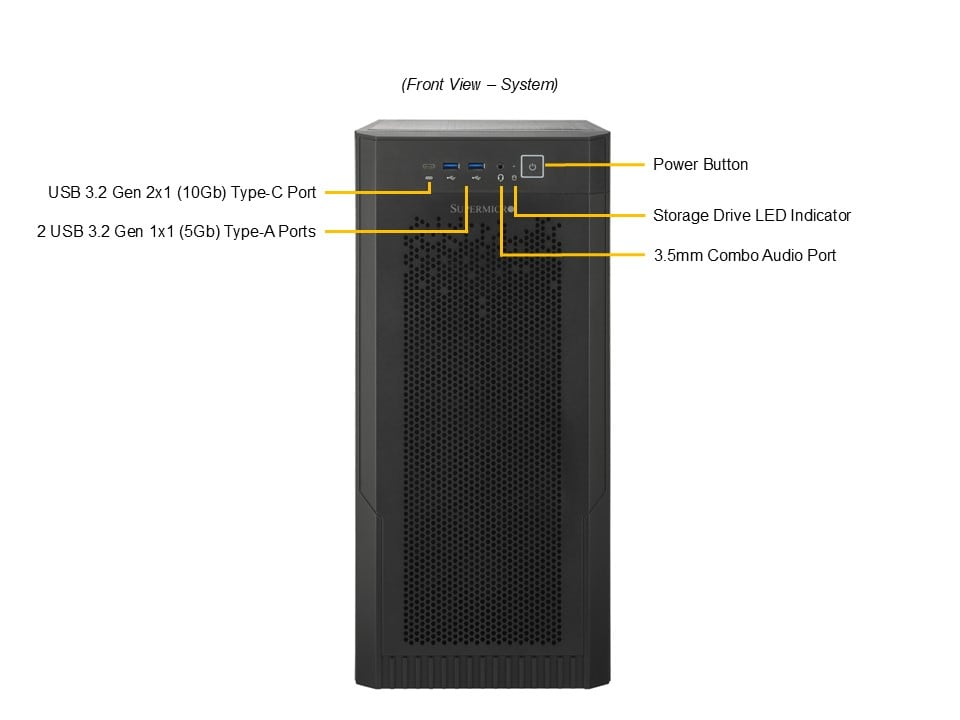

2 USB 3.2 Gen1 Type-A ports(front) 4 USB 3.2 Gen2 Type-A ports(Rear) 1 USB 3.2 Gen2 Type-C port(Rear) 1 USB 3.2 Gen2 Type-C port(Front)
|
|

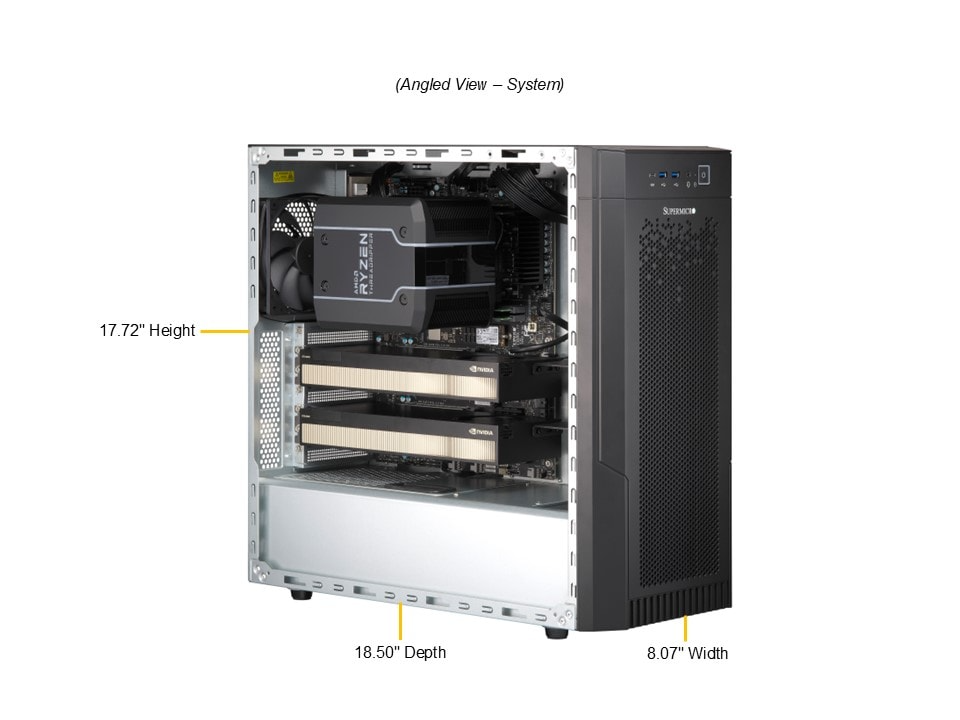

Dimensions and Weight
|
|
Height
|
17.72" (450 mm)
|
|
Width
|
8.07" (205 mm)
|
|
Drive Bays / Storage
|
|

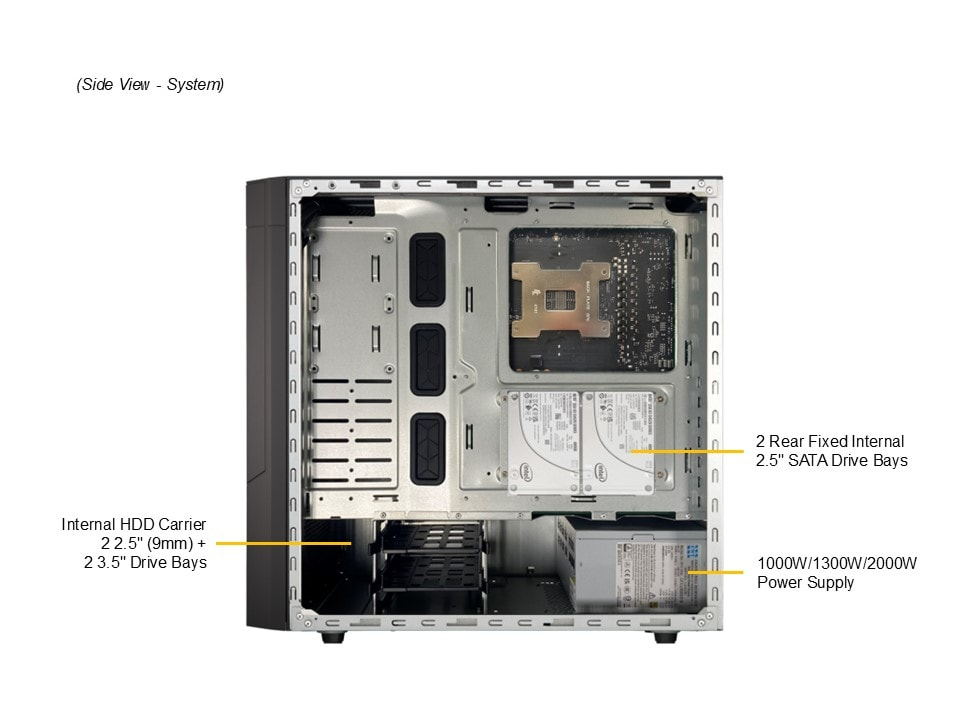

Drive Bays Configuration
|
Default: Total 8 bays2 internal fixed 3.5" SATA* drive bays 6 internal fixed 2.5" SATA* drive bays Option A: Total 8 bays2 internal fixed 3.5" SATA drive bays 4 internal fixed…
|
|
M.2
|
2 M.2 PCIe 4.0 x4 NVMe slots (M-key 22110(default)/2280)
|
|
|
|
Motherboard
|
|
|
Supermicro H13SRA-TF
|
|
GPU
|
|
Max GPU Count
|
Up to 1 quad-width or 2 triple-width or 2 double-width or 2 single-width GPUs
|
|
Supported GPU
|
NVIDIA PCIe: NVIDIA RTX PRO™ 4000 Blackwell, NVIDIA RTX PRO™ 5000 Blackwell, NVIDIA RTX PRO™ 6000 Blackwell Max-Q Workstation Edition, NVIDIA RTX PRO™ 6000 Blackwell Workstation…
|
|
On-Board Devices
|
|
Network Connectivity
|
2 RJ45 10GbE with Broadcom® BCM57416 1 RJ45 1GbE with ASPEED AST2600
|
|
IPMI
|
Support for Intelligent Platform Management Interface v.2.0 IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
|
|
Chassis
|
|
Form Factor
|
Mid-Tower
|
|
Model
|
CSE-GS3A-000NBP
|
|
Expansion Slots
|
|
PCI-Express (PCIe) Configuration
|
Default2 PCIe 5.0 x16 (in x16) FHFL slots 2 PCIe 5.0 x8 (in x8) FHFL slots
|
|
M.2
|
2 M.2 PCIe 4.0 x4 NVMe slots (M-key 22110(default)/2280)
|
|
System Cooling
|
|
Fans
|
Up to 1 Rear Exhaust Fan 120mm Fan(s) Up to 3 Front Intake 120mm Fan(s)
|
|
Liquid Cooling
|
Direct to Chip (D2C) Cold Plate (optional)
|
|
For detailed specifications, options, and compatibility, please refer to the latest official Supermicro documentation and the actual quotes/specifications from Autech.
Product Description
AS -531AW-TC is a Supermicro SuperWorkstation single-processor system. UP workstation for AI, design, simulation and media
It is positioned for professional workstation deployments that require reliable compute, storage, expansion and graphics options in a server-grade platform. Key configuration references include AMD Ryzen™ Threadripper™ PRO 9000/7000 WX-Series and Ryzen™ Threadripper™ 9000/7000 Series Processors, Mid-Tower, 6 default / 8 max and 1x 1000W.
Official reference: Supermicro official product page
Key Features
-
CPU: 1
-
CPU Type: AMD Ryzen™ Threadripper™ PRO 9000/7000 WX-Series and Ryzen™ Threadripper™ 9000/7000 Series Processors
-
Drives: 6 default / 8 max
-
Form Factor: Mid-Tower
-
Supported GPUs: NVIDIA PCIe: NVIDIA RTX PRO™ 6000 Blackwell Max-Q Workstation Edition, NVIDIA RTX PRO™ 6000 Blackwell Workstation Edition AMD PCIe: Radeon™ AI PRO R9700
-
Total Power: 1x 1000W
Applications
-
Professional workstation computing
-
Content creation, engineering or AI workloads according to configuration
-
Enterprise workstation deployment
-
Professional Workstation Computing
-
Content Creation
-
Engineering / Simulation
-
Enterprise Workstation Deployment
