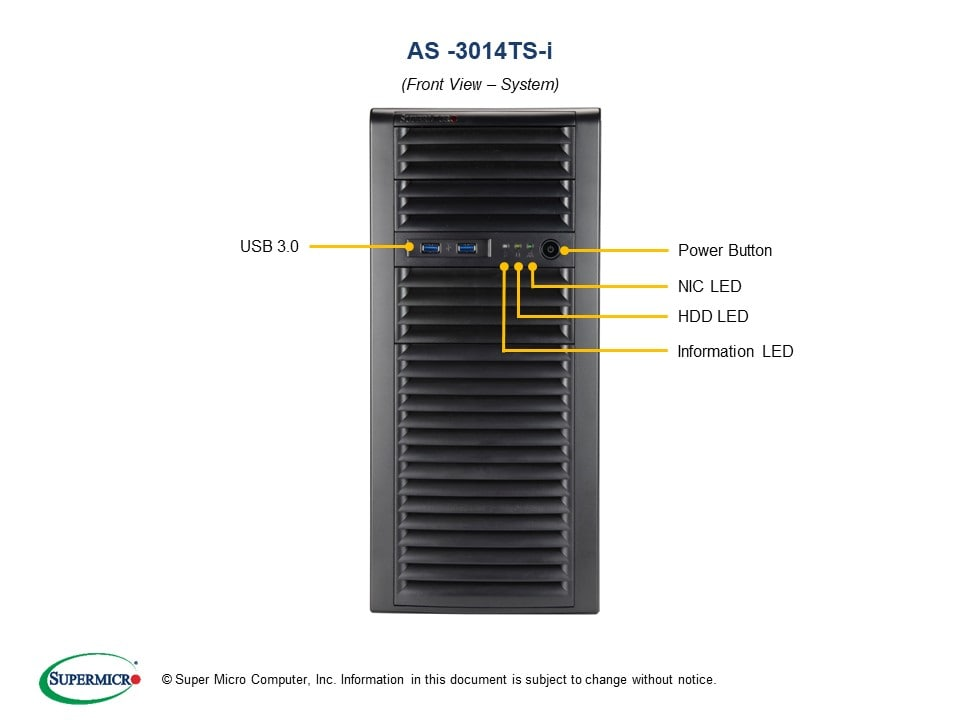

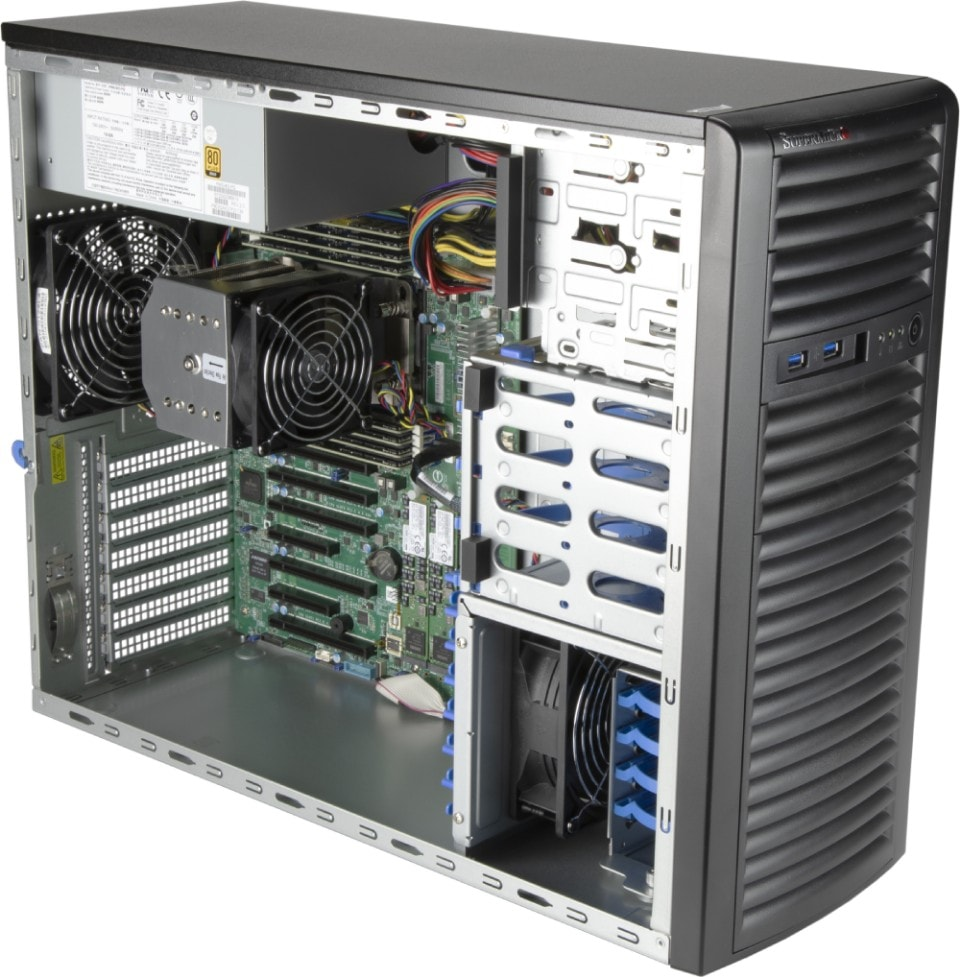

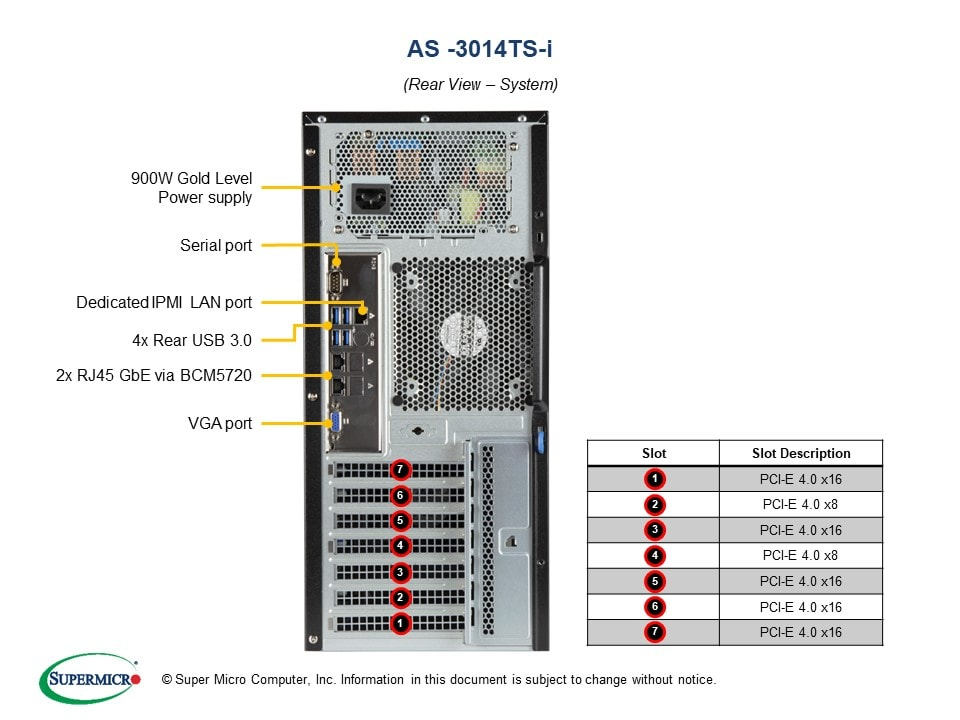

AS -3014TS-i

UP mid-tower workstation for entry-level and office applications
Model : AS -3014TS-i
Product SKUs
AS -3014TS-i
Motherboard
Super H12SSL-i
Processor
CPU
  • Single Socket SP3
  • AMD EPYC(TM) 7002/7003 Series Processors
Note
  • Supports up to 280W TDP CPUs (Air Cooled)
System Memory
Memory
  • Slot Count: 8 DIMM slots
  • Max Memory (1DPC): Up to 2TB 3200MT/s ECC DDR4 RDIMM/LRDIMM
  • View Memory Options
Memory Voltage
  • 1.2V
On-Board Devices
SATA
  • SATA (6Gbps)
Network Connectivity
IPMI
  • Support for Intelligent Platform Management Interface v.2.0
  • IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
Input / Output
LAN
  • 1 RJ45 1 GbE Dedicated BMC LAN port
USB
  • 6 USB 3.0 ports (Rear)
Video
  • 1 VGA port
Serial
  • 1 COM port (Rear)
DOM
  • 1 SuperDOM (Disk on Module) port
System BIOS
BIOS Type
  • AMI 256MB SPI Flash EEPROM
Management
Software
Power configurations
  • ACPI/APM Power Management
Security
Hardware
  • Trusted Platform Module (TPM) 2.0
  • Silicon Root of Trust (RoT) - NIST 800-193 Compliant
Features
  • Cryptographically Signed Firmware
  • Secure Boot
  • Secure Firmware Updates
  • Automatic Firmware Recovery
  • System Lockdown
PC Health Monitoring
CPU
  • 4+1 Phase-switching voltage regulator
  • Monitors for CPU Cores, Chipset Voltages, Memory
FAN
  • Fans with tachometer monitoring
  • Pulse Width Modulated (PWM) fan connectors
  • Status monitor for speed control
Temperature
  • Monitoring for CPU and chassis environment
  • Thermal Control for fan connectors

Chassis
Form Factor
  • Mid-Tower
Model

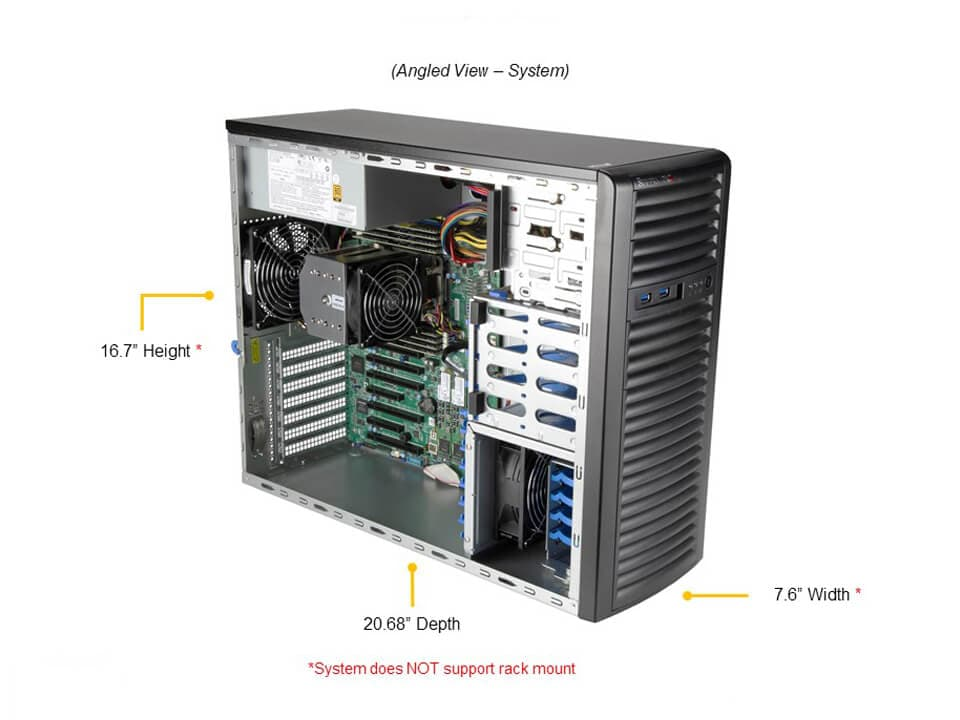

Dimensions and Weight
Height
  • 16.7" (424 mm)
Width
  • 7.6" (193 mm)
Depth
  • 20.68" (525 mm)
Package
  • 11.97" (H) x 21.38" (W) x 25.28" (D)
Weight
  • Gross Weight: 27 lbs (12.25 kg)
  • Net Weight: 27 lbs (12.25 kg)
Available Color
  • Black
Expansion Slots
PCI-Express (PCIe) Configuration

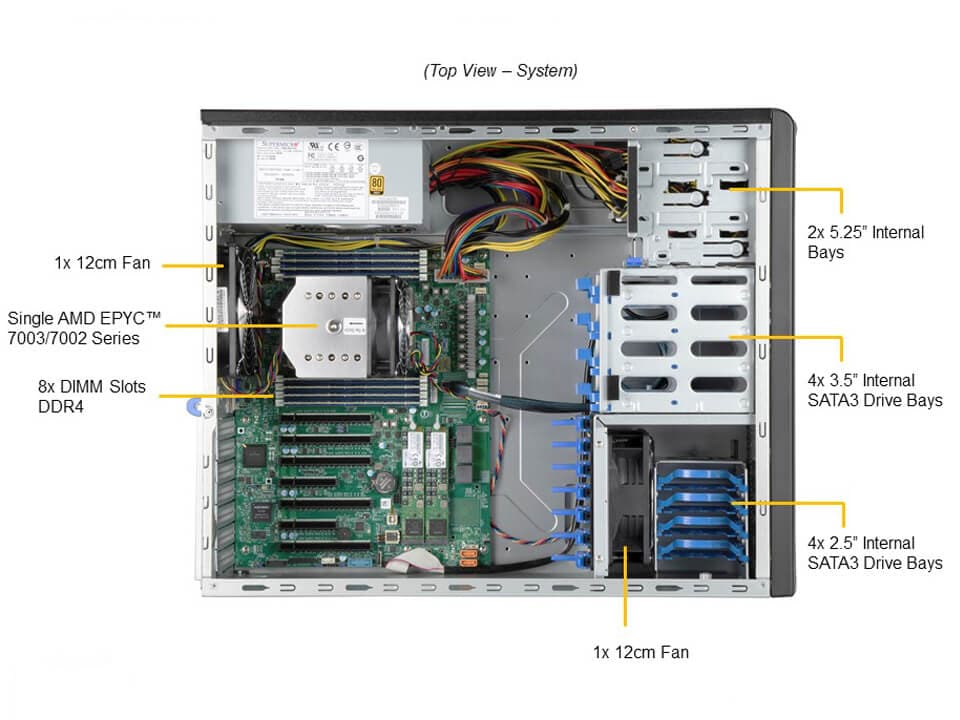

Drive Bays / Storage
Drive Bays Configuration
  • Default: Total 8 bays
  • 4 internal fixed 3.5" SATA drive bays
  • 4 internal fixed 2.5" SATA drive bays
  • View Drive Options
System Cooling
Fans
  • Up to 1 heavy duty fans with optimal fan speed control
Power Supply
Power Supply
  • 1x 900W Gold Level (90%) power supply
  • Dimension (WxHxL): 150 x 86 x 190 mm
  • Input: 900W: 100-240Vac / 50-60Hz
  • +12V: Max: 25A / Min: 0.1A (100Vac-240Vac)
  • +12V: Max: 25A / Min: 0.1A (100Vac-120Vac)
  • 5V SB: Max: 4A / Min: 0.02A
  • Output Type: 24pin ATX
  • Certification: Gold Level
Operating Environment
ROHS
  • RoHS Compliant
Environmental Spec.
  • Operating Temperature: 10 degrees C to 35 degrees C (50 degrees F to 95 degrees F)
  • Non-operating Temperature: -40 degrees C to 60 degrees C (-40 degrees F to 140 degrees F)
  • Operating Relative Humidity: 8% to 90% (Non-Condensing)
  • Non-operating Relative Humidity: 5% to 95% (Non-Condensing)
Certifications
Operating Systems

  1. Single AMD EPYC™ 7002/7003 Series Processor
    (The latest AMD EPYC™ 7003 Series Processor with AMD 3D V-Cache™ Technology requires BIOS version 2.3 or newer)
  2. 8 DIMMs; up to 2TB 3DS ECC DDR4-3200MHz RDIMM/LRDIMM
  3. 5 PCIe 4.0 x16 FH, 2 PCIe 4.0 x8 FH
  4. 4 Internal 3.5" SATA3 drive bays + 4 internal 2.5" drive bays
    M.2 Interface: 2 PCIe 4.0 x4
    M.2 Form Factor: 2280, 22110
    M.2 Key: M-key
  • Entry-Level Workstation
  • Office Applications
  • 3D Simulation and Rendering
  • Video and Music Production

Related Products

SYS-C542i-11302U

SYS-C542i-11302U

SYS-532AW-C

SYS-532AW-C

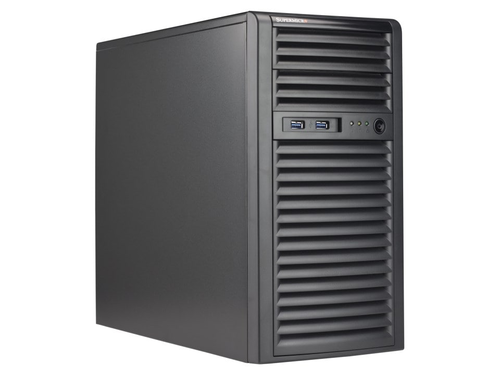

SYS-530T-I

SYS-530T-I

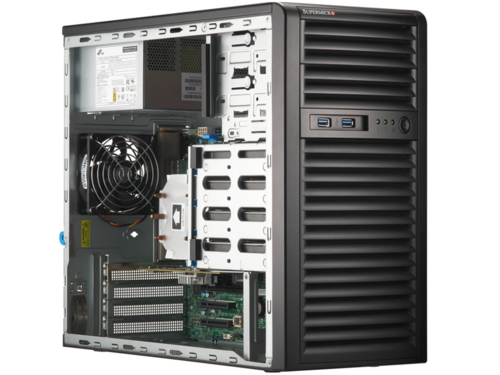

SYS-531R-I

SYS-531R-I

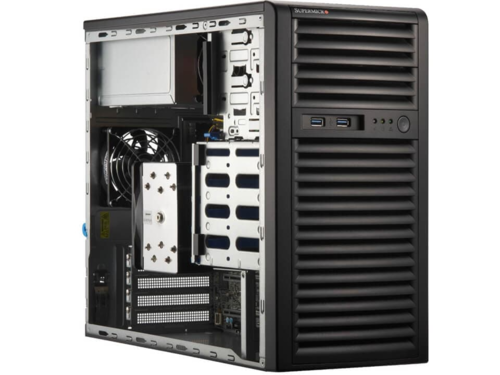

AS -3015A-I

AS -3015A-I

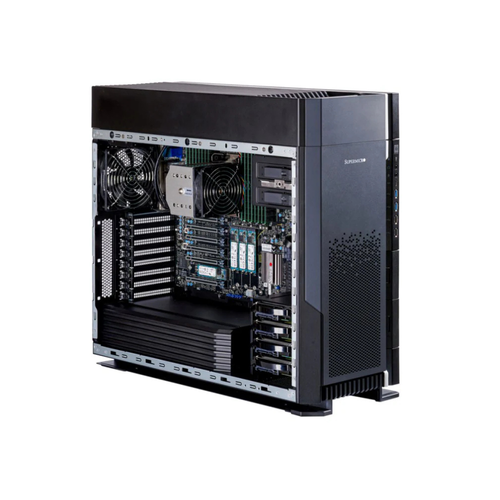

SYS-551A-T
