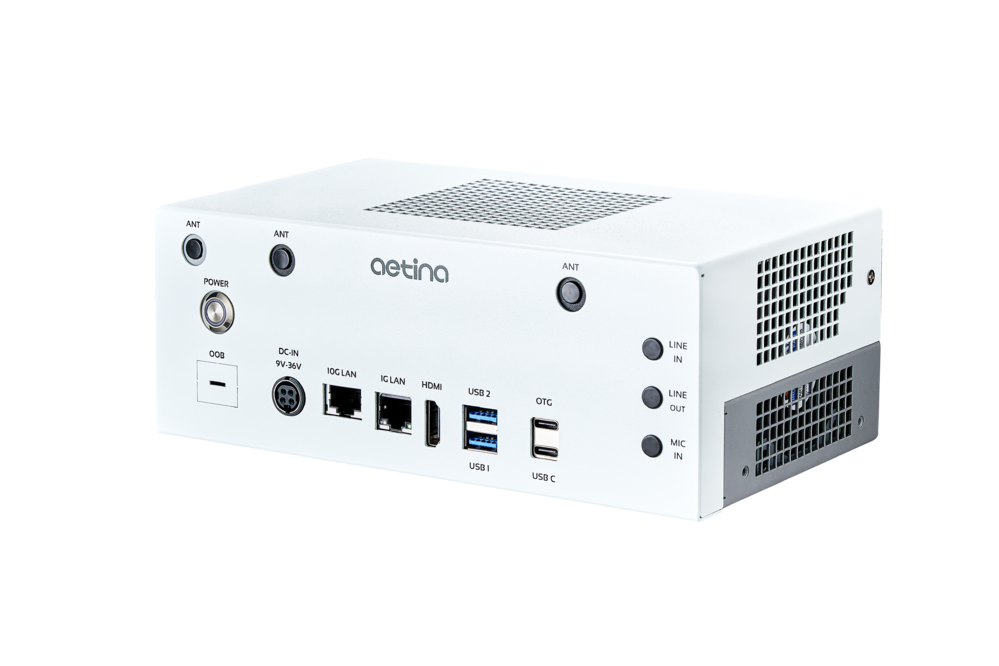

AIE-KX13/23
• Supports NVIDIA Jetson AGX Orin™ 32GB/64GB module
• Up to 275 TOPS of AI performance
• Wide input voltage range from 9 to 36VDC
• 1 x M.2 B-Key/1 x E-Key/1 x M-Key slot
• 1 x GbE, 1 x 10GbE LAN port
• Operating Temperature -25°C ~ +70°C
• Up to 275 TOPS of AI performance
• Wide input voltage range from 9 to 36VDC
• 1 x M.2 B-Key/1 x E-Key/1 x M-Key slot
• 1 x GbE, 1 x 10GbE LAN port
• Operating Temperature -25°C ~ +70°C
Model :
AIE-KX13/23
| ● 8 x AI performance enables AI inference with low latency |
| The NVIDIA Jetson AGX Orin modules offer up to 275 TOPS, 8 times more than NVIDIA Jetson AGX Xavier™ 32GB module. Built in 2048 NVIDIA CUDA cores and 64 Tensor Cores, NVIDIA Jetson AGX Orin 64GB module enables server-class AI inference at the edge with low latency. |
| ● Comprehensive M.2 expansion and 1x10GbE LAN port |
| AIE-KX13/23 is a system with high expansion ability, built in 1x M.2 B-Key for LTE/5G, 1x M.2 M-Key for storage and 1x M.2 E-Key for Wifi/Bluetooth/GPS. For network, on-board 1x10GbE port offers data speeds up to 10 billion bits per second, 10 times faster than traditional GbE standard. |
| ● Wide input power and operating temperature for various embedded applications |
|
To meet various embedded applications, especially challenging environments in smart factory, smart city, and smart transportation, AIE-KX13/23 supports operating temperature ranging from -25°C to 70°C and wide input power from 9 to 36VDC. |
| Model Number | AIE-KX13 | AIE-KX23 |
| Module Compatibility | NVIDIA Jetson AGX Orin 32GB | NVIDIA Jetson AGX Orin 64GB |
| AI Performance | 200 TOPS | 275 TOPS |
| GPU | 1792-core NVIDIA Ampere GPU with 56 Tensor Cores | 2048-core NVIDIA Ampere GPU with 64 Tensor Cores |
| CPU | 8-core NVIDIA Arm Cortex A78AE v8.2 64-bit CPU 2MB L2 + 4MB L3 | 12-core NVIDIA Arm Cortex A78AE v8.2 64-bit CPU 3MB L2 + 6MB L3 |
| Memory | 32 GB 256-bit LPDDR5 204.8 GB/s | 64GB 256-bit LPDDR5 204.8 GB/s |
| Storage | 64GB eMMC 5.1 | |
| Display | 1 x HDMI 2.0 Type A | |
| Audio | Line-out/Line-in/Mic (optional with daughter board) | |
| LAN | 1 x RJ-45 GbE port, 1 x RJ-45 10GbE port | |
| USB | 2 x USB 3.2 Gen1 Type A, 1 x USB 2.0 (DB-15), 1 x OTG Type-C, 1 x USB 3.2 Type-C Gen 2 | |

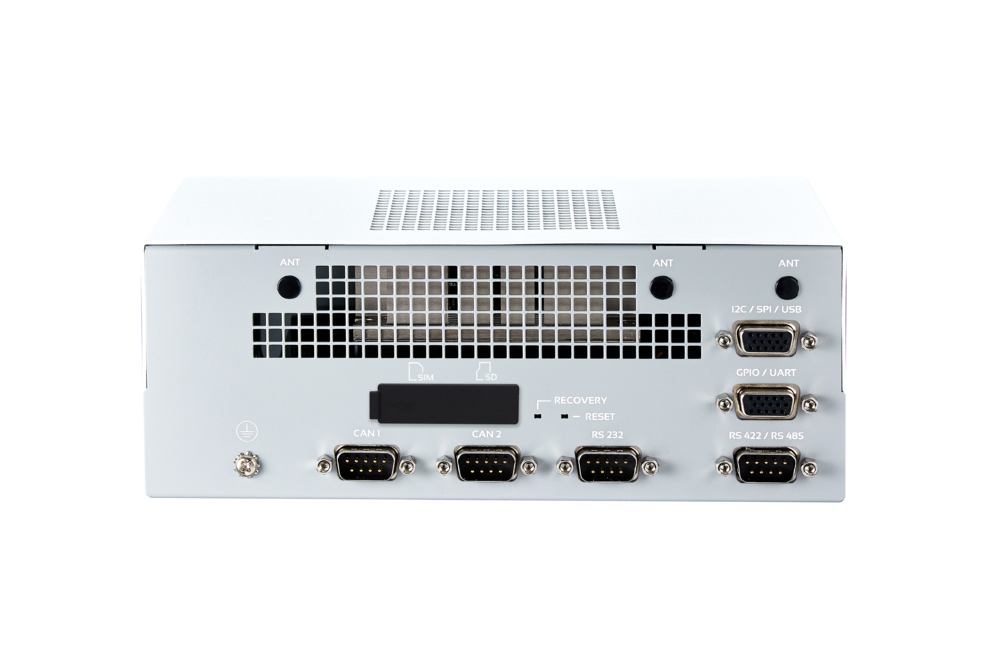

| I/O Interfaces |
2 x I2C, 1 x SPI, 5 x GPIO 1 x RS-232, 1 x RS-422 / RS-485 2 x CAN 2.0b (Isolation; support CAN FD) 1 x microSIM Card Slot |
|
| Expansion |
1 x M.2 B-Key 3042/3052 (LTE/4G/5G, USB 3.2/USB 2.0) 1 x M.2 E-Key 2230 (Wifi/BT, PCIe/USB 2.0) 1 x M.2 M-Key 2280 (support NVMe, PCIe x2 Gen4) 1 x MicroSD Card Slot |
|
| MISC. Function |
1 x Power / Recovery / Reset Button 2 x UART, 1 x UART (Debug only) |
|
| Power Input/Connector | DC-IN 9 to 36 VDC / 4-Pin DC Jack Power Connector | |
| Power Consumption |
32GB Idle: 9.655 W Full Loading: 55.25 W 64GB Idle: 9.9 W Full Loading: 75.25 W |
|
| Dimension (WxDxH) | 210 x 124.7 x 79 mm | |
| Mounting | Wall Mount / Din Rail (Optional) | |
| Net Weight | 1969g | |
| Vibration | 1 Grms, IEC 60068-2-64, random, 5 ~ 500 Hz, 1 hr/axis | |
| Shock | 10 G, IEC 60068-2-27, half sine, 11 ms duration | |
| Temperature | Operating Temp.-25 ~ +70°C / Storage Temp.-40 ~ +85°C | |
| Humidity | 95% @ 40°C (104°F) (non-condensing) | |
| Software Support | Linux (Support Jetpack 5.0 above) | |
| Certification | CE/FCC Class A | |
