Super Workstation


SuperWorkstation Solutions

Supermicro's new generation X11 SuperWorkstations are optimized for applications requiring powerful graphics capabilities including rendering, image processing, scientific and engineering tasks. The latest 2nd generation Intel® Xeon® Scalable processors provide high performance and response while Intel® Optane™ DC Persistent Memory expands the memory footprint per processor. With rich multimedia features, these systems are also the perfect choice for digital entertainment.

Supermicro's server-grade SuperWorkstations support up to: 4TB DDR4-2933MHz memory in 16 DIMM slots, 6 PCI-E 3.0 x16 slots for GPU/Coprocessor cards, and dual Gigabit Ethernet LAN ports. The extremely feature-rich workstations also include 7.1 HD audio, up to 8 USB ports, a 7+ year product life cycle, and 205W CPU support for exceptional performance.

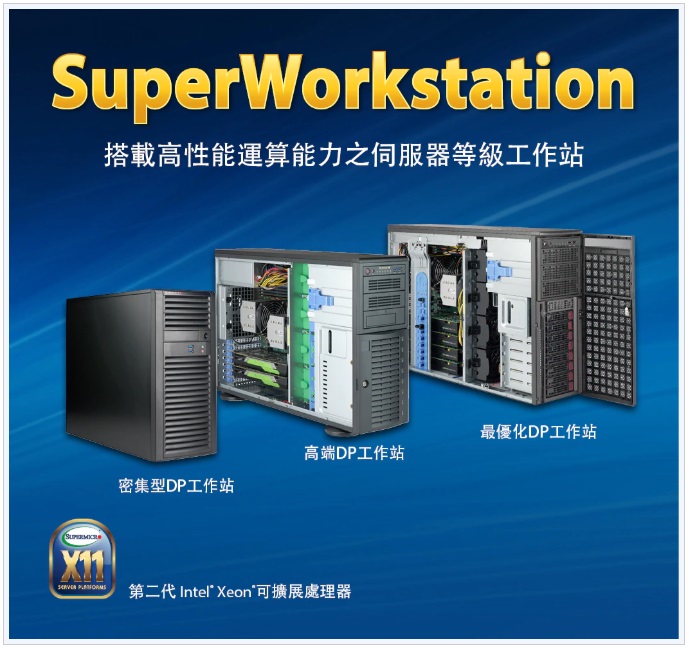

The workstations are available in Compact DP, High-End DP and GPU-Optimized workstation configurations.

  • 4TB DDR4-2933MHz memory in 16 DIMM slots
  • Support CPU TDP up to 205W
  • Multiple GPU support
  • Up to 6 PCI-E 3.0 x16 slots
  • High Efficiency power supplies and flexible storage options



    • Single Socket P (LGA 3647) support: 2nd Gen. Intel® Xeon® Scalable processors
    • 12 DIMMs; up to 3TB 3DS ECC DDR4‑2933 MHz RDIMM/LRDIMM
    • Supports Intel® Optane™ DCPMM*
    • 8 Hot-swap 3.5" SAS3/SATA3 drive bays (SATA3 by default) with SGPIO
    • 4 PCI-E 3.0 x16, 3 PCI-E 3.0 x8 (in x16) slots
    • 1x 10GBase-T and 1x 1GbE port, 1 dedicated IPMI port
    • 1 VGA, 1 COM, 6 USB 3.1 Gen1, 4 USB 3.1 Gen2, M.2, 7.1 HD Audio
    • 2 Super quiet PWM fans and 1 Super quiet rear fan
    • 1200W Platinum Level Power Supply
    SYS-5049A-T





    • Entry-Level Worksation, CAD/CAM/CAE, Digital Imaging, 3D Simulation and Rendering, Cost effective UP platform
    • Single socket H4 (LGA 1151) supports Intel® Xeon® E processors, 8th Gen. Intel® Core™ i3 processors, Intel® Celeron®, Intel® Pentium®
    • Up to 64GB ECC/non-ECC UDIMM in 4 DIMM slots
    • 2x 1GbE LAN ports (Intel i210-AT and Intel PHY I219LM)
    • 4 Fixed 3.5" and 4 optional 2.5" drive bays, 2 standard 5.25" peripheral drive bays, 1 Internal 3.5" fixed device bay
    • 2 PCI-E 3.0 x16 (NA/16 or 8/8), 1 PCI-E 3.0 x4, 1 PCI-E 3.0 x1, 1 PCI 32bit 5V
    • 2 M.2 (M key, 2260/2280/22110), 1 U.2 for optional expanded storages
    • 2 USB Type A & Type C, 4 USB 3.1 Gen1 (2 rear + 2 front), 2 USB 2.0 (front)
    • 1 HDMI 2.0a port, 1 DVI-D port, 1 DP 1.2 port, 1 TPM header, 1 COM header, 7.1 HD Audio
    • 500W Bronze Certified High Efficient power supply
     SYS-5039C-T




    • Designed for Content Creation, Engineering and  Scientific applications
    • Single socket R4 supports Intel® Xeon® processor W Family; Intel® C422 Chipset
    • 4 Fixed 3.5" drive bays; 2 optional 5.25" Peripheral drive bays
    • 3 PCI-E 3.0 x16, 1 PCI-E 3.0 x4 slots, 2 U.2, 2 M.2 M key
    • Up to 512GB Registered ECC LRDIMMs, up to DDR4‑2666MHz; in 8 DIMM slots
    • Dual GbE LAN ports
    • 6 SATA3 ports via PCH; RAID 0, 1, 5, 10
    • 2 USB 3.1 (2 Type A), 6 USB 3.0 (4 rear, 2 headers), 6 USB 2.0 (2 rear, 4 headers)
    • ALC 1220 7.1 HD Audio
    • 1x 12cm front cooling fan
    • 900W High Efficiency Power Supply
     SYS-5039A-I
