| Product SKUs | | ARS-111GL-SHR | | Motherboard | | Super G1SMH-G | | Processor | | CPU | - NVIDIA 72-core NVIDIA Grace CPU on GH200 Grace Hopper™ Superchip
| | Note | - Supports up to 1000W TDP CPUs (Air Cooled)
| | GPU | | Max GPU Count | | | CPU-GPU Interconnect | | | System Memory | | Memory | - Onboard Memory
- Up to 480GB ECC LPDDR5X
- Additional GPU Memory: Up to 96GB ECC HBM3
| | On-Board Devices | | Input / Output | | LAN | - 1 RJ45 1 GbE Dedicated BMC LAN port
| | USB | | | Video | | | TPM | | | System BIOS | | BIOS Type | - AMI 64MB SPI Flash EEPROM
| | Management | | Power configurations | - Power-on mode for AC power recovery
- ACPI Power Management
| | PC Health Monitoring | | CPU | - Monitors for CPU Cores, Chipset Voltages, Memory
| | FAN | - Fans with tachometer monitoring
- Pulse Width Modulated (PWM) fan connectors
- Status monitor for speed control
| | Temperature | - Monitoring for CPU and chassis environment
- Thermal Control for fan connectors
|
| | | Chassis | | Form Factor | | | Model | | | Dimensions and Weight | | Height | | | Width | | | Depth | | | Package | - 9.05" (H) x 27.36" (W) x 46.06" (D)
| | Weight | - Gross Weight: 49.49 lbs (22.45 kg)
- Net Weight: 33.84 lbs (15.35 kg)
| | Available Color | | | Front Panel | | Buttons | | | Expansion Slots | | PCI-Express (PCIe) Configuration | - Default
- 3 PCIe 5.0 x16 FHFL slots
| | Drive Bays / Storage | | Drive Bays Configuration | - Default: Total 8 bays
- 8 front hot-swap E1.S NVMe drive bays

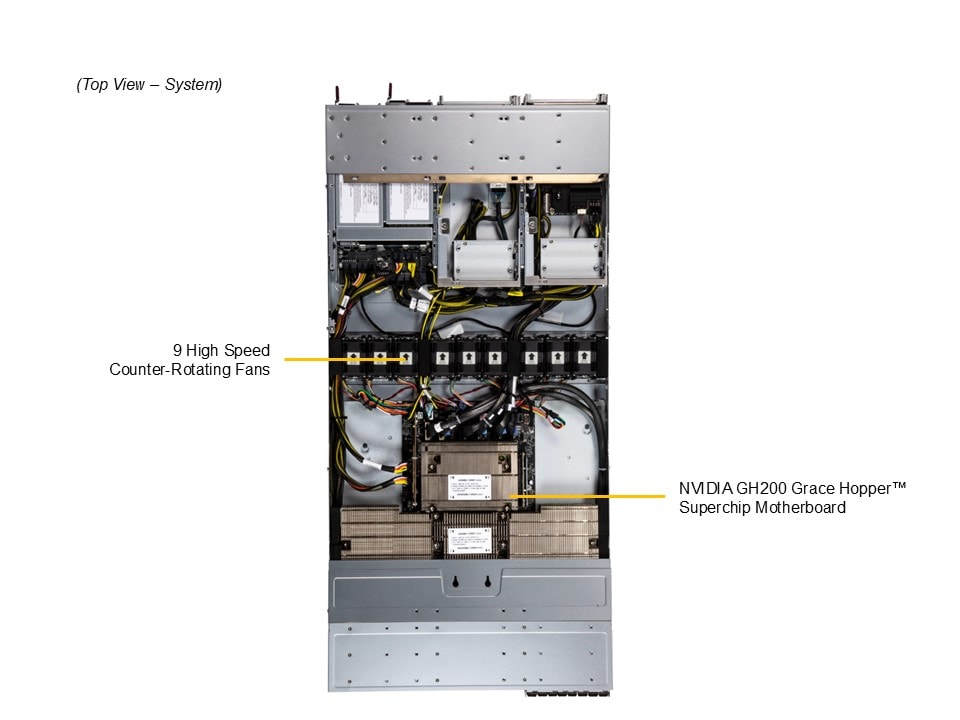

| | M.2 | | | System Cooling | | Fans | - Up to 9 Removable heavy-duty 4cm Fan(s)
| | Power Supply | | | 2x 2000W Redundant Titanium Level (96%) power supplies | | Dimension (WxHxL) | 73.5 x 40 x 185 mm | | Input | 1000W: 100-127Vac / 50-60Hz
1800W: 200-220Vac / 50-60Hz
1980W: 220-230Vac / 50-60Hz
2000W: 230-240Vac / 50-60Hz
2000W: 220-240Vac / 50-60Hz (for UL only)
2000W: 230-240Vdc / 50-60Hz (for CQC only) | | +12V | Max: 83A / Min: 0A (100Vac-127Vac)
Max: 150A / Min: 0A (200Vac-220Vac)
Max: 165A / Min: 0A (220Vac-230Vac)
Max: 166A / Min: 0A (230Vac-240Vac) | | 12V SB | Max: 3.5A / Min: 0A | | Output Type | Backplanes (gold finger) | | Operating Environment | | Environmental Spec. | - Operating Temperature: 10°C to 35°C (50°F to 95°F)
- Non-operating Temperature: -40°C to 60°C (-40°F to 140°F)
- Operating Relative Humidity: 8% to 90% (non-condensing)
- Non-operating Relative Humidity: 5% to 95% (non-condensing)
|
|
For detailed specifications, options, and compatibility, please refer to the latest official Supermicro documentation and the actual quotes/specifications from Autech.
-
NVIDIA GH200 Grace Hopper™ Superchip, up to 72 cores
-
Up to 480GB ECC LPDDR5X embedded on the NVIDIA Superchip
-
Up to 3 PCIe 5.0 x16 FHFL slots
-
Up to 8 front hot-swap E1.S NVMe drive bays

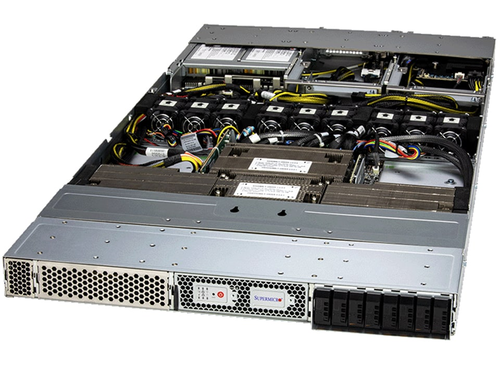

Supports 8 E1.S Drives as opposed to NHR version which supports 2.
-

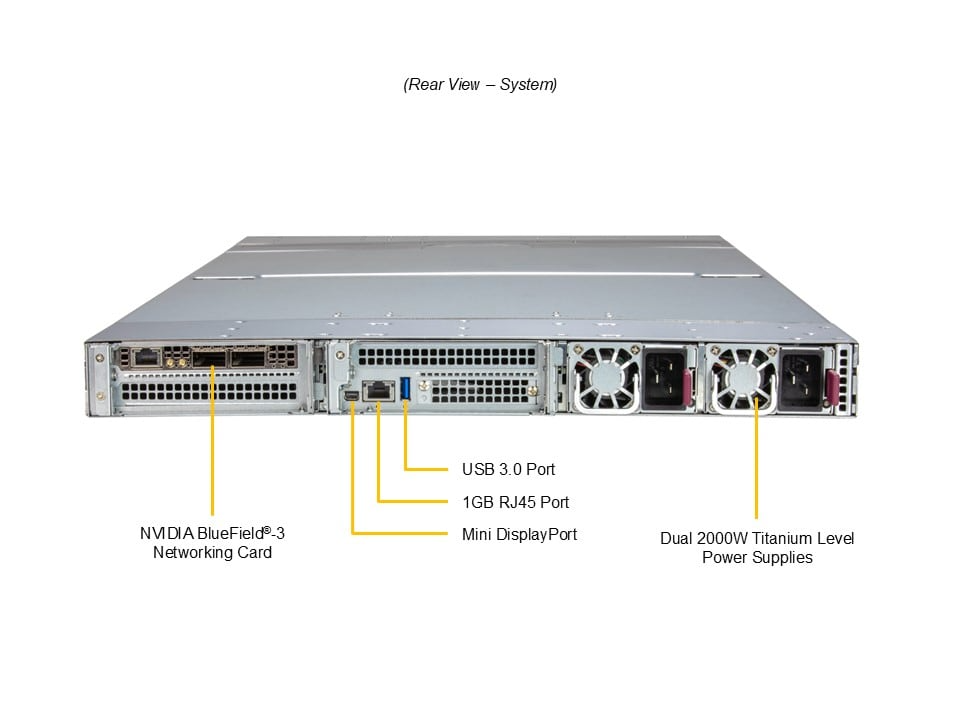

2 Redundant 2000W Titanium Level power supplies
-
Support for up to 1 embedded on the NVIDIA Grace Hopper Superchip:qty string GPU accelerator cards
Supports 8 E1.S Drives
DC-SCM Support
-
1U Rackmount chassis with 37" (940mm) depth
- High Performance Computing
- AI/Deep Learning Training and Inference
- Large Language Model (LLM) and Generative AI
