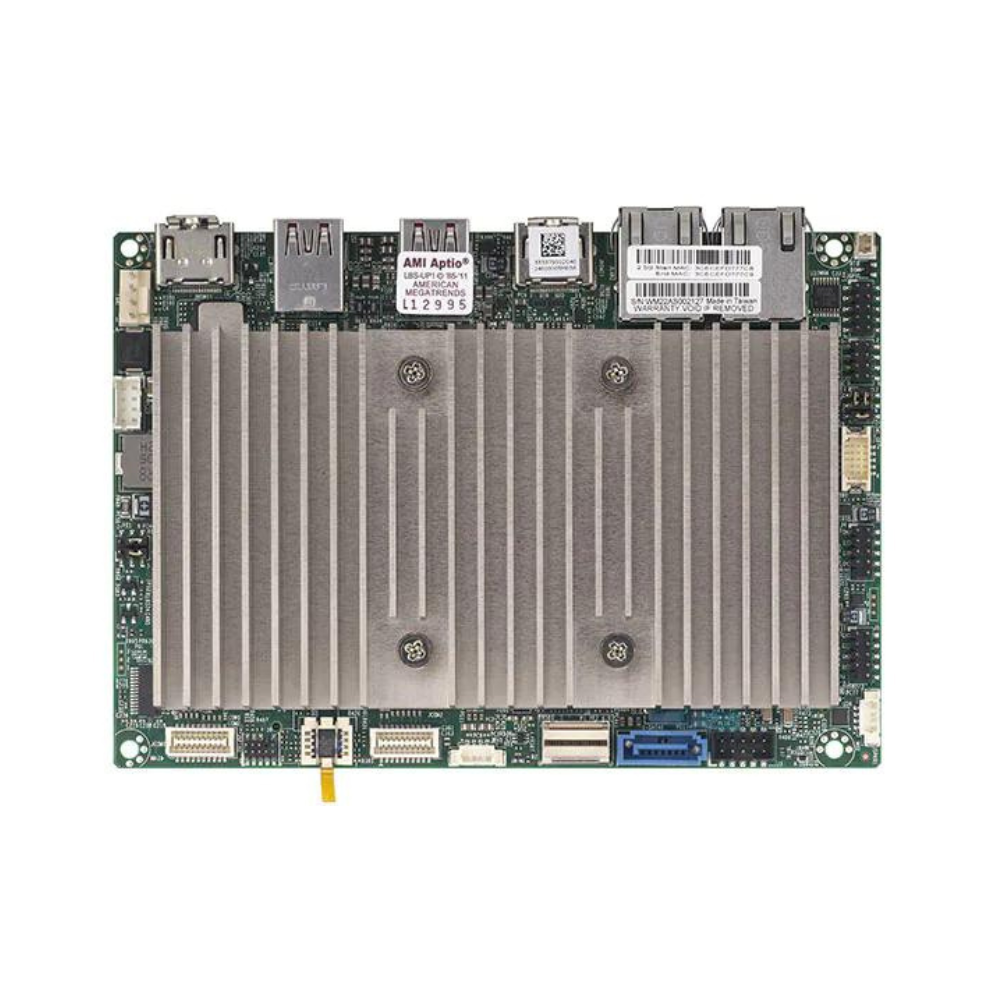

X13SAN-E (Low Power Embedded)
• First performance hybrid architecture from Intel
• 4 independent display with 4K resolution
• Fast AI hardware acceleration
• Up to 96 EU with Intel® Iris® Xe graphics capable of 4K60 resolution
• Next gen interfce: DDR5-4800 MHz and PCIe Gen4 x4 by SlimSAS and M.2
• High speed connectivity through dual 2.5GbE
• 100% wide temp grade design and components applied
• 12-24V wide range power with RVP and TVS
• Rich I/O and expansion: 4 COM, 9 USB, audio with AMP, triple M.2
• Hailo-8™ powerful and efficient Edge AI solution integration ready
• 4 independent display with 4K resolution
• Fast AI hardware acceleration
• Up to 96 EU with Intel® Iris® Xe graphics capable of 4K60 resolution
• Next gen interfce: DDR5-4800 MHz and PCIe Gen4 x4 by SlimSAS and M.2
• High speed connectivity through dual 2.5GbE
• 100% wide temp grade design and components applied
• 12-24V wide range power with RVP and TVS
• Rich I/O and expansion: 4 COM, 9 USB, audio with AMP, triple M.2
• Hailo-8™ powerful and efficient Edge AI solution integration ready
Model :
X13SAN-E
- First performance hybrid architecture from Intel
- 4 independent display with 4K resolution
- Fast AI hardware acceleration
- Up to 96 EU with Intel® Iris® Xe graphics capable of 4K60 resolution
- Next gen interfce: DDR5-4800 MHz and PCIe Gen4 x4 by SlimSAS and M.2
- High speed connectivity through dual 2.5GbE
- 100% wide temp grade design and components applied
- 12-24V wide range power with RVP and TVS
- Rich I/O and expansion: 4 COM, 9 USB, audio with AMP, triple M.2
- Hailo-8™ powerful and efficient Edge AI solution integration ready
| Standard Parts (Bulk Package) | |||
| Part Number | Qty | Description | |
| DC IN Power cable | CBL-PWEX-1029 | 1 | DC IN Power cable 2x4P 2.0mm pitch to 2x2P with 15cm |
| Passive heatsink | SNK-C0157PL | 1 | X13SAN passive heatsink with height 25mm |
| Standard Parts (Retail Package) | |||
| Part Number | Qty | Description | |
| Audio Cable | CBL-OTHR-0986 | 1 | Audio Cable 20cm |
| COM Cable | CBL-CDAT-0665 | 1 | COM Cable 20cm |
| DC IN Power cable | CBL-PWEX-1029 | 1 | DC IN Power cable 2x4P 2.0mm pitch to 2x2P with 15cm |
| Passive heatsink | SNK-C0157PL | 1 | X13SAN passive heatsink with height 25mm |
| QRG | - | 1 | Motherboard Quick Reference Guide |
| SATA cable | CBL-SAST-0881 | 1 | SATA Data cable 25CM |
| SATA Power Cable | CBL-PWEX-1030 | 1 | SATA Power Cable 20cm |
| USB Cable | CBL-CUSB-0983 | 1 | USB2.0 cable 20cm |
| Optional Parts | |||
| Part Number | Qty | Description | |
| DC IN Power Cable (DC Jack) | CBL-PWEX-1110-15 | 1 | DC power jack,vertical to 2x4, 2.0mm, 15cm |
| Heatspreader | MCP-350-00008-0N | 1 | Aluminum block Heatspreader for X11SWN/X12STN/X13SAN |
| Power Adapter | MCP-250-10137-0N | 1 | 84W Lockable AC to DC power adapter without power cord |
| USB3.1 Cable | CBL-CUSB-0826 | 1 | USB3.2 Gen1 cable 1.25mm, 2x5P, 15CM |
| x4 SlimSAS to U.2 Cable | CBL-SAST-1240A-85 | 1 | Slimeline x4 to PCIe SFF-8639, 1x4, PH5.08, 40CM |
