| Product SKUs | | AS -4124GQ-TNMI | | Motherboard | | Super H12DGQ-NT6 | | Processor | | CPU | - Dual Socket SP3
- AMD EPYC™ 7003 Series
| | Core Count | | | Note | - Supports up to 280W TDP CPUs (Air Cooled)
| | GPU | | Max GPU Count | | | CPU-GPU Interconnect | - PCIe 4.0 x16 CPU-to-GPU Interconnect
| | GPU-GPU Interconnect | - AMD Infinity Fabric™ Link
| | System Memory | | Memory | - Slot Count: 32 DIMM slots/8 Channels
- Max Memory (2DPC): Up to 8TB 3200MT/s ECC DDR4 RDIMM/LRDIMM
- View Memory Options
| | Memory Voltage | | | On-Board Devices | | Network Connectivity | - Via AIOM
- View AIOM Options
- View AOC Options
| | IPMI | - Support for Intelligent Platform Management Interface v.2.0
- IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
| | Input / Output | | LAN | - 1 RJ45 1 GbE Dedicated BMC LAN port
| | USB | | | Video | | | Serial | | | System BIOS | | BIOS Type | | | Management | | Software | - Supermicro Server Manager (SSM)
- Supermicro Power Manager (SPM)
- Supermicro Update Manager (SUM)
- Supermicro SuperDoctor® 5 (SD5)
- KVM with dedicated LAN
- IPMI 2.0
- Watch Dog
| | Security | | Hardware | - Trusted Platform Module (TPM) 2.0
- Silicon Root of Trust (RoT) – NIST 800-193 Compliant
| | Features | - Cryptographically Signed Firmware
- Secure Boot
- Secure Firmware Updates
- Automatic Firmware Recovery
- System Lockdown
| | PC Health Monitoring | | CPU | - 4+1 Phase-switching voltage regulator
- Monitors for CPU Cores, Chipset Voltages, Memory
| | FAN | - Fans with tachometer monitoring
- Pulse Width Modulated (PWM) fan connectors
- Status monitor for speed control
|
| | | Chassis | | Form Factor | | | Model | | | Dimensions and Weight | | Height | | | Width | | | Depth | | | Package | - 14.57" (H) x 27.55" (W) x 49.6" (D)
| | Weight | - Gross Weight: 140 lbs (64 kg)
- Net Weight: 105 lbs (48 kg)
| | Available Color | - Black Front & Silver Body
| | Front Panel | | Buttons | - Power On/Off button
- System Reset button
| | LED | - Hard drive activity LED
- Network activity LEDs
- Power status LED
- System Overheat & Power Fail LED

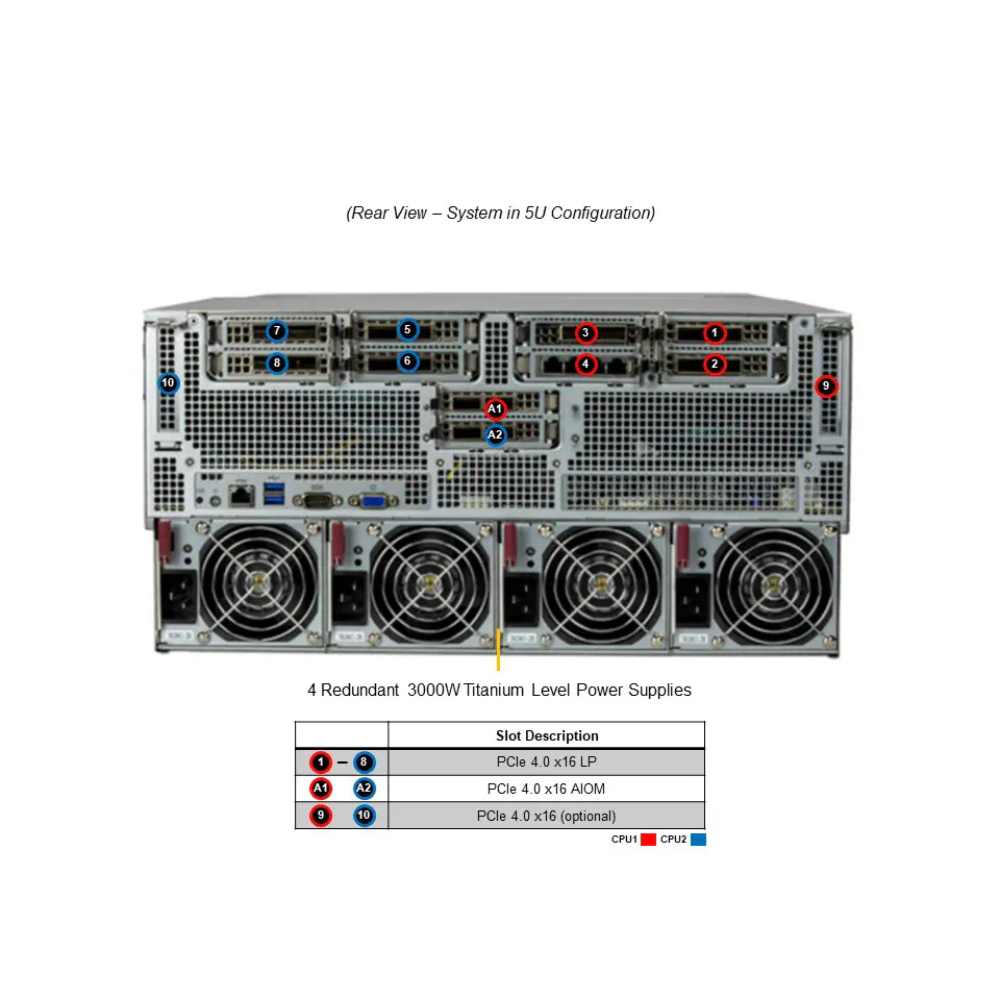

| | Expansion Slots | | PCI-Express (PCIe) Configuration | - Default
- 8 PCIe 4.0 x16 via PLX slots
- Option A*
- 8 PCIe 4.0 x16 via PLX slots
- 2 PCIe 4.0 x16 LP slots
- (*Requires additional parts, please see the optional parts list for details. For more details on PCIe slot configuration options, please refer to the system callout images above.)
- View AOC Options

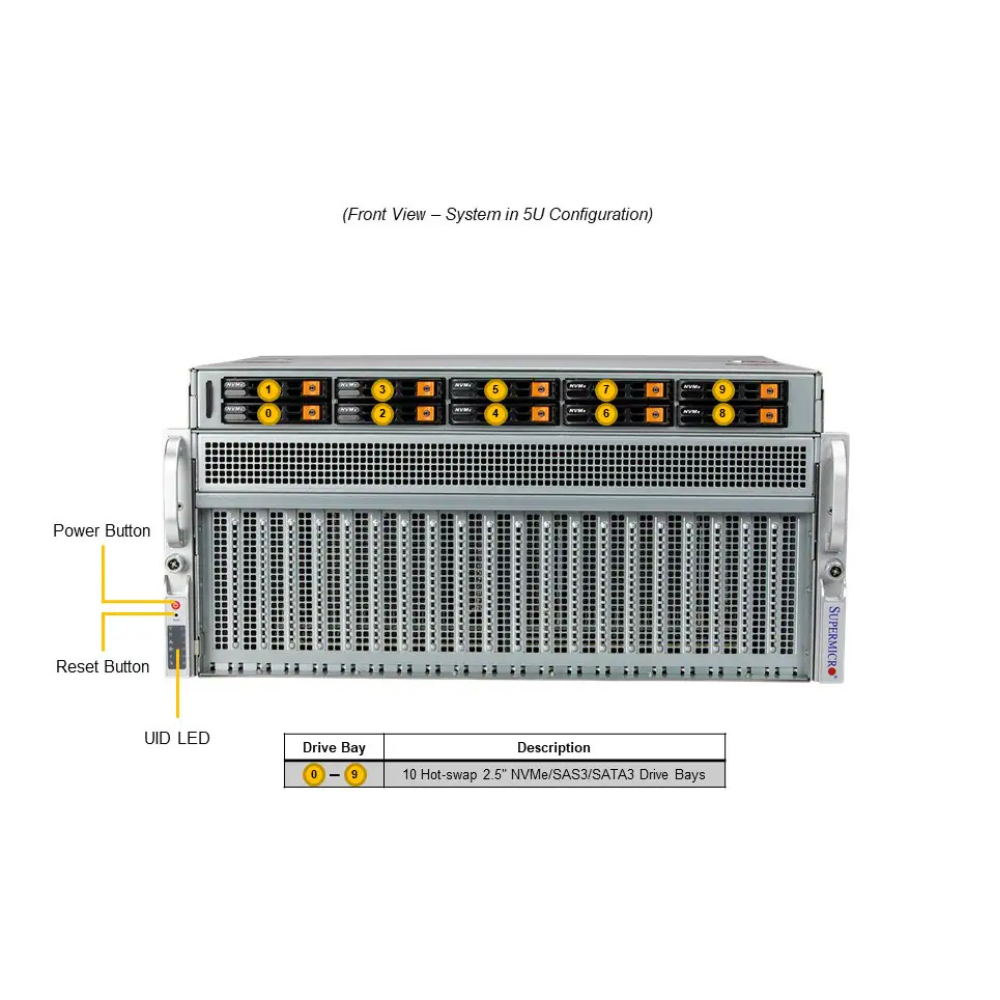

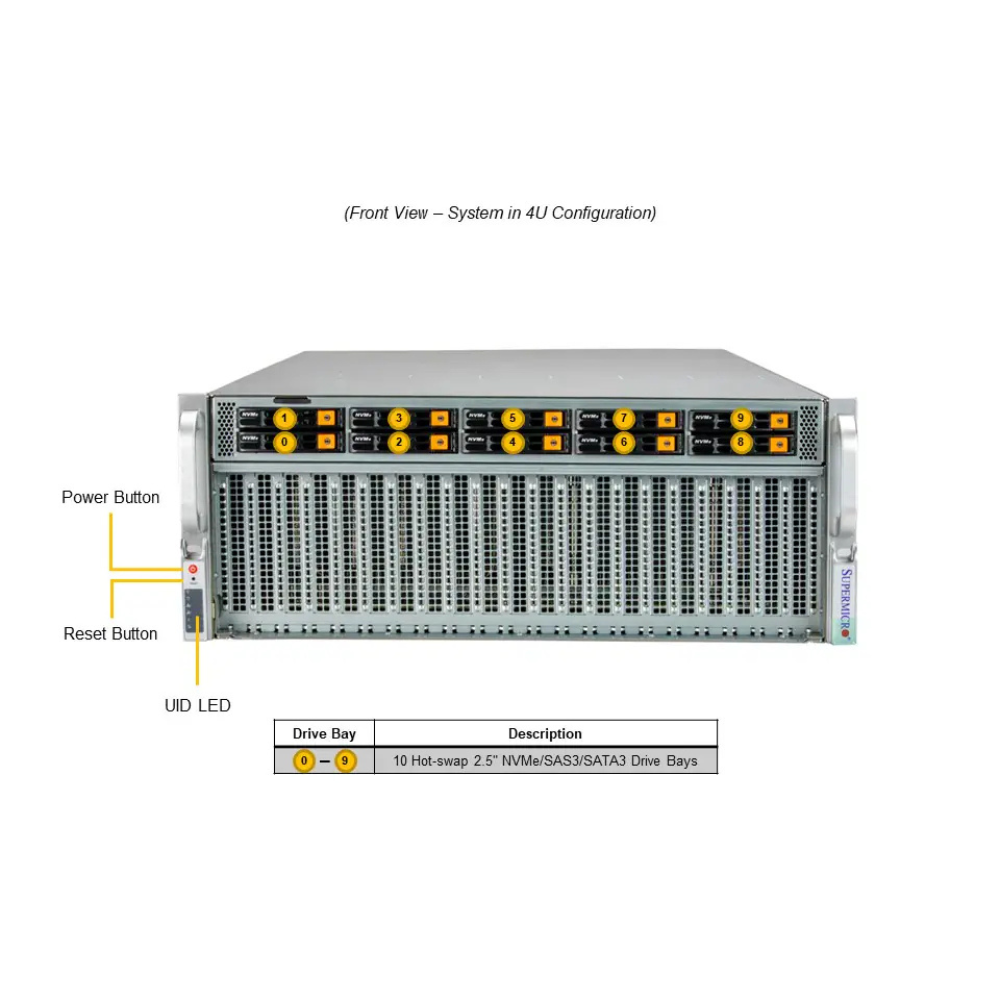

| | Drive Bays / Storage | | Drive Bays Configuration | - Default: Total 10 bays

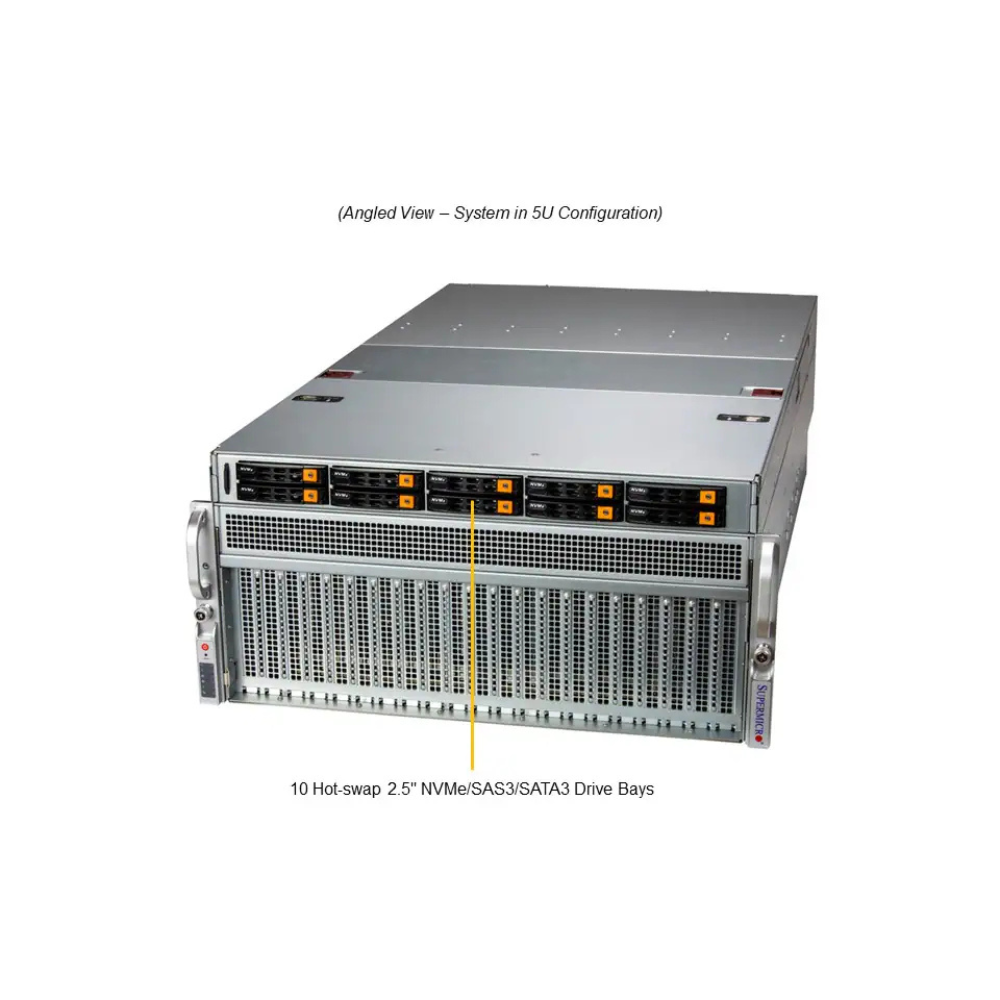

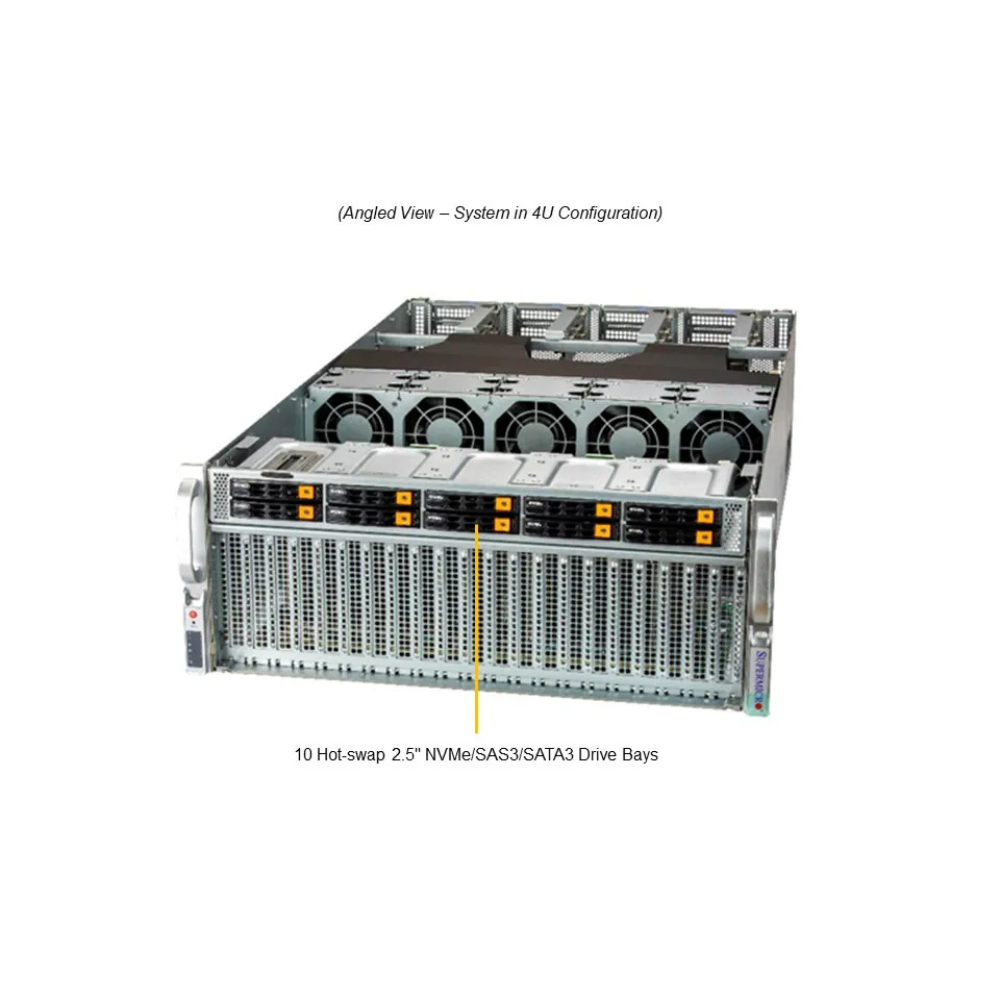

- 10 front hot-swap 2.5" NVMe/SAS/SATA drive bays
- View NVMe Options
- View Drive Options
| | System Cooling | | Fans | - Up to 5 x hot-swap 11.5K RPM heavy duty Fan(s)

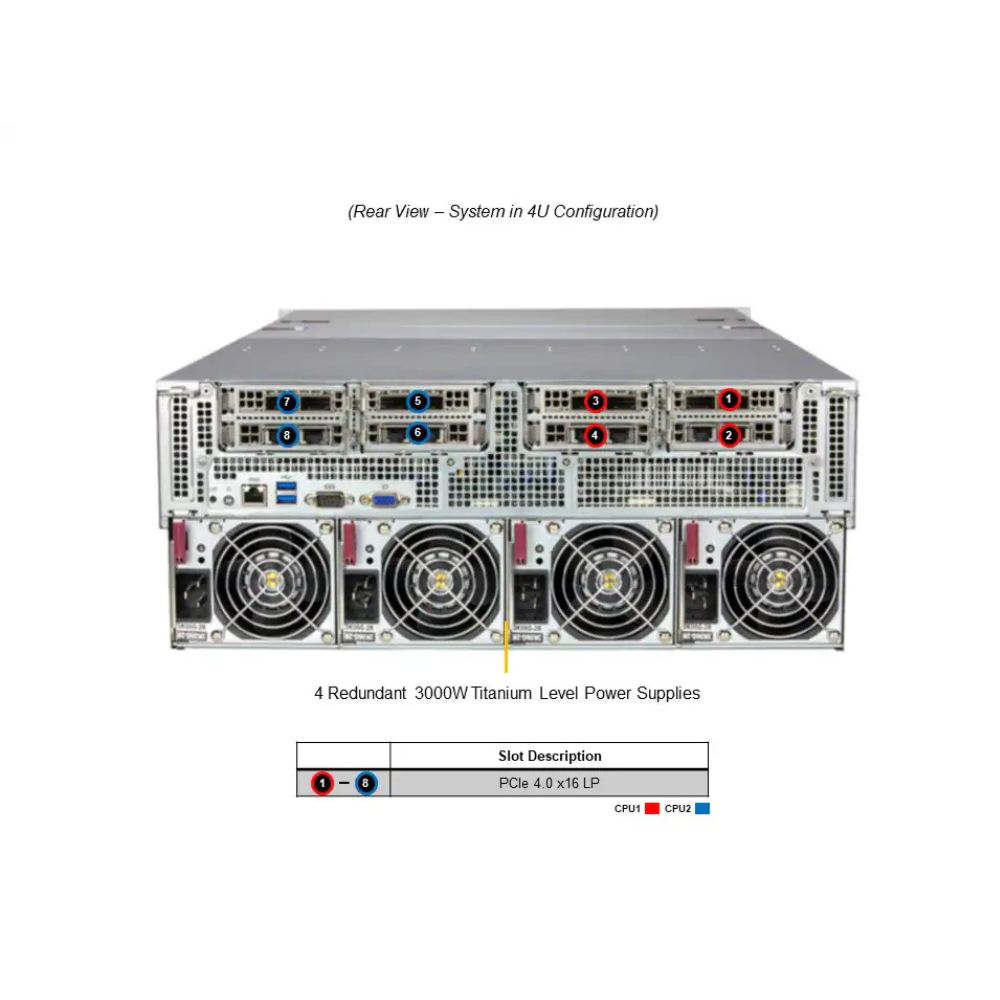

| | Power Supply | | | 4x 3000W Redundant (2 + 2) Titanium Level (96%) power supplies | | Dimension (WxHxL) | 106.5 x 82.1 x 245.5 mm | | Input | 2880W: 200-207Vac / 50-60Hz
3000W:
3000W: 207-240Vac / 50-60Hz
3000W: 0240Vdc / 50-60Hz (for CQC only) | | +12V | Max: 91.66A / Min: 0A (200Vac-240Vac) | | 12V SB | Max: 3A / Min: 0A | | Output Type | Backplanes (gold finger) | | Operating Environment | | ROHS | | | Environmental Spec. | - Operating Temperature: 10°C to 35°C (50°F to 95°F)
- Non-operating Temperature: -40°C to 60°C (-40°F to 140°F)
- Operating Relative Humidity: 8% to 90% (Non-Condensing)
- Non-operating Relative Humidity: 5% to 95% (Non-Condensing)
|
|
For detailed specifications, options, and compatibility, please refer to the latest official Supermicro documentation and the actual quotes/specifications from Autech.
-

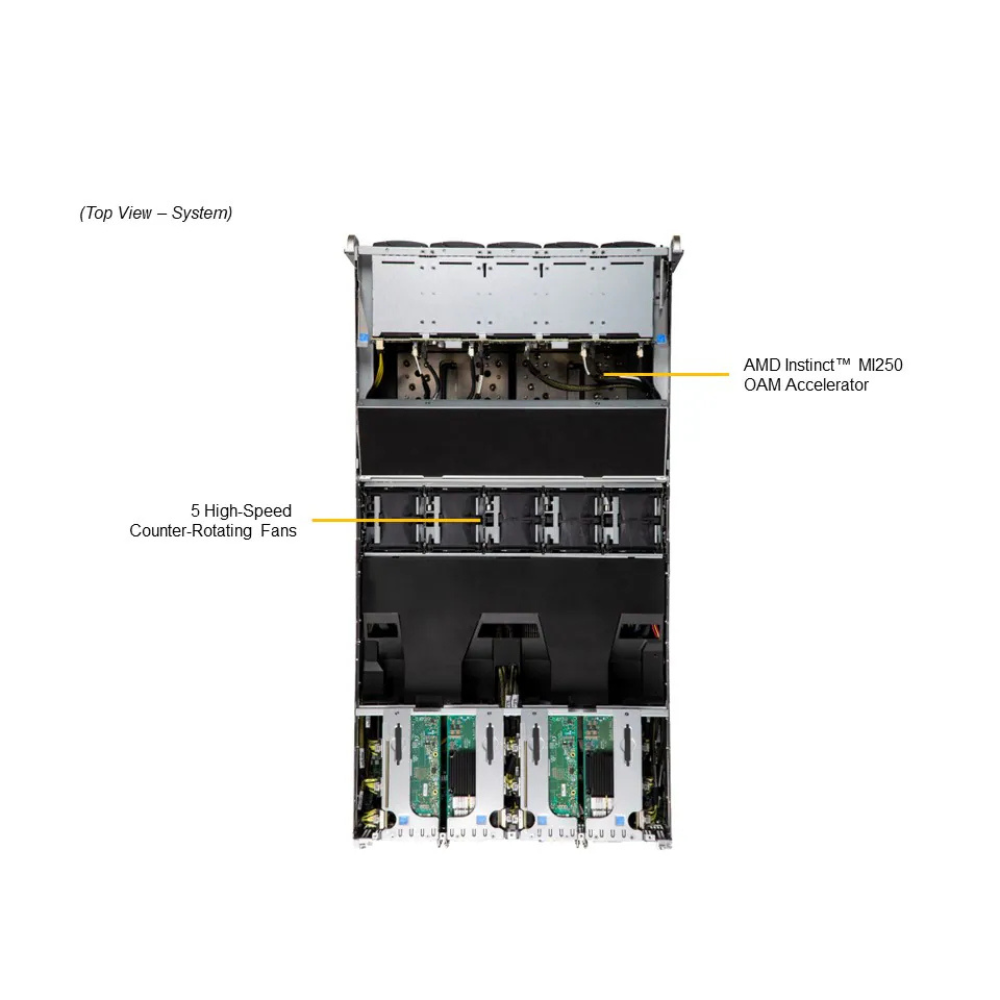

Supports AMD Instinct™ MI200 Series Accelerators with AMD Infinity™ Fabric™ GPU-GPU Interconnect, 1:1 GPU-to-NIC ratio
-
Dual AMD EPYC™ 7003 Series Processors
-
8TB Registered ECC DDR4 3200MHz SDRAM in 32 DIMMs
-
8 PCIe 4.0 x16 via PLX
2 PCIe 4.0 x16 LP via CPUs (for 5U SKU)
-
High Performance Computing
-
AI/Deep Learning Training
