iVS Modular Power Supply Up to 4920 Watts
Intelligent Modular Power Supply for Optimum Flexibility
Up to 4920 Watts
Total Power: Up to 4920 Watts
Input Voltage: 85-264 Vac
120-300 Vdc
# of Outputs: Up to 24
The iVS series includes iVS1 Series, iVS3 Series, iVS6 Series, iVS8 Series, iVS8H Series
Up to 4920 Watts
Total Power: Up to 4920 Watts
Input Voltage: 85-264 Vac
120-300 Vdc
# of Outputs: Up to 24
The iVS series includes iVS1 Series, iVS3 Series, iVS6 Series, iVS8 Series, iVS8H Series
Model :
ivs series
iVS Series,4920 WATT CONFIGURABLE AC-DC POWER SUPPLIES

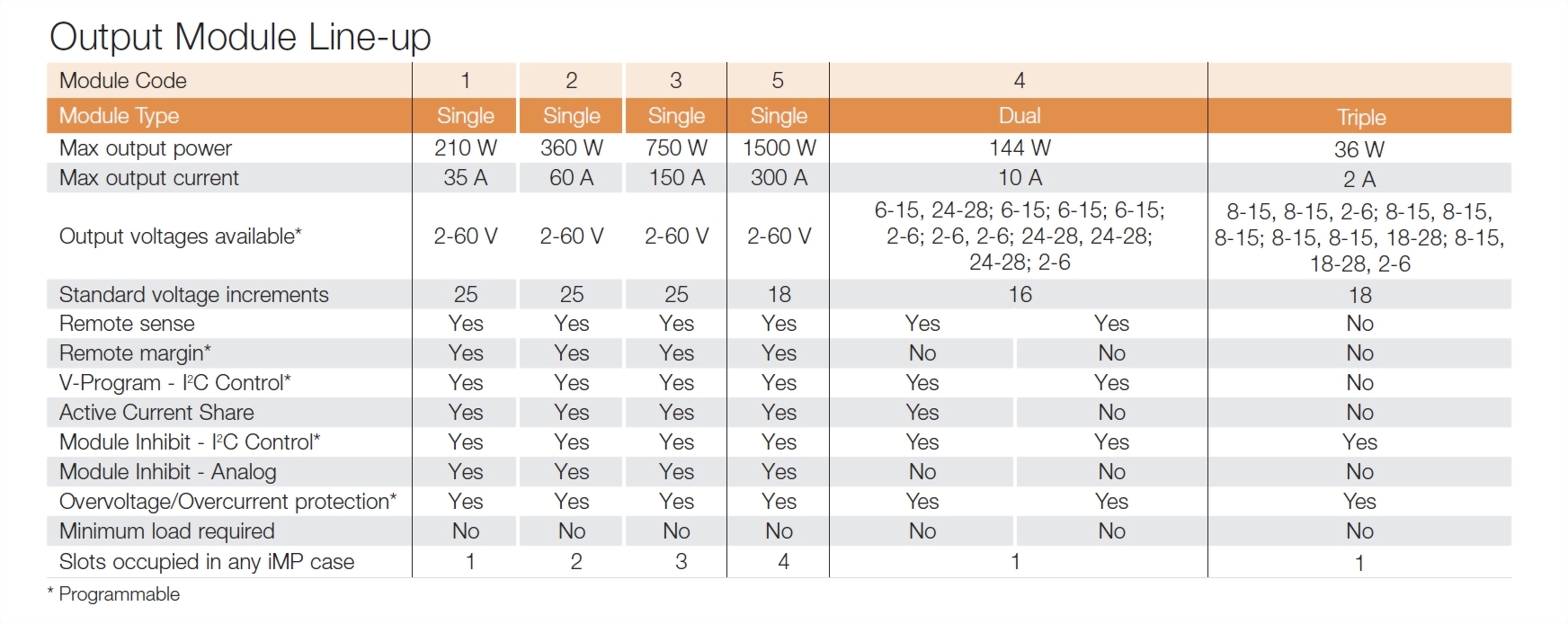

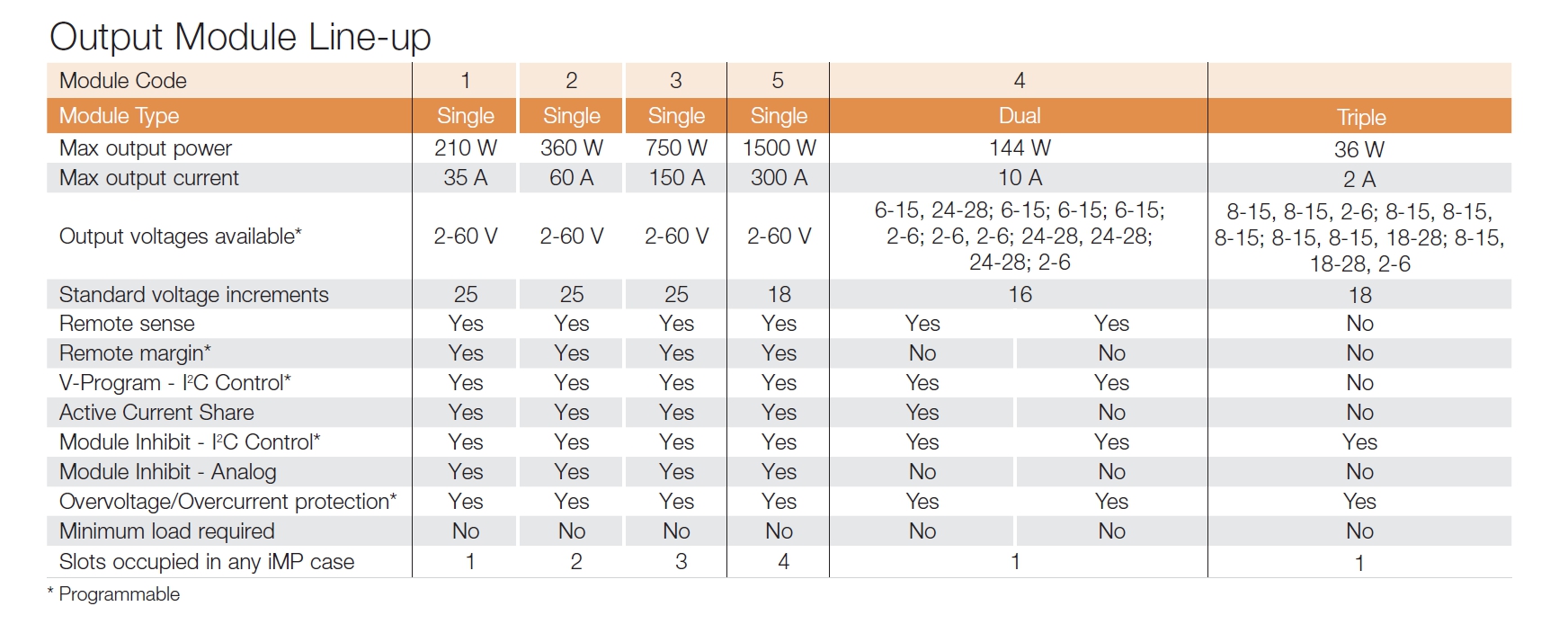

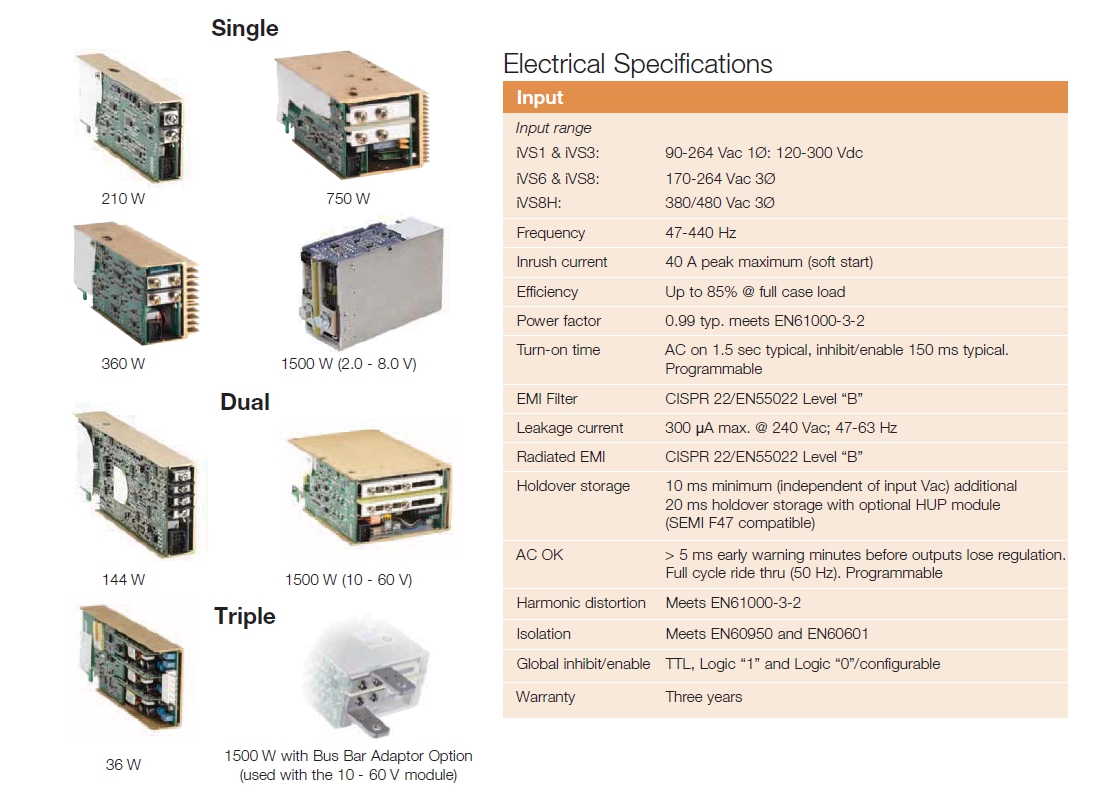

The iVS™ series of configurable AC-DC power supplies provides increased output power and functionality over the former VS series. Customers are now able to configure power supplies with up to 4,920 watts output capability, and to monitor and control many attributes of the power supply via an I2C interface. There is a choice of seven types of module, including single, dual and triple output units, with individual power outputs of up to 1,500 watts. The iVS series offers 25 standard output voltages, from 2 Vdc to 60 Vdc, and can provide up to 24 output
