Product SKUs
|
|

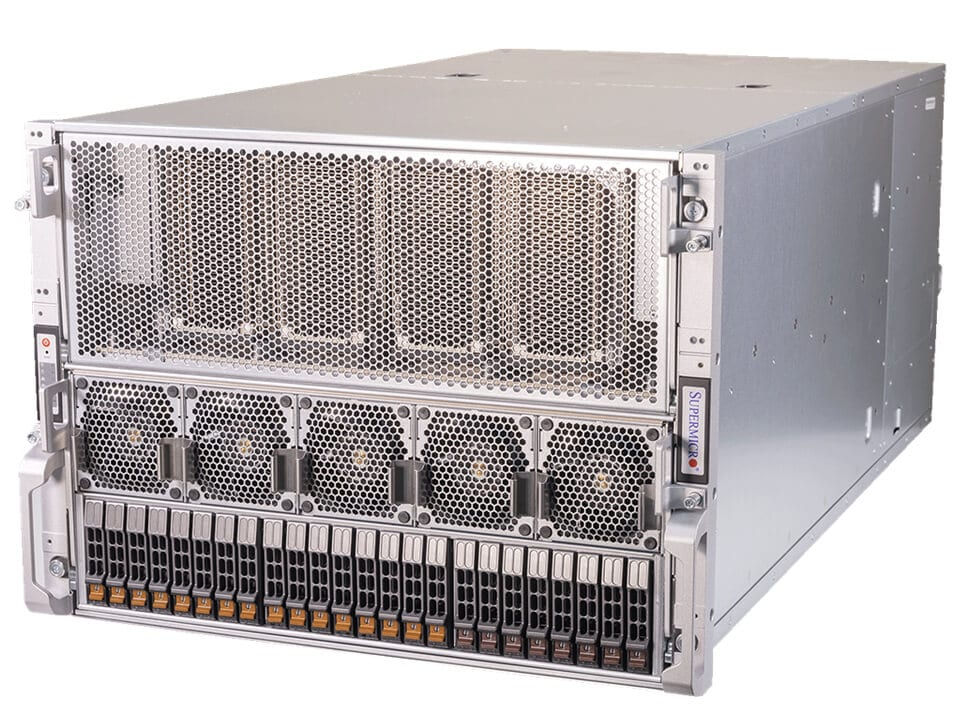

AS -8125GS-TNHR
|
|
Motherboard
|
|
Super H13DSG-O-CPU-D
|
|
Processor
|
|
CPU
|
-
Dual Socket SP5
-
AMD EPYC™ 9004 Series Processors
|
|
Core Count
|
|
|
Note
|
-
Supports up to 400W TDP CPUs (Air Cooled)
|
|
GPU
|
|
Max GPU Count
|
|
|
Supported GPU
|
-
NVIDIA SXM: HGX H100 8-GPU (80GB), HGX H200 8-GPU (141GB)
-
View GPU Options
|
|
CPU-GPU Interconnect
|
-
PCIe 5.0 x16 CPU-to-GPU Interconnect
|
|
GPU-GPU Interconnect
|
-
NVIDIA® NVLink™ with NVSwitch™
|
|
Certification
|
|
|
System Memory
|
|
Memory
|
-

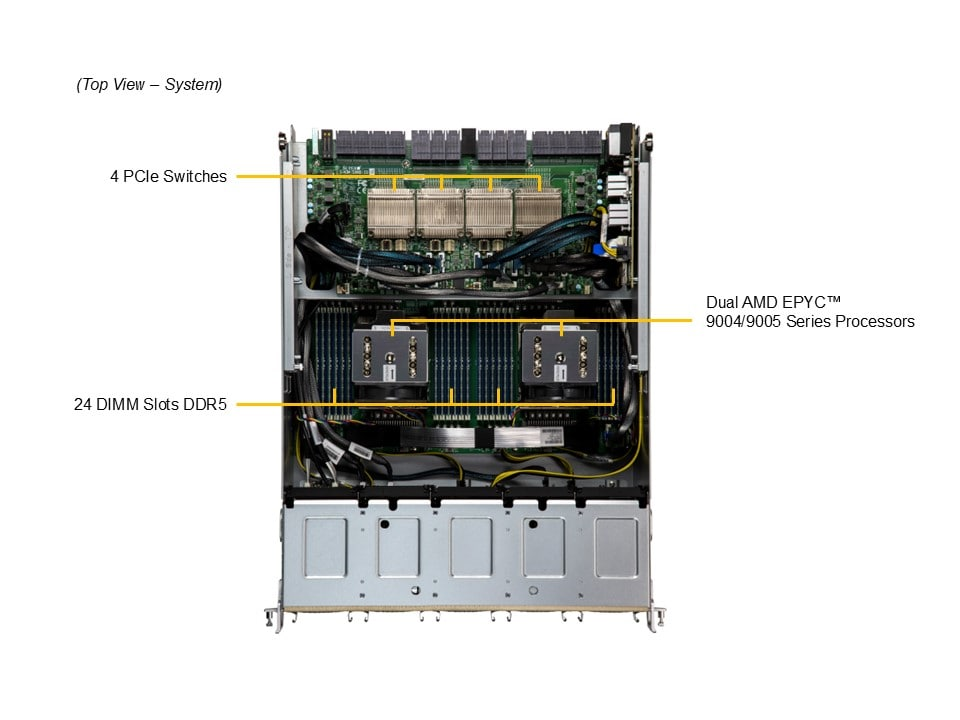

Slot Count: 24 DIMM slots
-
Max Memory (1DPC): Up to 6TB 4800MT/s ECC DDR5 RDIMM
-
View Memory Options
|
|
Memory Voltage
|
|
|
On-Board Devices
|
|
Network Connectivity
|
|
|
Input / Output
|
|
Video
|
|
|
System BIOS
|
|
BIOS Type
|
-
AMI 32MB SPI Flash EEPROM
|
|
Management
|
|
Software
|
-
SuperCloud Composer®
-
Supermicro Server Manager (SSM)
-
Supermicro Update Manager (SUM)
-
Supermicro SuperDoctor® 5 (SD5)
-
Super Diagnostics Offline (SDO)
-
Supermicro Thin-Agent Service (TAS)
-
SuperServer Automation Assistant (SAA) New!
|
|
Power configurations
|
-
Power-on mode for AC power recovery
-
ACPI Power Management
|
|
Security
|
|
Hardware
|
-
Trusted Platform Module (TPM) 2.0
-
Silicon Root of Trust (RoT) – NIST 800-193 Compliant
|
|
Features
|
-
Cryptographically Signed Firmware
-
Secure Boot
-
Secure Firmware Updates
-
Automatic Firmware Recovery
-
Supply Chain Security: Remote Attestation
-
Runtime BMC Protections
-
System Lockdown
|
|
PC Health Monitoring
|
|
CPU
|
-
7 +1 Phase-switching voltage regulator
-
Monitors for CPU Cores, Chipset Voltages, Memory
|
|
FAN
|
-
Fans with tachometer monitoring
-
Status monitor for speed control
|
|
Temperature
|
-
Monitoring for CPU and chassis environment
-
Thermal Control for fan connectors
|
|
|
|
Chassis
|
|
Form Factor
|
|
|
Model
|
|
|
Dimensions and Weight
|
|
Height
|
|
|
Width
|
|
|
Depth
|
|
|
Package
|
-
29.5" (H) x 27.5" (W) x 51.2" (D)
|
|
Weight
|
-
Gross Weight: 225 lbs (102.1 kg)
-
Net Weight: 166 lbs (75.3 kg)
|
|
Available Color
|
-
Black front & silver body
|
|
Front Panel
|
|
Buttons
|
-
Power On/Off button
-
System Reset button
|
|
LED
|
-
Hard drive activity LED
-
Network activity LEDs
-
Power status LED
-
System Overheat & Power Fail LED
|
|
Expansion Slots
|
|

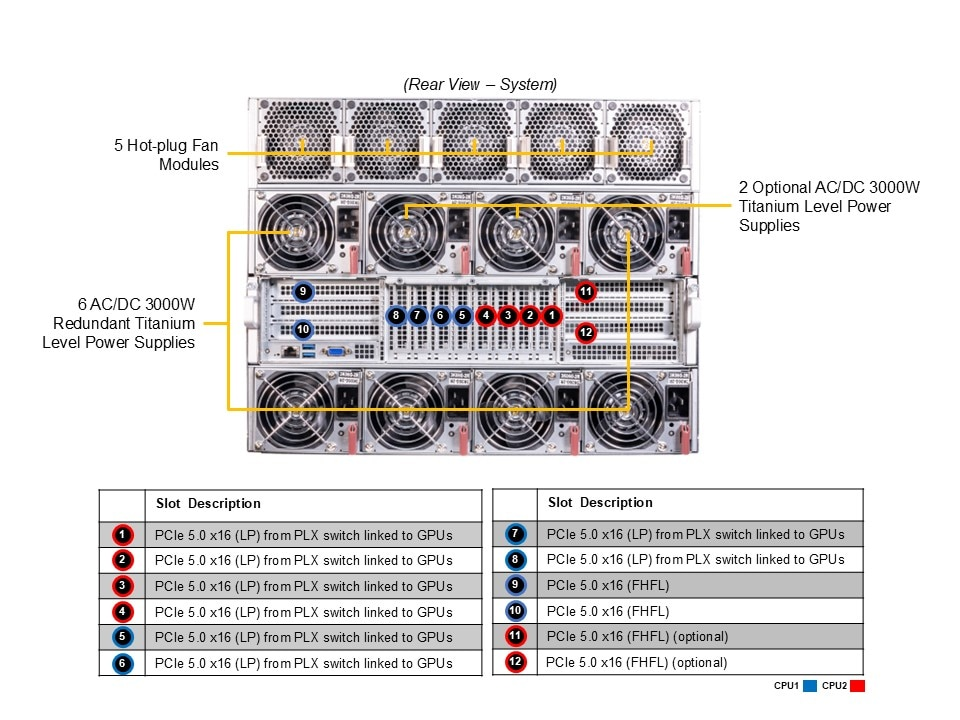

PCI-Express (PCIe) Configuration
|
-
Default
-
8 PCIe 5.0 x16 LP slots
-
2 PCIe 5.0 x16 FHFL slots
-
Option A
-
8 PCIe 5.0 x16 LP slots
-
4 PCIe 5.0 x16 FHFL slots
-
View AOC Options
|
|
Drive Bays / Storage
|
|

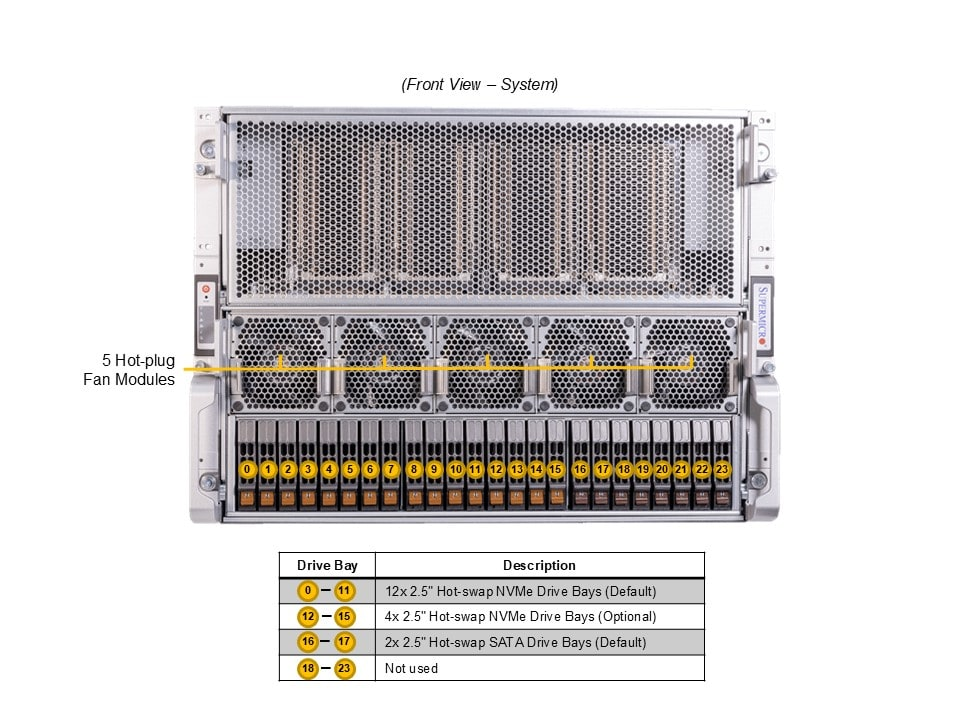

Drive Bays Configuration
|
-
Default: Total 18 bays
-

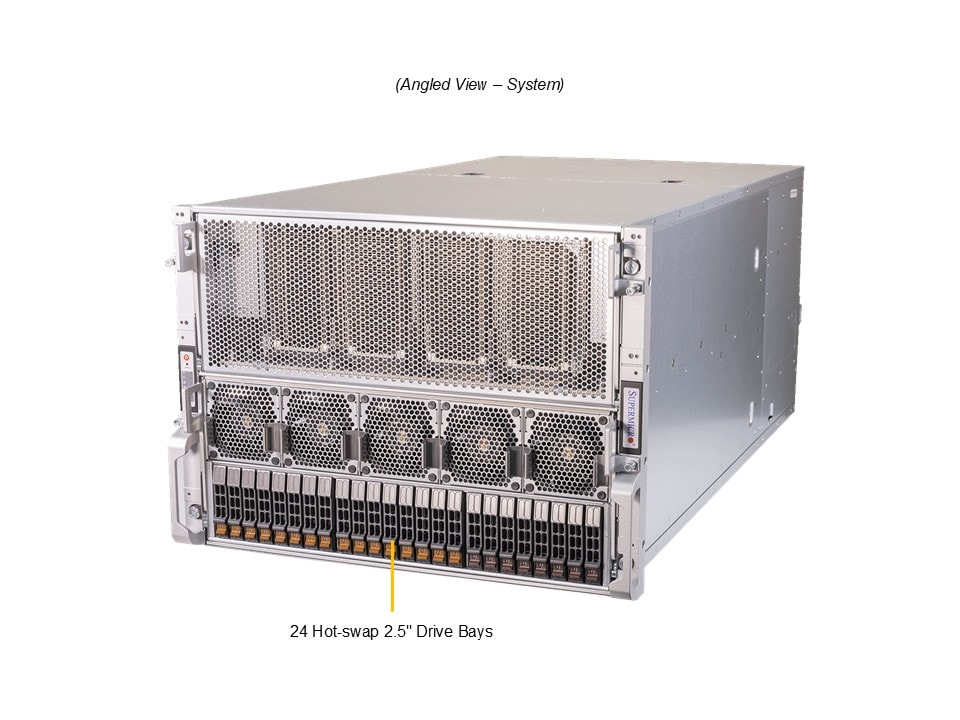

2 front hot-swap 2.5" SATA drive bays
-
4 front hot-swap 2.5" NVMe* drive bays
-
12 front hot-swap 2.5" NVMe drive bays
-
(*NVMe support may require additional storage controller and/or cables, please see the optional parts list for details)
-
View NVMe Options
-
View Drive Options
|
|
M.2
|
-
1 M.2 NVMe slot (M-key)
-
View M.2 Options
|
|
System Cooling
|
|
Fans
|
-
Up to 10 heavy duty fans with optimal fan speed control
|
|
Power Supply
|
|
|
6x 3000W Redundant (3 + 3) Titanium Level (96%) power supplies
|
|
Dimension (WxHxL)
|
106.5 x 82.1 x 245.5 mm
|
|
Input
|
2880W: 200-207Vac / 50-60Hz
3000W:
3000W: 207-240Vac / 50-60Hz
3000W: 0240Vdc / 50-60Hz (for CQC only)
|
|
+12V
|
Max: 91.66A / Min: 0A (200Vac-240Vac)
|
|
12V SB
|
Max: 3A / Min: 0A
|
|
Output Type
|
Backplanes (gold finger)
|
|
Operating Environment
|
|
Environmental Spec.
|
-
Operating Temperature: 10°C to 35°C (50°F to 95°F)
-
Non-operating Temperature: -40°C to 60°C (-40°F to 140°F)
-
Operating Relative Humidity: 8% to 90% (non-condensing)
-
Non-operating Relative Humidity: 5% to 95% (non-condensing)
|
|
For detailed specifications, options, and compatibility, please refer to the latest official Supermicro documentation and the actual quotes/specifications from Autech.
- High density 8U system for NVIDIA® HGX™ H100/H200 8-GPU
Highest GPU communication using NVIDIA® NVLINK™ + NVIDIA® NVSwitch™
8 NIC for GPU direct RDMA (1:1 GPU Ratio)
- Supports up to 24 DIMM Slots; 4800 MT/s 6TB DDR5 memory
(Please check System Memory Section for detail)
- Up to 8 PCIe 5.0 x16 LP + 4 PCIe 5.0 x16 FHFL slots
- Flexible networking options
- Total of 12 Hot-swap 2.5" NVMe drive bays + 2 hot-swap 2.5" SATA drive bays
+ 4 hot-swap 2.5" NVMe drive bays (optional)
1 M.2 NVMe for boot drive only
- 10 heavy duty fans with optimal fan speed control
- Total of 6x (3+3) 3000W Redundant Titanium Level Power Supplies
(Power supply full redundancy based on configuration and application load)
-
High Performance Computing
-
Industrial Automation
-
AI/Deep Learning Training
-
Climate and Weather Modeling
