SYS-531AD-I

UP mid-tower workstation for gaming and content creation
Model : SYS-531AD-I

SYS-531AD-I is a Supermicro SuperWorkstation single-processor system. UP mid-tower workstation for gaming and content creation

It is positioned for professional workstation deployments that require reliable compute, storage, expansion and graphics options in a server-grade platform. Key configuration references include 14th/13th/12th Gen Intel® Core™ i9/i7/i5/i3, Pentium® and Celeron® Processors, Mid-Tower, 6 default and 1x 750W.

Official reference: Supermicro official product page

SYS-531AD-I Specifications

Product SKUs
SuperWorkstation SYS-531AD-I

Processor
CPU Single Socket V0 (LGA-1700) 14th/13th/12th Gen Intel® Core™ i9/i7/i5/i3 processor、Pentium® processorand Celeron® processor
Core Count Up to 24C/48T; Up to 16MB Cache

System Memory
Memory Slot Count: 4 DIMM slots Max Memory (2DPC): Up to 128GB 4400MT/s non-ECC DDR5 UDIMM
Memory Voltage 1.1V

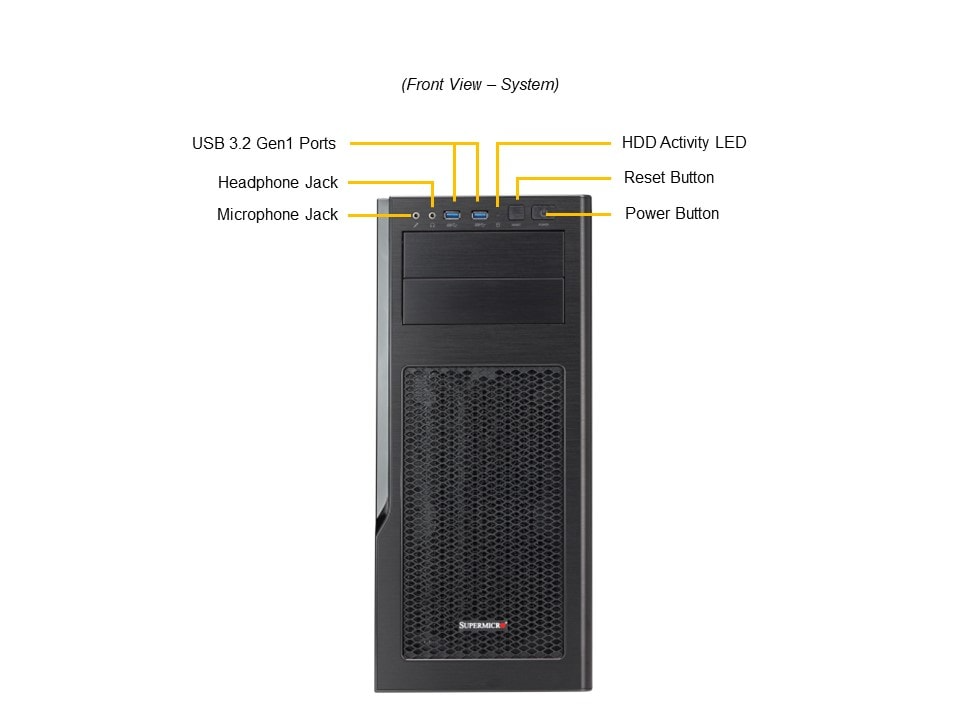

Input / Output
USB 4 USB 2.0 ports(rear) 2 USB 2.0 ports(header) 2 ports(front) 2 ports(rear)
Video 1 HDMI 2.1 port 1 DisplayPort 1.4b port

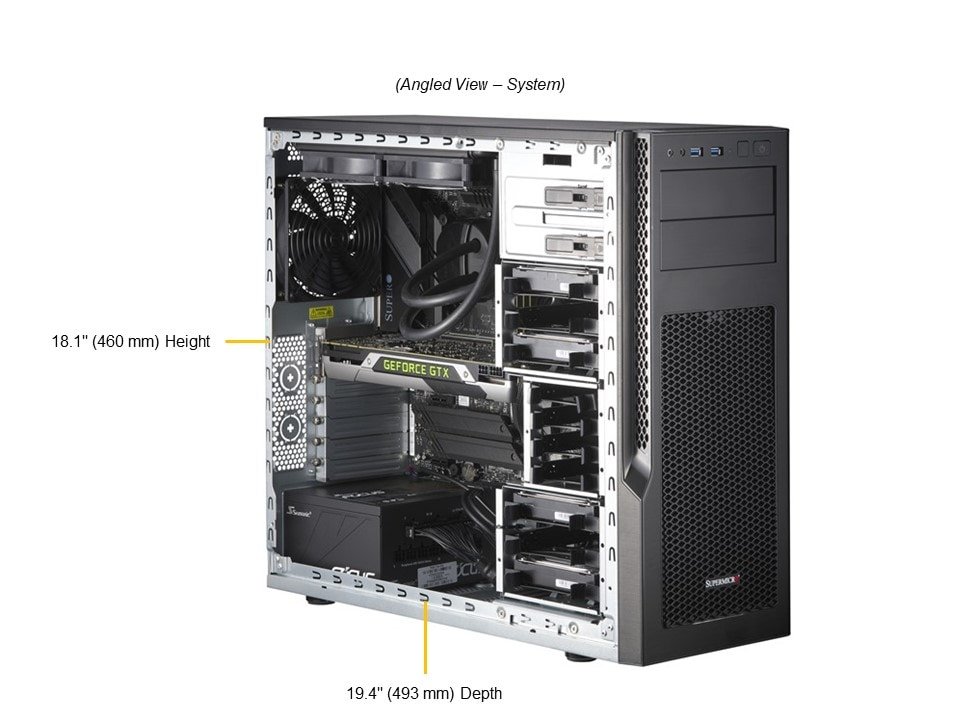

Dimensions and Weight
Height 18.1" (460 mm)
Width 7.9" (200 mm)

Drive Bays / Storage
Drive Bays Configuration Default: Total 6 bays6 internal fixed 3.5" SATA drive bays View storage options
M.2 2 M.2 PCIe 3.0 x4 NVMe slots (M-key 2280/22110) 1 M.2 PCIe 4.0 x4 NVMe slot (M-key 2280/22110)

Motherboard
Supermicro C9Z790-CG

GPU
Max GPU Count Up to 1 double-width GPU

On-Board Devices
SATA SATA (6Gbps)
Network Connectivity 1 RJ45 1GbE with Intel® PHY I219-V 1 RJ45 10GbE with Marvell® AQC113

Chassis
Form Factor Mid-Tower
Model CSE-GS5A-754K

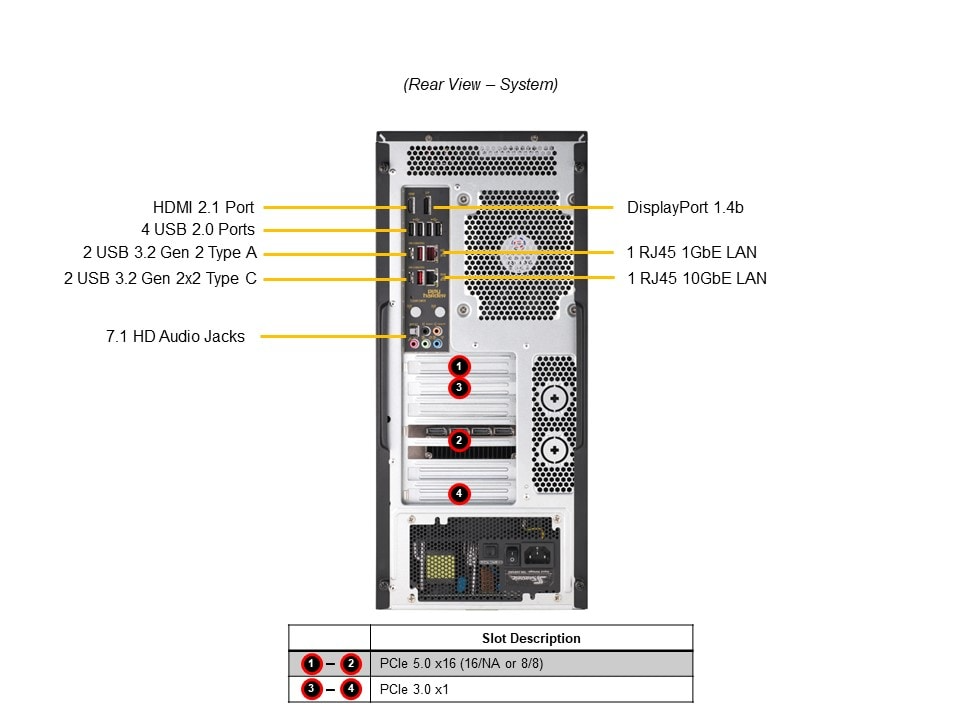

Expansion Slots
PCI-Express (PCIe) Configuration Default2 PCIe 5.0 x8 FHFL slots 2 PCIe 3.0 x1 FHFL slots Option A1 PCIe 5.0 x16 FHFL slot 2 PCIe 3.0 x1 FHFL slots

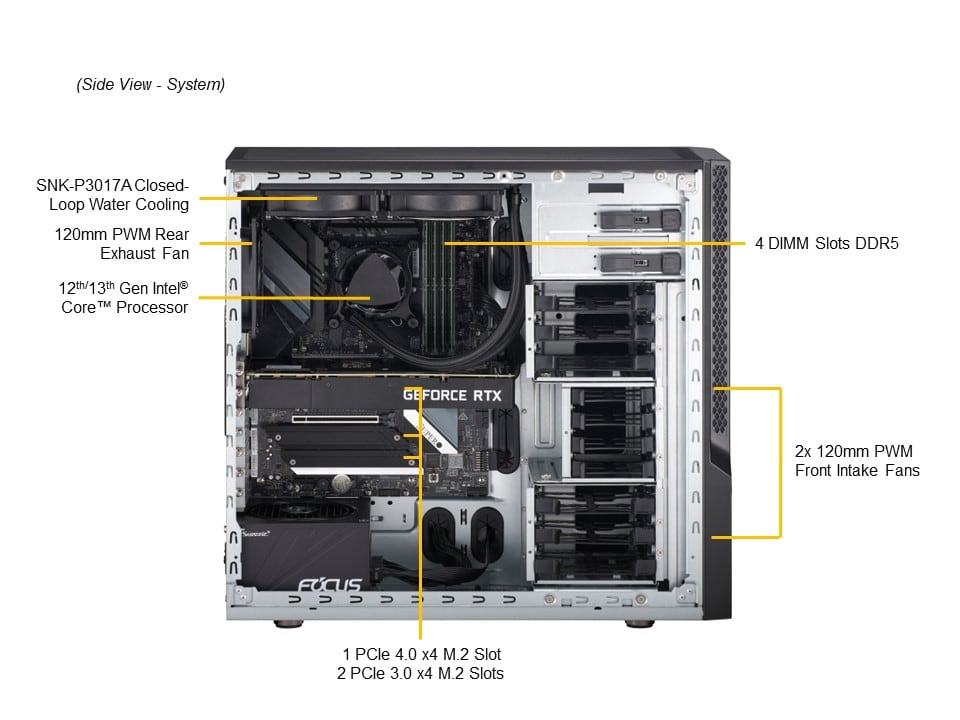

System Cooling
Fans Up to 2x 120mm Fan(s) Up to 1x 120mm Fan(s)
Liquid Cooling Direct to Chip (D2C) Cold Plate (optional)

For detailed specifications, options, and compatibility, please refer to the latest official Supermicro documentation and the actual quotes/specifications from Autech.

Product Description

SYS-531AD-I is a Supermicro SuperWorkstation single-processor system. UP mid-tower workstation for gaming and content creation

It is positioned for professional workstation deployments that require reliable compute, storage, expansion and graphics options in a server-grade platform. Key configuration references include 14th/13th/12th Gen Intel® Core™ i9/i7/i5/i3, Pentium® and Celeron® Processors, Mid-Tower, 6 default and 1x 750W.

Official reference: Supermicro official product page

Key Features

  • CPU: 1
  • CPU Type: 14th/13th/12th Gen Intel® Core™ i9/i7/i5/i3, Pentium® and Celeron® Processors
  • Drives: 6 default
  • Form Factor: Mid-Tower
  • Supported GPUs: N/A
  • Total Power: 1x 750W

Applications

  • Professional workstation computing
  • Content creation, engineering or AI workloads according to configuration
  • Enterprise workstation deployment
  • Professional Workstation Computing
  • Content Creation
  • Engineering / Simulation
  • Enterprise Workstation Deployment
