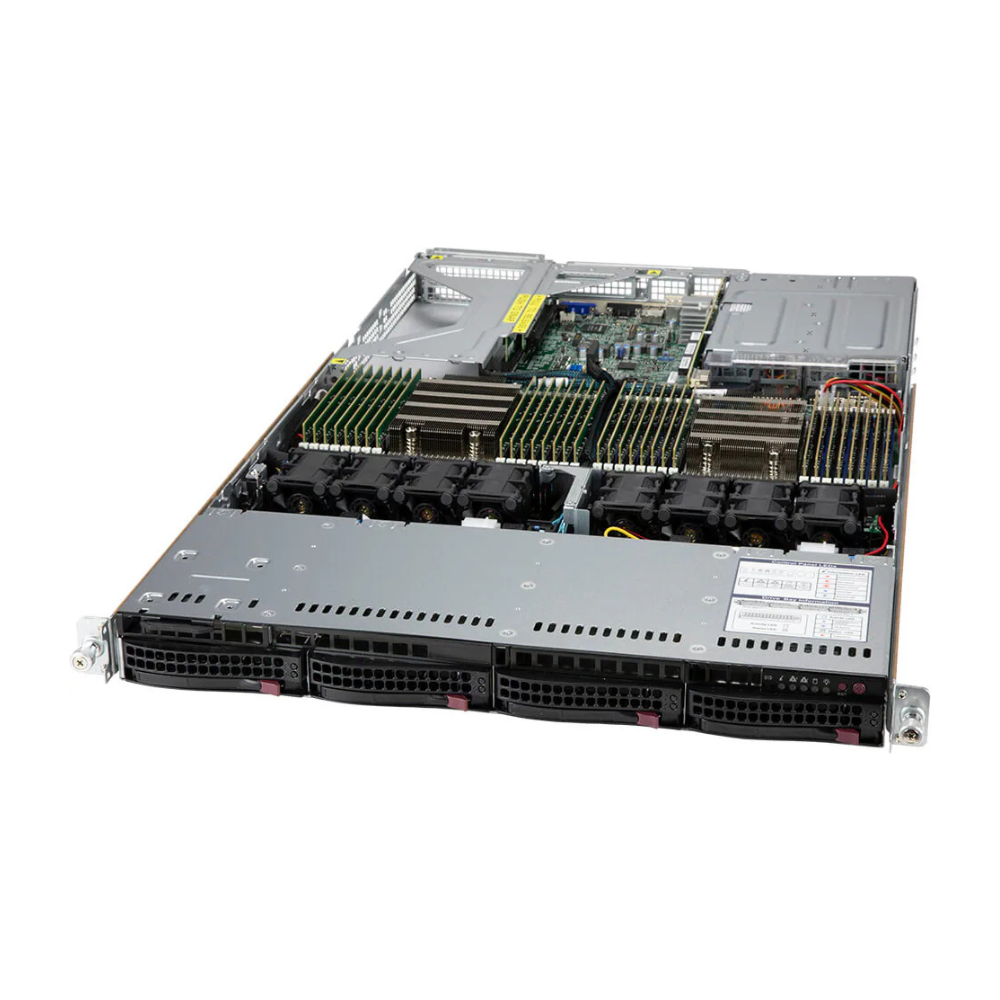

AS -1024US-TRT

1U Ultra with 4 SATA bays (optional NVMe/SAS)
Model : AS -1024US-TRT
Product SKUs
A+ Server AS -1024US-TRT
Motherboard
Super H12DSU-iN
Processor
CPU
Note
  • Supports up to 280W TDP CPUs (Air Cooled)
GPU
Max GPU Count
  • Up to 1 double-width or 1 single-width GPU
Supported GPU
System Memory
Memory
  • Slot Count: 32 DIMM slots
  • Max Memory (2DPC): Up to 8TB 3200MT/s ECC DDR4 RDIMM/LRDIMM
  • View Memory Options
Memory Voltage
  • 1.2V
On-Board Devices
Chipset
  • System on Chip
Network Connectivity
IPMI
  • Support for Intelligent Platform Management Interface v.2.0
  • IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
Input / Output
LAN
  • 1 RJ45 1 GbE Dedicated BMC LAN port
USB
  • 3 USB 3.0 ports
Video
  • 1 VGA port
Serial
  • 1 COM port
DOM
  • 2 SATA DOM (Disk on Module) ports
TPM
  • 1 TPM header
System BIOS
BIOS Type
  • AMI 128MB SPI Flash EEPROM
BIOS Features
  • PCI 2.2
  • Plug and Play (PnP)
  • USB Keyboard support
Management
Software
Security
Hardware
  • Trusted Platform Module (TPM) 2.0
  • Silicon Root of Trust (RoT) – NIST 800-193 Compliant
Features
  • Cryptographically Signed Firmware
  • Secure Boot
  • Secure Firmware Updates
  • Automatic Firmware Recovery
  • System Lockdown
PC Health Monitoring
Temperature
  • Monitoring for CPU and chassis environment
FAN
  • Status monitor for speed control
  • Pulse Width Modulated (PWM) fan connectors
CPU
  • Monitors for CPU Cores, +3.3V, +5V, +12V, +3.3V Standby, +5V Standby, VBAT, Memory, Chipset Voltages.
Chassis
Form Factor
  • 1U Rackmount
Model
  • CSE-819UTS-R1K02P-A
Dimensions and Weight
Height
  • 1.7" (43 mm)
Width
  • 17.2" (437 mm)
Depth
  • 29" (737 mm)
Package
  • 7.99" (H) x 23.81" (W) x 37.4" (D)
Weight
  • Gross Weight: 41 lbs (18.6 kg)
  • Net Weight: 26 lbs (11.8 kg)
Available Color
  • N/A
Expansion Slots

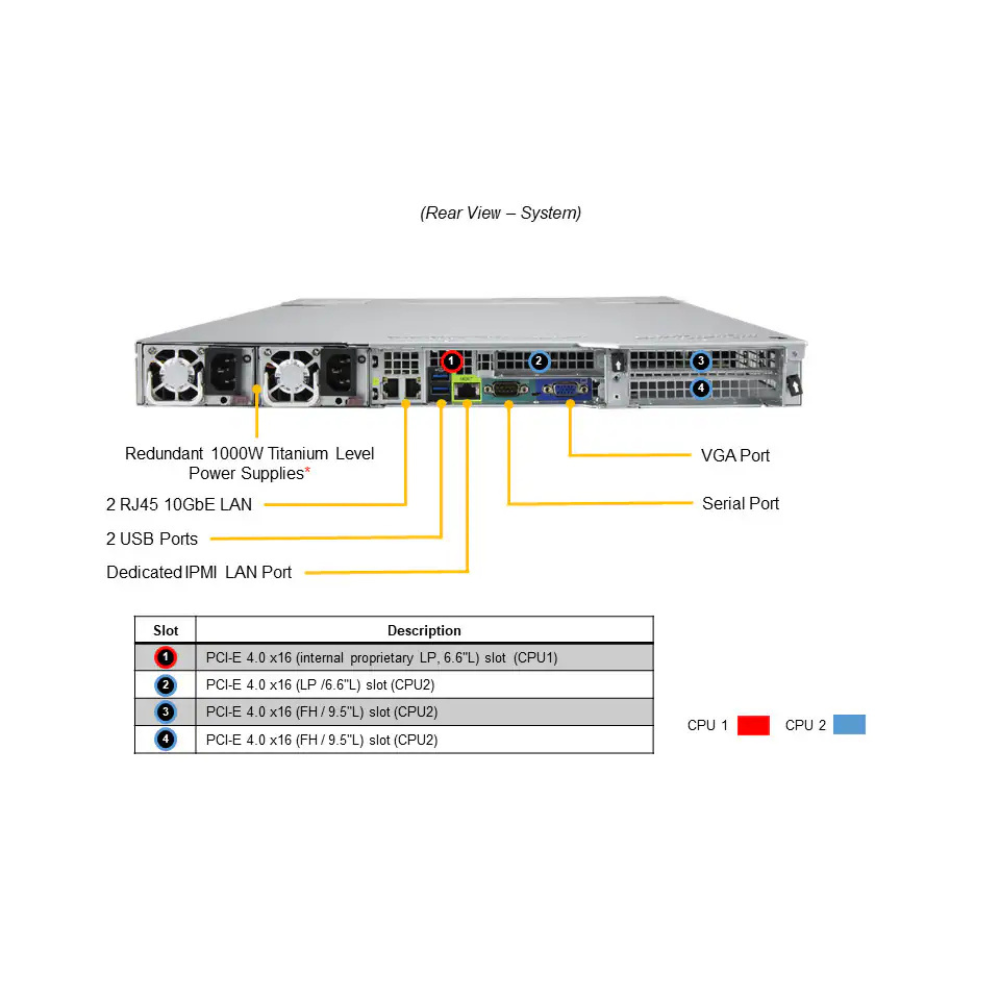

PCI-Express (PCIe) Configuration
  • Default
    • 1 PCIe 4.0 x16 LP slot
    • 2 PCIe 4.0 x16 FH, 9.5"L slots
    • 1 PCIe 4.0 x16 INTERNAL slot
  • View AOC Options
Drive Bays / Storage
Drive Bays Configuration

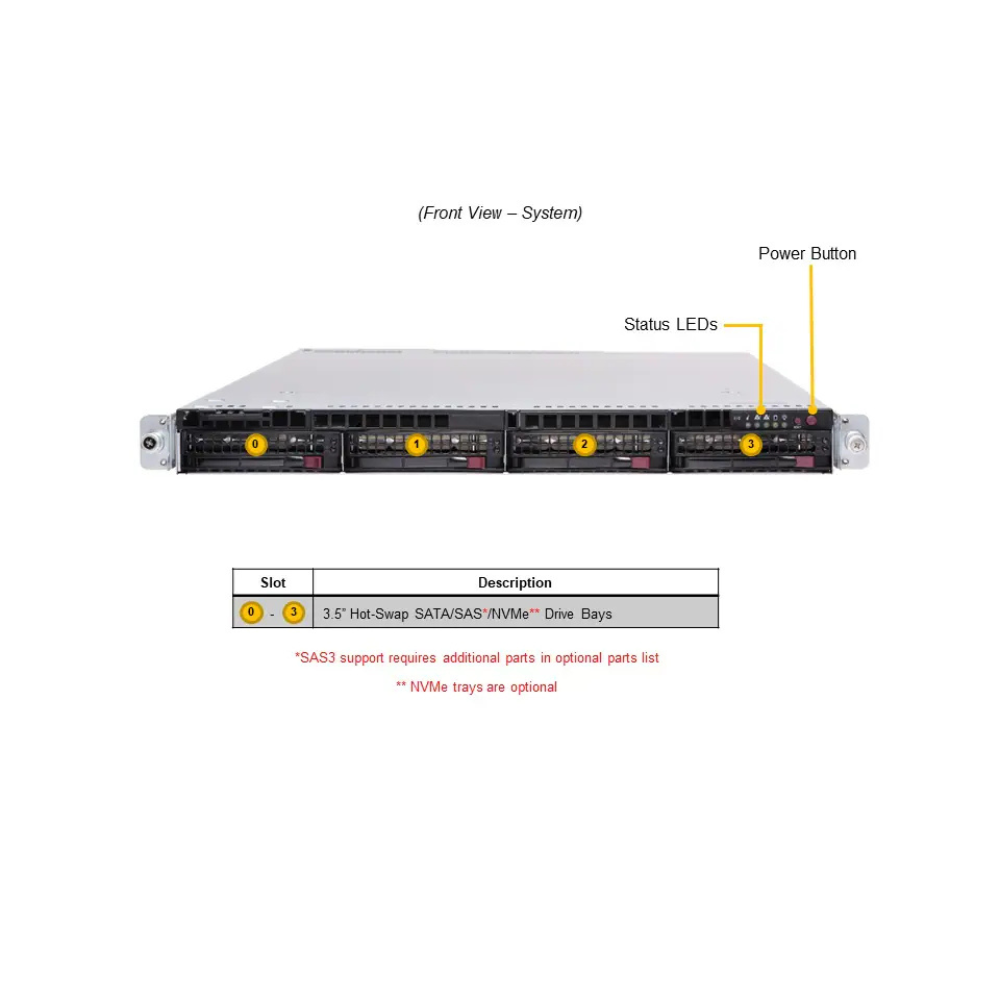

  • Default: Total 4 bays
    • 4 front hot-swap 3.5" SATA drive bays
  • Option A: Total 4 bays
    • 4 front hot-swap 3.5"/2.5" NVMe* drive bays
  • Option B: Total 4 bays
    • 4 front hot-swap 3.5" SAS* drive bays
  • (*NVMe/SAS support may require additional storage controller and/or cables, please see the optional parts list for details)
  • View NVMe Options
  • View Drive Options
System Cooling
Fans
  • Up to 8 heavy duty fans with optimal fan speed control
Power Supply
2x 1000W Redundant (1 + 1) Titanium Level (96%) power supplies
Dimension (WxHxL) 73.5 x 40 x 203 mm
Input 800W: 100-127Vac / 50-60Hz
1000W: 200-240Vdc / 50-60Hz
1000W: 200-240Vac / 50-60Hz
+12V Max: 66.7A / Min: 0A (100Vac-127Vac)
Max: 83A / Min: 0A (200Vac-240Vac)
Max: 83A (200Vdc-240Vdc)
12V SB Max: 2.1A / Min: 0A
Output Type Backplanes (gold finger)
Operating Environment
ROHS
  • RoHS Compliant
Environmental Spec.
  • Operating Temperature: 10°C to 35°C (50°F to 95°F)
  • Non-operating Temperature: -40°C to 70°C (-40°F to 158°F)
  • Operating Relative Humidity: 8% to 90% (non-condensing)
  • Non-operating Relative Humidity: 5% to 95% (non-condensing)
  1. Dual AMD EPYC™ 7003/7002 Series Processors
    (The latest AMD EPYC™ 7003 Series Processor with AMD 3D V-Cache™ Technology requires BIOS version 2.3 or newer)
  2. 8TB Registered ECC DDR4 3200MHz SDRAM in 32 DIMMs
  3. 2 PCIe 4.0 x16 (FH / 9.5"L) slots
    1 PCIe 4.0 x16 (LP) slot
    1 PCIe 4.0 x16 (internal proprietary LP slot)
  4. 4 hot-swap 3.5" SATA3 by default
    or 4 NVMe (via optional drive tray)
    or 4 SAS3 (via optional SAS kit)
