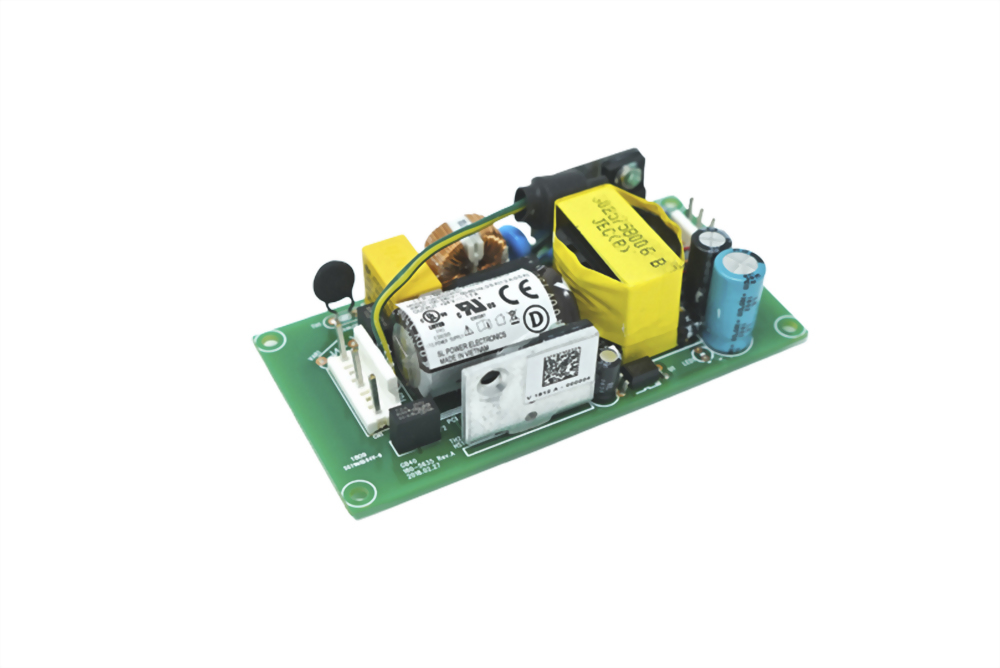

GB40
• 40W Open Frame and PCB-mount Power Supply
• 2.0” x 4.0” x 1.0” package
• Universal Input 90-264Vac
• <0.1W no load input power
• Approved to IEC60601-1, 3rd Edition & EN/IEC/UL62368-1
• Approved to CSA/EN/IEC/UL60601-1, 3rd Edition
• Meets Class B Radiated & Conducted EMI with margin
• Meets Heavy Industrial and IEC60601-1-2 4th Edition Levels of EMC
• E-Cap life of >7 years
• >1,000,000 hours MTBF
• 2.0” x 4.0” x 1.0” package
• Universal Input 90-264Vac
• <0.1W no load input power
• Approved to IEC60601-1, 3rd Edition & EN/IEC/UL62368-1
• Approved to CSA/EN/IEC/UL60601-1, 3rd Edition
• Meets Class B Radiated & Conducted EMI with margin
• Meets Heavy Industrial and IEC60601-1-2 4th Edition Levels of EMC
• E-Cap life of >7 years
• >1,000,000 hours MTBF
Model :
GB40
| MAX WATTS | 40.00W |
| OUTPUT RANGE (VDC) | 5-48 |
| FORM FACTOR | Board-Only |
| SIZE (METRIC/SAE) | 48.3 x 101.6 x 25 (2.0 x 4.0 x 0.97) |
| EFFICIENCY | >88%, typ. Efficiency |
| SAFETY APPROVALS | CSA/EN/IEC/UL62368-1 | CSA/EN/IEC/UL60601-1, 3rd Edition |
- 40W Open Frame and PCB-mount Power Supply
- 2.0” x 4.0” x 1.0” package
- Universal Input 90-264Vac
- <0.1W no load input power
- Approved to IEC60601-1, 3rd Edition & EN/IEC/UL62368-1
- Approved to CSA/EN/IEC/UL60601-1, 3rd Edition
- Meets Class B Radiated & Conducted EMI with margin
- Meets Heavy Industrial and IEC60601-1-2 4th Edition Levels of EMC
- E-Cap life of >7 years
- >1,000,000 hours MTBF
