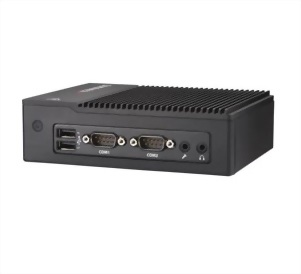

SuperServer E50-9AP

- IoT Gateway
- Commercial Appliance
- IP51 for water/dust proof
- Intel® Atom® processor E3940 (9.5W, 4C)Single socket FCBGA 1296
- System on Chip; 1 SATA 3.0 for 7mm 2.5" SATA SSD,
- 1 M.2 B-Key 2242/3042 for SATA SSD
- Up to 8GB 1866MHz DDR3L Non-ECC SO-DIMM in 1 socket
- 1 Full size Mini-PCIe, 1 Half size Mini-PCIe,
- 1 M.2 B-Key 2242/3042,1 M.2 E-Key 2230;
- Dual LAN with Intel I210-IT; 2 USB 3.0, 2 USB 2.0,
- 2 COM (RS-232/422/485), 1 TPM 2.0 onboard
- Fanless design;Lockable 12V DC 40W power adapter

Model : SYS-E50-9AP

Q'ty :

Product SKUs

SYS-E50-9AP	SuperServer E50-9AP (Black)


Motherboard

Super A2SAP-H


Processor/Cache

CPU	Intel® Atom® processor E3940 Single socket FCBGA 1296 9.5W, 4C


System Memory

Memory Capacity	Up to 8GB Unbuffered non-ECC SO-DIMM, DDR3L-1866MHz, in 1 DIMM socket
Memory Type	DDR3L up to 1866MHz
DIMM Sizes	8GB, 4GB
Memory Voltage	1.35 V


On-Board Devices

Chipset	System on Chip
Network Controllers	Dual LAN with Intel® Ethernet Controller I210-IT
Audio	ALC 888S HD Audio
Graphics	Intel® HD Graphics HDMI (max. resolution up to 3840 x 2160 @ 30Hz)


Input / Output

LAN	2 RJ45 Gigabit Ethernet LAN ports
USB	2 USB 3.0 ports (rear) 2 USB 2.0 ports
Video	2 HDMI ports
COM	2 COM (RS-232/422/485)
TPM	1 TPM 2.0 onboard

Chassis

Form Factor	Proprietary
Model	CSE-E50


Dimensions

Width	5.82" (148mm)
Height	1.72" (44mm)
Depth	4.64" (118mm)
Weight	Gross Weight: 3.52 lbs (1.6 kg) Net Weight: 2.2 lbs (1 kg)
Available Colors	Black


Front Panel

Buttons	Power On/Off button
LEDs	Power LED (Hard drive activity LED)


Expansion Slots

PCI-Express	1 Full size Mini-PCIe 1 Half size Mini-PCIe
M.2	1 M.2 B-Key 2242/3042 for storage 1 M.2 E-Key 2230 for communication module


Drive Bays / Storage

Internal	1 SATA 3.0 for 7mm 2.5" SATA SSD OR 1 M.2 B-Key 2242/3042 for SATA SSD


System Cooling

Fans	Fanless design


Power Supply

40W lockable 12V DC power adapter


System BIOS

BIOS Type	AMI UEFI


Management

Software	SuperDoctor® 5 Watch Dog
Power Configurations	+12V DC Power Input ACPI Power Management Control of power-on for recovery from AC power loss Force Power On by Jumper


Operating Environment / Compliance

RoHS	RoHS Compliant
Environmental Spec.	Operating Temperature: -20°C to 50°C (-4°F to 122°F) with M.2 SATA SSD 0°C to 40°C (32°F to 104°F) with HDD Non-operating Temperature: -40°C to 70°C (-40°F to 158°F) Operating Relative Humidity: 8% to 90% (non-condensing) Non-operating Relative Humidity: 5% to 95% (non-condensing)

- IoT Gateway
- Commercial Appliance
- IP51 for water/dust proof

1. Intel® Atom® processor E3940 (9.5W, 4C)
Single socket FCBGA 1296

2. System on Chip

3. 1 SATA 3.0 for 7mm 2.5" SATA SSD,
1 M.2 B-Key 2242/3042 for SATA SSD

4. Up to 8GB 1866MHz DDR3L Non-ECC
SO-DIMM in 1 socket

5. 1 Full size Mini-PCIe,
    1 Half size Mini-PCIe,
    1 M.2 B-Key 2242/3042,
    1 M.2 E-Key 2230

6. Dual LAN with Intel I210-IT

7. 2 USB 3.0, 2 USB 2.0, 2 COM
(RS-232/422/485), 1 TPM 2.0 onboard

8. Fanless design

9. Lockable 12V DC 40W power adapter

Parts List - (Items Included)

	Part Number	Qty	Description
Motherboard / Chassis	MBD-A2SAP-H CSE-E50	1 1	Super A2SAP-H Motherboard IP51 Fanless Chassis for 2.5" PICO
Add-on Card / Module	AOM-PICO-01-P	1	Add-on I/O Module for Pico-ITX A2SAP and embedded IoT system
Cable 1	CBL-PWCD-0260-IS	1	PWCD,US,NEMA5-15P TO IEC60320 C13,6FT,18AWG,RoHS/REACH
Parts	MCP-210-05001-0B	1	Front IO for CSE-E50 with 2xUSB2.0, 2xCOM
Power Adapter	MCP-250-10124-0N	1	40W 12V 3.33A, AC to DC lockable power adapter (0-40°C)
