| Product SKUs | | SYS-422GL-NR | | Motherboard | | Super X14DBG-MAP | | Processor | | CPU | - Dual Socket BR (LGA-7529)
- Intel® Xeon® 6900 series processors with P-cores
| | Core Count | | | Note | - Supports up to 500W TDP CPUs (Air Cooled)
| | GPU | | Max GPU Count | - Up to 8 double-width GPUs
| | Supported GPU | - NVIDIA PCIe: H200 NVL (141GB), NVIDIA RTX PRO™ 6000 Blackwell Server Edition
- View GPU Options
| | CPU-GPU Interconnect | - PCIe 5.0 x16 Switch Dual-Root
| | GPU-GPU Interconnect | - NVIDIA® NVLink™ Bridge (optional)
| | Certification | | | System Memory | | Memory | - Slot Count: 24 DIMM slots
- Max Memory (1DPC): 6.0TB 6400MT/s ECC DDR5 RDIMM
- Max Memory (1DPC): 6.0TB 8800MT/s ECC DDR5 MRDIMM
- View Memory Options
| | Memory Voltage | | | On-Board Devices | | Network Connectivity | - 1 RJ45 1GBASE-T with ASPEED AST2600
- View AOC Options
| | Input / Output | | USB | - 1 USB 3.0 Type-A port(Rear)
| | Video | | | TPM | | | System BIOS | | BIOS Type | | | Management | | Software | - SuperCloud Composer®
- Supermicro Server Manager (SSM)
- Super Diagnostics Offline (SDO)
- Supermicro Thin-Agent Service (TAS)
- SuperServer Automation Assistant (SAA) New!
| | Power configurations | - Power-on mode for AC power recovery
- ACPI Power Management
| | Security | | Hardware | - Trusted Platform Module (TPM) 2.0
- Silicon Root of Trust (RoT) – NIST 800-193 Compliant
| | Features | - Cryptographically Signed Firmware
- Secure Boot
- Secure Firmware Updates
- Automatic Firmware Recovery
- Supply Chain Security: Remote Attestation
- Runtime BMC Protections
- System Lockdown
|
| | | Chassis | | Form Factor | | | Model | | | Dimensions and Weight | | Height | | | Width | | | Depth | | | Package | - 27.32" (H) x 49.41" (W) x 19.49" (D)
| | Weight | - Gross Weight: 96.45 lbs (43.75 kg)
- Net Weight: 49.5 lbs (22.45 kg)

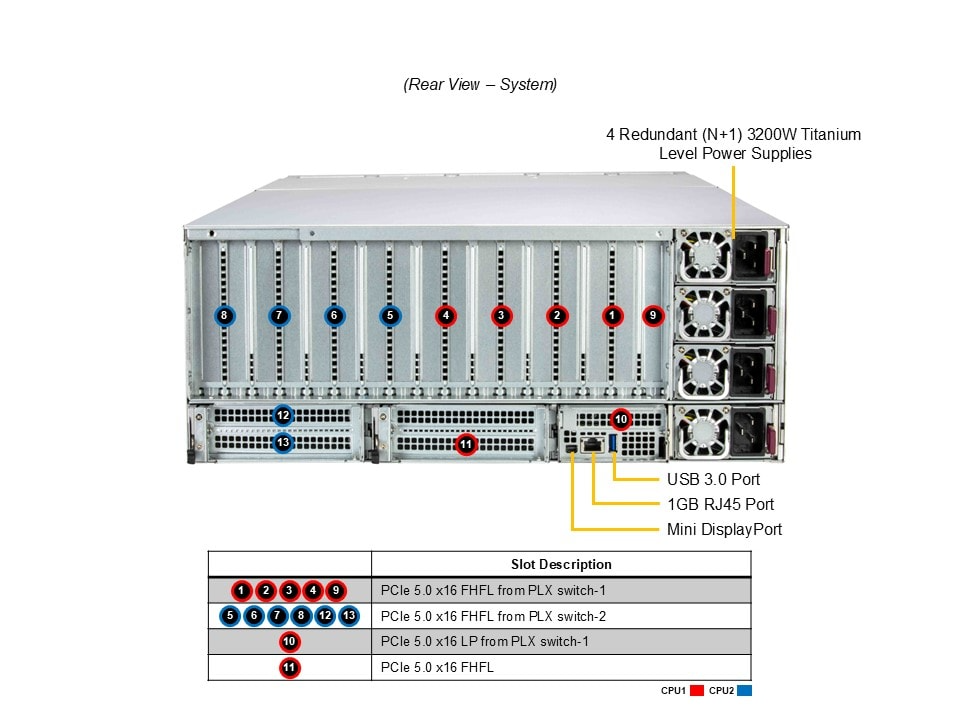

| | Available Color | | | Front Panel | | Buttons | | | Expansion Slots | | PCI-Express (PCIe) Configuration | - Default
- 8 PCIe 5.0 x16 FH double-width slots
- 4 PCIe 5.0 x16 HHHL slots
- Option A
- View AOC Options

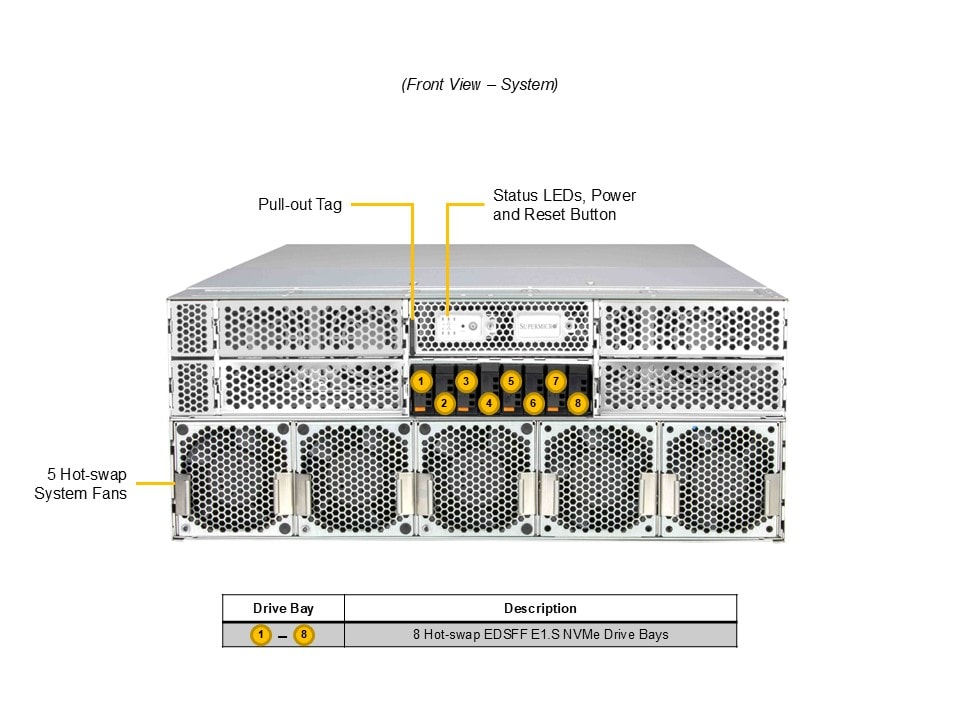

| | Drive Bays / Storage | | Drive Bays Configuration | - Default: Total 8 bays

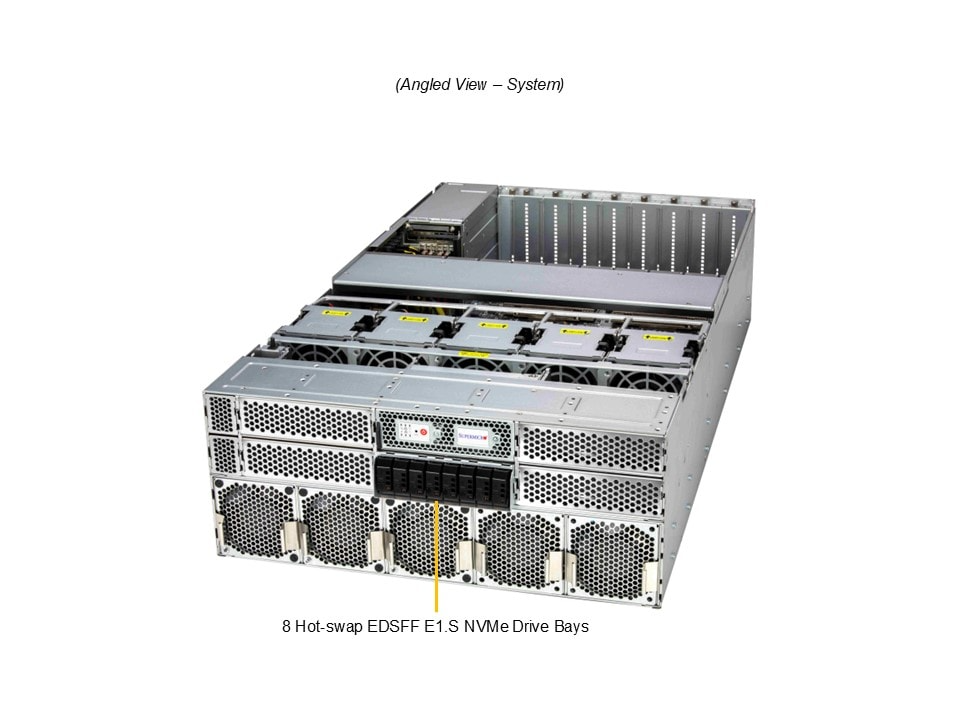

- 8 front hot-swap E1.S NVMe drive bays
- View NVMe Options
| | M.2 | - 2 M.2 PCIe 4.0 x4 NVMe slots (M-key 2280(default))
- View M.2 Options
| | System Cooling | | Fans | | | Power Supply | | | 4x 3200W Redundant (3 + 1) Titanium Level (96%) power supplies | | Dimension (WxHxL) | 73.5 x 40 x 185 mm | | Input | 1000W: 100-127Vac / 50-60Hz 2900W: 200-207Vac / 50-60Hz 3000W: 207-220Vac / 50-60Hz 3200W: 220-240Vac / 50-60Hz 3200W: 0240Vdc / 50-60Hz (for CQC only) | | +12V | Max: 82A / Min: 0A (100Vac-127Vac) Max: 237.7A / Min: 0A (200Vac-207Vac) Max: 245.9A / Min: 0A (207Vac-220Vac) Max: 262.3A / Min: 0A (220Vac-240Vac) | | 12V SB | Max: 3A / Min: 0A | | Output Type | Backplanes (gold finger) | | Operating Environment | | Environmental Spec. | - Operating Temperature: 10°C to 35°C (50°F to 95°F)
- Non-operating Temperature: -40°C to 60°C (-40°F to 140°F)
- Operating Relative Humidity: 8% to 90% (non-condensing)
- Non-operating Relative Humidity: 5% to 95% (non-condensing)
|
|
For detailed specifications, options, and compatibility, please refer to the latest official Supermicro documentation and the actual quotes/specifications from Autech.
- Dual Socket Intel® Xeon® 6 6900 series processors with P-cores up to 500W
- Support for up to 8x 600W GPU's
- Supports 24x ECC DDR5 DIMMs at 6400 MT/s
-
8x PCIe 5.0 x16 for GPU
4x PCIe 5.0 x16 for NIC
Additional 1x PCIe 5.0 x16 for NIC/DPU (Via CPU)
- Up to 8 front hot-swap E1.S NVMe drive bays
-
High Performance Computing
-
Industrial Automation
-
Conversational AI
-
Drug Discovery
-
Finance & Economics
-
AI/Deep Learning Training
-
Healthcare
-
Business Intelligence & Analytics
-
Climate and Weather Modeling
