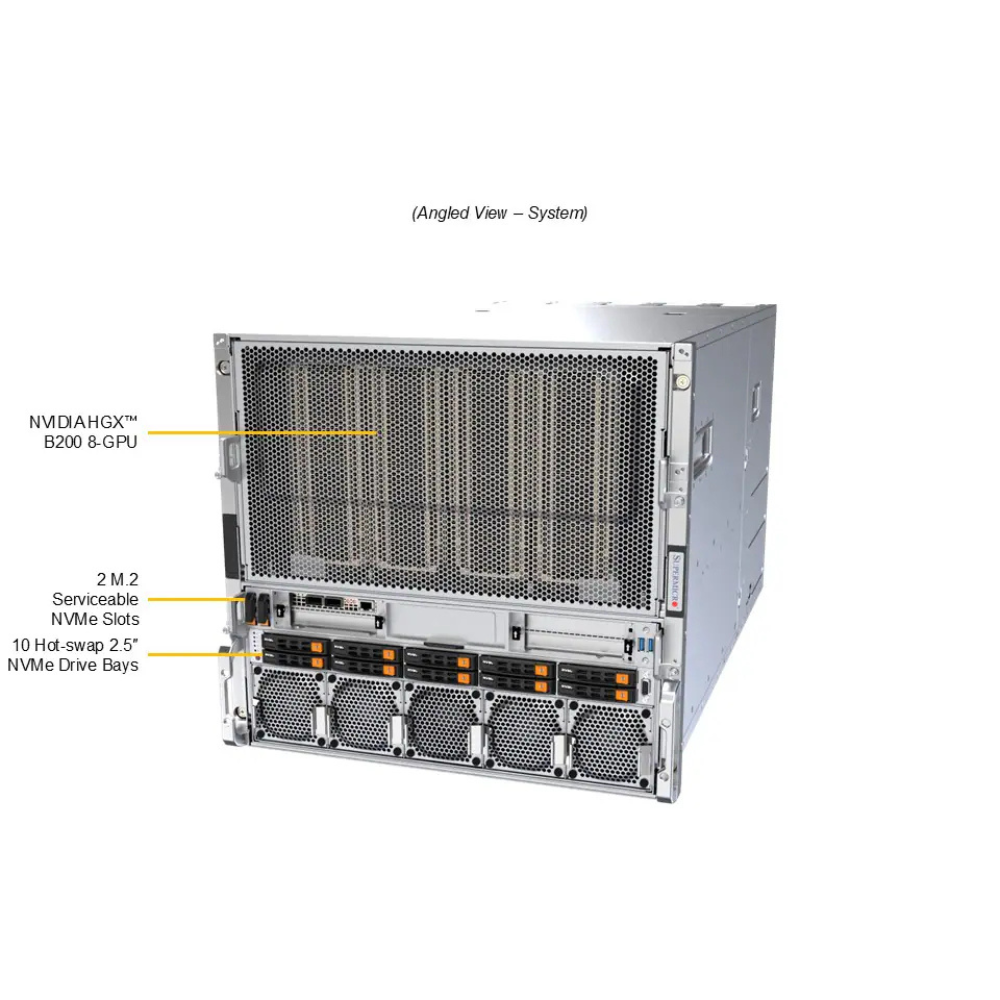

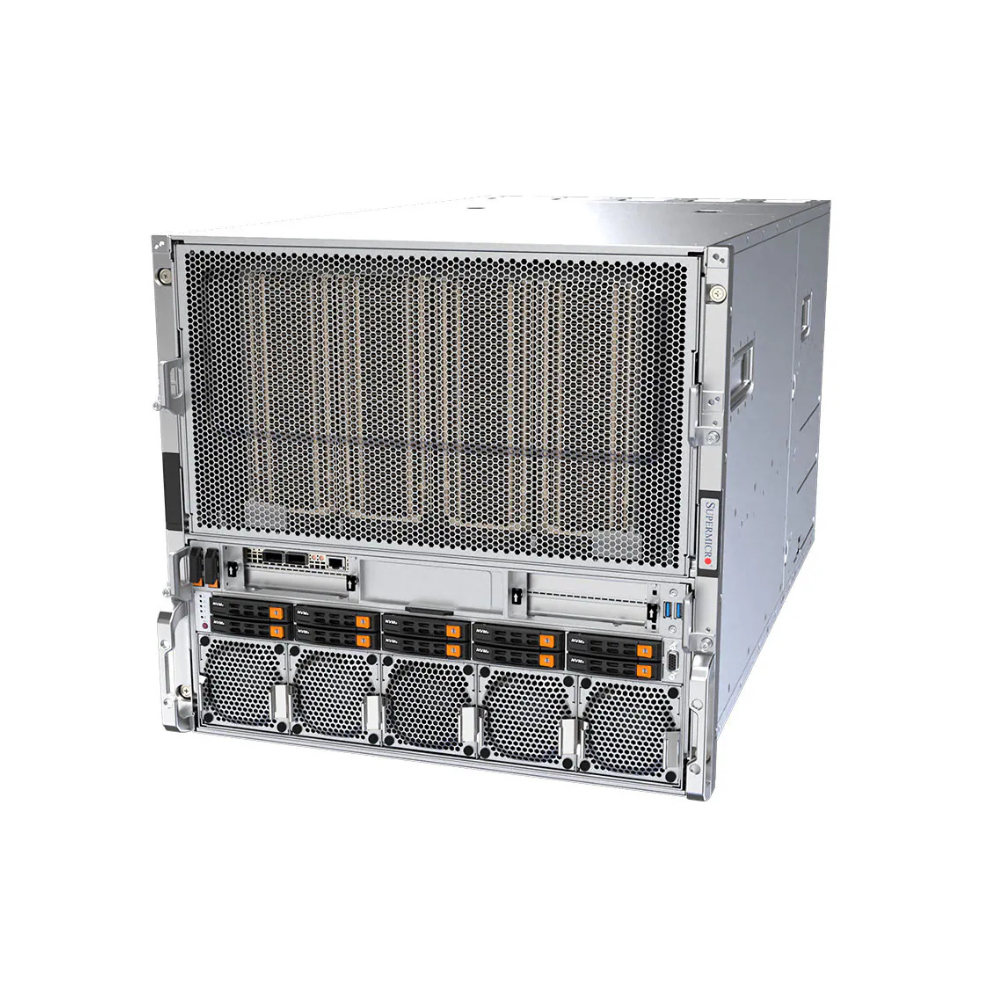

SYS-A22GA-NBRT

DP Intel 10U System with NVIDIA HGX B200 8-GPU

Model : SYS-A22GA-NBRT

Q'ty :

Product SKUs
SYS-A22GA-NBRT

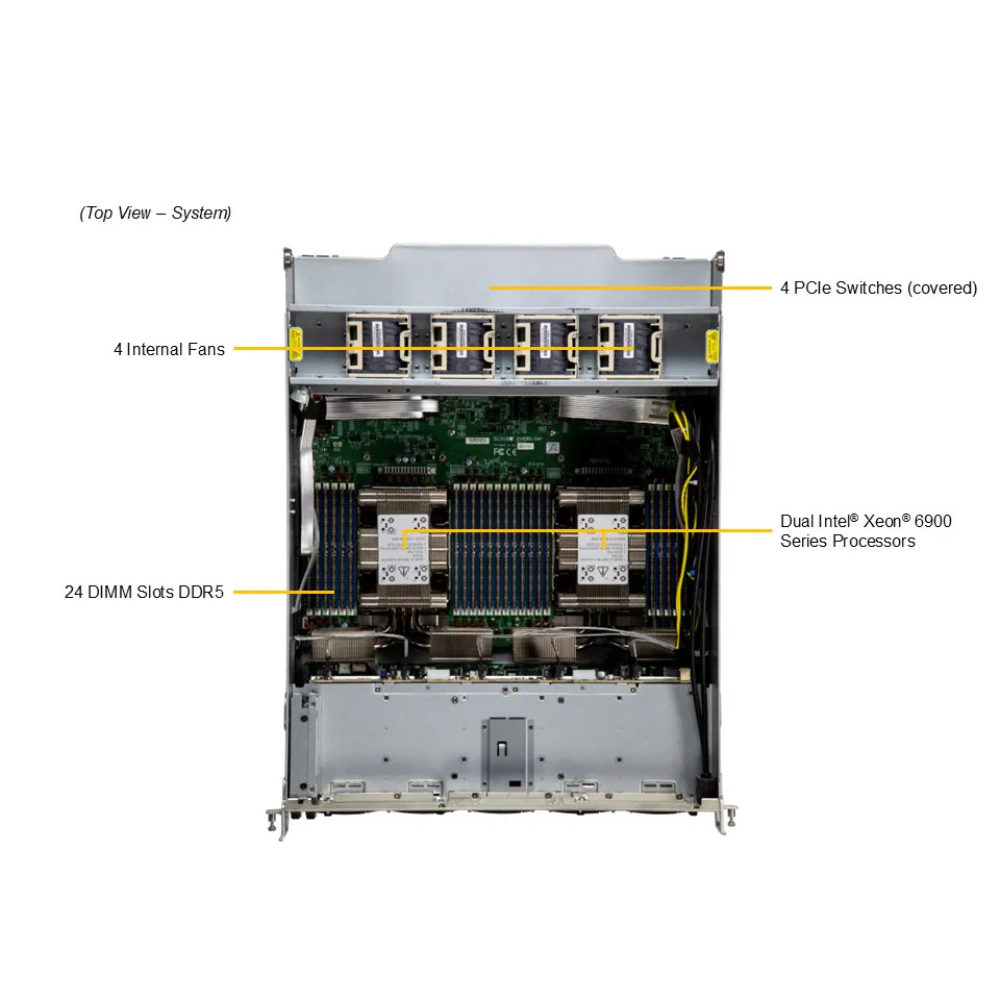

Motherboard
Super X14DBG-DAP
Processor
CPU	Dual Socket BR (LGA-7529) Intel® Xeon® 6900 series processors with P-cores
Core Count	Up to 128C/256T; Up to 504MB Cache per CPU
Note	Supports up to 500W TDP CPUs (Air Cooled)
GPU
Max GPU Count	8 onboard GPUs
Supported GPU	NVIDIA SXM: HGX B200 8-GPU (180GB) View GPU Options
CPU-GPU Interconnect	PCIe 5.0 x16 CPU-to-GPU Interconnect
GPU-GPU Interconnect	NVIDIA® NVLink™ with NVSwitch™
Certification
System Memory
Memory	Slot Count: 24 DIMM slots Max Memory (1DPC): Up to 6TB 6400MT/s ECC DDR5 RDIMM Max Memory (1DPC): Up to 6TB 8800MT/s ECC DDR5 MRDIMM View Memory Options
Memory Voltage	1.1V
On-Board Devices
Network Connectivity	2 RJ45 10GbE with Intel® X710 View AOC Options
Input / Output
LAN	1 RJ45 1 GbE Dedicated BMC LAN port
USB	2 USB 3.0 ports(rear)
Video	1 VGA port
TPM	1 TPM header
System BIOS
BIOS Type	AMI 64MB UEFI
Management
Software	SuperCloud Composer® Supermicro Server Manager (SSM) Super Diagnostics Offline (SDO) Supermicro Thin-Agent Service (TAS) SuperServer Automation Assistant (SAA) New!
Power configurations	Power-on mode for AC power recovery ACPI Power Management
Security
Hardware	Trusted Platform Module (TPM) 2.0 Silicon Root of Trust (RoT) – NIST 800-193 Compliant
Features	Cryptographically Signed Firmware Secure Boot Secure Firmware Updates Automatic Firmware Recovery Supply Chain Security: Remote Attestation Runtime BMC Protections System Lockdown
PC Health Monitoring
CPU	Monitors for CPU Cores, Chipset Voltages, Memory
FAN	Fans with tachometer monitoring Pulse Width Modulated (PWM) fan connectors Status monitor for speed control
Temperature	Monitoring for CPU and chassis environment Thermal Control for fan connectors

Chassis
Form Factor	10U Rackmount
Model	CSE-GP1001TS-R000NPF
Dimensions and Weight
Height	17.2" (438.8 mm)
Width	17.6" (449 mm)
Depth	33.2" (843.28 mm)
Package	27.95" (H) x 28.74" (W) x 50.39" (D)
Weight	Gross Weight: 341 lbs (155 kg) Net Weight: 293 lbs (133 kg)
Available Color	Silver

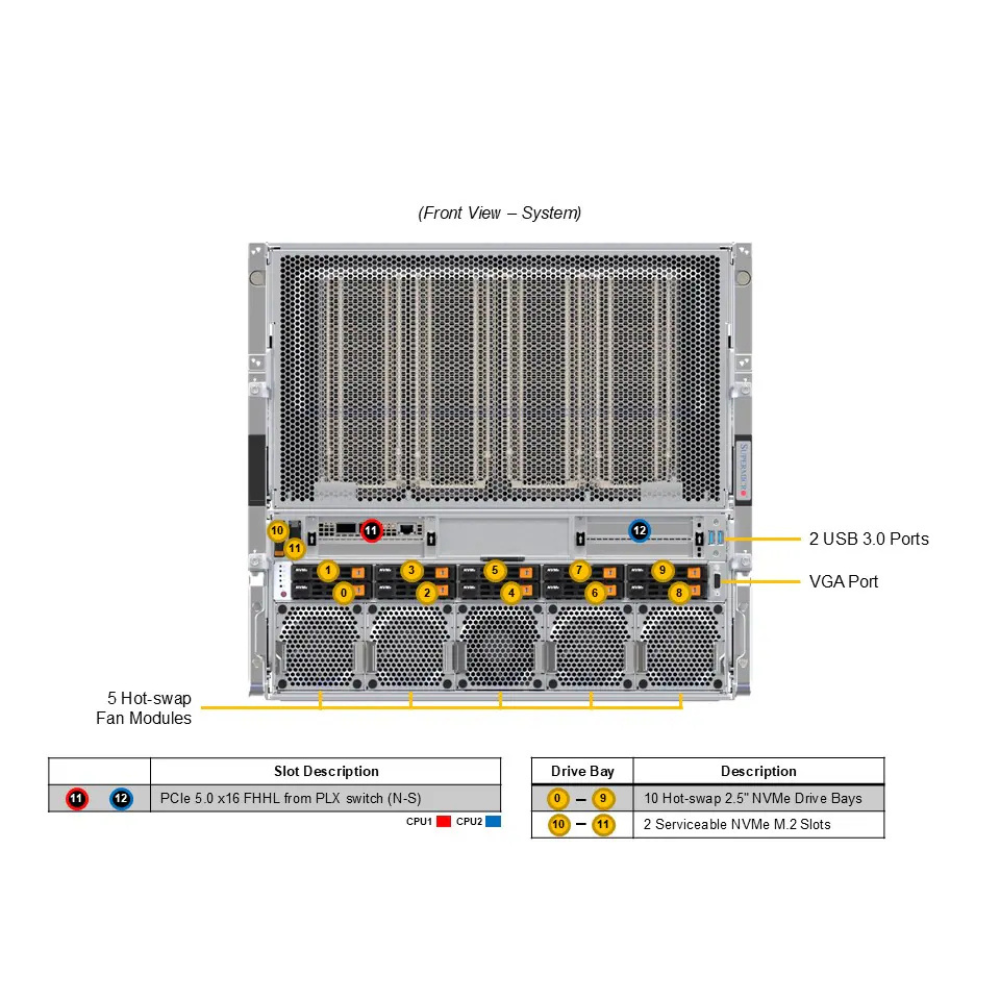

Front Panel
Buttons	Power On/Off UID/ Reset button
LED	HDD activity Network activity LEDs System information (overheat/UID) UID
Expansion Slots
PCI-Express (PCIe) Configuration	Default 10 PCIe 5.0 x16 LP slots 2 PCIe 5.0 x16 FHHL slots View AOC Options
Drive Bays / Storage
Drive Bays Configuration	Default: Total 10 bays 10 front hot-swap 2.5" PCIe 5.0 x4 NVMe drive bays View NVMe Options
M.2	2 M.2 PCIe 4.0 x4 NVMe slots (M-key 2280/22110; RAID support via S3808N controller) View M.2 Options
System Cooling
Fans	Up to 15 counter-rotating 80x80x80mm Fan(s) Up to 4 counter-rotating 60x60x56mm Fan(s)
Air Shroud	1 Air Shroud

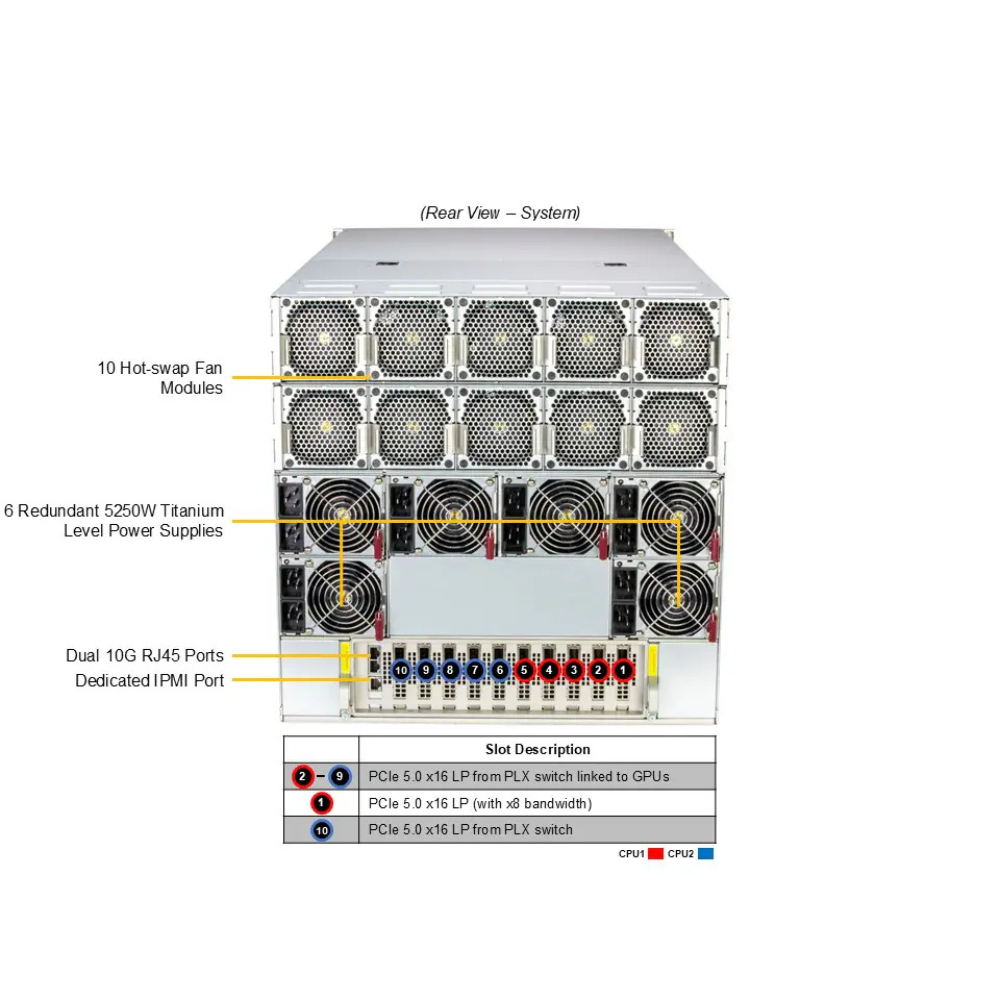

Power Supply
	6x 5250W Redundant (3 + 3) Titanium Level (96%) power supplies
Dimension (WxHxL)	106.5 x 82.1 x 245.3 mm
Input	5250W: 200-240Vac / 50-60Hz
+12V	Max: 125A / Min: 0A (200Vac-240Vac)
12V SB	Max: 4A / Min: 0A
Output Type	Backplanes (gold finger)
Certification	Titanium Level [ Test Report ]
Operating Environment
Environmental Spec.	Operating Temperature: 10°C to 35°C (50°F to 95°F) Non-operating Temperature: -40°C to 70°C (-40°F to 158°F) Operating Relative Humidity: 8% to 90% (non-condensing) Non-operating Relative Humidity: 5% to 95% (non-condensing)

For detailed specifications, options, and compatibility, please refer to the latest official Supermicro documentation and the actual quotes/specifications from Autech.
