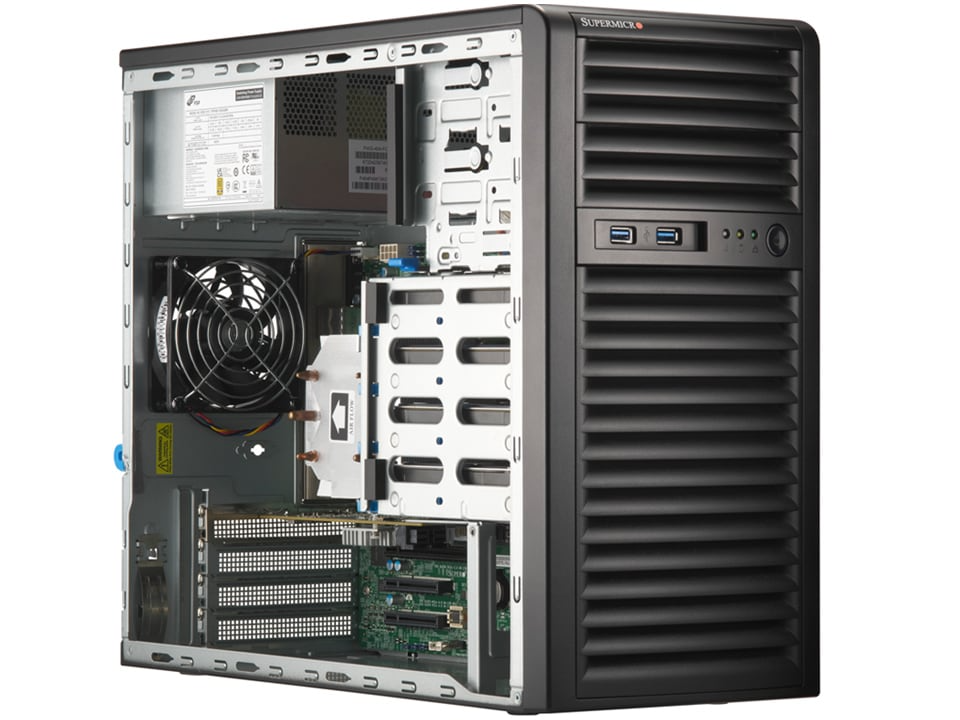

SYS-531R-I

UP mid tower with 4 internal 3.5" SATA drive bays and PCIe 5.0
Model : SYS-531R-I
Product SKUs
SuperWorkstation SYS-531R-I
Motherboard
Super X13SCL-F
Processor
CPU
  • Single Socket V0 (LGA-1700)
  • Intel® Xeon ® 6300-series/E-2400 Series Processors
Core Count
  • Up to 8C/16T
Note
  • Supports up to 95W TDP CPUs (Air Cooled)
GPU
Max GPU Count
  • Up to 1 double-width or 1 single-width GPU
System Memory
Memory

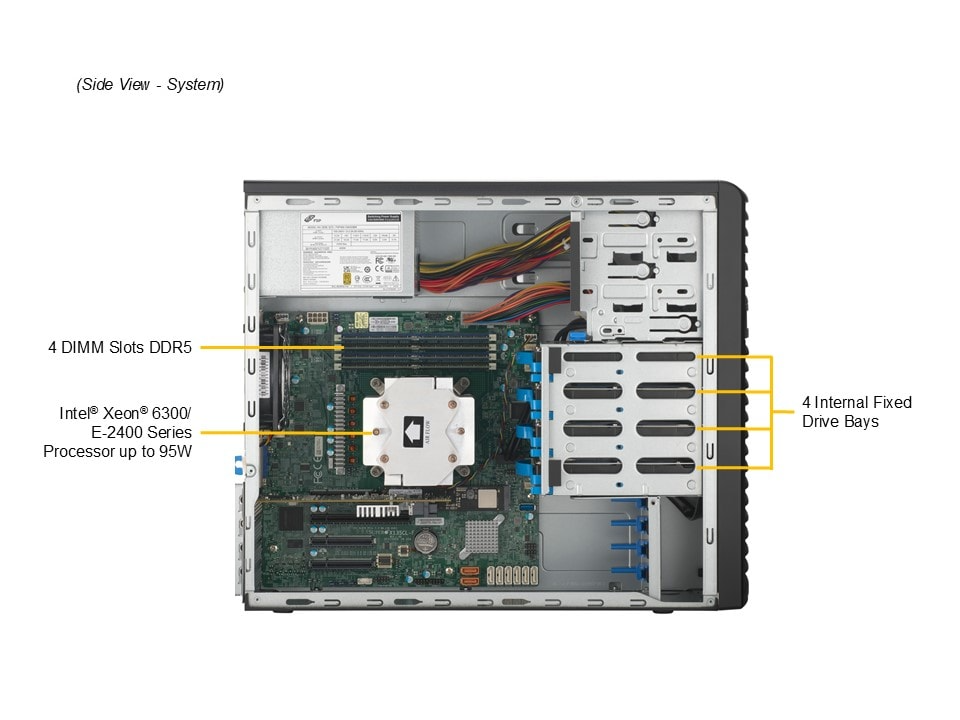

  • Slot Count: 4 DIMM slots
  • Max Memory (2DPC): Up to 128GB 4400MT/s ECC DDR5 UDIMM
  • View Memory Options
Memory Voltage
  • 1.1V
On-Board Devices
SATA
  • SATA (6Gbps)
Chipset
  • System on Chip
Network Connectivity
  • 1 RJ45 1GbE with Realtek RTL8211F PHY (dedicated IPMI)
  • 2 RJ45 1GbE with Intel® I210
  • View AOC Options
Input / Output

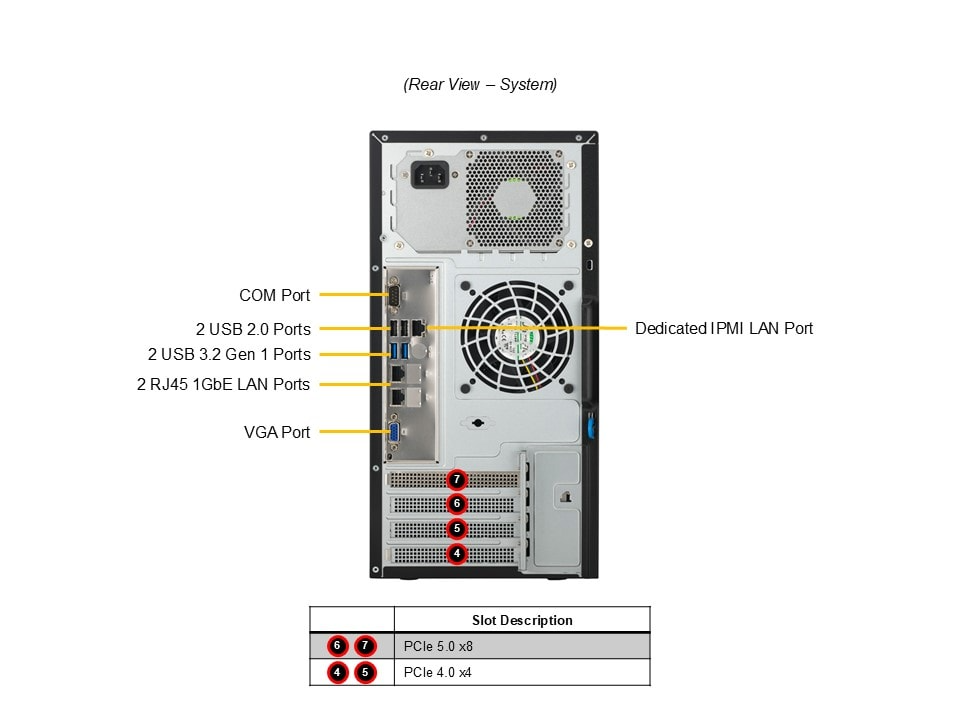

USB
  • 2 USB 3.2 Gen1 Type-A ports(rear)
  • 2 USB 2.0 Type-A ports(rear)
  • 2 USB 3.2 Gen1 Type-A ports(front)
Video
  • 1 VGA port
System BIOS
BIOS Type
  • AMI 256MB SPI Flash
Management
Software
Power configurations
  • ACPI 6.0 Power Management
Security
Hardware
  • Trusted Platform Module (TPM) 2.0
  • Silicon Root of Trust (RoT) – NIST 800-193 Compliant
Features
  • Supply Chain Security: Remote Attestation
  • Runtime BMC Protections
PC Health Monitoring
Voltage
  • +1.0V PCH, +1.8V PCH, +12V, +3.3V, +5V, +5V standby, 1.05 (PCH), 3.3V standby, 5 (4-pin), CPU, CPU temperature, CPU thermal trip support, PCH temperature, System temperature, VBAT, VRM temperature
Chassis
Form Factor
  • mini-tower
Model
Dimensions and Weight

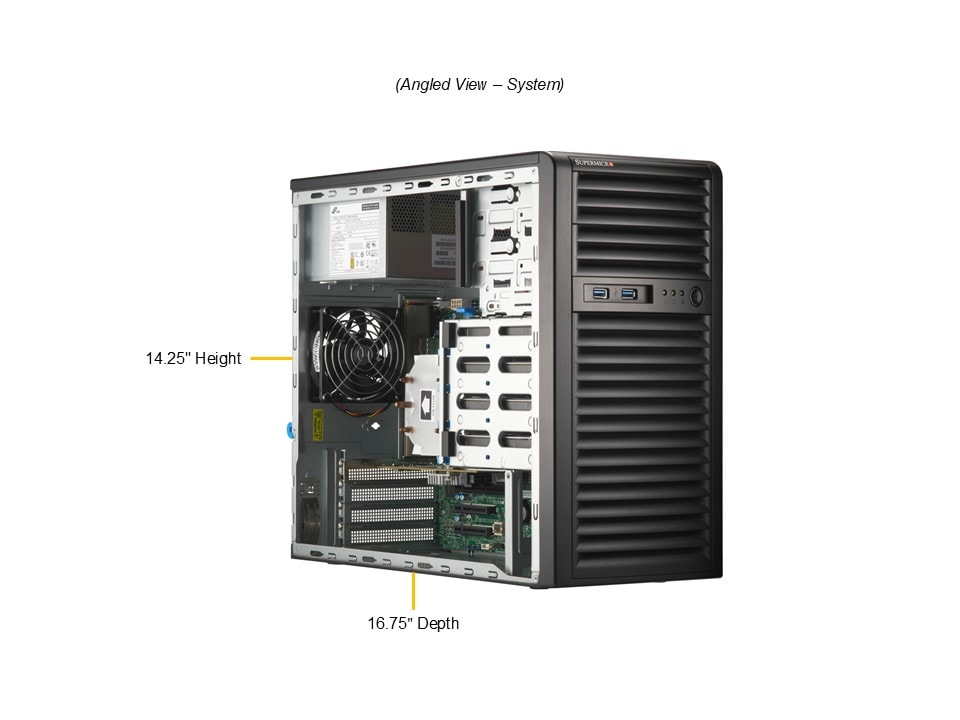

Height
  • 14.25" (362 mm)
Width
  • 7.25" (184 mm)
Depth
  • 16.75" (425 mm)
Package
  • 20" (H) x 11" (W) x 21" (D)
Weight
  • Gross Weight: 20 lbs (9.07 kg)
  • Net Weight: 16 lbs (7.26 kg)
Available Color
  • Black

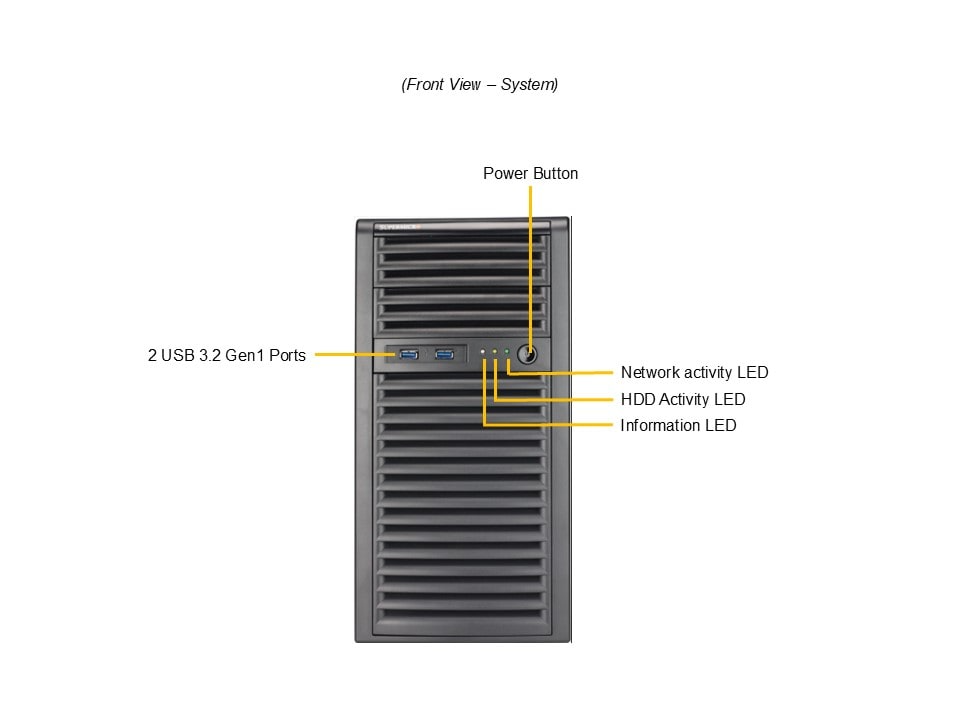

Front Panel
LED
  • HDD activity LED
  • Network activity LEDs
  • Power LED
  • System Overheat LED
Buttons
  • Power On/Off button
Port
  • USB 3.0 Port(s)
Expansion Slots
PCI-Express (PCIe) Configuration
  • Default
    • 2 PCIe 5.0 x8 FHFL slots
    • 1 PCIe 4.0 x4 FHFL slot
    • 1 PCIe 4.0 x4 FHHL slot
  • View AOC Options
Drive Bays / Storage
Drive Bays Configuration
  • Default: Total 4 bays
    • 4 internal fixed 3.5" SATA drive bays
M.2
Peripheral Bays
  • 2 5.25" bays
System Cooling
Fans
  • Up to 1x 90mm Fan(s)
Power Supply
1x 400W Gold Level (90%) power supply
Dimension (WxHxL) 150 x 86 x 140 mm
Input 100-240Vac
400W: 100-240Vac / 50-60Hz
+12V Max: 12.62A / Min: 0.05A (100Vac-240Vac)
Max: 12.62A / Min: 0A (100Vac-240Vac)
5V SB Max: 2.23A / Min: 0A
Output Type 24pin ATX
Certification   Gold Level
Operating Environment
Environmental Spec.
  • Operating Temperature: 10°C to 35°C (50°F to 95°F)
  • Non-operating Temperature: -40°C to 60°C (-40°F to 140°F)
  • Operating Relative Humidity: 8% to 90% (non-condensing)
  • Non-operating Relative Humidity: 5% to 95% (non-condensing)
  • Supports Intel® Intel® Xeon® 6300-series/E-2400 Series Processor
  • PCIe 5.0 Support
  • Dual LAN ports, GbE and dedicated IPMI LAN port
  • 9cm PWM quiet exhaust fan and optional front intake fan
  • 400W 80PLUS Gold Power Supply

Related Products

SYS-530A-IL

SYS-530A-IL

SYS-C542i-11682U

SYS-C542i-11682U

AS-2115HV-TNRT

AS-2115HV-TNRT

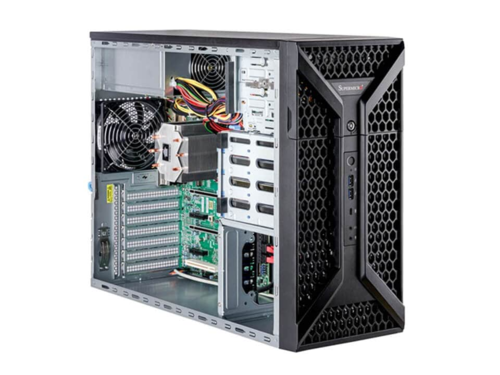

SYS-531A-IL

SYS-531A-IL

SYS-530T-I

SYS-530T-I

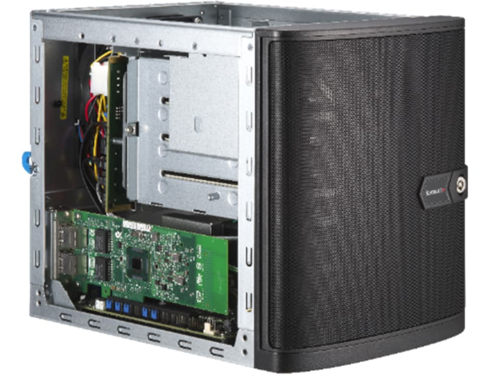

SYS-521R-T
