| Product SKUs | | ARS-121GL-NB2B-LCC | | Motherboard | | Super GPU-NVGB200-NVL4 | | Processor | | CPU | - Dual processor(s)
- NVIDIA Dual 72-core CPUs on a Grace™ CPU Superchip
| | Note | - Supports up to 300W TDP CPUs (Liquid Cooled)
| | GPU | | Max GPU Count | | | Supported GPU | - NVIDIA: B200 GPU on GB200 Grace Blackwell Superchip
| | CPU-GPU Interconnect | | | GPU-GPU Interconnect | - Fifth-Generation NVIDIA NVLink™
| | System Memory | | Memory | - Onboard Memory
- Up to 960GB ECC LPDDR5X
| | On-Board Devices | | Network Connectivity | - 1 RJ45 2.5GbE with Intel® I210-AT (optional)
- 4 OSFP 800Gb InfiniBand with NVIDIA ConnectX®-8 SuperNIC (optional)
- 2 QSFP-DD 200Gb InfiniBand with NVIDIA® BlueField®-3 (optional)
| | Input / Output | | LAN | - 1 RJ45 1 GbE Dedicated BMC LAN port (ASPEED AST2600)
| | USB | | | Video | | | TPM | - 1 TPM Onboard TPM & TPM Header
| | System BIOS | | BIOS Type | - AMI 64MB SPI Flash EEPROM
| | Management | | Software | - SuperCloud Composer®
- SuperServer Automation Assistant (SAA) New!
| | Power configurations | - Power-on mode for AC power recovery
- ACPI Power Management
| | Security | | Hardware | - Trusted Platform Module (TPM) 2.0
| | Features | | | PC Health Monitoring | | CPU | - Monitors for CPU Cores, Chipset Voltages, Memory
| | FAN | - Fans with tachometer monitoring
- Pulse Width Modulated (PWM) fan connectors
- Status monitor for speed control
| | Temperature | - Monitoring for CPU and chassis environment
- Thermal Control for fan connectors
|
| | | Chassis | | Form Factor | | | Model | | | Dimensions and Weight | | Height | | | Width | | | Depth | | | Package | - 9.05" (H) x 24.8" (W) x 45.27" (D)
| | Weight | - Gross Weight: 79.36 lbs (36 kg)
- Net Weight: 70.5 lbs (32 kg)
| | Available Color | | | Expansion Slots | | PCI-Express (PCIe) Configuration | - Default
- 2 PCIe 5.0 x16 (in x16) FHFL slots
- Option A
- 4 PCIe 5.0 x16 (in x16) FHFL slots
| | Drive Bays / Storage | | Drive Bays Configuration | - Default: Total 8 bays
- 8 front hot-swap E1.S PCIe 5.0 x4 NVMe drive bays
- Option A: Total 4 bays
- 4 front hot-swap E1.S PCIe 5.0 x4 NVMe drive bays
| | M.2 | - 1 M.2 PCIe 5.0 x4 NVMe slot (M-key 22110(default))
| | System Cooling | | Fans | - 8x 4cm heavy duty fans with optimal fan speed control
| | Liquid Cooling | - Direct to Chip (D2C) Cold Plate
| | Power Supply | | | Power via Busbar (48-54V DC) | | Operating Environment | | ROHS | | | Environmental Spec. | - Name: A2
- Operating Temperature: 10°C to 35°C (50°F to 95°F)
- Non-operating Temperature: -30°C to 60°C (-40°F to 140°F)
- Operating Relative Humidity: 8% to 80% (max 21° DP; non-condensing)
- Non-operating Relative Humidity: 8% to 90% (max 38° DP; non-condensing)
|
|
For detailed specifications, options, and compatibility, please refer to the latest official Supermicro documentation and the actual quotes/specifications from Autech.
-

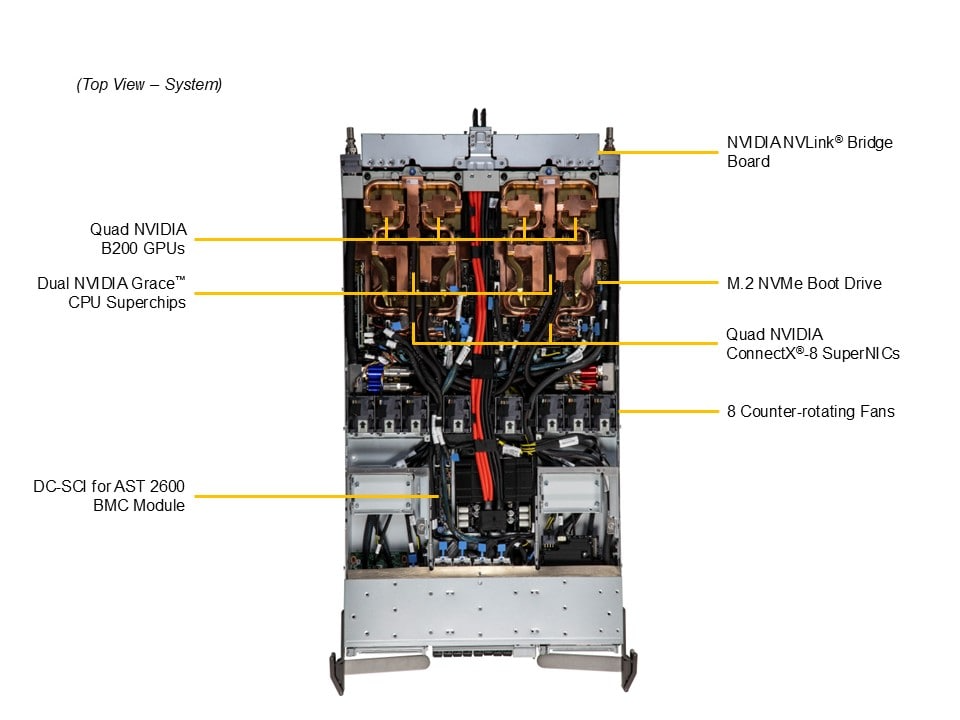

NVIDIA GB200 with 4 NVIDIA NVLink® (GB200 NVL4)
-
Dual Nvidia 72-core Grace CPUs with liquid cooling
-
Quad NVIDIA B200 GPUs with liquid cooling
-
960GB Onboard Memory
-

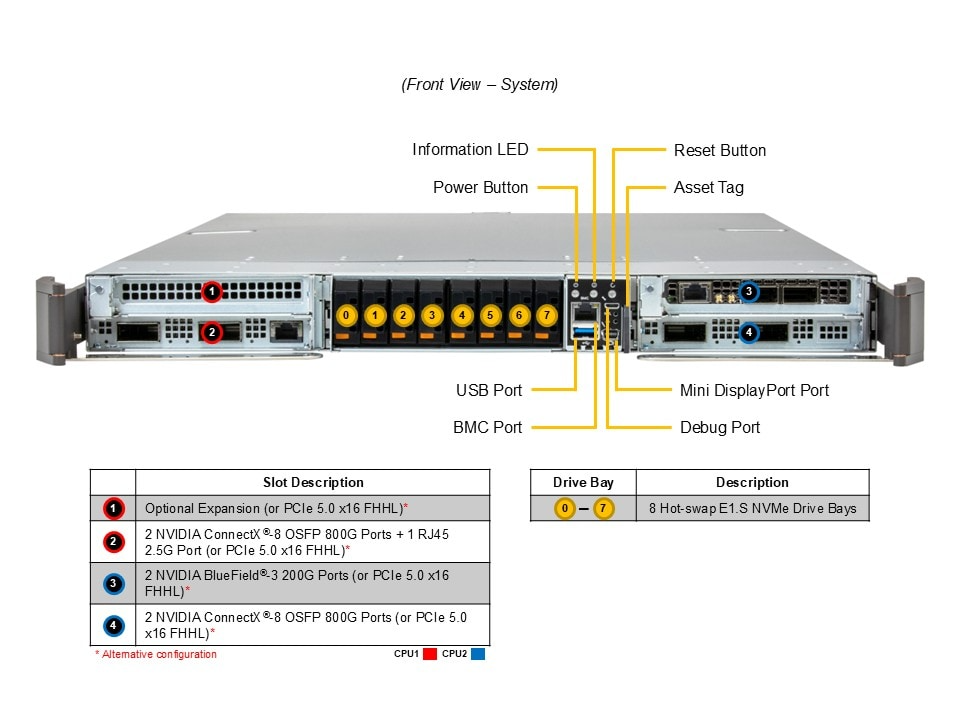

Quad 800G ConnectX®-8 + 2 PCIe 5.0 x16 slots OR 4 PCIe 5.0 x16 slots
-

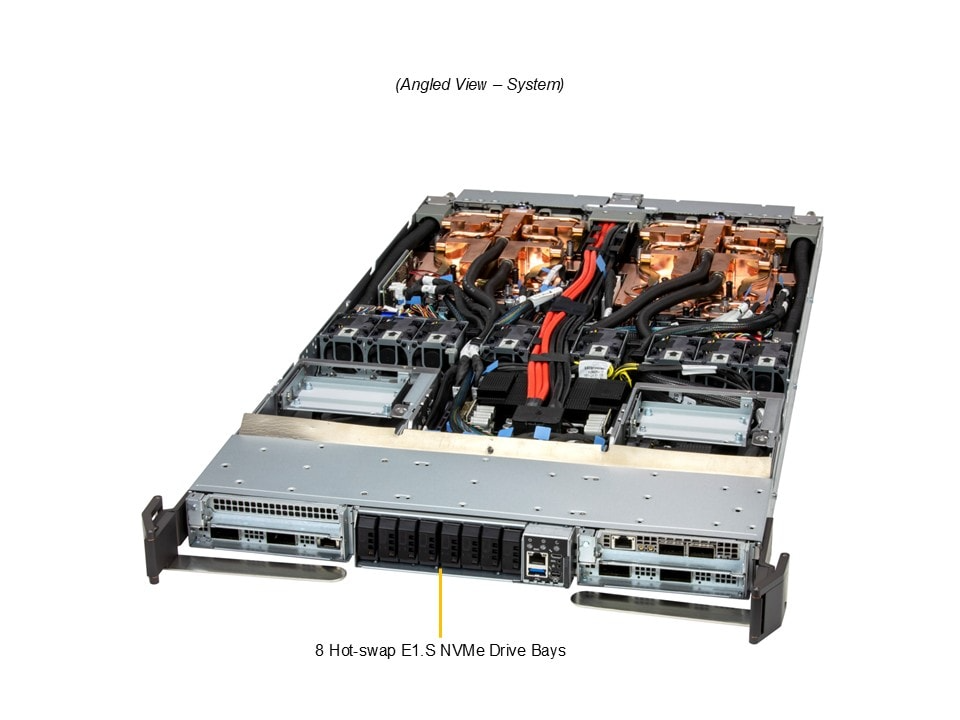

4 to 8 front hot-swap E1.S NVMe drive bays
-

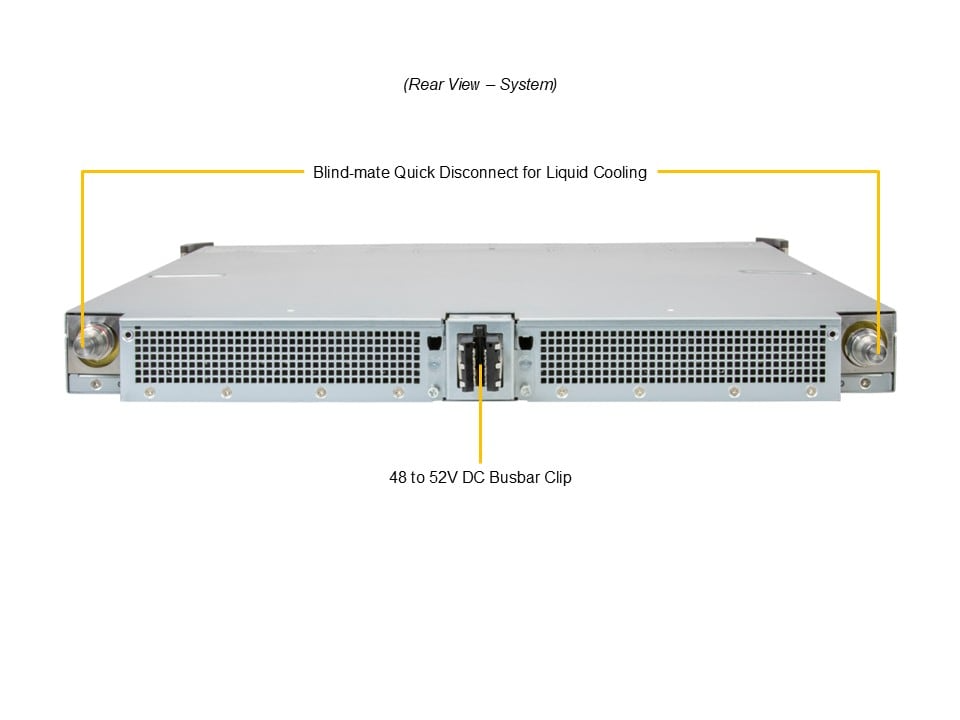

48-52V DC Busbar
- High Performance Computing
- AI/Deep Learning Training and Inference
- Large Language Model (LLM) and Generative AI
