| Product SKUs | | AS -1125HS-TNR | | Motherboard | | Super H13DSH | | Processor | | CPU | - Dual processor(s)
- AMD EPYC™ 9004/9005 Series Processors
(* AMD EPYC™ 9005 Series drop-in support requires board revision 2.x)
| | Core Count | | | Note | - Supports up to 400W TDP CPUs *
- *Air Cooled CPUs with TDP over 290W only supported under specific conditions. Contact a Supermicro representative for details.
| | System Memory | | Memory | - Slot Count: 24 DIMM slots
- Max Memory (1DPC): Up to 6TB 4800MT/s ECC DDR5 RDIMM (AMD EPYC™ 9004 Series Processor, MB R1.x/R2.0/R2.01)
- Max Memory (1DPC): Up to 6TB 6000MT/s ECC DDR5 RDIMM (AMD EPYC™ 9005 Series Processor, MB R2.0)
- Max Memory (1DPC): Up to 6TB 6400MT/s ECC DDR5 RDIMM (AMD EPYC™ 9005 Series Processor, MB R2.01)
- View Memory Options
| | Memory Voltage | | | On-Board Devices | | Network Connectivity | - Via AIOM
- View AIOM Options
- View AOC Options
| | Input / Output | | LAN | - 1 RJ45 1 GbE Dedicated BMC LAN port
| | USB | - 2 USB 3.0 ports(rear)
- 1 USB 3.0 port(front)
| | Video | | | System BIOS | | BIOS Type | - AMI 32MB SPI Flash EEPROM
| | BIOS Features | - ACPI 6.4
- Plug and Play (PnP)
- SMBIOS 3.5 or later
- UEFI 2.8
- USB Keyboard support
| | Management | | Software | - SuperCloud Composer®
- Supermicro Server Manager (SSM)
- Supermicro Update Manager (SUM)
- Supermicro SuperDoctor® 5 (SD5)
- Super Diagnostics Offline (SDO)
- Supermicro Thin-Agent Service (TAS)
- OOB Management Package (SFT-OOB-LIC )
- SuperServer Automation Assistant (SAA) New!
| | Power configurations | - ACPI Power Management
- Power-on mode control for AC power loss recovery
- Power button override mechanism,
| | Security | | Hardware | - Trusted Platform Module (TPM) 2.0
- Silicon Root of Trust (RoT) – NIST 800-193 Compliant
| | Features | - Cryptographically Signed Firmware
- Secure Boot
- Secure Firmware Updates
- Automatic Firmware Recovery
- Supply Chain Security: Remote Attestation
- Runtime BMC Protections
- System Lockdown
| | PC Health Monitoring | | FAN | - Fans with tachometer monitoring
- Pulse Width Modulated (PWM) fan connectors
- Status monitor for speed control
| | Temperature | - Monitoring for CPU and chassis environment
- Thermal Control for fan connectors
| | Voltage | - System temperature, Memory temperature, CPU temperature, 3.3V standby, +5V standby, +5V, +3.3V, +12V, CPU thermal trip support
|
| | | Chassis | | Form Factor | | | Model | | | Dimensions and Weight | | Height | | | Width | | | Depth | | | Package | - 8.1" (H) x 23.8" (W) x 40.6" (D)
| | Weight | - Gross Weight: 51 lbs (23.1 kg)
- Net Weight: 32 lbs (14.5 kg)
| | Available Color | - Black front & silver body
| | Front Panel | | Buttons | | | LED | - HDD activity
- LAN1 activity
- Power status
- System information

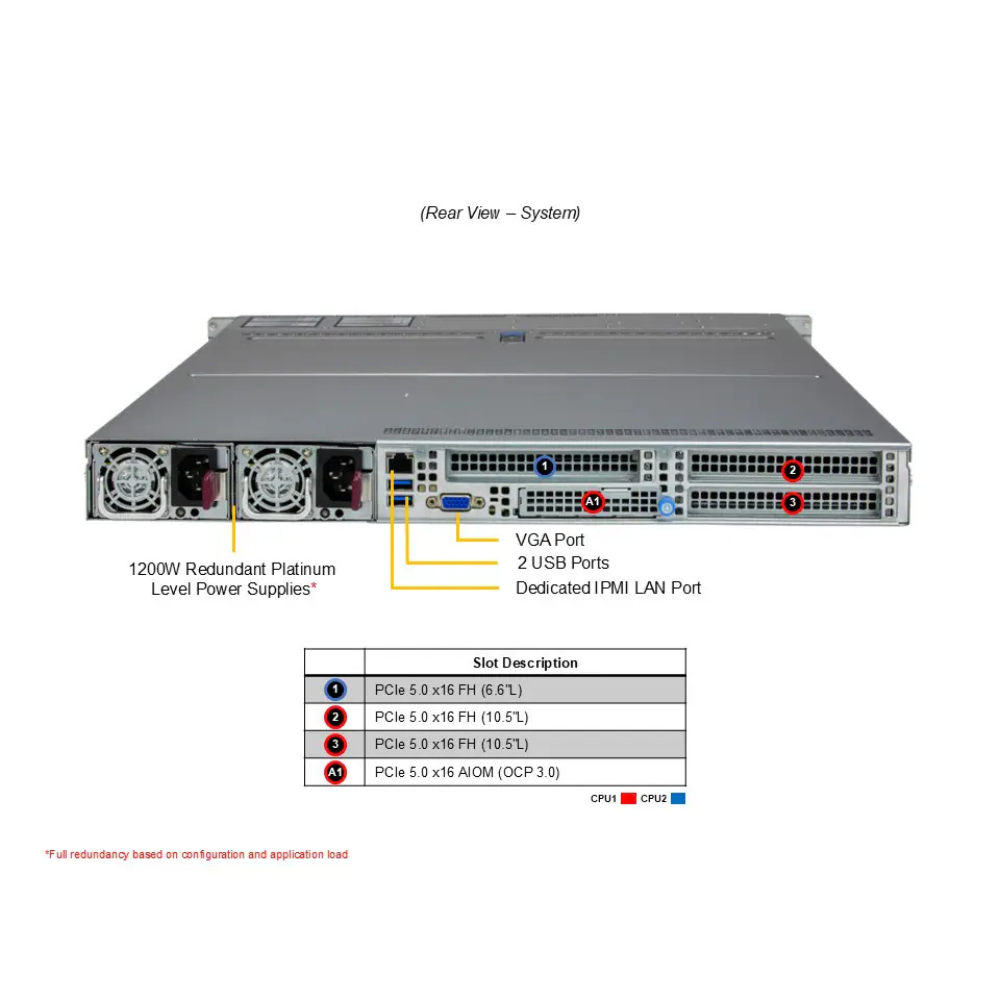

| | Expansion Slots | | PCI-Express (PCIe) Configuration | - Default
- 1 PCIe 5.0 x16 FHHL slot
- 2 PCIe 5.0 x16 FHFL slots
- 1 PCIe 5.0 x16 AIOM slot (OCP 3.0 compatible)
- View AOC Options

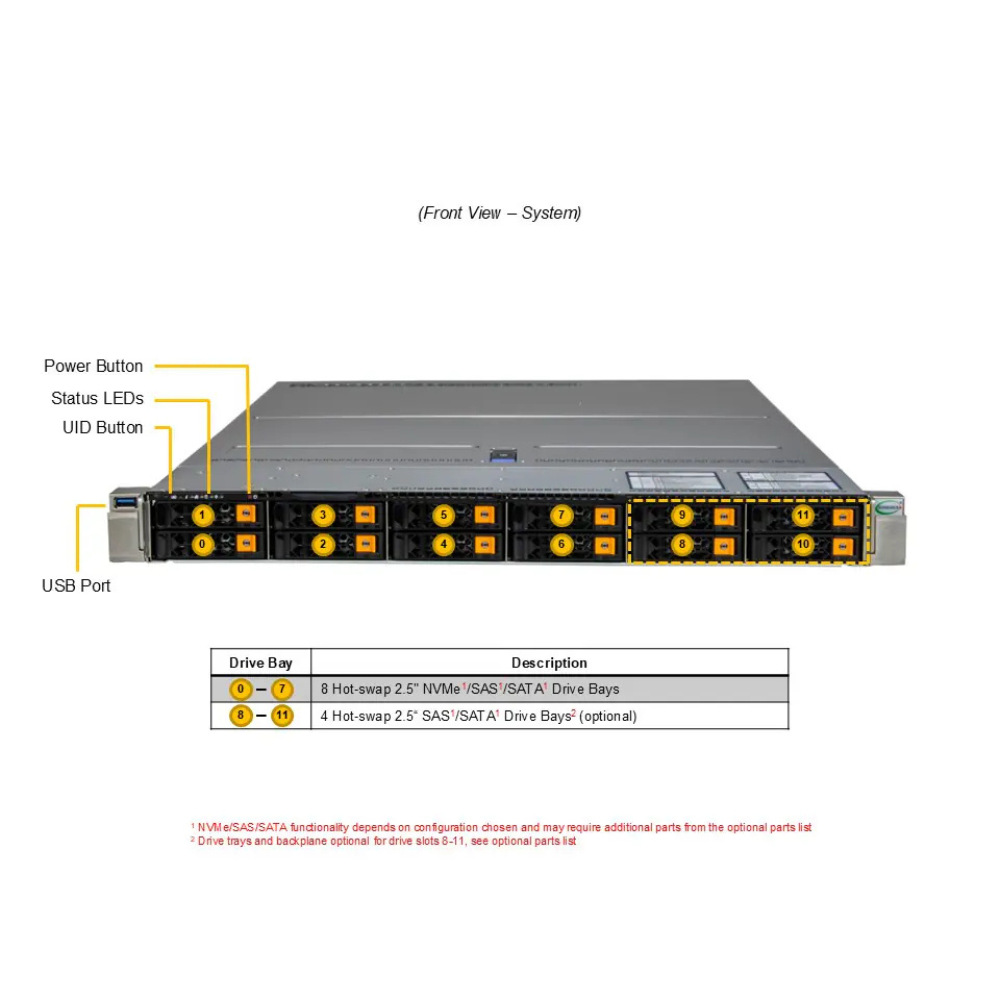

| | Drive Bays / Storage | | Drive Bays Configuration | - Default: Total 8 bays
- 8 front hot-swap 2.5" NVMe*/SAS*/SATA* drive bays
- Option A: Total 12 bays
- 12 front hot-swap 2.5" NVMe*/SAS*/SATA* drive bays
- (*NVMe/SAS/SATA support may require additional storage controller and/or cables, please see the optional parts list for details)
- View NVMe Options
- View Drive Options
| | M.2 | - 2 M.2 PCIe 3.0 x4 NVMe slots (M-key 2280/22110)
- View M.2 Options
| | System Cooling | | Fans | - Up to 8 counter-rotating 40x40x56mm Fan(s)
| | Air Shroud | | | Power Supply | | | 2x 1200W Redundant (1 + 1) Titanium Level (96%) power supplies | | Dimension (WxHxL) | 73.5 x 40 x 265 mm | | Input | 800W: 100-127Vac
800W: 100-127Vac / 50-60Hz
1200W: 200-240Vac
1200W: 200-240Vac / 50-60Hz
1200W: 230-240Vdc / 50-60Hz (for CCC only) | | +12V | Max: 66.7A / Min: 0A (100Vac-127Vac)
Max: 83A / Min: 0A (100Vac-127Vac)
Max: 100A / Min: 0A (200Vac-240Vac)
Max: 100A / Min: 0A (230Vdc-240Vdc) (for CCC only) | | 12V SB | Max: 2.1A / Min: 0A | | Output Type | Backplanes (gold finger) | | Operating Environment | | Environmental Spec. | - Operating Temperature: 10°C to 35°C (50°F to 95°F)
- Non-operating Temperature: -40°C to 70°C (-40°F to 158°F)
- Operating Relative Humidity: 8% to 90% (non-condensing)
- Non-operating Relative Humidity: 5% to 95% (non-condensing)
| | Environmental / Recycling | | Recycle | - Return Server-End of Life Product
|
|
For detailed specifications, options, and compatibility, please refer to the latest official Supermicro documentation and the actual quotes/specifications from Autech.
-

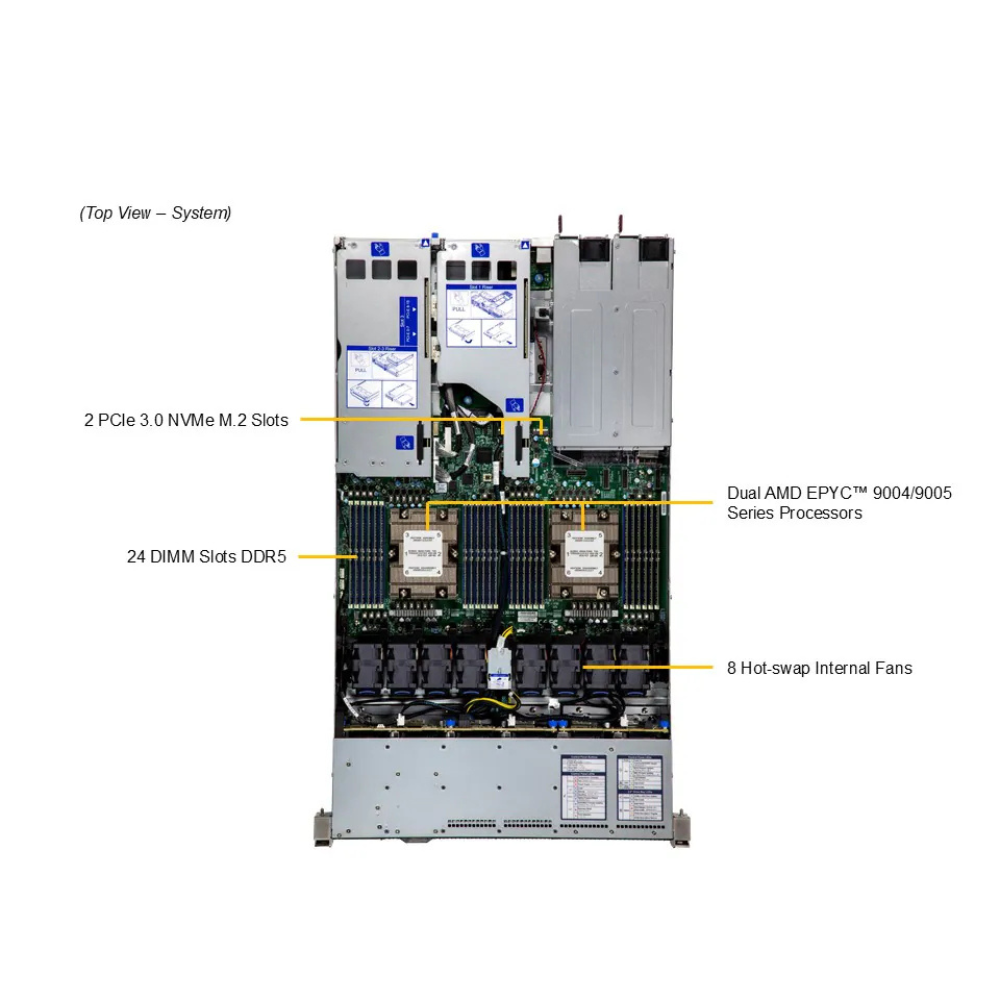

Dual AMD EPYC™ 9004/9005* Series Processors
(*AMD EPYC™ 9005 series drop-in support requires board revision 2.xx)
-
Support up to DDR5 24 DIMM slots (1DPC), speed up to 6400MT/s
(Please check System Memory Section for detail)
-
2 PCIe 5.0 x16 FHFL slots
1 PCIe 5.0 x16 FHHL slot
Flexible networking options with 1 AIOM networking slot (OCP NIC 3.0 compatible)
-
8 Hot-swap 2.5" NVMe/SATA/SAS drive bays
Optional 4 Hot-swap 2.5" NVMe/SAS/SATA drive support via additional parts
2 M.2 PCIe 3.0 NVMe slots
-
Dual 1200W Redundant Titanium Level power supplies
(Power supply full redundancy based on configuration and application load)
- Virtualization
- AI Inference and Machine Learning
- Enterprise Server
- Software-defined Storage
- Cloud Computing
