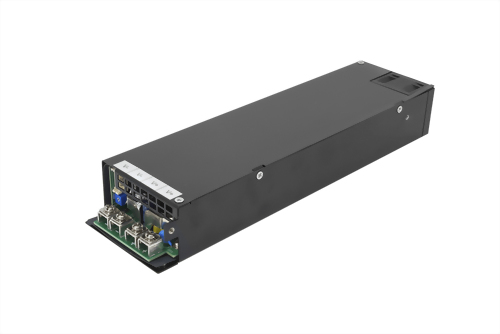

LCM1000 Enclosed Power Supply 1000W
Bulk Front End 1000 Watts
LCM1000 provides a low cost solution to Industrial and Medical single output high power requirements. Full featured, the 2.4" x 5" x 10" enclosed form factor utilizes smart fans for self contained thermal management at very low acoustic noise levels.
LCM1000 provides a low cost solution to Industrial and Medical single output high power requirements. Full featured, the 2.4" x 5" x 10" enclosed form factor utilizes smart fans for self contained thermal management at very low acoustic noise levels.
Model :
lcm1000 series
Digital Signal Processor control allows for a high level of modification flexibility. Voltage output for the series ranges from 10.8V - 52.8V at a continuous output power of 1000W. The LCM1000 also provides an optional 5V standby, conformal coating, and constant current operation.
|
Total Max Power: 1000W |
Output Voltage: 10.8 V to 52.8 V |
Warranty: 3 years |
|
Total Max Current: 83.3A |
Outputs: Single |
Operating Temperature: -40°C to +70°C |
|
Input Voltage: 90 V to 264 V |
Size (L x W x H): 10.000" x 5.000" x 2.400" |
|
|
