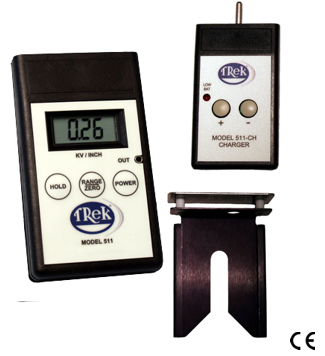

The Model 511 is a high-quality, portable, chopper-stabilized, non-contacting electrostatic field meter designed for measuring and auditing electrostatic fields in ESD sensitive areas so that operators can find them before they become a problem. Features of the Model 511, such as its LED indicator with a switch selectable measurement range of either ±2 kV or ±20 kV, add to instrument flexibility and benefit the operator through its ease of use. Operators also benefit from the ability to obtain or audit reliable and accurate ESD measurements in either ionized or non-ionized environments.

Dimensions: 23.9 mm H x 69.9 mm W x 125.5 mm L (0.94” H x 2.75” W x 4.94” L)

Weight: 140 g (4.9 oz.) with battery

Voltage Monitor: 2.5 mm jack (3/32”) monophone

Connection

    Tip: Signal

    Sleeve: Ground

Operating Conditions

    Temperature: 10°C to 30°C (50°F to 86°F)

    Relative Humidity: To 80%, non-condensing

    Altitude: To 2000 m (6561.68 ft.)

• Electrostatic decay auditing and monitoring
• Charge monitoring in semiconductor production
• Measuring of electrostatic fields on film, polymers, and paper
• Assessing the charge generation of materials, equipment and personnel
