• WR329P-WLAN-LTE

WR329P-WLAN-LTE

Industrial 8+1G port Cellular PoE Routing Switch,
802.11ac/n WLAN,
LTE-E, FDD B1/3/5/7/8/20,
TDD B38/40/41
Model : wr329p wlan lte

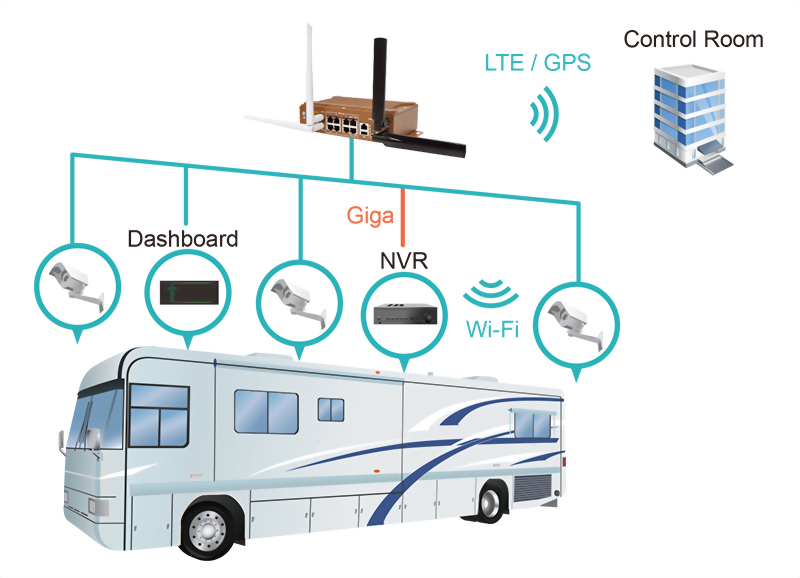

The Innovative and Intelligent LTE routing switch WR329P series is designed to combine functionalities of LTE/WiFi router and 8-Port power boost PoE+ switch for Smart Bus applications. It can also be used in roadside cabinets or other industrial applications for ultra-resilient high-speed Wi-Fi & multi-port Ethernet ports to LTE routing. The flexible modular design allows project customizations of enable/disable PoE ports, LTE/WiFi. Wide Temperature and Ruggedized design allows convenient deployment in existing infrastructure under the harsh conditions
Specifications
 Technology
Standard 3GPP Release 11 Long Term Evolution (LTE), fallback 3GPP Release 7,8,9 for HSPA/UMTS
IEEE 802.11ac wireless local area network (WLAN), Backward support 802.11n/g/a/b Wireless LAN
IEEE 802.3 10Base-TX Ethernet
IEEE 802.3u 100Base-TX Fast Ethernet
IEEE 802.3ab 1000Base-T Gigabit Ethernet copper
IEEE 802.3af/at Power-over-Ethernet
 Interface
Ethernet Port LAN: 8 x 10/100Base-TX RJ45, Auto Negotiation, IEEE 802.3af/at PoE/PoE+
WAN: 1 x 100/1000Base-T RJ45, Auto Negotiation, Auto MDI/MDI-X
System LED 1 x DO: Red On
1 x Power: Green On
1 x SYS: Ready: Green On, Firmware Updating: Green Blinking
1 x WAN: Link: Green On, Activity: Green Blinking
1 x 1000M:WAM port speed, 1000M: Green On, Not 1000M: Off
3 x Radio (Ra, Rb, Rc): Radio status
Ra: SIM1 and 2 detected: Green On, SIM1 or 2 detected: Green Blinking, SIM 1 and 2 not inserted: Off
Rb: LTE1: 4G connection: Green On, 2/3G connection: Green blinking, Disconnected :Off
Rc: LTE2: 4G connection: Green On, 2/3G connection: Green blinking, Disconnected :Off
Ethernet Port LED Link: Green On, Activity: Green Blinking, PoE power feeding: Amber on, PoE power not feeding: Off
USB 1 x USB for Configuration/Firmware Update
Reset System Reset(2~6 Seconds) / Default Settings Reset (over 7 Seconds)
SMA Connector Up to 5 x RP-SMA Female, 4 for Wi-Fi/LTE, 1 x GPS
Power Input, Digital Output 4-Pin Removable Terminal Block Connector
   2 Pin for Power Input
   2 Pin for DO (Relay Alarm)
DO: Dry Relay Output with 0.5A /24V DC
Optional Expansion Board RS232/422/485, Digital Input/ Digital Output, MicroSD card for field application, by  request
 Cellular Properties
Standard GSM/GPRS/EDGE 3GPP Pelease 6
UMTS/HSPA 3GPP Release 8
LTE 3GPP Release 11
Data Rate GPRS: DL: max. 85.6 kbps, UL: max.85.6 kbps
EDGE: DL: max. 236.8 kbps, UL: max. 236.8 kbps
HSPA: DL: max. 42 Mbps, UL: max. 5.76 Mbps
LTE-FDD Cat.4: DL: max. 150 Mbps, UL: max. 50 Mbps, 2x2 DL MIMO
LTE-TDD Cat.4: DL: max. 130 Mbps, UL: max. 35 Mbps, 2x2 DL MIMO
Band Information: LTE-E LTE: FDD B1/B3/B5/B7/B8/B20 (2100/1800/850/2600/900/800MHz)
LTE: TDD B38/B40/B41 (2600/2300/2500MHz)
WCDMA: FDD B1/B5/B8 (2100/850/900MHz)
GSM: B3/B8 (1800/900MHz)
Band Information: LTE-U FDD LTE: B2/B4/B12 (1900/1700/700MHz)
WCDMA: B2/B4/B5 (1900/1700/850MHz)
Band Information: LTE-CN LTE FDD: B1/B3/B5/B8 (2100/1800/850/900MHz)
LTE TDD: B38/B39/B40/B41 (2600/1900/2300/2500MHz)
TD-SCDMA: B34/B39 (2000/1900MHz)
WCDMA: B1/B8 (2100/900MHz)
CDMA: BC0
GSM: 900/1800MHz
 Wi-Fi Properties
Standard IEEE 802.11ac/a/b/g/n (2T2R)
802.11ac: OFDM (BPSK, QPSK, 16-QAM, 64-QAM, 256-QAM)
Data Rate 802.11ac: MCS0~9, max. 866Mbps
802.11b: 11Mbps / 802.11a/g: 54Mbps / 802.11n: MCS0~15, max.300Mbps
Frequency IISM Band, 2.412GHz~2.472GHz, 5.180MHz~5.825MHz(Band 1,4)
MIMO 2T2R, 2xAntennas
RSSI ≦20db, compliant with CE request
Output Power & Receive Sensitivity Operating Frequency: 2.412~2.472GHz
Operating Frequency: 5.180G~5.825GHz
Max. MIMO: 2T2R
 GPS Properties
GNSS GPS/GLONASS/BeiDou/Galileo
Performance Cold start: 18s, Warm start: 2.2s, Hot start: 1.8s
Sensitivity Cold start: -146dBm, Reacquisition: -157dBm, Tracking: -157dBm
Accuracy < 1.5M
GNSS Frequency GPS/Galileo: 1575.42±1.023 MHz
GLONASS: 1597.5~1605.8 MHz
BeiDou: 1561.098±2.046 MHz
Antenna Frequency range: 1561~1615MHz
Polarization: RHCP or linear
VSWR: <2 (Typ.)
Passive antenna gain: >0dBi
 Software
Management Interface CGI WebGUI, Command Line Interface (CLI), Telnet, SNMP
Network Time Managemant SNTP, Cellular Time
Network Management IPv4/IPv6, DDNS, SNMP v1/v2c/v3/Trap, MIBs, LLDP, DHCP server/client, TFTP, System Log
Traffic Management NAT Routing, Traffic Control
Security Firewall, DMZ, Port Forwarding, HTTPs, SSH
Redundancy Protocol WAN/LTE Redundancy
VPN IPsec, OpenVPN
Cellular Configuration Radio on/off, 4G LTE/3G HSPA Configuration, SIM Security, Connection Status, Cellular to Eth-WAN Redundancy, GPS positioning
WLAN Configuration WLAN Basic Settings: Radio on/off, 2.4G 11n/5G 11ac Band and Frequency selection, SSID/Multi-SSIDconfiguration, SSID broadcast, Cellular to WLAN Auto Offload and advanced WLAN settings, 802.1X
 Power Requirement
Input Voltage 12/24VDC(8~32VDC with booster to 54V) min. 8V low-peak auxiliary voltage
Reverse Polarity Protect Yes
Input Current 5.67A@24VDC, 10.76A@8VDC/60W
Power Consumption Max 4.8W@24VDC full traffic without PD loading, suggest to reserve 15% tolerance
 PoE
Power forwarding mode Alternative A
PoE Power Budget System: Max. 120W@70°C/12VDC, Max.60W@70°C/8VDC
PoE Standard IEEE 802.3af/at
Management PoE Enable/Disable, System/Port Power Budget Control, PD Alive Check, PoE Scheduling, PoE Status
 Mechanical
Installation Wall mount
Enclosure Material Steel Metal with Aluminum
Dimension 200(W) x 55(H) x 126(D) mm / without Mounting Clip
Ingress Protection IP31
Weight ≒1.4KG (TBD)
 Environmental
Operating Temperature & Humidity -40°C~75°C , 5%~95% Non-Condensing
Storage Temperature -40°C~85°C
MTBF >200,000 hours
Warranty 5 years
 Approval
Safety EN60950-1 Compliance
EMC EN61000-6-2/EN61000-6-4
EMI CISPR 22, FCC part 15B Class A
Radio RED Compliance
Safety: EN 62368-1
EN 50385/EN62311 MPE assessment
EN 301 489-1/17/19/52, EN 55032/55024
EN 300 328/EN 301 893
EN 301 908-1
FCC Part 15B
Railway EN50121-4 Compliance
High Throughput Wireless Performance
• LTE Cat.4, 2x2 MIMO, 150M downlink and 50M uplink
• 4G/3G/2G full cellular network compatibility
     LTE-E:   FDD B1/3/5/7/8/20; TDD B38/40/41
     LTE-AU: FDD B1/B2/B3/B4/B5/B7/B8/B28; TDD B40
     LTE-CN: FDD B1/3/5//8; TDD B38/39/40/41
     LTE-U:   FDD B2/B4/B12
• IEEE 802.11ac compliant & backward compatible with 802.11a/b/g/n
• Selectable 5G/2.4G Wi-Fi for local coverage, up to 866Mbps bandwidth
Multiple Ethernet ports
• Supports 8x Fast Ethernet PoE+ ports, provides 100M wire-speed switching
• Supports 1x Gigabit Ethernet WAN port for uplink or NVR
• LAN Switch port to LTE  or WAN port routing
• WAN to LTE Redundant
Extreme PoE Capability
• Provides 8-port IEEE 802.3af/at compliance PoE+, up to 30W per port
• 12/24V to 54VDC Booster PoE
• Up to 120W PoE power budget
• Complete PoE management including per-port Power   Budget Control, PoE Scheduling and PoE Status

Enhanced Cyber Security for Critical Application
• Firewall for traffic classification, port forwarding
• Support NAT, DMZ for LAN protection
• Support OpenVPN, IPsec for secure connection
• Support HTTPs/SSH secure login

Management Features
• Various configuration paths, including WebGUI, CLI and SNMP
• Support ViewMaster Utility, Remote configuration software utility and NetMaster NMS System
• Redundancy: Supports WAN to LTE redundancy, wireless auto-offload
• LLDP topology discovery
• Diagnostic tool includes Radio LED, Ping, TFTP, SNMP Trap, E-mail Alert and System Log
• LTE watchdog, auto-reconnect cellular connection
• OPCuA, Cloud monitoring by request
Rugged Design for Bus, Wayside Surveillance, ITS Application
• Railway EMC: EN50121-4 compliance
• IEC61000-6-2/IEC61000-6-4 heavy industrial EMC
• ITS/Traffic Control: NEMA-TS2 compliance
• Vehicle: E-mark compliance
• Radio RED for CE Marking
• Emission: FCC part 15 B Class A
• Effective heat dissipation design for operating in -40~75°C environments


  • Combine PoE Switch + Wireless Gateway (DP210+WR322)
  • 8 x 10/100Mbps IEEE 802.3at PoE
  • 1 x Gigabit WAN for NVR / Uplink
  • Dual Radio, LTE/GPS + Wi-Fi
  • Dual SIM & eSIM supported
  • 8~32V Booster PoE, max. 120W budget
  • Seamless Wi-Fi Auto-offload


Ordering Information

 Model Name
WR309 Industrial 8+1G port Routing Switch, USB
WR309P Industrial 8+1G port PoE Routing Switch, USB
WA329 Industrial 8+1G port Wireless AP/Client, USB, Dual 802.11ac/n WLAN
WA329P Industrial 8+1G port PoE Wireless AP/Client, USB, Dual 802.11ac/n WLAN
WR329-WLAN+LTE-E Industrial 8+1G port Cellular Ethernet Routing Switch, USB, 802.11ac/n WLAN, LTE-E, 2SIM, GPS, FDD B1/3/5/7/8/20, TDD B38/40/41
WR329-WLAN+LTE-CN Industrial 8+1G port Cellular Ethernet Routing Switch, USB, 802.11ac/n WLAN, LTE-CN, 2SIM, GPS,FDD B1/B3/B5/B8, TDD B38/B39/B40/B41
WR329-WLAN+LTE6-E Industrial 8+1G port Cellular Ethernet Routing Switch, USB, 802.11ac/n WLAN, LTE-E, 2SIM, GPS,FDD B1/3/5/7/8/20/28/32, TDD B38/40/41
WR329P-WLAN+LTE-E Industrial 8+1G port Cellular PoE Routing Switch, USB, 802.11ac/n WLAN, LTE-E, 2SIM, GPS, FDD B1/3/5/7/8/20,TDD B38/40/41
WR329P-WLAN+LTE-CN Industrial 8+1G port Cellular PoE Routing Switch, USB, 802.11ac/n WLAN, LTE-CN, 2SIM, GPS,FDD B1/B3/B5/B8, TDD B38/B39/B40/B41
WR329P-WLAN+LTE6-E Industrial 8+1G port Cellular PoE Routing Switch, USB, 802.11ac/n WLAN, LTE-E, 2SIM, GPS, FDD B1/3/5/7/8/20/28/32, TDD B38/40/41
  *Embedded SIM by request
*LTE-AU/LTE-U Cat.4 by request
*LTE-AP/LTE-U Cat.6 by request
*Dual LTE concurrent by request
Package List
1 x Product Unit
1 x 4-pin Removable Terminal Block Connector
1 x Quick Installation Guide
