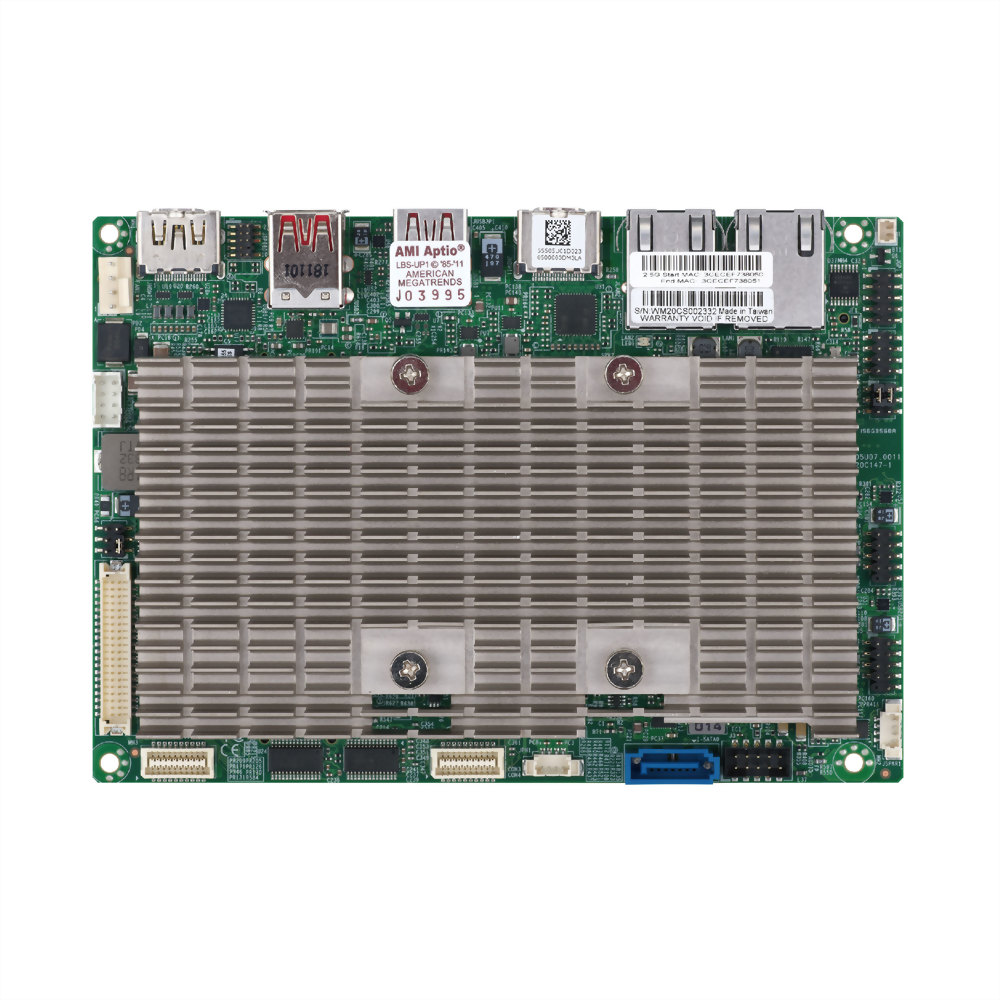

X12STN-E (Low Power Embedded)
• Intel® 11th Generation Core™ i5-1145GRE Processor
• Up to 96 EU with Intel® Iris® Xe graphics capable of 4K60 resolution
• 4 display support(HDMI2.0b/1.4b, DP1.4 and 48-bit LVDS)
• High-speed connectivity through dual 2.5GbE, 4 USB3.1 gen2, PCIe 4.0 expansion
• Rich I/O and expansion: 4 COM, 8 USB, audio with AMP, triple M.2
• Accelerated AI inferencing and computer vision in parallel without extra hardware
• 100% wide temp grade design and components applied
• 12-24V (10% tolerance) wide range power input support
• Up to 96 EU with Intel® Iris® Xe graphics capable of 4K60 resolution
• 4 display support(HDMI2.0b/1.4b, DP1.4 and 48-bit LVDS)
• High-speed connectivity through dual 2.5GbE, 4 USB3.1 gen2, PCIe 4.0 expansion
• Rich I/O and expansion: 4 COM, 8 USB, audio with AMP, triple M.2
• Accelerated AI inferencing and computer vision in parallel without extra hardware
• 100% wide temp grade design and components applied
• 12-24V (10% tolerance) wide range power input support
Model :
X12STN-E
• Intel® 11th Generation Core™ i5-1145GRE Processor
• Up to 96 EU with Intel® Iris® Xe graphics capable of 4K60 resolution
• 4 display support(HDMI2.0b/1.4b, DP1.4 and 48-bit LVDS)
• High-speed connectivity through dual 2.5GbE, 4 USB3.1 gen2, PCIe 4.0 expansion
• Rich I/O and expansion: 4 COM, 8 USB, audio with AMP, triple M.2
• Accelerated AI inferencing and computer vision in parallel without extra hardware
• 100% wide temp grade design and components applied
• 12-24V (10% tolerance) wide range power input support
• Up to 96 EU with Intel® Iris® Xe graphics capable of 4K60 resolution
• 4 display support(HDMI2.0b/1.4b, DP1.4 and 48-bit LVDS)
• High-speed connectivity through dual 2.5GbE, 4 USB3.1 gen2, PCIe 4.0 expansion
• Rich I/O and expansion: 4 COM, 8 USB, audio with AMP, triple M.2
• Accelerated AI inferencing and computer vision in parallel without extra hardware
• 100% wide temp grade design and components applied
• 12-24V (10% tolerance) wide range power input support
