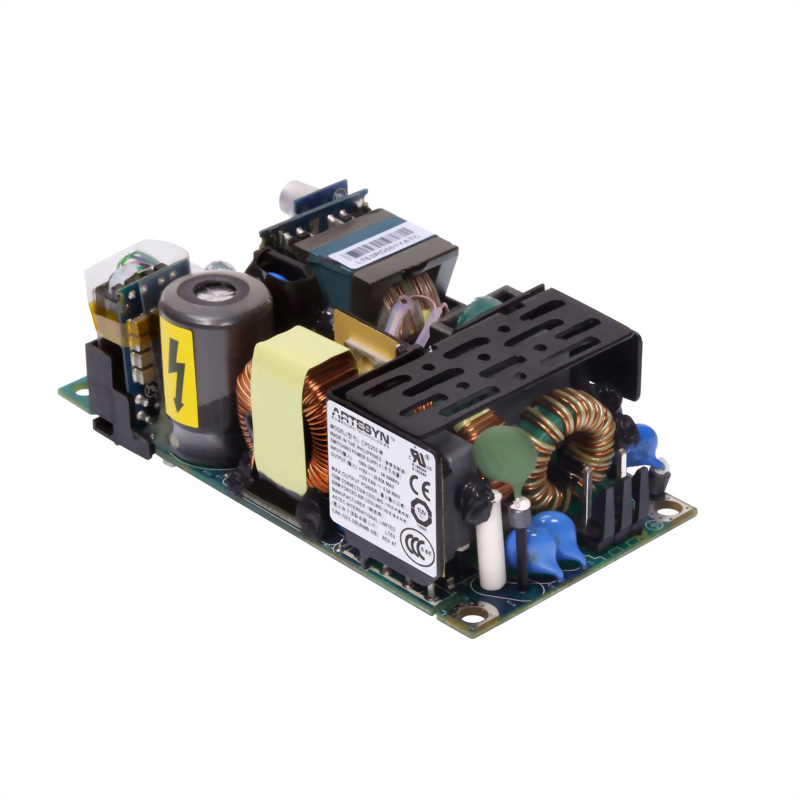

CPS250-M Open Frame 250 Watts AC-DC Power Supply
The CPS250-M series of single output open-frame AC-DC power supplies are offered in 12 V, 24 V, or 48 V outputs with +10% Trim range.
Model :
cps250-m series
Each power supply comes with a 12 V fan output. All models feature ITE and medical safety approvals and accept a universal input of 90—264 Vac. Depending on operating conditions, its 2' x 4' x 1.29' compact and high density design delivers up to 155 watts of output power with free air convection cooling and up to 250 watts with 300 LFM of forced air. These power supplies are ideal for light industrial systems as well as for medical applications.
|
Total Max Power: 250 W |
Output Voltage: 12 V to 52.8 V |
Warranty: 3 years |
|
Total Max Current: 20.8 A |
Outputs: Single |
Operating Temperature: -20° C to 70° C |
|
Input Voltage: 90 V to 264 V |
Size (L x W x H): 4.000" x 2.000" x 1.290" |
|
|
