Product SKUs
|
|

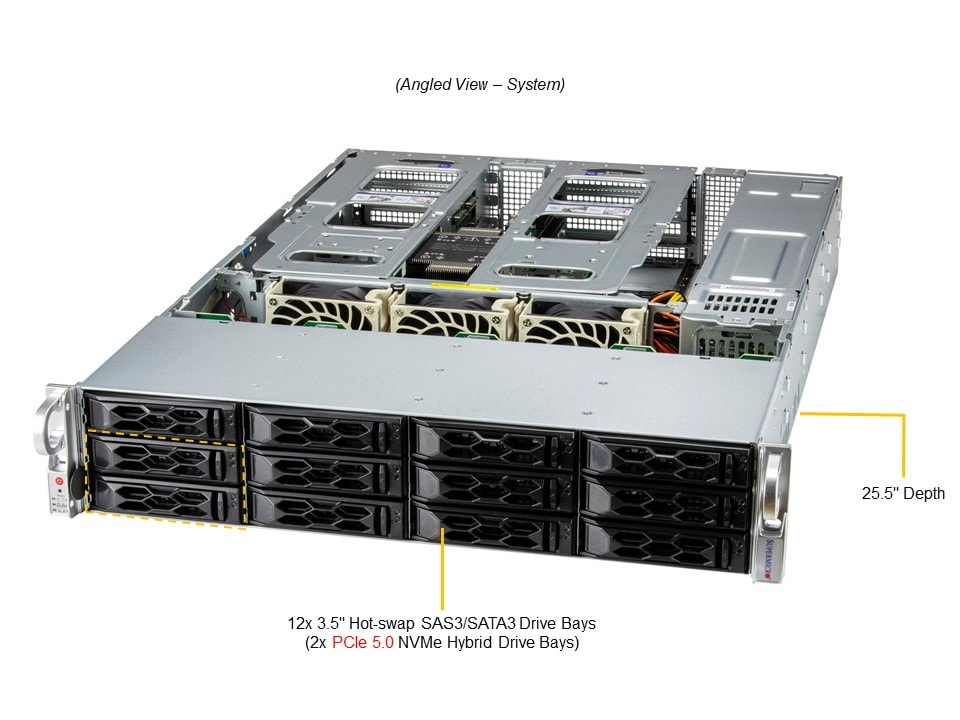

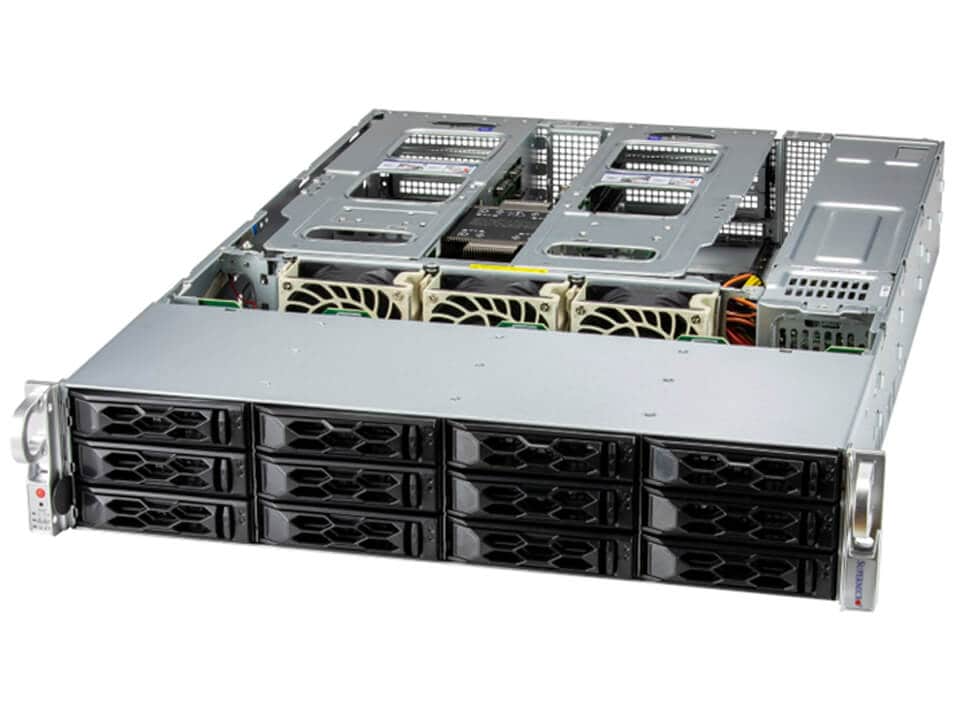

SYS-521C-NR
|
|
Motherboard
|
|
Super X13SEDW-F
|
|
Processor
|
|
CPU
|
|
|
Core Count
|
-
Up to 64C/128T; Up to 320MB Cache
|
|
Note
|
-
Supports up to 350W TDP CPUs (Air Cooled)
|
|
GPU
|
|
Max GPU Count
|
-
Up to 2 double-width or 4 single-width GPUs
|
|
Supported GPU
|
-
NVIDIA PCIe: H100, H100 NVL, A16, A2, A30, A40, L4, L40, L40S, NVIDIA RTX PRO™ 4000 Blackwell, NVIDIA RTX PRO™ 4500 Blackwell, NVIDIA RTX PRO™ 5000 Blackwell, NVIDIA RTX PRO™ 6000 Blackwell Max-Q Workstation Edition, RTX 2000 Ada, RTX 4000 Ada Generation, RTX 4000 SFF Ada Generation, RTX 4500 Ada, RTX 6000 Ada Generation, RTX A2000, RTX A4000, RTX A6000, T1000
-
NVIDIA: RTX A400
-
View GPU Options
|
|
CPU-GPU Interconnect
|
-
PCIe 5.0 x16 CPU-to-GPU Interconnect
|
|
System Memory
|
|
Memory
|
-
Slot Count: 16 DIMM slots/8 Channels
-
Max Memory (1DPC): Up to 2TB 5600MT/s ECC DDR5 RDIMM
-
Max Memory (2DPC): Up to 4TB 4400MT/s ECC DDR5 RDIMM
-
View Memory Options
|
|
Memory Voltage
|
|
|
On-Board Devices
|
|
SATA
|
-
SATA (6Gbps) ; RAID 0/1/5/10 support
|
|
NVMe
|
-
NVMe; RAID 0/1 support(Intel® VROC RAID key required)
-
View NVMe Options
|
|
Network Connectivity
|
|
|
Input / Output
|
|
LAN
|
-
1 RJ45 1 GbE Dedicated BMC LAN port
|
|
USB
|
-
2 USB 2.0 ports(header)
-
2 USB 3.2 Gen1 Type-A ports(rear)
|
|
Video
|
|
|
Serial
|
|
|
TPM
|
|
|
System BIOS
|
|
BIOS Type
|
-
AMI 32MB SPI Flash EEPROM
|
|
Management
|
|
Software
|
|
|
Power configurations
|
-
ACPI/APM Power Management
|
|
Security
|
|
Hardware
|
-
Trusted Platform Module (TPM) 2.0
-
Silicon Root of Trust (RoT) – NIST 800-193 Compliant
|
|
Features
|
-
Cryptographically Signed Firmware
-
Secure Boot
-
Secure Firmware Updates
-
Automatic Firmware Recovery
-
Supply Chain Security: Remote Attestation
-
Runtime BMC Protections
-
System Lockdown
|
|
PC Health Monitoring
|
|
CPU
|
-
8 Phase-switching voltage regulator
-
Monitors for CPU Cores, Chipset Voltages, Memory
|
|
FAN
|
-
Fans with tachometer monitoring
-
Pulse Width Modulated (PWM) fan connectors
-
Status monitor for speed control
|
|
Temperature
|
-
Monitoring for CPU and chassis environment
-
Thermal Control for fan connectors
|
|
Certifications
|
|
Operating Systems
|
|
