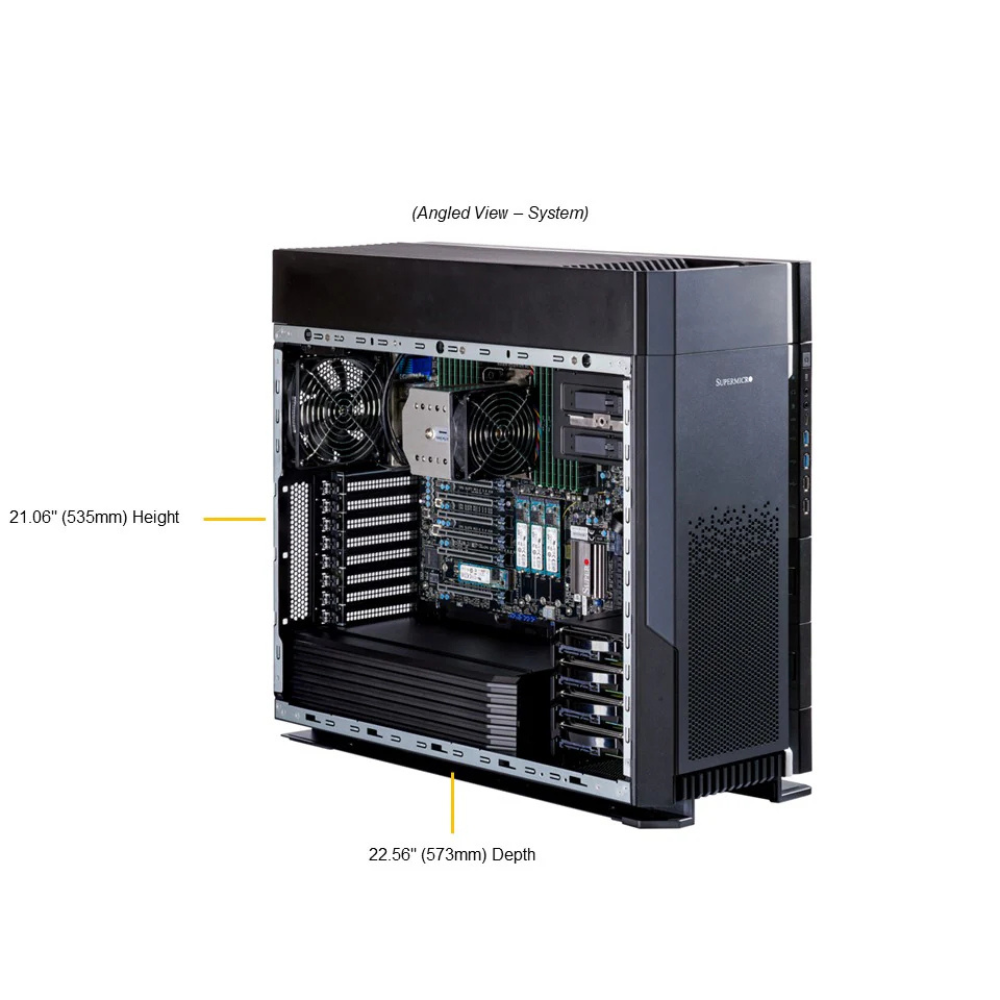

SYS-551A-T

UP full rackmount tower workstation for product design and engineering simulation
Model : SYS-551A-T
Product SKUs
SuperWorkstation SYS-551A-T
Processor
CPU
Core Count
  • 60C/128T
Note
  • Supports up to 350W TDP CPUs (Air Cooled)
GPU
Max GPU Count
  • Up to 1 quad-width or 1 triple-width or 4 double-width or 4 single-width GPUs
Supported GPU
  • NVIDIA: GeForce RTX 5090, GeForce RTX 5080, GeForce RTX 5070
  • NVIDIA PCIe: RTX 4090, RTX 6000 Ada Generation, RTX A2000, RTX A4000, RTX A4500, RTX A5000, RTX A6000, RTX 4080, NVIDIA RTX PRO™ 6000 Blackwell Max-Q Workstation Edition, NVIDIA RTX PRO™ 6000 Blackwell Workstation Edition, NVIDIA RTX PRO™ 5000 Blackwell, NVIDIA RTX PRO™ 4000 Blackwell, T1000
  • View GPU Options
System Memory
Memory
  • Slot Count: 16 DIMM slots
  • Max Memory (2DPC): 2TB 4800MT/s ECC DDR5 RDIMM/LRDIMM
  • View Memory Options
Memory Voltage
  • 1.1V
On-Board Devices
SATA
  • SATA (6Gbps)
Chipset
  • Intel® W790
Network Connectivity
  • 1 RJ45 10GbE with Marvell® AQC113
  • 1 RJ45 1GbE with Intel® I210-AT
  • View AOC Options
Input / Output
USB
  • 2 USB 2.0 ports(rear)
  • 2 USB 2.0 Type-A ports(front)
  • 2 Type-A ports(Front)
Video
  • 1 VGA port
System BIOS
BIOS Type
  • AMI 256MB SPI Flash
Management
Software
Power configurations
  • ACPI 6.0 Power Management
Security
Hardware
  • Trusted Platform Module (TPM) 2.0
  • Silicon Root of Trust (RoT) – NIST 800-193 Compliant
Features
  • Supply Chain Security: Remote Attestation
  • Runtime BMC Protections
PC Health Monitoring
Voltage
  • +1.8V, +12V, +3.3V, +5V, +5V standby, 10 -fan status, 3.3V standby, HT, Memory, VBAT
Chassis
Form Factor
  • 5U (Full Tower) Rackmount
Model
Dimensions and Weight
Height
  • 21.06" (535 mm)
Width
  • 8.74" (222 mm)
Depth
  • 22.56" (573 mm)
Package
  • 27.8" (H) x 14.6" (W) x 28.5" (D)
Weight
  • Gross Weight: 39 lbs (17.74 kg)
  • Net Weight: 20 lbs (14.9 kg)
Available Color
  • Black
Front Panel
Port
  • Audio Jacks
  • USB 2.0
  • USB 3.0 Gen 1-Type-A
  • USB 3.0 Gen 1-Type-c
Buttons
  • LED light bar ON/OFF
  • Power On/Off button
LED
  • Power status LED
Expansion Slots
PCI-Express (PCIe) Configuration
Drive Bays / Storage
Drive Bays Configuration
  • Default: Total 6 bays
    • 4 internal fixed 3.5" NVMe*/SATA drive bays
    • 2 front fixed 2.5" SATA drive bays
  • (*NVMe support may require additional storage controller and/or cables)
  • View NVMe Options
  • View Drive Options
M.2
Peripheral Bays
  • 2 5.25" bays
System Cooling
Fans
  • Up to 1x 120mm Fan(s)
  • Up to 2x 120mm Fan(s)
Power Supply
1x 2000W Platinum Level (92%) power supply
Dimension (WxHxL) 150 x 86 x 200 mm
Input 1200W: 100-115Vac / 50-60Hz
100-240Vac
1500W: 115-200Vac / 50-60Hz
2000W: 200-264Vac / 50-60Hz
+12V Max: 100A / Min: 0.1A (100Vac-115Vac)
Max: 100A / Min: 0.1A (100Vdc-240Vdc) ((100-115Vac))
Max: 125A / Min: 0.1A (100Vdc-240Vdc) ((115-120Vac))
Max: 166.6A / Min: 0.1A (100Vdc-240Vdc) ((200-264Vac))
Max: 125A / Min: 0.1A (115Vac-120Vac)
Max: 166.6A / Min: 0.1A (200Vac-264Vac)
5V SB Max: 4A / Min: 0A
Output Type 24pin ATX
Operating Environment
Environmental Spec.
  • Operating Temperature: 10°C to 35°C (50°F to 95°F)
  • Non-operating Temperature: -40°C to 60°C (-40°F to 140°F)
  • Operating Relative Humidity: 8% to 90% (non-condensing)
  • Non-operating Relative Humidity: 5% to 95% (non-condensing)
  1. Socket E (LGA4677) support Intel® Xeon® W-3400 processors
  2. Intel® W790
  3. 16 DIMMs
  4. Single 1GbBaseT, Single 10GbBaseT
  5. 2 2.5" SATA3 drive bays; 4 3.5" SATA3 drive bays; 4 M.2 NVMe
    2 U.2 PCIe 3.0 for NVMe 2.5" Drives (optional cable required)
  6. 1 120 mm Fan(s) ; 2 120 mm Fan(s)
  7. 2000W Power Supplies Platinum Level (%+)
