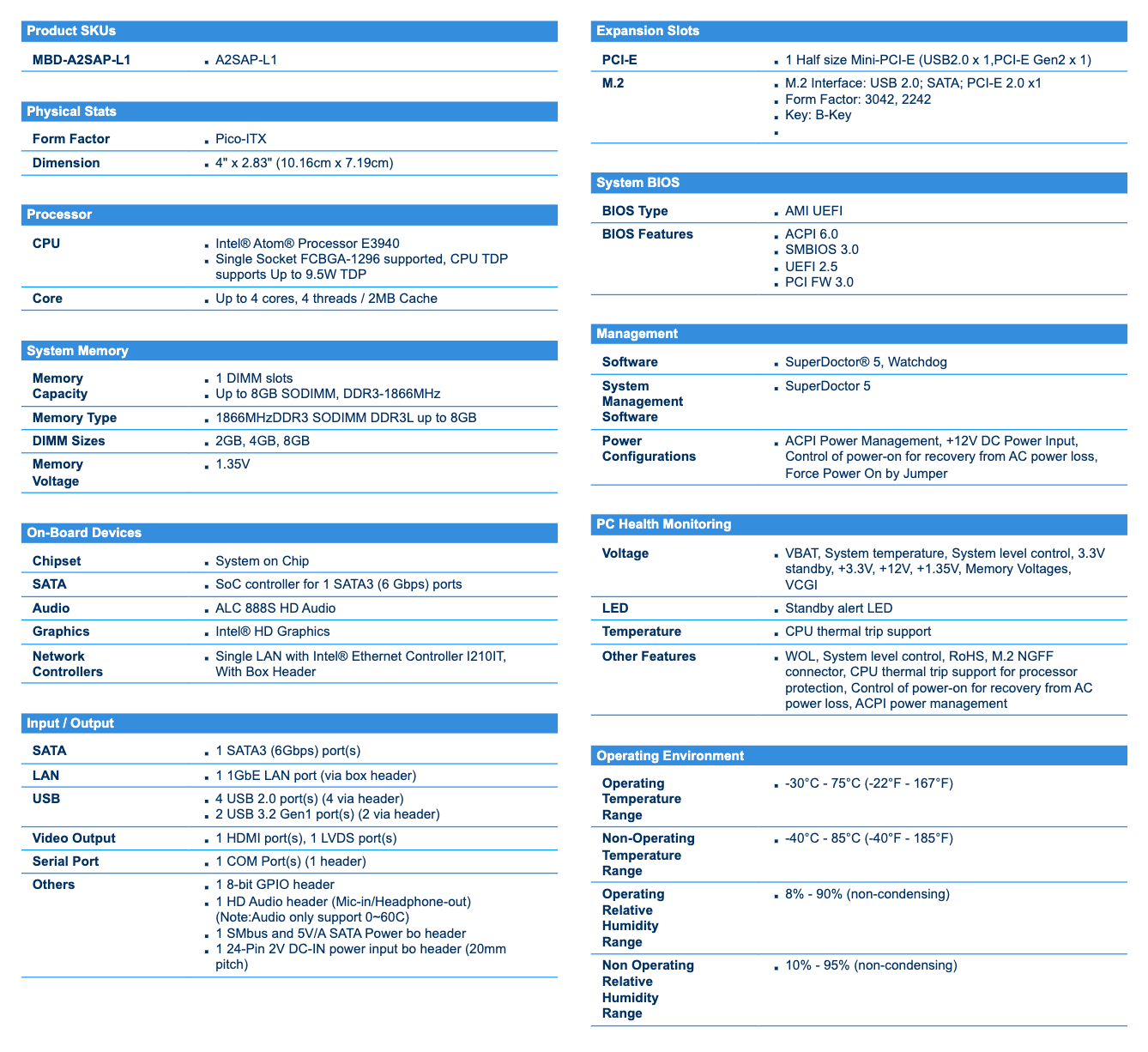

A2SAP-L1
- Up to 8GB 1866MHz DDR3L Non-ECC SO-DIMM in 1 socket
- Intel® Atom processor E3940 (9.5W, 4C)
- 1 M.2 B-Key 2242/3042, 1 Half size Mini-PCI-E, 1 SATA 3.0
- Intel® Goldmont microarchitecture 14nm System-on-Chip
- 1 HDMI, 1 48-bit LVDS, Intel® HD Graphic 2 independent displays
- All box header type for 2 COM, 2 USB3.0 ,4 USB2.0, 1GbE, LAN LED, Audio, GPIO, SMbus, LVDS, DC IN power
- Supports 12V DC power input
- Wide temperature suppot from -30°C to 75°C
- Intel® Atom processor E3940 (9.5W, 4C)
- 1 M.2 B-Key 2242/3042, 1 Half size Mini-PCI-E, 1 SATA 3.0
- Intel® Goldmont microarchitecture 14nm System-on-Chip
- 1 HDMI, 1 48-bit LVDS, Intel® HD Graphic 2 independent displays
- All box header type for 2 COM, 2 USB3.0 ,4 USB2.0, 1GbE, LAN LED, Audio, GPIO, SMbus, LVDS, DC IN power
- Supports 12V DC power input
- Wide temperature suppot from -30°C to 75°C
Model :
A2SAP-L1
- Up to 8GB 1866MHz DDR3L Non-ECC SO-DIMM in 1 socket
- Intel® Atom processor E3940 (9.5W, 4C)
- 1 M.2 B-Key 2242/3042, 1 Half size Mini-PCI-E, 1 SATA 3.0
- Intel® Goldmont microarchitecture 14nm System-on-Chip
- 1 HDMI, 1 48-bit LVDS, Intel® HD Graphic 2 independent displays
- All box header type for 2 COM, 2 USB3.0 ,4 USB2.0, 1GbE, LAN LED, Audio, GPIO, SMbus, LVDS, DC IN power
- Supports 12V DC power input
- Wide temperature suppot from -30°C to 75°C
| Parts List (Bulk Package) | |||
| Name | Part Number | Qty | Description |
| Motherboard | MBD-A2SAP-L1 | 1 | A2SAP-L1 Motherboard |
| Parts List (Retail Package) | |||
| Name | Part Number | Qty | Description |
| Motherboard | MBD-A2SAP-L1 | 1 | A2SAP-L1 Motherboard |
| Audio Cable | CBL-OTHR-0986 | 1 | Audio Cable 20cm |
| COM Cable |
CBL-CUSB-0984 •
|
1 | COM Cable 20cm |
| DC IN Power cable | CBL-PWEX-1029 | 1 | DC IN Power cable 2x4P 2.0mm pitch to 2x2P with 15cm |
| Passive heatsink | SNK-C0115L | 1 | A2SAP Passive heatsink with 25mm height |
| QRG | MNL-2427-QRG | 1 | Motherboard Quick Reference Guide |
| RJ45 LAN Cable | CBL-CDAT-0934 | 1 | RJ45 1G LAN Cable Cable 10cm |
| SATA cable |
CBL-SAST-0538 •
|
1 | SATA Data cable 29CM |
| SATA Power Cable | CBL-PWEX-1030 | 1 | SATA Power Cable 20cm |
| USB Cable | CBL-CUSB-0983 | 1 | USB2.0 cable 20cm |
| USB3.0 Cable | CBL-CUSB-0826 | 1 | USB3.0 cable 15cm |
| Optional Parts List | |||
| Name | Part Number | Qty | Description |
| DC IN Power Cable (DC Jack) | CBL-PWEX-1110-15 | 1 | DC IN Power cable 2x4P to 5.5x2.5 DC JACK with 17cm |
| Power Adapter | MCP-250-10135-0N | 1 | 40W 12V 3.33A, AC to DC lockable power adapter,HF |
