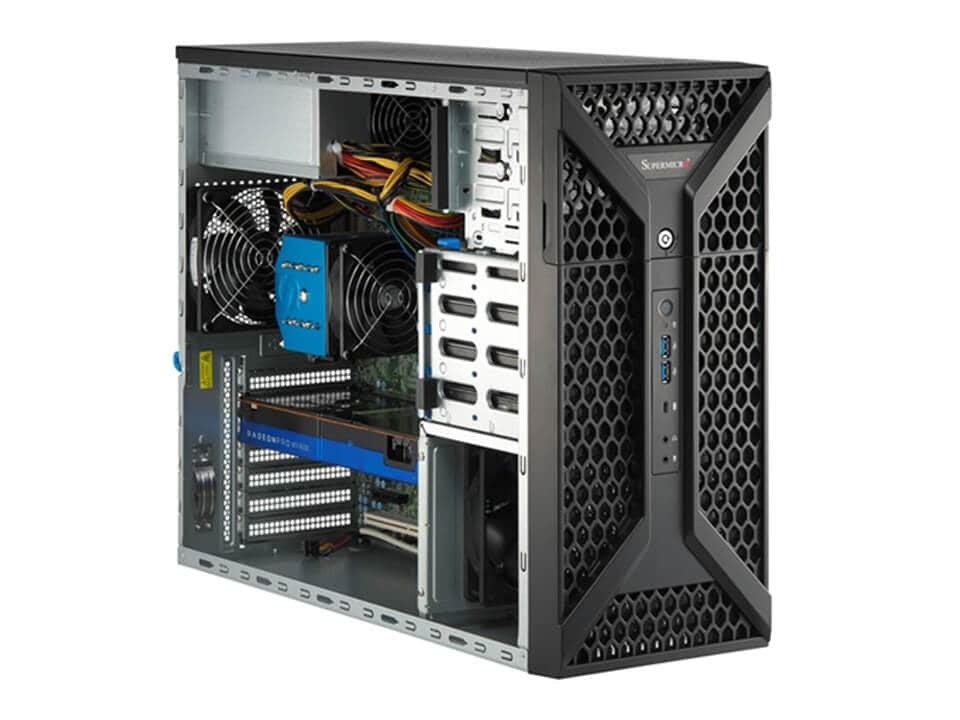

SuperWorkstation SYS-530A-IL

SYS-530A-IL

UP mid-tower workstation for content creation and 3D design

Model : SYS-530A-IL

Q'ty :

SYS-530A-IL is a Supermicro SuperWorkstation single-processor system. UP mid-tower workstation for content creation and 3D design

It is positioned for professional workstation deployments that require reliable compute, storage, expansion and graphics options in a server-grade platform. Key configuration references include 11th Gen Intel® Core™ Processors, Mid-Tower, 4 default and 1x 668W.

Official reference: Supermicro official product page

Product SKUs
SYS-530A-IL
Motherboard
Super X12SAE-5
Processor
CPU	Single Socket H5 (LGA-1200) 11th Gen Intel(R) Core(TM) Processors
Core Count	Up to 10C/20T; Up to 20MB Cache
Note	Supports up to 125W TDP CPUs (Air Cooled)
GPU
Max GPU Count	Up to 1 double-width GPU

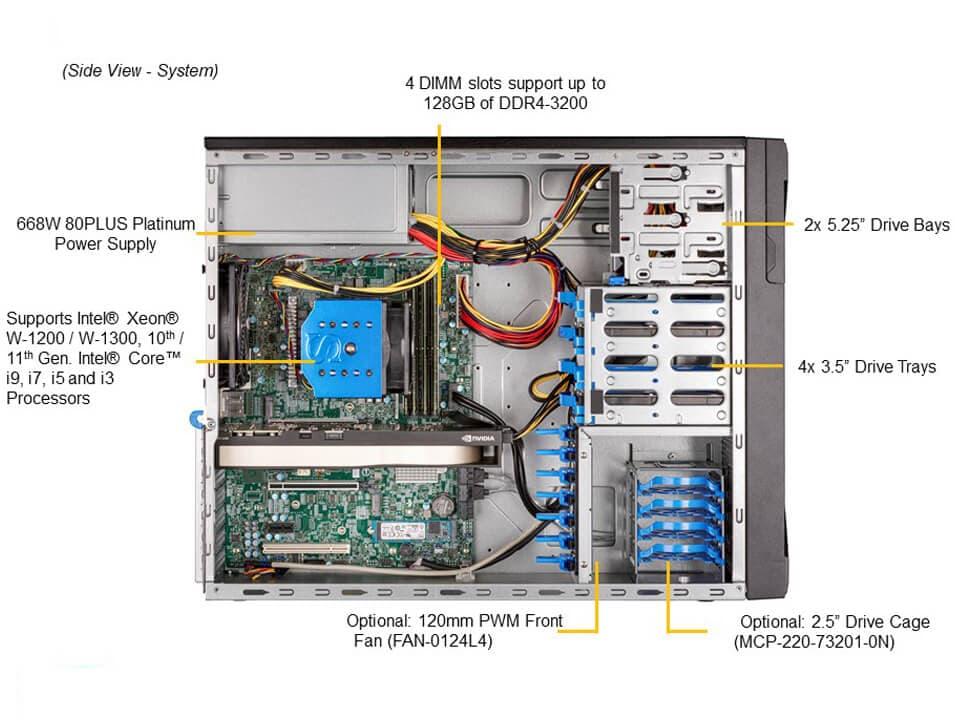

System Memory
Memory	Slot Count: 4 DIMM slots Max Memory (2DPC): Up to 128GB 3200MT/s ECC DDR4 UDIMM View Memory Options
Memory Voltage	1.2V
On-Board Devices
SATA	SATA (6Gbps)
Network Connectivity	1 RJ45 1GbE with Intel(R) I219-LM 1 RJ45 2.5GbE with Intel(R) I225-V View AOC Options
Input / Output
Video	1 HDMI 2.0b port 1 DVI-D port 1 DisplayPort 1.4a port
TPM	1 TPM header
System BIOS
BIOS Type	AMI 256MB SPI Flash
Management
Software	SuperCloud Composer(R) (SCC) Supermicro Server Manager (SSM) Supermicro Update Manager (SUM) Supermicro SuperDoctor(R) 5 (SD5) Super Diagnostics Offline (SDO) Supermicro Thin-Agent Service (TAS) SuperServer Automation Assistant (SAA) New!
Power configurations	ACPI 6.0 Power Management
Security
Hardware	Trusted Platform Module (TPM) 2.0
PC Health Monitoring
Other Features	8-pin 12v DC power connector, ACPI power management, ATX Power connector, Chassis intrusion header, Control of power-on for recovery from AC power loss, CPU thermal trip support for processor protection, RoHS, Voltage and Frequency Overclocking, WOL
Voltage	+1.0V PCH, +1.8V PCH, +12V, +3.3V, +5V, +5V standby, 1.05 (PCH), 3.3V standby, 5 (4-pin), CPU, CPU temperature, CPU thermal trip support, PCH temperature, System temperature, VBAT, VRM temperature
Certifications
Operating Systems	RHEL 8.4, Windows 10, Windows 11 View all OS Compatibility and Certification Matrix

Chassis
Form Factor	Mid-Tower
Model	CSE-735D4-668B

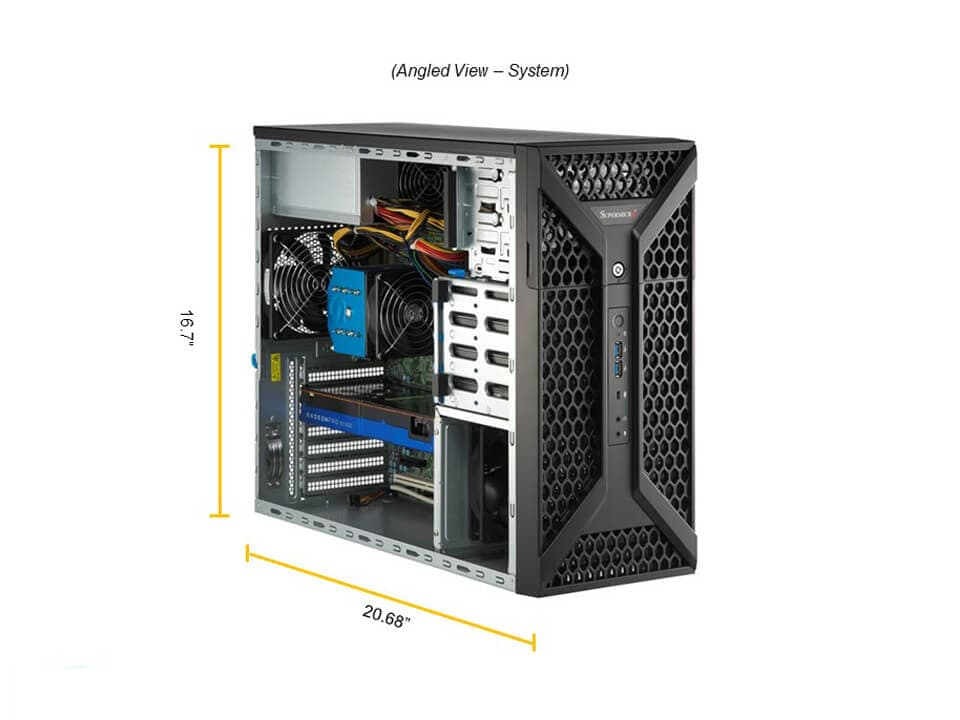

Dimensions and Weight
Height	16.7" (424 mm)
Width	7.6" (193 mm)
Depth	21.1" (536 mm)
Package	11.97" (H) x 21.38" (W) x 25.28" (D)
Weight	Gross Weight: 30 lbs (13.61 kg) Net Weight: 28 lbs (12.7 kg)
Available Color	Black

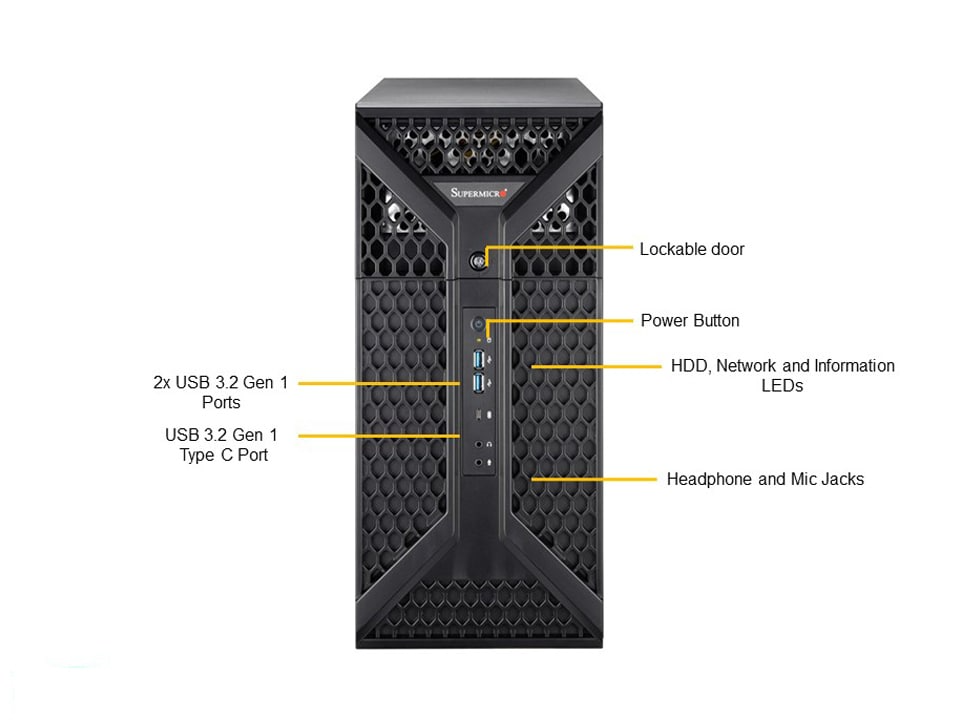

Front Panel
Buttons	Power On/Off button
LED	HDD activity LED Power LED
Port	Audio Jack(s) USB 3.0 Port(s) USB 3.2 Gen 2 Type-C

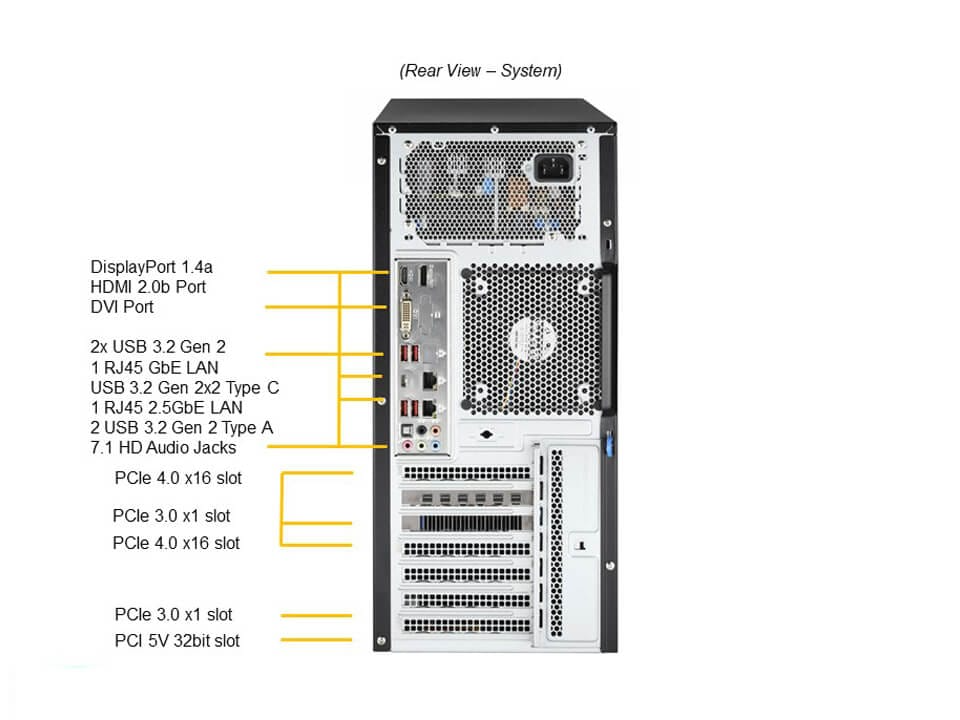

Expansion Slots
PCI-Express (PCIe) Configuration	Default 2 PCIe 4.0 x8 (in x16) FHFL slots 2 PCIe 3.0 x1 FHFL slots Option A 1 PCIe 4.0 x16 FHFL slot 2 PCIe 3.0 x1 FHFL slots View AOC Options
Drive Bays / Storage
Drive Bays Configuration	Default: Total 4 bays 4 internal fixed 3.5" SATA drive bays View Drive Options
M.2	2 M.2 NVMe slots (M-key 2280/22110) 1 M.2 NVMe slot (M-key 2280/22110) View M.2 Options
Peripheral Bays	2 5.25" bays
System Cooling
Fans	Up to 1x 120mm Fan(s) Up to 1x 120mm Fan(s) (optional)
Power Supply
1x 668W Platinum Level (92%) power supply
Dimension (WxHxL)	150 x 86 x 185 mm
Input	100-240Vac / 50-60Hz
+12V	Max: 54A / Min: 0.2A (100Vac-240Vac)
5V SB	Max: 2A / Min: 0A
Output Type	24pin ATX
Operating Environment
Environmental Spec.	Operating Temperature: 10 degrees C to 35 degrees C (50 degrees F to 95 degrees F) Non-operating Temperature: -40 degrees C to 60 degrees C (-40 degrees F to 140 degrees F) Operating Relative Humidity: 8% to 90% (non-condensing) Non-operating Relative Humidity: 5% to 95% (non-condensing)

* For detailed specifications, options, and compatibility, please refer to the latest official Supermicro documentation and the actual quotes/specifications from Autech.
