| Product SKUs | | SYS-681E-TR | | Motherboard | | Super X13OEI-CPU | | Processor | | CPU | | | Core Count | - Up to 60C/120T; Up to 112.5MB Cache per CPU
| | Note | - Supports 250W - 350W TDP CPUs (Air Cooled)
| | GPU | | Max GPU Count | - Up to 12 double-width GPUs
| | System Memory | | Memory | - Slot Count: 128 DIMM slots
- Max Memory (1DPC): Up to 16TB 4800MT/s ECC DDR5 RDIMM
- Max Memory (2DPC): Up to 32TB 4400MT/s ECC DDR5 RDIMM
- View Memory Options
| | Memory Voltage | | | On-Board Devices | | Network Connectivity | - 1 RJ45 1GBASE-T
- View AOC Options
| | Input / Output | | LAN | - 1 RJ45 1 GbE Dedicated BMC LAN port
- 1 RJ45 1 GbE LAN port
| | USB | - 2 USB 3.0 ports(rear)
- 2 ports(front)
| | Video | - 1 VGA port(Front)
- 1 DisplayPort port(Rear)
| | System BIOS | | BIOS Type | - AMI 32MB SPI Flash EEPROM
| | Management | | Software | | | Power configurations | - Power-on mode for AC power recovery
- ACPI Power Management
| | Security | | Hardware | - Trusted Platform Module (TPM) 2.0
- Silicon Root of Trust (RoT) – NIST 800-193 Compliant
| | Features | - Cryptographically Signed Firmware
- Secure Boot
- Secure Firmware Updates
- Automatic Firmware Recovery
- Supply Chain Security: Remote Attestation
- Runtime BMC Protections
- System Lockdown
| | PC Health Monitoring | | CPU | - 4+1 Phase-switching voltage regulator
- Monitors for CPU Cores, Chipset Voltages, Memory
| | FAN | - Fans with tachometer monitoring
- Pulse Width Modulated (PWM) fan connectors
- Status monitor for speed control
| | Temperature | - Monitoring for CPU and chassis environment
- Thermal Control for fan connectors
| | Certifications | | Operating Systems | |
| | | Chassis | | Form Factor | | | Model | | | Dimensions and Weight | | Height | | | Width | | | Depth | | | Package | - 36.3" (H) x 28.34" (W) x 42.5" (D)
| | Weight | - Gross Weight: 242.5 lbs (110 kg)
- Net Weight: 176.37 lbs (80 kg)
| | Available Color | | | Front Panel | | Buttons | | | LED | - HDD activity
- Network activity
- Power status
- System information (overheat/UID)

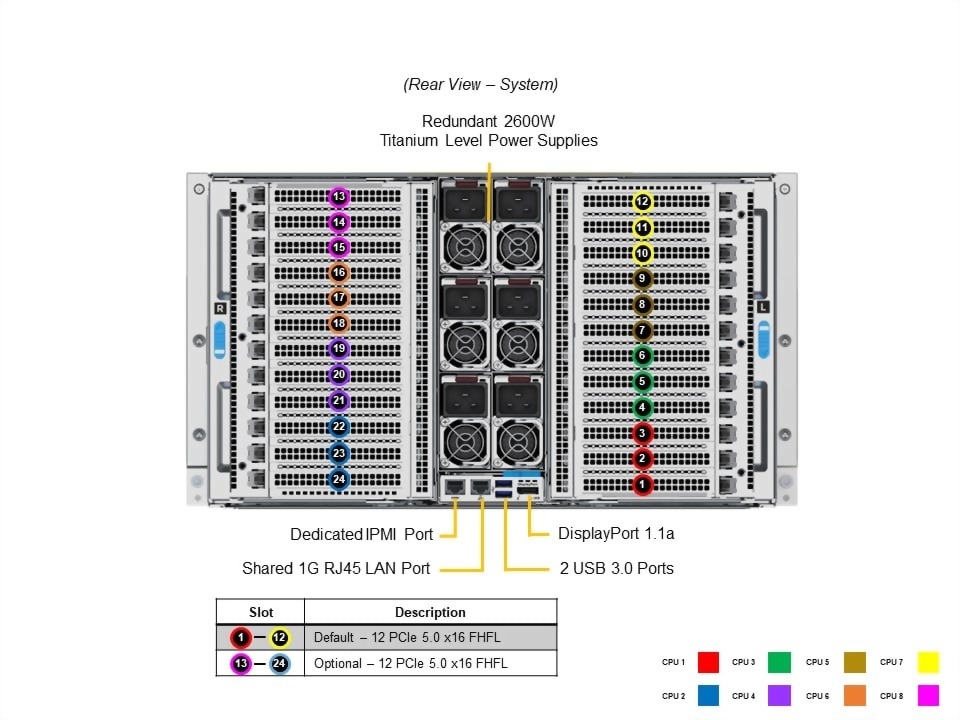

| | Expansion Slots | | PCI-Express (PCIe) Configuration | - Default
- 12 PCIe 5.0 x16 FHFL slots
- 2 PCIe 5.0 x16 LP slots
- Option A*
- 12 PCIe 5.0 x16 FHFL slots

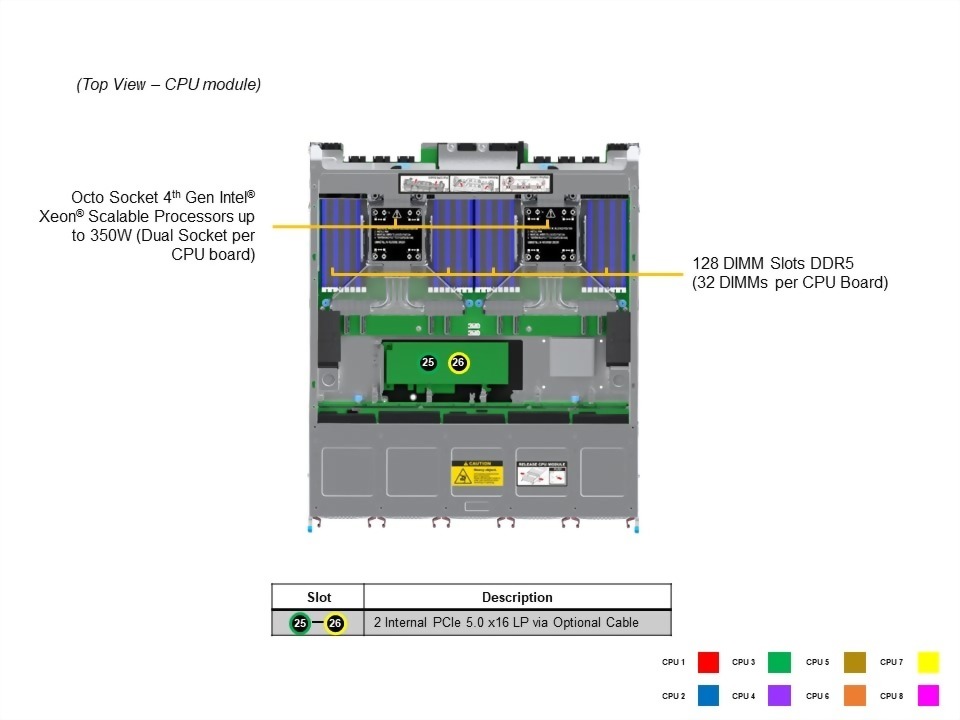

- (*Requires additional parts, please see the optional parts list for details. For more details on PCIe slot configuration options, please refer to the system callout images above.)
- View AOC Options
| | M.2 | - 2 M.2 NVMe/SATA slots (M-key 2280/22110)

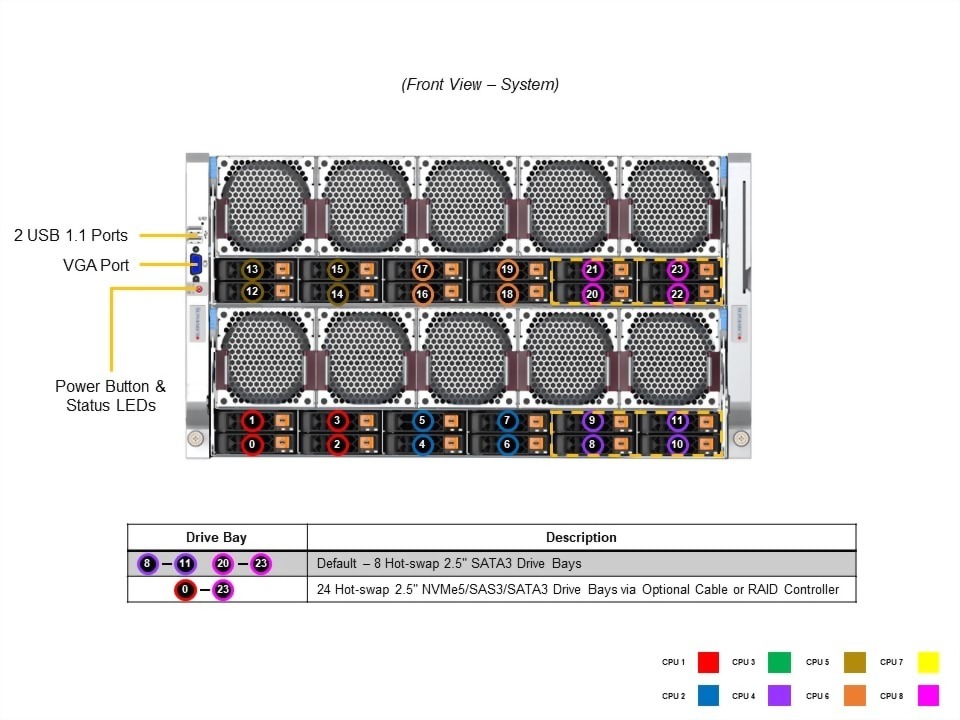

| | Drive Bays / Storage | | Drive Bays Configuration | - Default: Total 8 bays
- 8 front hot-swap 2.5" SATA drive bays
- Option A: Total 24 bays
- 24 front hot-swap 2.5" NVMe*/SAS*/SATA* drive bays
- (*NVMe/SAS/SATA support may require additional storage controller and/or cables, please see the optional parts list for details)
- View NVMe Options
- View Drive Options
| | M.2 | | | System Cooling | | Fans | - Up to 10 Heavy duty counter-rotating 8cm Fan(s)
| | Air Shroud | | | Power Supply | | | 4x 2600W Redundant (2 + 2) Titanium Level (96%) power supplies | | Dimension (WxHxL) | 73.5 x 40 x 265 mm | | Input | 2600W: 200-240Vac
2600W: 200-240Vdc (For CQC Only)
2600W: 200-240Vac / 50-60Hz
2600W: 200-240Vdc / 50-60Hz (for CQC only) | | +12V | Max: 216A / Min: 0A (11.4Vdc-12.6Vdc) (12V output)
Max: 216A / Min: 0A (200Vac-240Vac) | | 12V SB | Max: 3.5A | | Output Type | Backplanes (gold finger) | | Operating Environment | | ROHS | | | Environmental Spec. | - Operating Temperature: 10°C to 35°C (50°F to 95°F)
- Non-operating Temperature: -40°C to 60°C (-40°F to 140°F)
- Operating Relative Humidity: 8% to 90% (Non-Condensing)
- Non-operating Relative Humidity: 5% to 95% (Non-Condensing)
|
|
For detailed specifications, options, and compatibility, please refer to the latest official Supermicro documentation and the actual quotes/specifications from Autech.
-
Octa Socket E (LGA-4677) 4th Generation Intel® Xeon® Scalable processors
-
128 DIMM Slots; Up to 32TB DDR5-4800MHz ECC RDIMM/RDIMM-3DS
-
Optional PCIe configurations up to 24 PCIe slots with support for 12 double-width GPU/Accerlator cards
-
24x 2.5" Hot-swap NVMe/SAS3/SATA3 drive bays ; 2x internal M.2 NVMe/SATA; Optional RAID support via storage add-on card
-
10 heavy duty fans w/ optimal fan speed control
- In-Memory Database
- Research Lab/National Lab
- Virtualization, ERP, CRM
- Scale -up HPC
