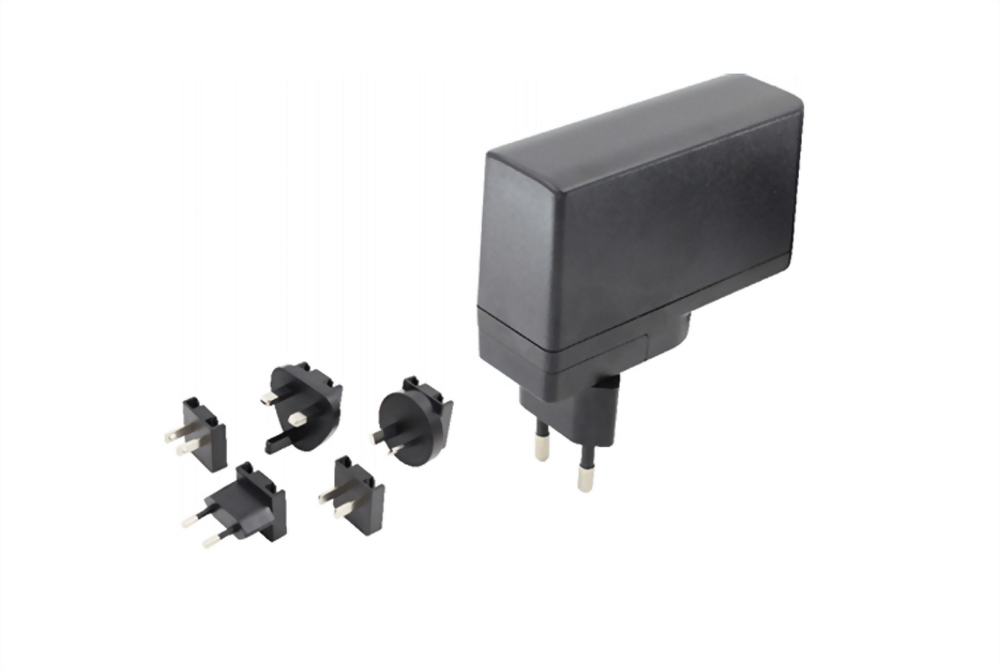

SLE18
• Medical & ITE Safety Approvals
• 2 x MOPP Input to Output Isolation
• Suitable for Medical Equipment Up to Class BF(^
• Low Leakage Current ≤100μA
• DOE Efficiency Level VI
• CoC V5 Tier 2(2016)
• ≤0.075W Standby Power
• 5V to 24V Outputs, Up to 18W
• Up to 5,000m Operating Altitude
• Interchangeable AC Plugs
• Approved to IEC60601-1, 3rd Edition & EN/IEC/UL62368-1
• Blades sold separately
• 2 x MOPP Input to Output Isolation
• Suitable for Medical Equipment Up to Class BF(^
• Low Leakage Current ≤100μA
• DOE Efficiency Level VI
• CoC V5 Tier 2(2016)
• ≤0.075W Standby Power
• 5V to 24V Outputs, Up to 18W
• Up to 5,000m Operating Altitude
• Interchangeable AC Plugs
• Approved to IEC60601-1, 3rd Edition & EN/IEC/UL62368-1
• Blades sold separately
Model :
SLE18
| MAX WATTS | 18.00W |
| OUTPUT RANGE (VDC) | 5-24 |
| FORM FACTOR | Wall-Mount |
| SIZE (METRIC/SAE) | 88 x 30 x 57 (3.46 x 1.18 x 2.25) |
| EFFICIENCY | 85%, typ. Efficiency |
| SAFETY APPROVALS | IEC/EN/CSA/UL60601-1, AS/NZS/J/K/EN/CSA/UL62638-1, IEC/EN/UL60601-1, IEC60950-1 |
- Medical & ITE Safety Approvals
- 2 x MOPP Input to Output Isolation
- Suitable for Medical Equipment Up to Class BF(^
- Low Leakage Current ≤100μA
- DOE Efficiency Level VI
- CoC V5 Tier 2(2016)
- ≤0.075W Standby Power
- 5V to 24V Outputs, Up to 18W
- Up to 5,000m Operating Altitude
- Interchangeable AC Plugs
- Approved to IEC60601-1, 3rd Edition & EN/IEC/UL62368-1
- Blades sold separately
