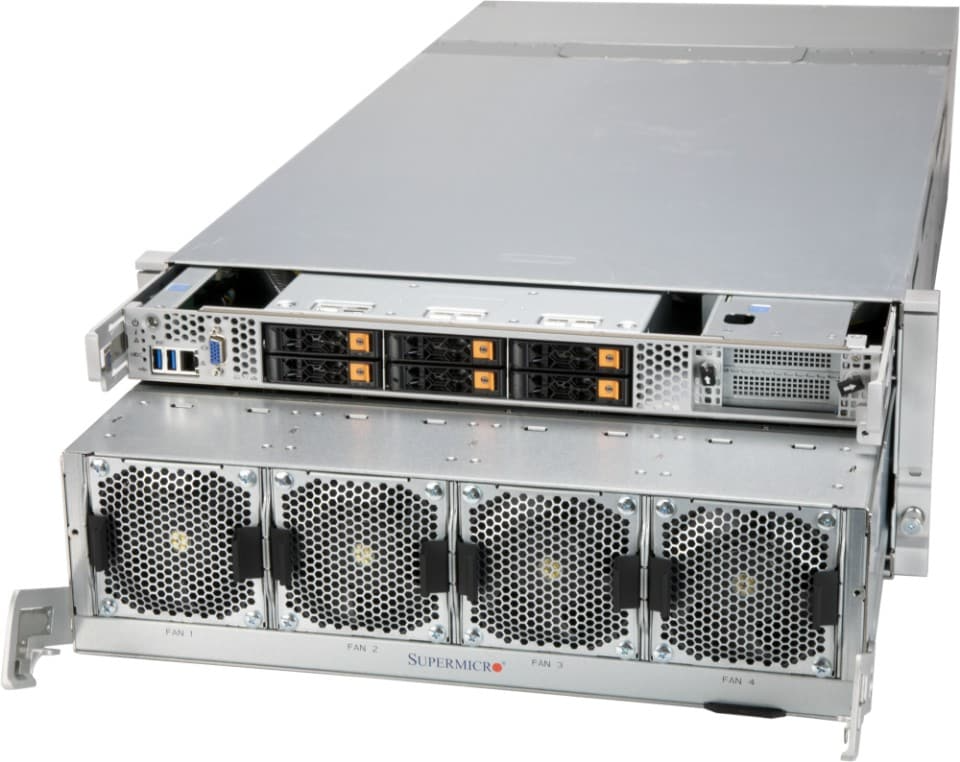

AS -4124GO-NART+

DP AMD System with NVIDIA HGX A100 8-GPU and 3000W Power Supply

Model : AS -4124GO-NART+

Q'ty :

Product SKUs
A+ Server AS -4124GO-NART+

Motherboard
Super H12DGO-6

Processor
CPU	Dual Socket SP3 AMD EPYC™ 7002/7003 Series Processors
Note	Supports up to 280W TDP CPUs (Air Cooled)

GPU
Max GPU Count	8 onboard GPUs
Supported GPU	NVIDIA SXM: HGX A100 8-GPU (80GB) View GPU Options
GPU-GPU Interconnect	NVIDIA® NVLink™ with NVSwitch™
Certification

System Memory
Memory	Slot Count: 32 DIMM slots Max Memory (2DPC): Up to 8TB 3200MT/s ECC DDR4 RDIMM/LRDIMM View Memory Options
Memory Voltage	1.2V

On-Board Devices
Chipset	System on Chip
Network Connectivity	Ethernet View AIOM Options View AOC Options
IPMI	Support for Intelligent Platform Management Interface v.2.0 IPMI 2.0 with virtual media over LAN and KVM-over-LAN support

System BIOS
BIOS Type	AMI 256MB SPI Flash ROM

Management
Software	Supermicro Server Manager (SSM) Supermicro Power Manager (SPM) Supermicro Update Manager (SUM) Supermicro SuperDoctor® 5 (SD5) KVM with dedicated LAN IPMI 2.0 Watch Dog

Security
Hardware	Trusted Platform Module (TPM) 2.0 Silicon Root of Trust (RoT) – NIST 800-193 Compliant
Features	Cryptographically Signed Firmware Secure Boot Secure Firmware Updates Automatic Firmware Recovery System Lockdown

PC Health Monitoring
CPU	4+1 Phase-switching voltage regulator Monitors for CPU Cores, Chipset Voltages, Memory
FAN	Fans with tachometer monitoring Pulse Width Modulated (PWM) fan connectors Status monitor for speed control
Temperature	Monitoring for CPU and chassis environment Thermal Control for fan connectors

Dimensions and Weight
Height	6.9" (174 mm)
Width	17.6" (446 mm)
Depth	35.4" (900 mm)
Package	29.5" (H) x 27.4" (W) x 44.9" (D)
Weight	Gross Weight: 225 lbs (102.1 kg) Net Weight: 166 lbs (75.3 kg)
Available Color	Black Front & Silver Body

Expansion Slots
PCI-Express (PCIe) Configuration	Default 1 PCIe 4.0 x16 LP slot 1 PCIe 4.0 x8 LP slot View AOC Options
M.2	2 M.2 PCIe 4.0 x4 slots (M-key 22110)

Drive Bays / Storage
Drive Bays Configuration	Default: Total 6 bays 6 front hot-swap 2.5" NVMe drive bays Option A: Total 10 bays 6 front hot-swap 2.5" NVMe drive bays 4 rear hot-swap 2.5" NVMe drive bays View NVMe Options View Drive Options
M.2	2 M.2 NVMe slots (M-key) View M.2 Options

System Cooling
Fans	Up to 4 x Hot-swap 11.5K RPM heavy duty Fan(s)

Power Supply

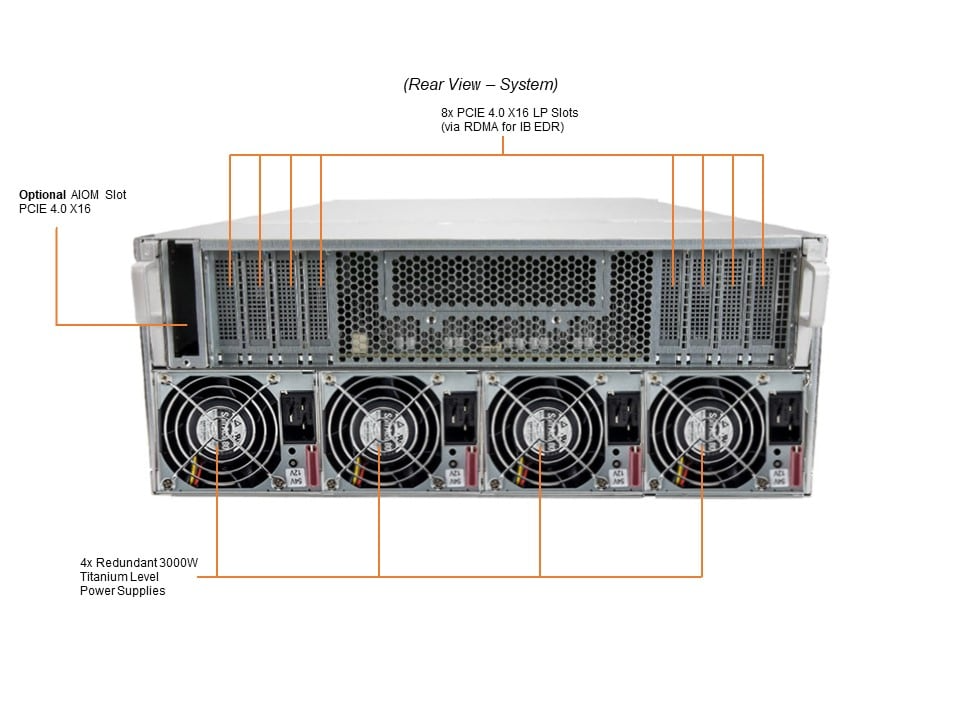

4x 3000W Redundant (2 + 2) Titanium Level (96%) power supplies

Dimension (WxHxL)	106.5 x 82.4 x 203.5 mm
Input	2880W: 200-207Vac 2880W: 200-207Vac / 50-60Hz 3000W: 207.1-240Vac 3000W: 240Vdc 3000W: 207.1-240Vac / 50-60Hz 3000W: 240Vdc / 50-60Hz
+12V	Max: 91.66A / Min: 0A (Vdc-240Vdc) Max: 91.66A / Min: 0A (200Vac-240Vac)
12V SB	Max: 4A / Min: 0A
Output Type	Backplanes (gold finger)

Operating Environment
ROHS	RoHS Compliant
Environmental Spec.	Operating Temperature: 10°C to 35°C (50°F to 95°F) Non-operating Temperature: -40°C to 60°C (-40°F to 140°F) Operating Relative Humidity: 8% to 90% (Non-Condensing) Non-operating Relative Humidity: 5% to 95% (Non-Condensing)

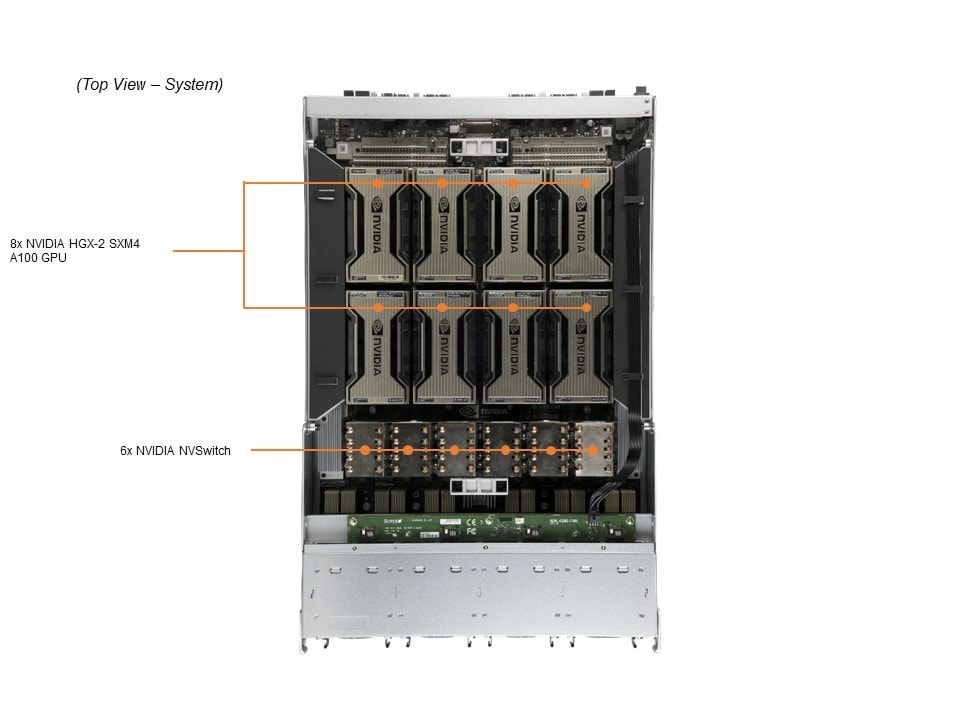

Supports NVIDIA® HGX™ A100 8-GPU
Highest GPU communication using NVIDIA® NVLINK™ v3.0 + NVIDIA® NVSwitch™
NICs for GPUDirect RDMA (1:1 GPU Ratio)
Supports HGX A100 8-GPU 40GB (HBM2) or 80GB (HBM2e)

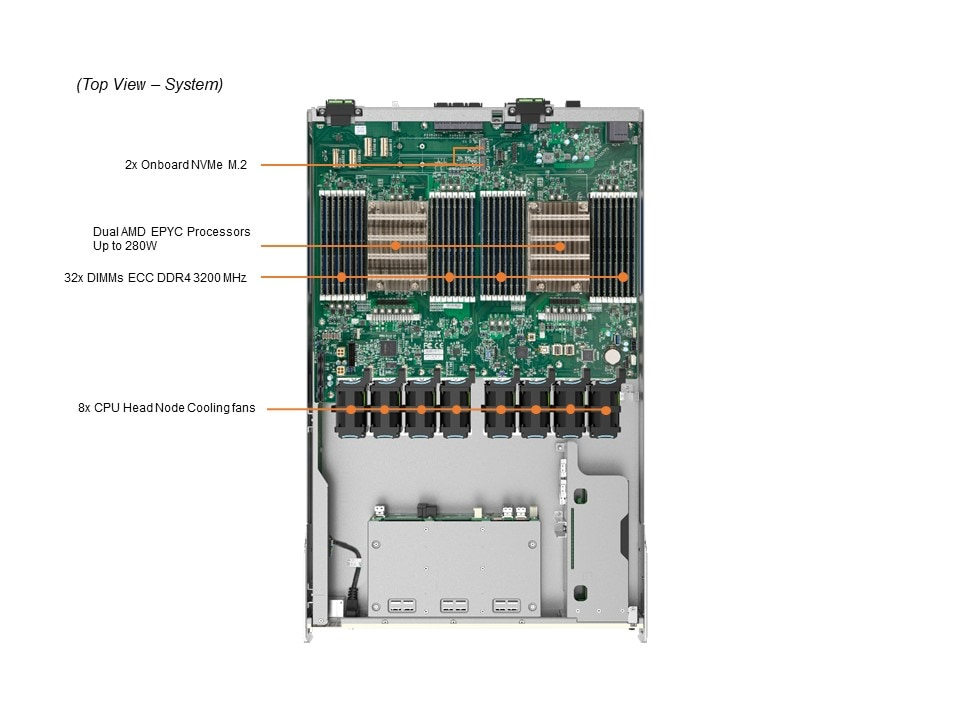

Dual AMD EPYC™ 7003/7002 Series Processors
(The latest AMD EPYC™ 7003 Series Processor with AMD 3D V-Cache™ Technology requires BIOS version 2.3 or newer)
8TB Registered ECC DDR4 3200MHz SDRAM in 32 DIMMs
8 PCIe 4.0 x16 via PCIe switch
1 PCIe 4.0 x 16 LP and 1 PCIe 4.0 x8 LP via CPUs
AIOM Support
6 Hot-swap 2.5" NVMe drive bays
(4 via PCIe switch, 2 via CPU)
Up to 10 NVMe 2.5" drives available with an optional 4 drive bays at rear of system
