| Product SKUs | | AS -A126GS-TNBR | | Motherboard | | Super H14DSG-OD | | Processor | | CPU | - Dual processor(s)
- AMD EPYC™ 9005/9004 Series Processors
| | Core Count | | | Note | - Supports up to 500W TDP CPUs
| | GPU | | Max GPU Count | | | Supported GPU | - NVIDIA SXM: HGX B200 8-GPU (180GB)
- View GPU Options
| | CPU-GPU Interconnect | - PCIe 5.0 x16 CPU-to-GPU Interconnect
| | GPU-GPU Interconnect | - NVIDIA® NVLink™ with NVSwitch™
| | Certification | | | System Memory | | Memory | - Slot Count: 24 DIMM slots/1 Channels
- Max Memory (1DPC): Up to 6TB 6400MT/s ECC DDR5 RDIMM (AMD EPYC™ 9005 Series Processor)
- Max Memory (1DPC): Up to 6TB 4800MT/s ECC DDR5 RDIMM (AMD EPYC™ 9004 Series Processor)
- View Memory Options
| | Memory Voltage | | | On-Board Devices | | Network Connectivity | - 2 RJ45 10GbE with Intel® X710
- View AIOM Options
- View AOC Options
| | Input / Output | | LAN | - 1 RJ45 1 GbE Dedicated BMC LAN port
| | USB | - 2 USB 3.0 Type-A ports(Rear)
| | Video | | | TPM | | | System BIOS | | BIOS Type | - AMI 64MB SPI Flash EEPROM
| | Management | | Software | - SuperCloud Composer®
- Supermicro Server Manager (SSM)
- Supermicro Update Manager (SUM)
- Supermicro SuperDoctor® 5 (SD5)
- Super Diagnostics Offline (SDO)
- Supermicro Thin-Agent Service (TAS)
- SuperServer Automation Assistant (SAA) New!
| | Power configurations | - ACPI Power Management
- Power-on mode control for AC power loss recovery
- Power button override mechanism,
| | Security | | Hardware | - Trusted Platform Module (TPM) 2.0
| | Features | - Automatic Firmware Recovery
- Cryptographically Signed Firmware
- Runtime BMC Protections
- Secure Boot
- Secure Firmware Updates
- Supply Chain Security: Remote Attestation
- System Lockdown
| | PC Health Monitoring | | CPU | - Monitors for CPU Cores, Chipset Voltages, Memory
| | FAN | - Fans with tachometer monitoring
- Pulse Width Modulated (PWM) fan connectors
- Status monitor for speed control
| | Temperature | - Monitoring for CPU and chassis environment
- Thermal Control for fan connectors
| | Voltage | - System temperature, Memory temperature, CPU temperature, 3.3V standby, +5V standby, +5V, +3.3V, +12V, CPU thermal trip support
|
| | | Chassis | | Form Factor | | | Model | | | Dimensions and Weight | | Height | | | Width | | | Depth | | | Package | - 27.95" (H) x 28.74" (W) x 50.39" (D)
| | Weight | - Gross Weight: 341 lbs (155 kg)
- Net Weight: 293 lbs (133 kg)
| | Available Color | | | Front Panel | | Buttons | - Power On/Off
- UID/ Reset button
| | LED | - HDD activity
- Network activity LEDs
- System information (overheat/UID)
- UID
| | Expansion Slots | | PCI-Express (PCIe) Configuration | - Default
- 8 PCIe 5.0 x16 LP slots
- 2 PCIe 5.0 x16 FHHL slots
- View AOC Options
| | M.2 | - 2 M.2 NVMe slots (M-key 22110)

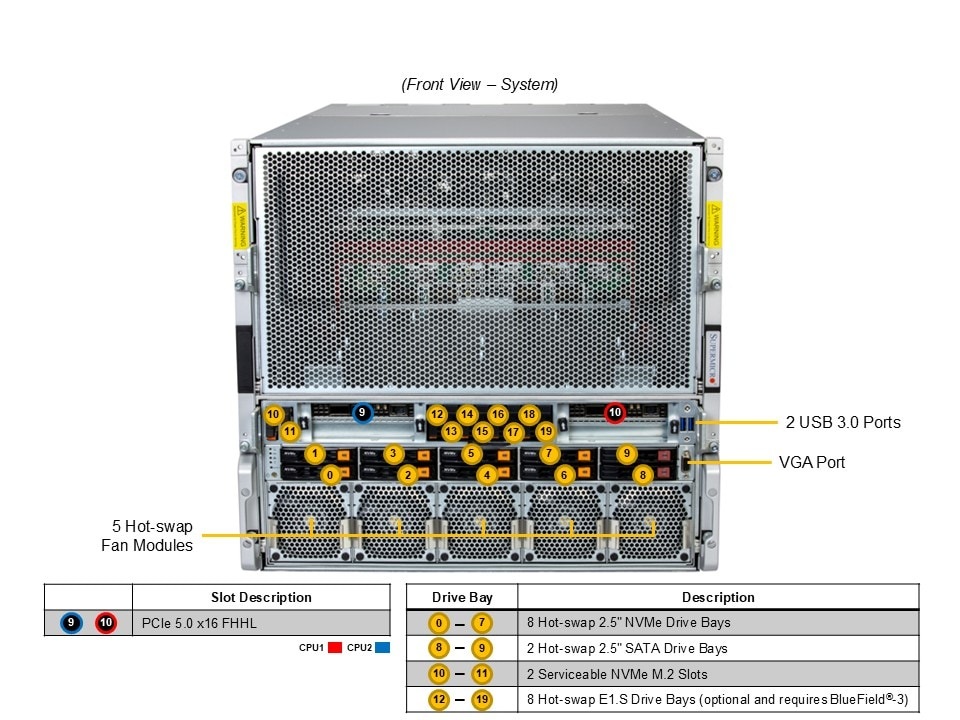

| | Drive Bays / Storage | | Drive Bays Configuration | - Default: Total 10 bays
- 8 front hot-swap 2.5" PCIe 5.0 x4 NVMe drive bays
- 2 front hot-swap 2.5" SATA drive bays
- Option A: Total 8 bays
- 8 front hot-swap E1.S NVMe* drive bays
- (*NVMe support may require additional storage controller and/or cables, please see the optional parts list for details)
- View NVMe Options
- View Drive Options
| | M.2 | - 2 M.2 NVMe slots (M-key)
- View M.2 Options
| | System Cooling | | Fans | - Up to 19x 8cm heavy duty fans with optimal fan speed control

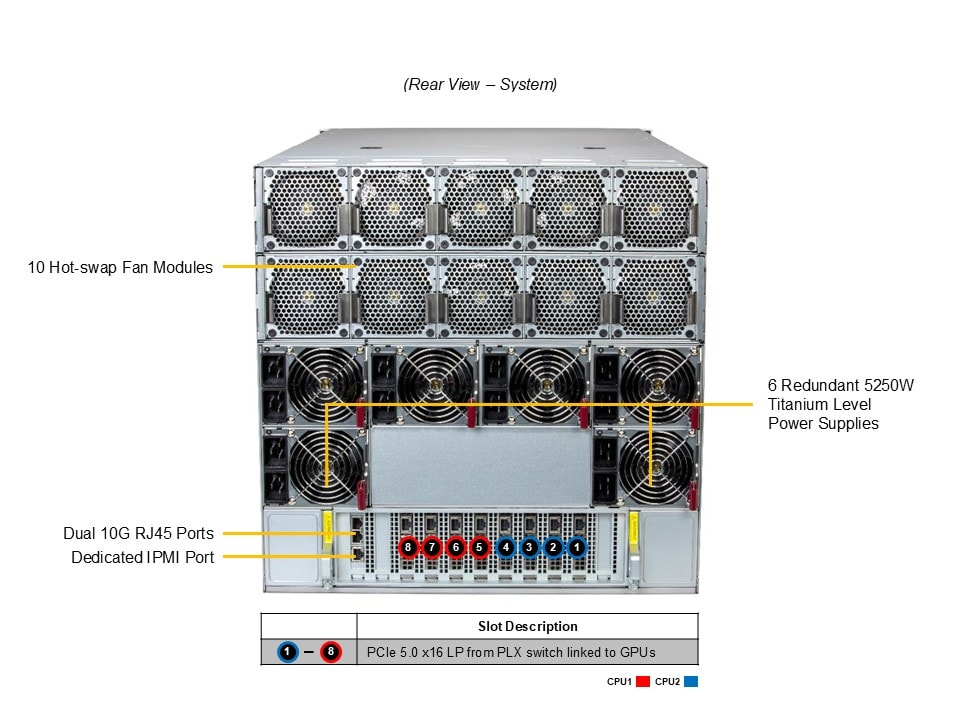

| | Air Shroud | | | Power Supply | | | 6x 5250W Redundant (3 + 3) Titanium Level (96%) power supplies | | Dimension (WxHxL) | 106.5 x 82.1 x 245.3 mm | | Input | 5250W: 200-240Vac / 50-60Hz | | +12V | Max: 125A / Min: 0A (200Vac-240Vac) | | 12V SB | Max: 4A / Min: 0A | | Output Type | Backplanes (gold finger) | | Certification | Titanium Level
[ Test Report ] | | Operating Environment | | Environmental Spec. | - Operating Temperature: 10°C to 35°C (50°F to 95°F)
- Non-operating Temperature: -40°C to 60°C (-40°F to 140°F)
- Operating Relative Humidity: 8% to 90% (non-condensing)
- Non-operating Relative Humidity: 5% to 95% (non-condensing)
|
|
For detailed specifications, options, and compatibility, please refer to the latest official Supermicro documentation and the actual quotes/specifications from Autech.

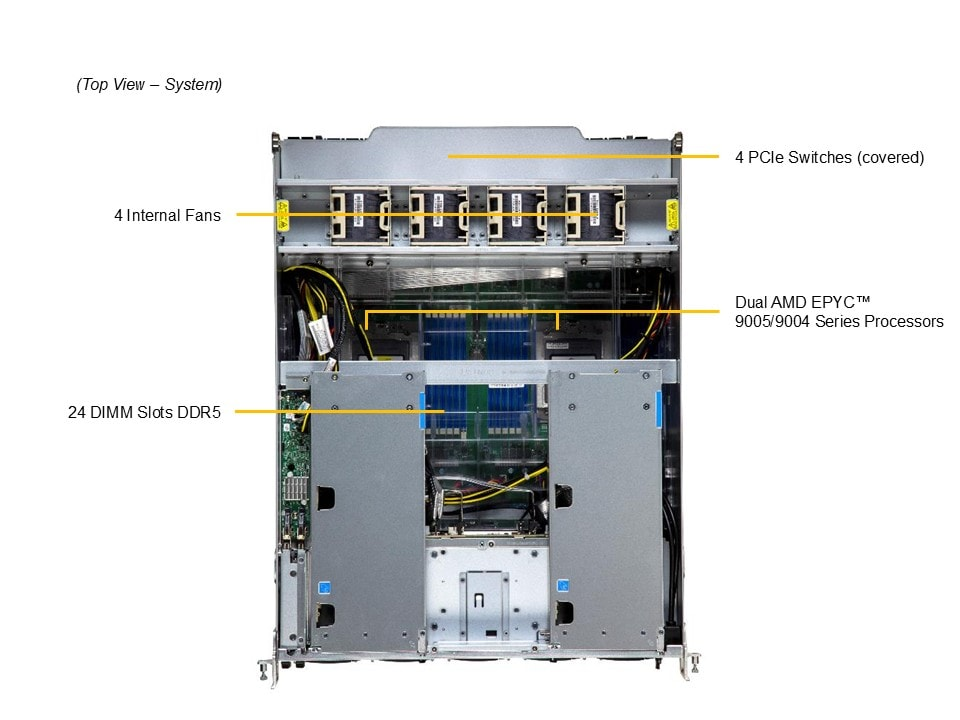

- Dual AMD EPYC™ 9005/9004 Series Processors
- Total of 8 onboard SXM GPU accelerator cards (Air-cooled)
- Supports up to 24 DIMM slots, 6400 MT/s 6TB DDR5 memory (1DPC only)
(Please check System Memory Section for detail)
- 8 PCIe 5.0 x16 LP + 2 PCIe 5.0 x16 FHHL slots
Dual 10G NIC (X710), 1 VGA, 2 USB 3.0, and 1 Dedicated IPMI

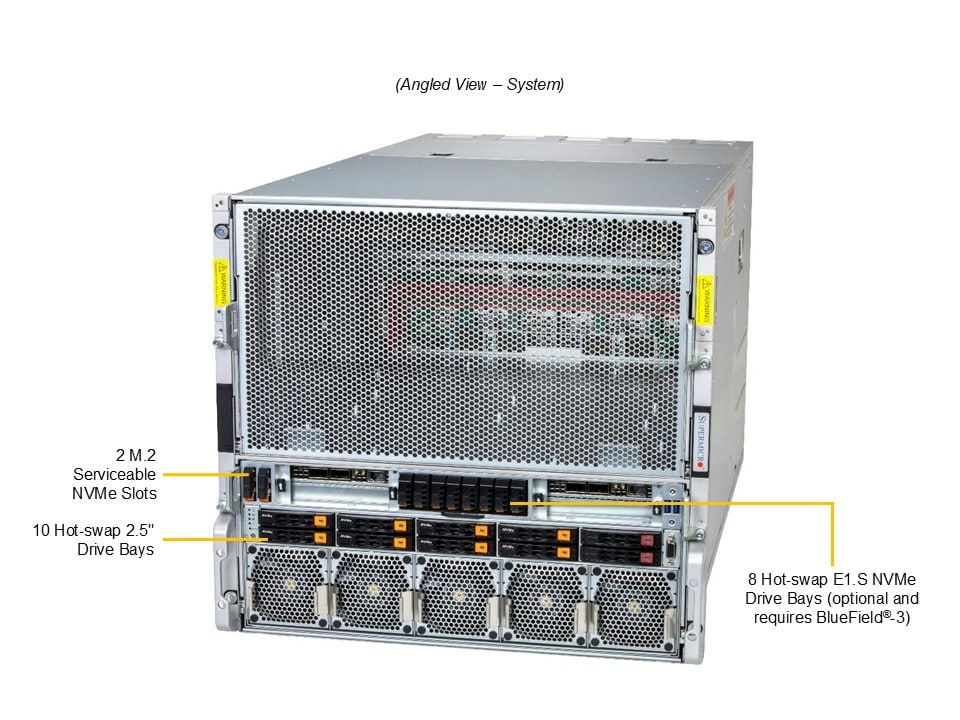

- 8 front hot-swap 2.5" NVMe + 2 hot-swap 2.5" SATA drive bays
8 E1.S drive bays (optional- requires BF3)
Dual Serviceable M.2 slots with RAID
- Total of 6x 5250W (3+3)Titanium Level redundant power supplies
(Power supply full redundancy based on configuration and application load)
- Scientific Research
- AI/Deep Learning Training
- Healthcare
- Conversational AI
- Drug Discovery
- Finance & Economics
- High Performance Computing
- Industrial Automation
- Data center
- Business Intelligence & Analytics
- Climate and Weather Modeling
