LPS350 Series
The LPS350 series of enclosed AC-DC power supplies comprises four models, providing standard voltages of 5 V, 12 V, 15 V or 24 V. All four models also provide 5 V standby and 12 V fan outputs.
Model :
lps350-series

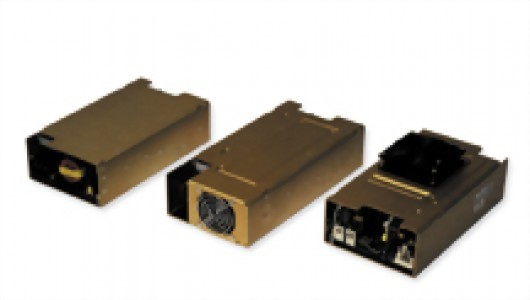

They accept a universal input of 85–264 Vac or 120–300 Vdc. Features include single wire current sharing, remote sense and remote inhibit, plus remote power fail and DC power good indication. Enclosed LPS350 power supplies can be specified with end or top mounted fans and can deliver up to 350 watts of output power. Versions without a fan are available for applications which provide an alternative means of cooling.
-
Total Max Power:
350 W -
Total Max Current:
70 A -
Input Voltage:
85 V to 264 V -
Output Voltage:
3 V to 48 V -
Outputs:
Single -
Size (L x W x H):
9.000" x 5.000" x 2.500" -
Warranty:
2 years -
Operating Temperature:
0 to +70°C
- Built-in EMI filter
- Low output ripple
- Supervisory output 5 V and 12 V
- Overvoltage protection
- DC power good
- Single wire current sharing
- Cover -C
- 130 KHz switching frequency
- Optional with fan cover -CF
- Optional end-mounted fan - CEF
- Power fail and remote inhibit
- Remote sense
- Active power factor correction
- Thermal overload protection
- IEC EN6100-3-2 compliance
- Overload protection
