WR302G Industrial 4G/ LTE Router

Industrial Secure Wireless Router, 2GbE+2COM, Wi-Fi

Model : wr302g

Q'ty :

Innovative industrial secure router WR302G is designed for IIoT applications. Two RS232/422/485 ports are able to connect to local serial devices. The USB design helps easy field installation. The SD card can store application programs or diagnostic log file. The support of OpenVPN and IPsec provides security to the gateway.

► WoMaster's industrial secured and rugged LTE router for IIoT WR302G, WR312G, WR322G Series

Specifications
Technology
	IEEE 802.11ac wireless local area network (WLAN), Backward support 802.11n/g/a/b Wireless LAN
	IEEE 802.3 10Base-T Ethernet
	IEEE 802.3u 100Base-TX Fast Ethernet
	IEEE 802.3ab 1000Base-T Gigabit Ethernet copper
	IEEE 802.1D-2004 Rapid Spanning Tree Protocol (RSTP)
	IEEE 802.1Q for VLAN
Interface
Ethernet Port	2 x 10/100/1000MBase-T RJ45, Auto-Negotiation, Auto-MDI/MDIX
System LED	1 x PWR: Green On 1 x SYS: Ready: Green On, Firmware Updating: Green Blinking 1 x DO: Red On 2 x Ethernet Ports: Link: Green On, Activity: Green Blinking 2 x Serial Ports (Serial 1/2, by model): Activity: Green Blinking
USB	1 x USB for Configuration/Firmware Update
Reset	System Reset(2~6 Seconds) / Default Settings Reset (over 7 Seconds)
Micro SD	(Only for E Series) 1 x for field diagnostic data logging
Serial	Up to 2 x RS232/422/485, DB9
Power Input, Digital Output	6-Pin Removable Terminal Block Connector 4 Pin for Redundant Power 2 Pin for DO (Relay Alarm) DO: Dry Relay Output with 1A /24V DC
Software
Network Protocols	TCP/IP, UDP, DHCP, Telnet, DNS, SNMP, HTTP, HTTPS, SMTP,NTP,ARP, ICMP,DDNS
Management Interface	CGI WebGUI, Command Line Interface (CLI), IPv4/IPv6, Telnet, SNMP v1/v2c/v3, DDNS, DHCP server/client, DHCP Relay, TFTP, System Log, SMTP, ARP response over 802.2 LLC SNAP, Proxy ARP, DNS (client/proxy), PPPOE
Filter	IEEE802.1Q VLAN
User Management	Radius client, TACACS+, local database
Serial communication	TCP Server/TCP Cleint/UDP mode, TCP Alive check, Force TX Delimiter.Timeout/interval/length, Long Distance Termination
Time Management	NTP, SNTP
IoT	AWS Agent, Azure Agent, ThingMaster Agent
Network Management	IPv4, SNMP v1/v2c/v3/Trap, MIB II, Entity MIB, DHCP server/client, DHCP relay*, TFTP, ARP response over 802.2 LLC SNAP, Proxy ARP, DNS (client/proxy)
Traffic Management	Flow Control*, Traffic shaping
WAN / Routing / NAT/ Firewall / VPN	Routing: RIPv2, OSPFv2, VRRPv2 NAT: 1-1 NAT, NAPT(SNAT/DNAT), Port Forwarding, DMZ Firewall: Stateful Inspection firewall, IP/Port Filter VPN: IPSec, OpenVPN (Multipoint VPN), L2TP, GRE, PPTP, MGRE*
Security	IEEE 802.1X/RADIUS, TLS v1.2, HTTPs/SSH, First login password management WLAN AP Security: Share Key, WPA/WPA2-PSK(Pre-Shared Key), WPA/WPA2 Enterprise Encryption: 64/128-bit WEP(Wired Equivalent Privacy), TKIP(WPA-PSK), AES(WPA2-PSK), MAC Filter
Advanced Security	TACACS+, Multi-user authentication
Redundancy Protocol	Rapid Spanning Tree Protocol (RSTP)
IIoT Industrial Protocol	Modbus RTU, MQTT, RESTful API
Private Cloud	ThingsMaster, ThingsMaster OTA
Public Cloud	AWS Agent, Azure Agent
Location	Google map, Baidu map
MIB	MIB-II, Entity MIB, WoMaster Private MIB
Utility	ViewMaster, NetMaster, Ping, Traceroute, IP SLA*
Serial communication	TCP Server/TCP Client/UDP mode, TCP Alive check, Force TX Delimiter/Timeout/interval/length, Long Distance Termination
Power Requirement
Input Voltage	24V(12~48VDC)
Reverse Polarity Protect	Yes
Input Current	0.26A@24V
Power Consumption	Max 6.24W@24VDC full traffic, suggest to reserve 15% tolerance
Mechanical
Installation	DIN Rail
Enclosure Material	Steel Metal with Aluminum
Dimension	50(W) x 151(H) x 120(D) mm / without DIN Rail Clip
Ingress Protection	IP30
Weight	≒660g without package
Environmental
Operating Temperature & Humidity	-40°C~75°C , 5%~95% Non-Condensing
Storage Temperature	-40°C~85°C
MTBF	>200,000 hours
Warranty	5 years
Approval
Safety	EN60950-1 Compliance EN62368-1:2014/AC:2017 Compliance IEC 60255-27:2013 Compliance
EMC	EN61000-6-2/EN61000-6-4 Compliance
EMI	CISPR 22, FCC part 15B Class A Compliance
EMS	EN61000-4-2 ESD, EN61000-4-3 RS, EN61000-4-4 EFT, EN61000-4-5, EN61000-4-6 CS, EN61000-4-8 Magnetic Field, EN61000-4-12/16/17/18/29
Radio	RED Compliance Safety: EN 62368-1 EN 50385/EN62311 MPE assessment EN 301 489-1/17/19/52, EN 55032/55024 EN 300 328/EN 301 893 EN 301 908-1 FCC Part 15B
Railway	EN50121-4
Environmental	EN60870-2-2:1998 Compliance IEC 60068-2-21: 2006 Compliance

Serial Communication & High Throughput Data Switching
・Dual serial ports with RS232/422/485 full functions for
    serial over LTE/Wi-Fi/Ethernet data switching
・2-port Gigabit Ethernet supports routing and bridging
    mode
・Close to wire-speed NAT routing performance
・Hardware NAT for CPU utilization saving

Dynamic Routing with Redundancy Protection
・RIPv1&v2, OSPFv1&v2 for intra-domain routing within
   an autonomous system
・Efficient unicast/multicast* static routing
・VRRP guarantees sustainable routing in a single point
   of failure

Enhanced Cyber Security & Redundancy
・Firewall for inbound/outbound traffic
・OpenVPN (server/client), IPsec for secure remote
    connection
・L2TP with PPP, PAP, CHAP(LCP, IPCP)
・GRE tunnel
・HTTPs/SSH secure login
・TACACS+ multi-user authentication for privileged
    user management
・RSTP spanning tree protocol

Rugged Design for Wayside Surveillance, ITS Application
・EN50121-4 for Industrial IoT, ITS, Railway trackside application
・Effective heat dissipation design for operating in -40~70oC environments
・Railway EMC: EN50121-4 compliance
・CE Marking

・IEC61000-6-2/IEC61000-6-4 heavy industrial

Industrial IoT LAN & Cloud Management
・Embedded Amazon AWS & Microsoft Azure cloud service
・Various configuration paths, including CGI WebGUI,
     CLI, SNMP and RMON*
・1:1 NAT, port forwarding and NAPT for local traffic
    protection
・ARP response over 802.2 LLC SNAP
・Support SNMPv3 and entity-MIB (RFC4133), MIB II
   (RFC1213)
・NTP v3 time management
・WoMaster Software Utilities
    -NetMaster: Network Management System with VLAN visualization* and ERPS* Ring
    -ViewMaster: Configuration Management
    -ThingMaster: Interactive monitoring dashboard to collect data from field devices
    -ThingMaster OTA: Realtime map showing the status, signal strength, location of the remote devices, over-the-air batch device registration, configuration and firmware upgrade*, alerts on critical events to prevent downtime
・Support MQTT protocol, ready to use AWS/Azure and Private Cloud Agent for cloud management
・LLDP* for topology control, auto-topology drawing
・USB for easy field configuration and firmware update
・ Diagnostic tool includes Ping, TFTP, SNMP Trap, E-mail Alert and System Log

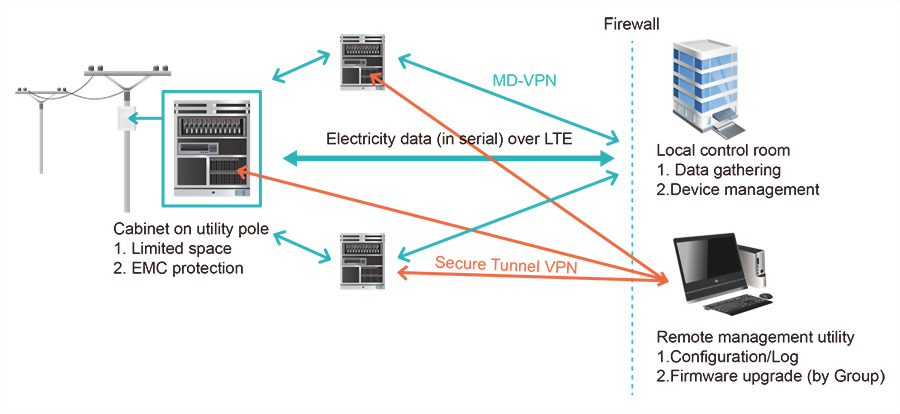

Real time status to improve energy efficiency
RS232/422/485 9-pin full serial functions
Secure control/data channel
- MD-VPN
- IPsec
- OpenVPN

SD Card for persistent log storage
Consistent LTE connectivity & exceptional EMC capability

Ordering Information
Model Name
WR302G	Industrial Secuer Serial Server, 2GbE+2COM, USB, SD
WR312G-WLAN	Industrial Secuer Wireless Router, 2GbE+2COM, USB, SD, 802.11ac/n WLAN
WR312G-LTE-E	Industrial Secuer Cellular Router, 2GbE+2COM, USB, SD, LTE-E, 1SIM, FDD B1/3/5/7/8/20, TDD B38/40/41
WR312G-LTE-CN	Industrial Secuer Cellular Router, 2GbE+2COM, USB, SD, LTE-CN, 1SIM, FDD B1/B3/B5/B8, TDD B38/B39/B40/B41
WR312G-LTE6-E	Industrial Secuer Cellular Router, 2GbE+2COM, USB, SD, LTE-E Cat.6, 1SIM, FDD B1/3/5/7/8/20/28/32, TDD B38/40/41
WR322GR-WLAN+LTE-E	Industrial Secuer Cellular Router, 2GbE+2COM, USB, SD, 802.11ac/n WLAN, LTE-E, GPS, 2SIM, FDD B1/3/5/7/8/20, TDD B38/40/41
WR322GR-WLAN+LTE-CN	Industrial Secuer Cellular Router, 2GbE+2COM, USB, SD, 802.11ac/n WLAN, LTE-CN, GPS, 2SIM, FDD B1/B3/B5/B8, TDD B38/B39/B40/B41
WR322GR-WLAN+LTE6-E	Industrial Secuer Cellular Router, 2GbE+2COM, USB, SD, 802.11ac/n WLAN, LTE-E Cat.6, GPS, 2SIM, FDD B1/3/5/7/8/20/28/32, TDD B38/40/41
WR312G-LTE-E (C Series)	Industrial Secuer Cellular Router, 2GbE+1COM, LTE-E, 2SIM, FDD B1/3/5/7/8/20, TDD B38/40/41
WR312G-LTE-CN (C Series)	Industrial Secuer Cellular Router, 2GbE+1COM, LTE-CN, 2SIM, FDD B1/B3/B5/B8, TDD B38/B39/B40/B41
WR312G-LTE6-E (C Series)	Industrial Secuer Cellular Router, 2GbE+1COM, LTE-E Cat.6, 2SIM, FDD B1/3/5/7/8/20/28/32, TDD B38/40/41
WR322GR-WLAN+LTE-E (C Series)	Industrial Secuer Cellular Router, 2GbE+1COM, 802.11ac/n WLAN, LTE-E, GPS, 2SIM, FDD B1/3/5/7/8/20, TDD B38/40/41
WR322GR-WLAN+LTE-CN (C Series)	Industrial Secuer Cellular Router, 2GbE+1COM, 802.11ac/n WLAN, LTE-CN, GPS, 2SIM, FDD B1/B3/B5/B8, TDD B38/B39/B40/B41
WR322GR-WLAN+LTE6-E (C Series)	Industrial Secuer Cellular Router, 2GbE+1COM, 802.11ac/n WLAN, LTE-E Cat.6, GPS, 2SIM, FDD B1/3/5/7/8/20/28/32, TDD B38/40/41
WR312G-LTE-E (D Series)	Industrial Secuer Cellular Router, 2GbE+2COM, USB, LTE-E, 2SIM, FDD B1/3/5/7/8/20, TDD B38/40/41
WR312G-LTE-CN (D Series)	Industrial Secuer Cellular Router, 2GbE+2COM, USB, LTE-CN, 2SIM, FDD B1/B3/B5/B8, TDD B38/B39/B40/B41
WR312G-LTE6-E (D Series)	Industrial Secuer Cellular Router, 2GbE+2COM, USB, LTE-E Cat.6, 2SIM, FDD B1/3/5/7/8/20/28/32, TDD B38/40/41
WR312G-LTE-E (E Series)	Industrial Secuer Cellular Router, 2GbE+2COM, USB, SD, LTE-E, 1SIM, FDD B1/3/5/7/8/20, TDD B38/40/41
WR312G-LTE-CN (E Series)	Industrial Secuer Cellular Router, 2GbE+2COM, USB, SD, LTE-CN, 1SIM, FDD B1/B3/B5/B8, TDD B38/B39/B40/B41
	Embedded SIM by request LTE-AU/LTE-U Cat.4 by request LTE-AP/LTE-U Cat.6 by request Dual LTE concurrent by request *GPS support for WR312G-LTE series by request
	Package List
	1 x Product Unit
	1 x 6-pin Removable Terminal Connector
	1 x Atached Din Clip
	1 x Quick Installation Guide
