Trek 677B High Voltage Amplifier

High Voltage Power Supply and Amplifier, Output Voltage 0 to ±2 kV DC or Peak AC

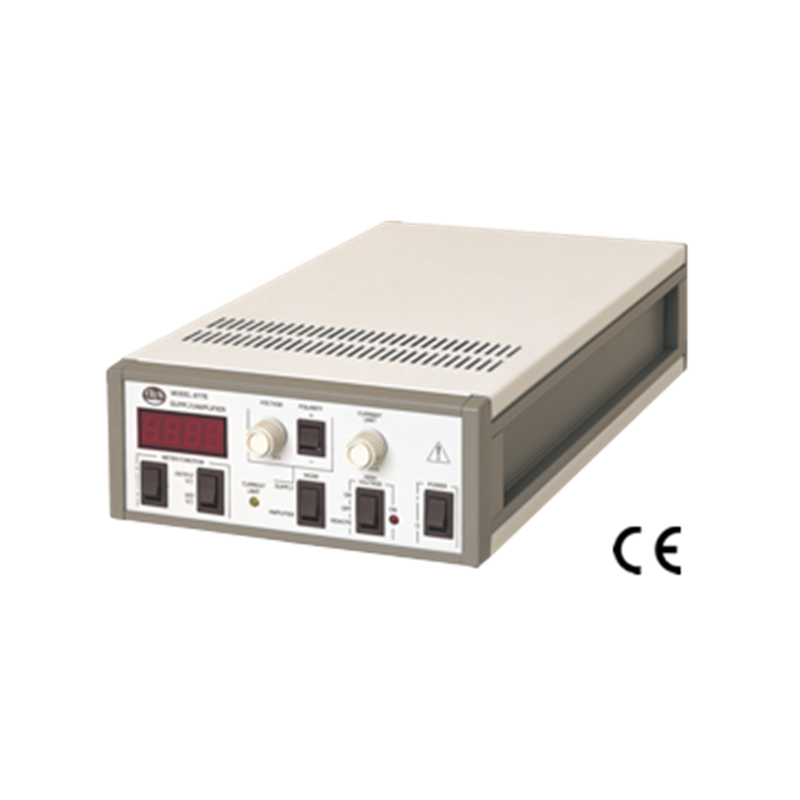

Advanced Energy’s Trek 677B is a high voltage power amplifier and supply designed to provide precise output voltage control.

-Output Voltage: 0 to ±2 kV DC or peak AC
-Output Current: 0 to ±5 mA DC or peak AC
-Slew Rate: Greater than 15 V/µs
-Large Signal Bandwidth: DC to greater than 1.2 kHz (1% Distortion)
-Gain: 200 V/V

Model : Trek 677B

Q'ty :

The Trek® 677B can be configured as a high voltage non-inverting amplifier with a fixed gain or as a high voltage power supply. When configured as a high voltage power supply, the front panel controls are used to command the exact output voltage or current.

The Trek 677B features an all-solid-state design for expansive bandwidth, high slew rates, and low-noise operation. The four-quadrant, active output sinks or sources the current into reactive or resistive loads throughout the output voltage range. This is essential to achieve the accurate output responses and high slew rates demanded by a variety of loads including highly capacitive or reactive loads.

Benefits

Operate as a high voltage amplifier (non-inverting configuration) or as a high voltage power supply
Drive capacitive loads via a four-quadrant output
Use in electrostatic beam deflection, electrooptic modulation, electrophoresis research, piezoelectric poling and driving, electrostatic chucks, and various other applications
Enable high accuracy thanks to a closed-loop system
Benefit from low-noise operation and an all-solid-state design

Dimensions: 110 mm H x 223 mm W x 432 mm D (4.3" H x 8.7" W x 17" D).

Weight: 4 kg (9 lb).

Mode Switch: Selects either Amplifier or Supply operation

HV Connector: Alden High Voltage Connector BNC Connectors Voltage monitor, Current Monitor, Digital Enable, Amplifier Input

Amplifier Input: 3-pin connector may be configured for inverting, noninverting or differential amplification

Temperature: 0°C to 40°C (32°F to 104°F)

Relative Humidity: To 85%, noncondensing

Altitude: To 2000 meters (6561.68 ft.)
