DS Series also supports maximum 2 PCI/PCIe expansion slots with the different combination of interfaces for expanding all kinds of application add-on cards. DS Series is truly a rugged computing system with features of wide operating temperature, wide range DC power input (from 9V to 48V), high tolerance of shock and vibration and high-standard industrial protections.

Product	Model Name	CPU	Chipset	I/O	Expansion

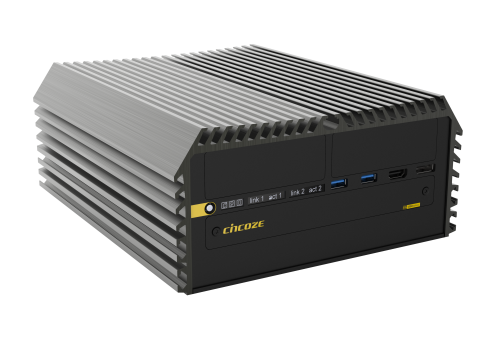

NEW	DS-1300	10th Gen. Intel® Xeon® and Core™ i9/i7/i5/i3	Intel® W480E	2x LAN 6x USB 3.2 2x USB 2.0 2x COM 1x PS/2 1x HDMI 2x DisplayPort 1x VGA	3 x Full-size Mini-PCIe Socket 2 x SIM Socket 4 x CMI Interface 1 x CFM IGN Interface

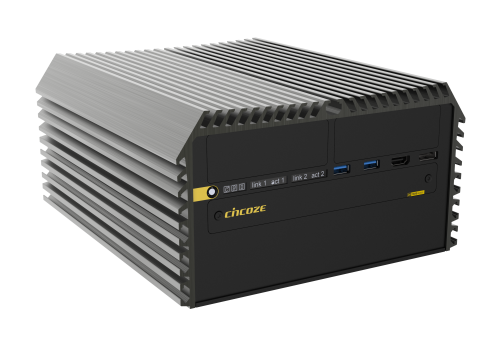

NEW	DS-1301	10th Gen. Intel® Xeon® and Core™ i9/i7/i5/i3	Intel® W480E	2x LAN 6x USB 3.2 2x USB 2.0 2x COM 1x PS/2 1x HDMI 2x DisplayPort 1x VGA	3 x Full-size Mini-PCIe Socket 2 x SIM Socket 4 x CMI Interface 1 x CFM IGN Interface 1 x PCI/PCIe slot

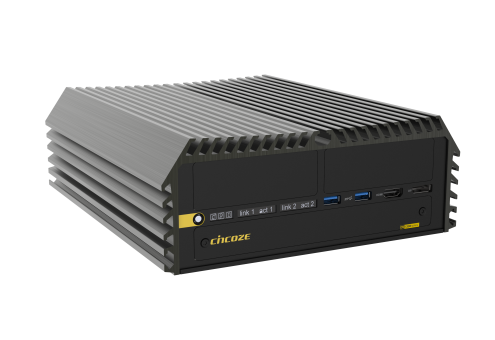

NEW	DS-1302	10th Gen. Intel® Xeon® and Core™ i9/i7/i5/i3	Intel® W480E	2x LAN 6x USB 3.2 2x USB 2.0 2x COM 1x PS/2 1x HDMI 2x DisplayPort 1x VGA	3 x Full-size Mini-PCIe Socket 2 x SIM Socket 4 x CMI Interface 1 x CFM IGN Interface 2 x PCI/PCIe slot

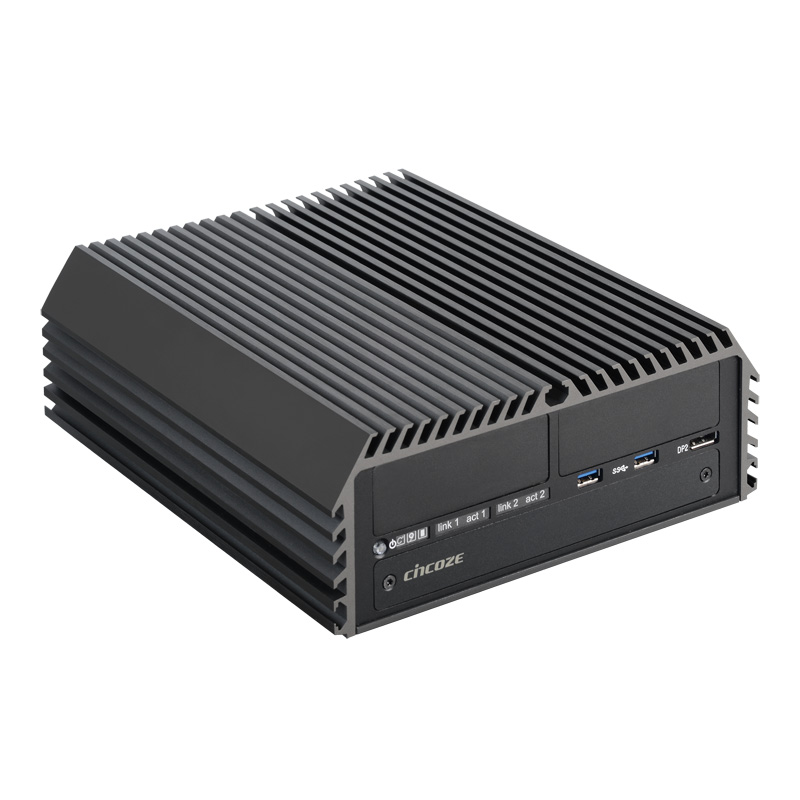

	DS-1200	9/8th Gen. Intel® Core i3 / i5 / i7 / Pentium / Celeron	Intel® Q370	2x LAN, 2x USB 3.1, 4x USB 3.0, 2x USB 2.0, 2x COM, 1x DVI-I, 2x DisplayPort	1x CFM Interface, 4x CMI Interfaces, 3x Full-size Mini-PCIe Sockets, 4x Universal I/O Brackets, 2x SIM Sockets, 2x Antenna Holes

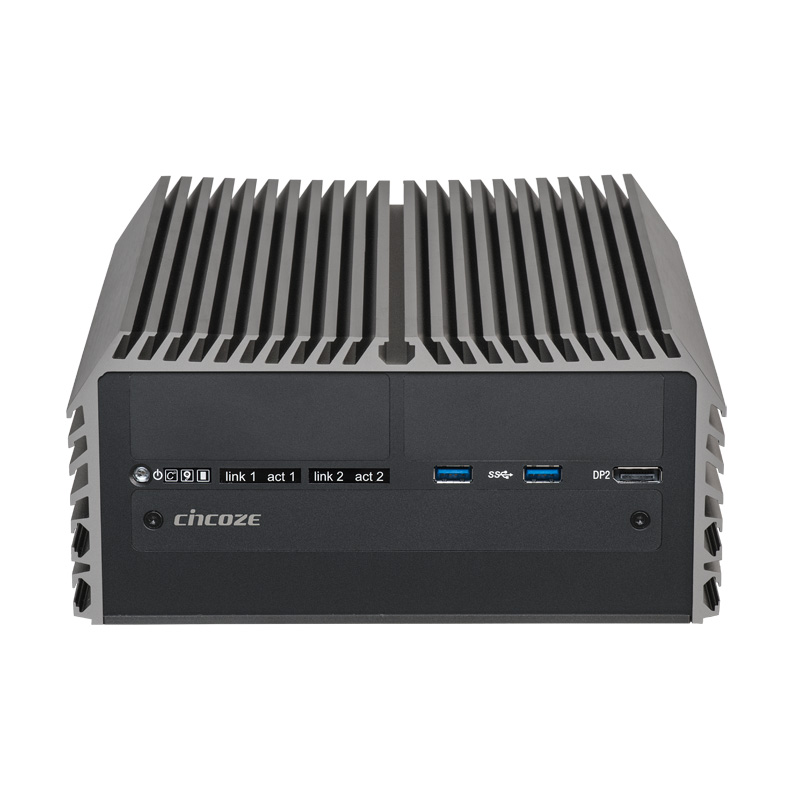

	DS-1201	9/8th Gen. Intel® Core i3 / i5 / i7 / Pentium / Celeron	Intel® Q370	2x LAN, 2x USB 3.1, 4x USB 3.0, 2x USB 2.0, 2x COM, 1x DVI-I, 2x DisplayPort	1x CFM Interface, 4x CMI Interfaces, 1x PCI/PCIe slot, 3x Full-size Mini-PCIe Sockets, 4x Universal I/O Brackets, 2x SIM Sockets, 2x Antenna Holes

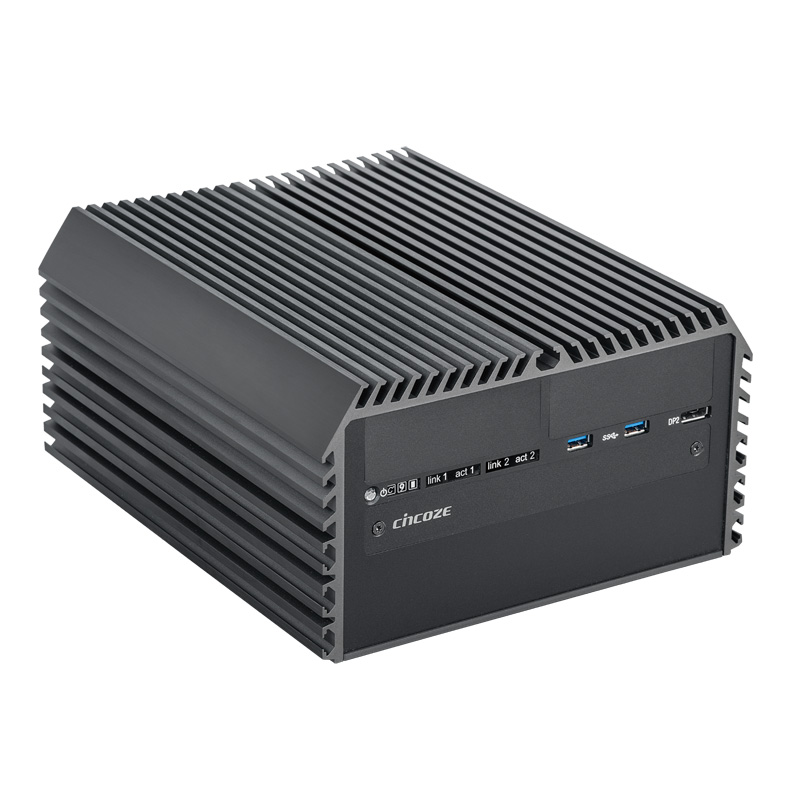

	DS-1202	9/8th Gen. Intel® Core i3 / i5 / i7 / Pentium / Celeron	Intel® Q370	2x LAN, 2x USB 3.1, 4x USB 3.0, 2x USB 2.0, 2x COM, 1x DVI-I, 2x DisplayPort	1x CFM Interface, 4x CMI Interfaces, 2x PCI/PCIe slot, 3x Full-size Mini-PCIe Sockets, 5x Universal I/O Brackets, 2x SIM Sockets, 2x Antenna Holes
	DS-1100	7/6th Gen. Intel® Core i3 / i5 / i7	Intel® Q170	2x LAN, 8x USB, 2x COM, 1x DVI-I, 2x DisplayPort	1x CFM Interface, 2x CMI Interfaces, 3x Full-size Mini-PCIe Sockets, 2x Universal I/O Brackets, 1x SIM Socket, 2x Antenna Holes
	DS-1101	7/6th Gen. Intel® Core i3 / i5 / i7	Intel® Q170	2x LAN, 8x USB, 2x COM, 1x DVI-I, 2x DisplayPort	1x CFM Interface, 2x CMI Interfaces, 1xPCI/PCIe slot, 3x Full-size Mini-PCIe Sockets, 2x Universal I/O Brackets, 1x SIM Socket, 2x Antenna Holes
	DS-1102	7/6th Gen. Intel® Core i3 / i5 / i7	Intel® Q170	2x LAN, 8x USB, 2x COM, 1x DVI-I, 2x DisplayPort	1x CFM Interface, 2x CMI Interfaces, 2xPCI/PCIe slot, 3x Full-size Mini-PCIe Sockets, 3x Universal I/O Brackets, 1x SIM Socket, 2x Antenna Holes
