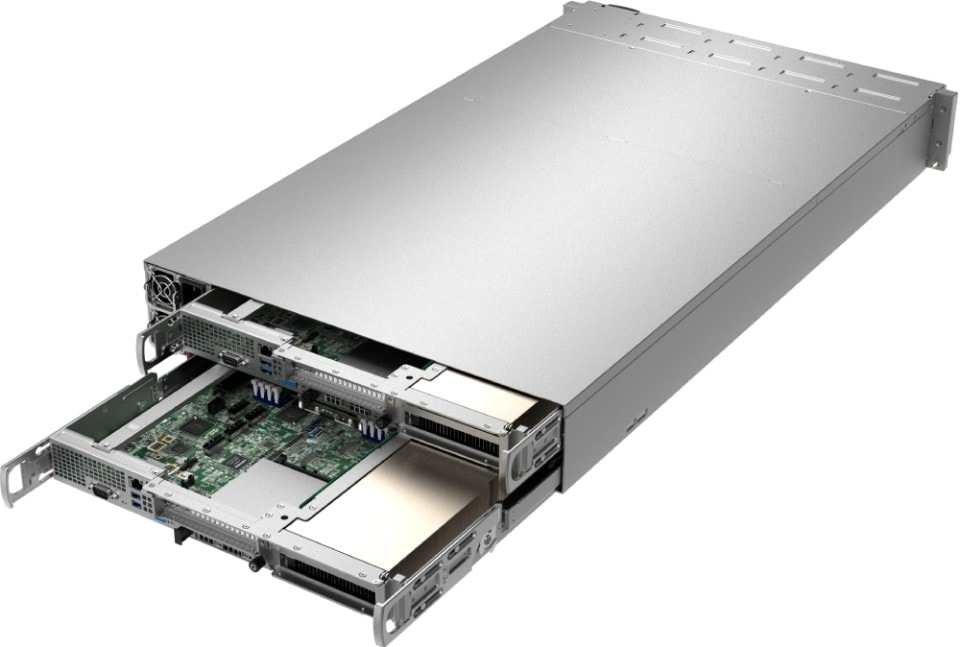

AS -2114GT-DNR

2U 2-Node System with UP AMD and Up to 3 GPUs per Node

Model : AS -2114GT-DNR

Q'ty :

Product SKUs
AS -2114GT-DNR
Motherboard
Super H12SSG-AN6
Processor (per Node)
CPU	Single Socket SP3 AMD EPYC™ 7002/7003 Series Processors
Note	Supports up to 280W TDP CPUs (Air Cooled)
GPU (per Node)
Max GPU Count	Up to 2 double-width or 4 single-width GPUs
Supported GPU	NVIDIA PCIe: A10, A100, A16, A2, A40, L40, RTX A4000, RTX A4500, RTX A6000 AMD PCIe: Instinct™ MI100, Instinct™ MI210 View GPU Options
Certification
System Memory (per Node)
Memory	Slot Count: 8 DIMM slots Max Memory (1DPC): Up to 2TB 3200MT/s ECC DDR4 RDIMM/LRDIMM View Memory Options
Memory Voltage	1.2V
On-Board Devices (per Node)
SATA	SATA (6Gbps)
Network Connectivity	Ethernet InfiniBand View AIOM Options View AOC Options
IPMI	Support for Intelligent Platform Management Interface v.2.0 IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
Input / Output (per Node)
LAN	1 RJ45 1 GbE Dedicated BMC LAN port
USB	2 USB 3.0 ports(rear)
Video	1 VGA port(Rear)
TPM	1 TPM header
System BIOS
BIOS Type	AMI 256MB SPI Flash ROM
Management
Software	Supermicro Server Manager (SSM) Supermicro Power Manager (SPM) Supermicro Update Manager (SUM) Supermicro SuperDoctor® 5 (SD5) KVM with dedicated LAN IPMI 2.0 Watch Dog
Security
Hardware	Trusted Platform Module (TPM) 2.0 Silicon Root of Trust (RoT) – NIST 800-193 Compliant
Features	Cryptographically Signed Firmware Secure Boot Secure Firmware Updates Automatic Firmware Recovery System Lockdown
PC Health Monitoring
CPU	4+1 Phase-switching voltage regulator Monitors for CPU Cores, Chipset Voltages, Memory
FAN	Fans with tachometer monitoring Pulse Width Modulated (PWM) fan connectors Status monitor for speed control
Temperature	Monitoring for CPU and chassis environment Thermal Control for fan connectors

Chassis
Form Factor	2U Rackmount
Model	CSE-227GTS-R2K63P
Dimensions and Weight
Height	3.47" (88 mm)
Width	17.6" (447 mm)

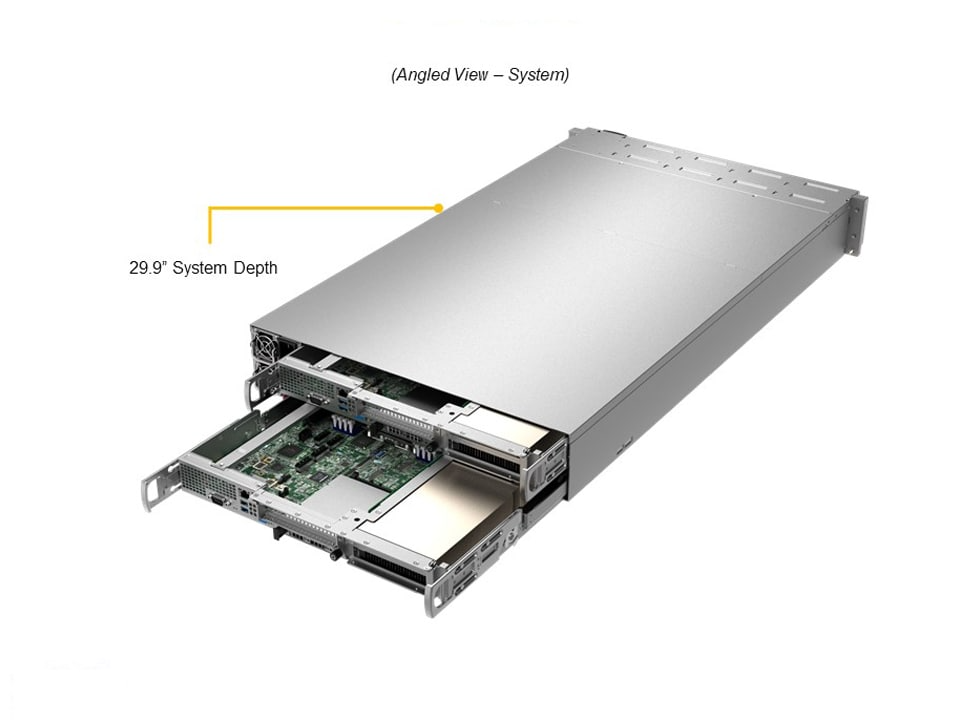

Depth	29.9" (760 mm)
Package	9.44" (H) x 23.62" (W) x 43.3" (D)
Weight	Gross Weight: 60 lbs (27.21 kg) Net Weight: 55 lbs (24.94 kg)
Available Color	Black Front & Silver Body
Front Panel
Buttons	Power On/Off button System UID button/LED
LED	Hard drive activity LED Information LED as manual description Network activity LEDs Power status LED
Expansion Slots (per Node)
PCI-Express (PCIe) Configuration	Default 4 PCIe 4.0 x16 INTERNAL slots 1 PCIe 4.0 x16 FHHL slot 1 PCIe 4.0 x16 FHFL slot 1 PCIe 4.0 x8 AIOM slot (OCP 3.0 compatible) View AOC Options
Drive Bays / Storage (per Node)
Drive Bays Configuration	Default: Total 2 bays 2 front hot-swap 2.5" NVMe drive bays View NVMe Options View Drive Options
System Cooling
Fans	Up to 4 Hot-swap heavy duty PWM 80mm Fan(s)
Power Supply
	2x 2600W Redundant (1 + 1) Titanium Level (96%) power supplies
Dimension (WxHxL)	73.5 x 40 x 265 mm
Input	2600W: 200-240Vac 2600W: 200-240Vdc (For CQC Only) 2600W: 200-240Vac / 50-60Hz 2600W: 200-240Vdc / 50-60Hz (for CQC only)
+12V	Max: 216A / Min: 0A (11.4Vdc-12.6Vdc) (12V output) Max: 216A / Min: 0A (200Vac-240Vac)
12V SB	Max: 3.5A
Output Type	Backplanes (gold finger)
Operating Environment
ROHS	RoHS Compliant
Environmental Spec.	Operating Temperature: 10°C to 35°C (50°F to 95°F) Non-operating Temperature: -40°C to 60°C (-40°F to 140°F) Operating Relative Humidity: 8% to 90% (Non-Condensing) Non-operating Relative Humidity: 5% to 95% (Non-Condensing)

For detailed specifications, options, and compatibility, please refer to the latest official Supermicro documentation and the actual quotes/specifications from Autech.

Two hot-pluggable systems (nodes) in a 2U form factor. Each node supports the following:

Single AMD EPYC™ 7003/7002 Series Processor
(The latest AMD EPYC™ 7003 Series Processor with AMD 3D V-Cache™ Technology requires BIOS version 2.3 or newer)
2TB Registered ECC DDR4 3200MHz SDRAM in 8 DIMMs
Up to 6 PCIe 4.0 x16 (4 internal + 2 external) slots, 1 PCIe 4.0 x8 AIOM slot
M.2 Interface: 2 PCIe 4.0 x4
M.2 Form Factor: 2280, 22110
M.2 Key: M-key
2 Front hot-swap 2.5" PCIe 4.0 NVMe drive bays
